Discontinued

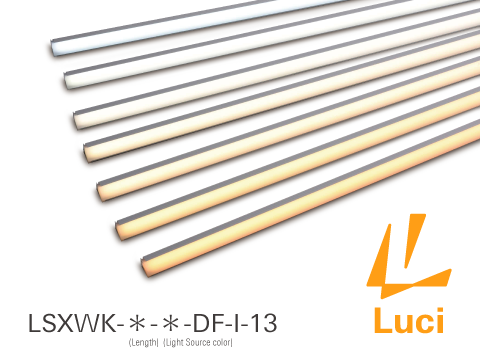

LSXWK

silux wide K

Quarter-circular-shaped homogeneous rigid light
3 different wattages, 10 types of length avalialbe for selection
Ideal for shelf and cove light with tilted light distribution

Specification sheet

LSXWK

silux wide K

Product information
Mounting options
Download
How to Install
Works

Mounting options

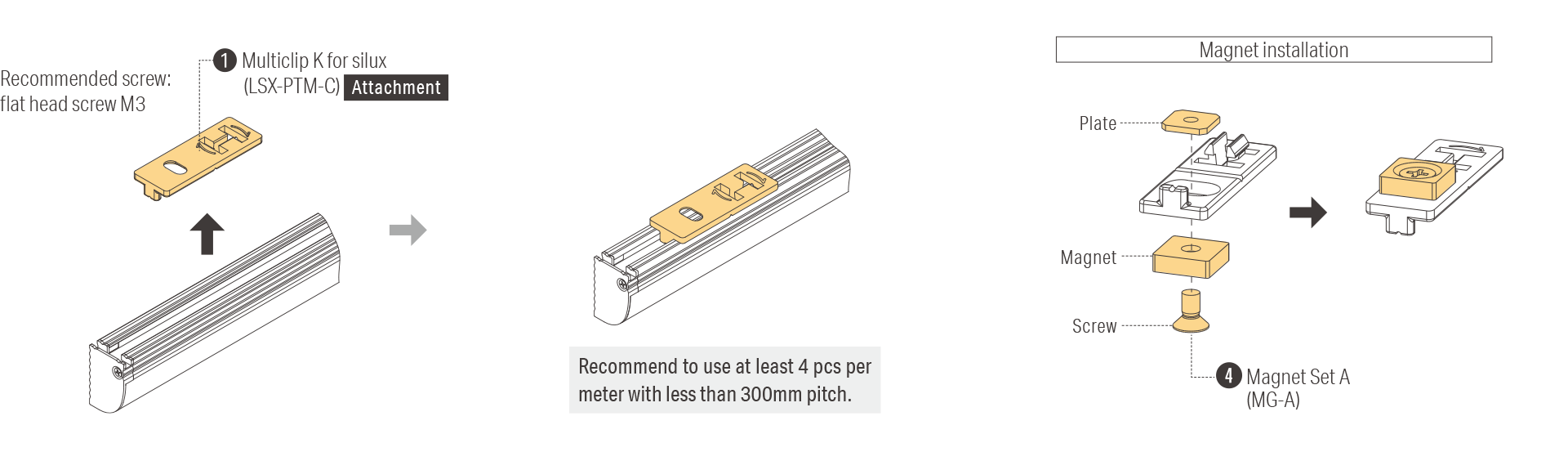

Bottom fixing / Clip
- View How to Install
- Download(DXF)
- 1Multiclip K for silux

  LSX-PTM-C

  Attached with light fixture
  3 pcs for 702mm or shorter
  5 pcs for 823mm or longer

  For extra order 3 pcs/bag
Bottom fixing / Clip + Magnet
- View How to Install
- Download(DXF)
- 1Multiclip K for silux

  LSX-PTM-C

  Attached with light fixture
  3 pcs for 702mm or shorter
  5 pcs for 823mm or longer

  For extra order 3 pcs/bag
- 4Magnet set A

  MG-A

  5 sets/bag

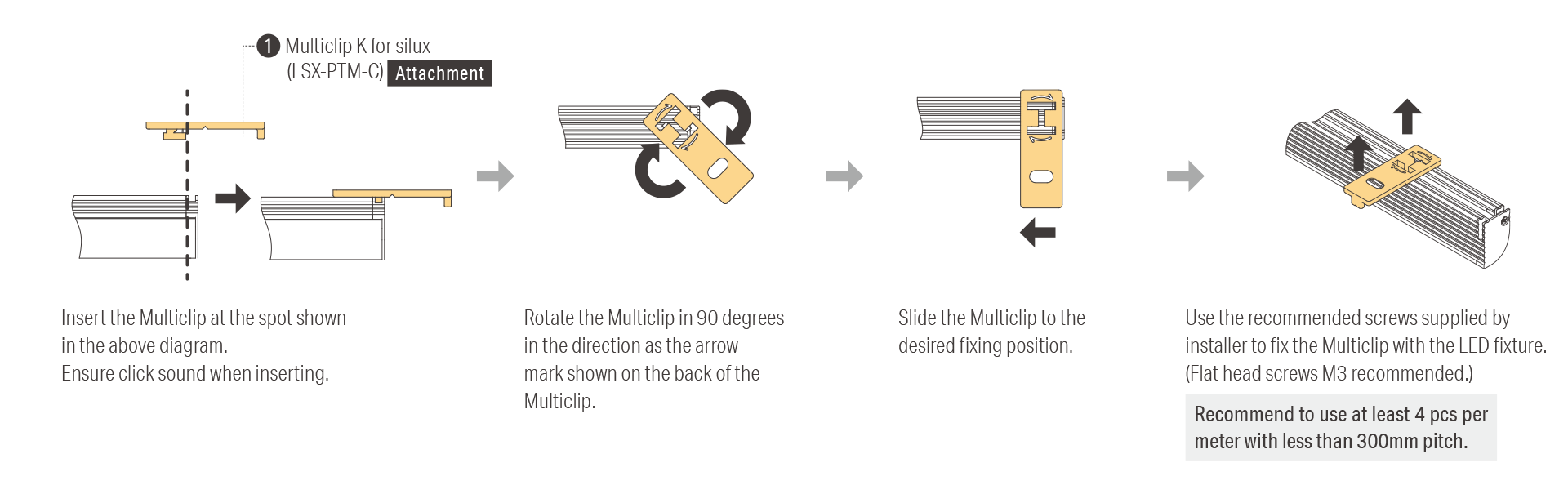

Side fixing / Clip
- View How to Install
- Download(DXF)
- 1Multiclip K for silux

  LSX-PTM-C

  Attached with light fixture
  3 pcs for 702mm or shorter
  5 pcs for 823mm or longer

  For extra order 3 pcs/bag

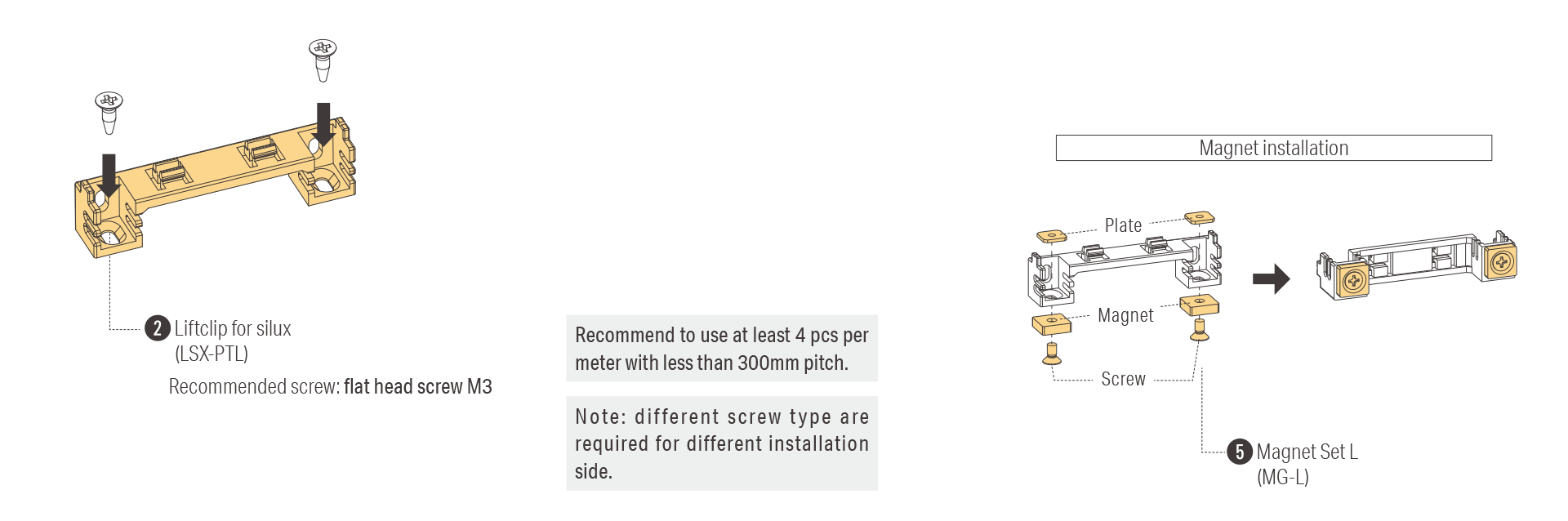

Standard installation direction / Clip
- View How to Install
- Download(DXF)
- 2Lift clip for silux

  LSX-PTL

  2 pcs/bag
  Liftclip is for hiding the connector behind the light fixture
  There are two directions of fixing the liftclip
Standard installation direction / Clip + Magnet
- View How to Install
- Download(DXF)
- 2Lift clip for silux

  LSX-PTL

  2 pcs/bag
  Liftclip is for hiding the connector behind the light fixture
  There are two directions of fixing the liftclip
- 5Magnet set L

  MG-L

  10 sets/bag

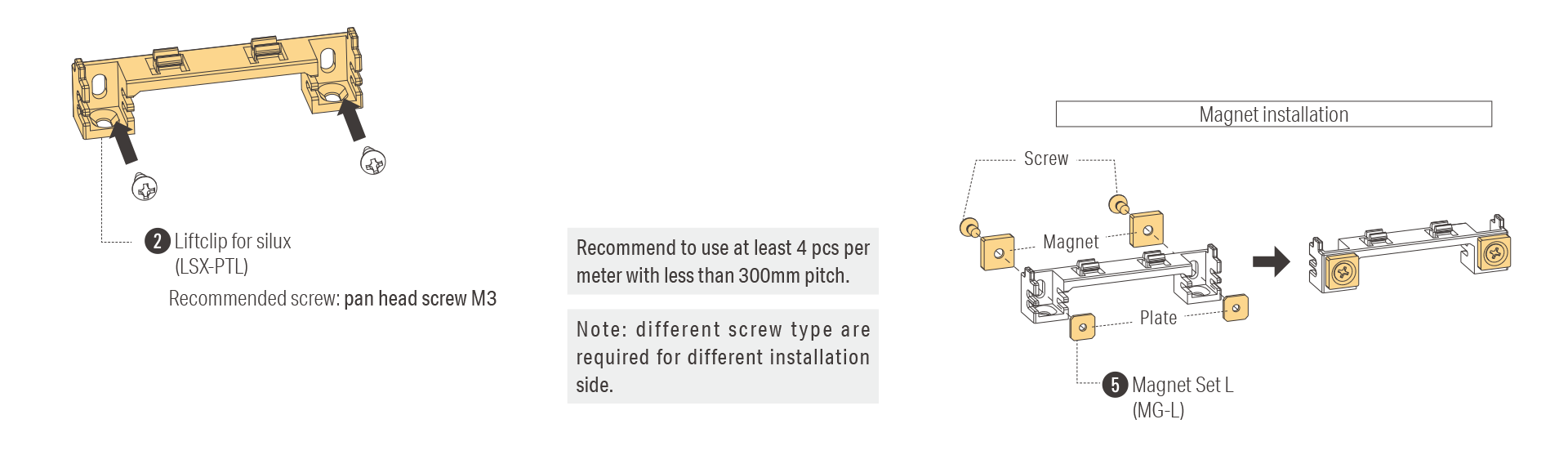

Horizontal installation direction / Clip
- View How to Install
- Download(DXF)
- 2Lift clip for silux

  LSX-PTL

  2 pcs/bag
  Liftclip is for hiding the connector behind the light fixture
  There are two directions of fixing the liftclip
Horizontal installation direction / Clip + Magnet
- View How to Install
- Download(DXF)
- 2Lift clip for silux

  LSX-PTL

  2 pcs/bag
  Liftclip is for hiding the connector behind the light fixture
  There are two directions of fixing the liftclip
- 5Magnet set L

  MG-L

  10 sets/bag

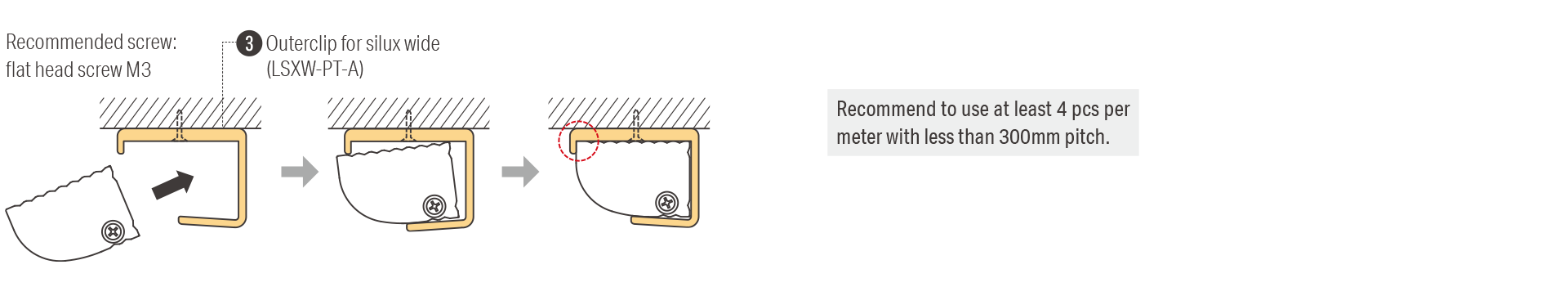

For downward installation / Clip
- View How to Install
- Download(DXF)
- 3Outer Clip for silux wide

  LSXW-PT-A

  5 pcs/bag
  Recommended number
  1 pc for 74 mm
  2 pcs for 259 mm to 509 mm
  3 pcs for 573 mm and 702 mm
  4 pcs for 823 mm to 1137 mm
  5 pcs for 1451 mm
  Outerclip is for the downwards emitting installation

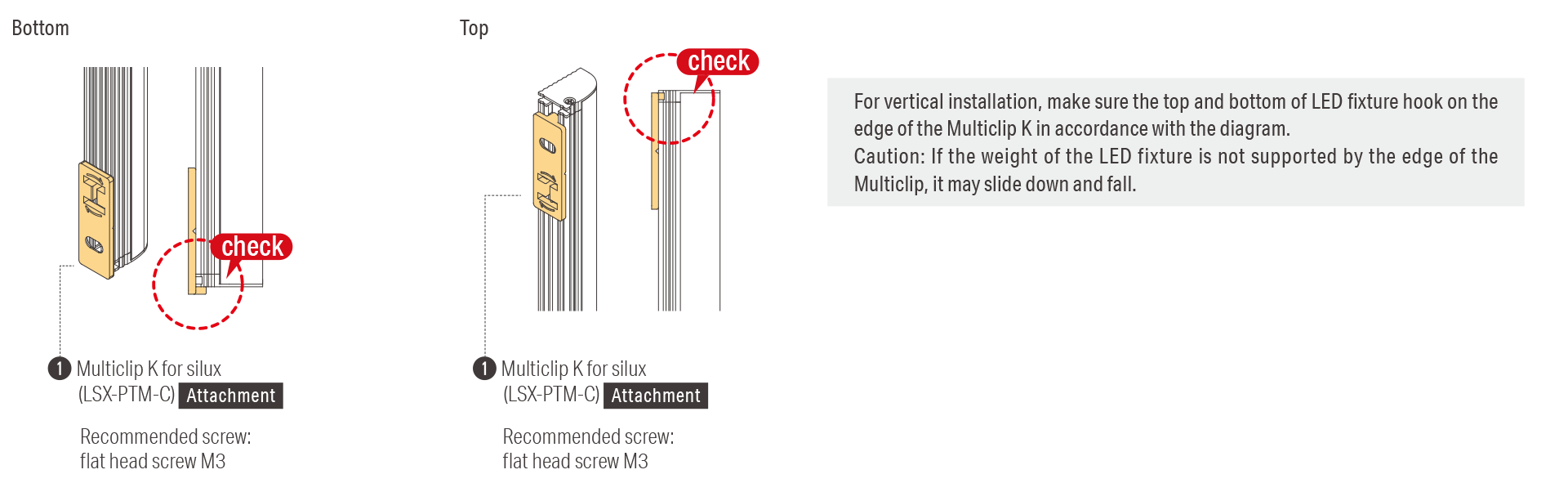

Vertical installation / Clip
- View How to Install
- Download(DXF)
- 1Multiclip K for silux

  LSX-PTM-C

  Attached with light fixture
  3 pcs for 702mm or shorter
  5 pcs for 823mm or longer

  For extra order 3 pcs/bag
