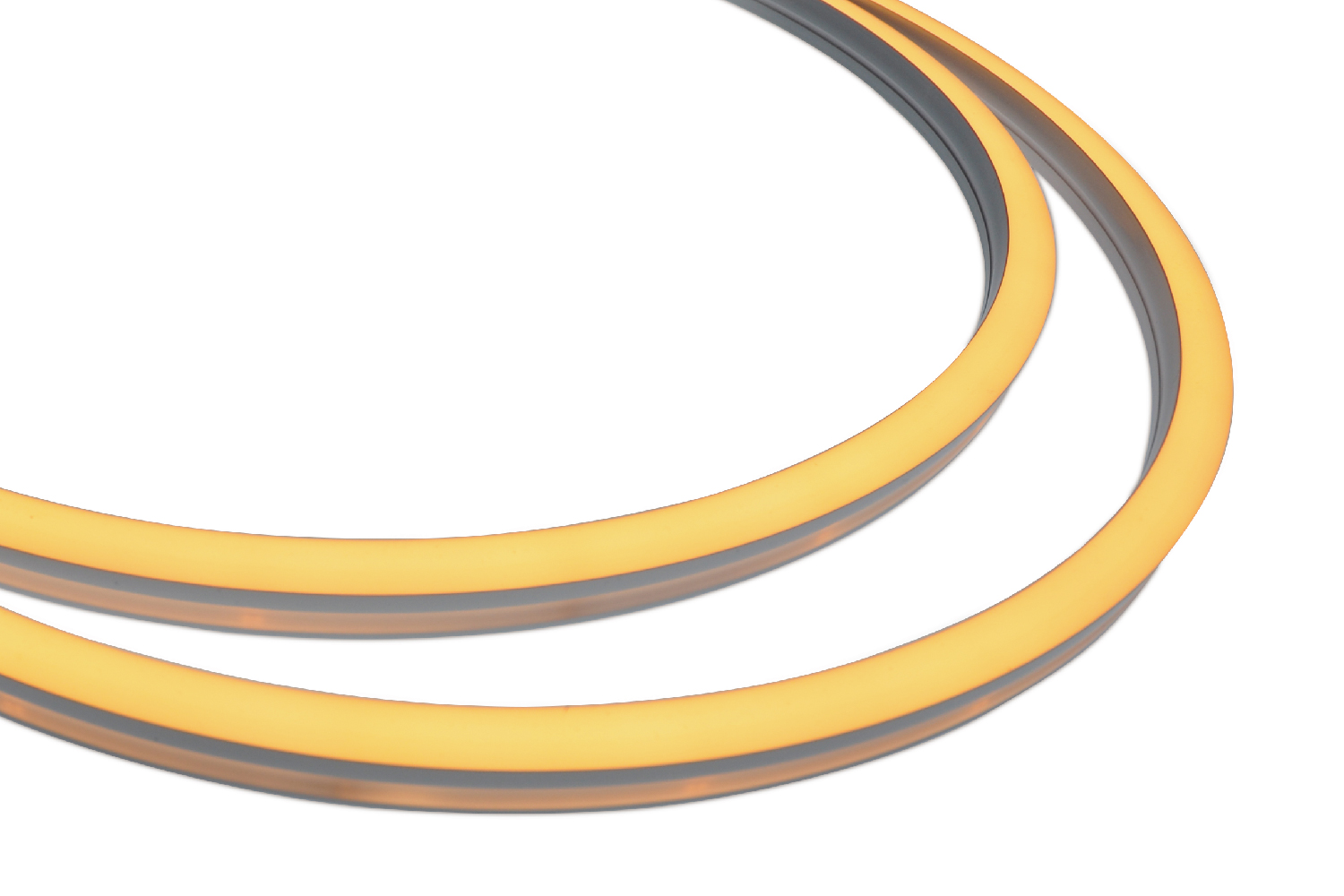

LFUMAY-I
SHIN UQ FLEX α mini Indoor
- Suitable for carpentry, handrail and steps
- Side bend dot-free flexible light, cuttable every 50mm at site
- Indoor usage only, custom length max.3m per roll, connectable 5m in run
LFUMAY-I
SHIN UQ FLEX α mini Indoor
Product information
Model No.
LFUMAY-T1000WB-L27-DF-I-6
SpecificationSize1000wattage: 10.8W/m
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color | Delivered CCT
-
Max. length per circuit5m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE , PTB FREE
-
MaterialSilicone
-
AttachmentsEnd cap 2pcs
Mounting options
-
Straight installation / Downwards and vertical / Rail
-

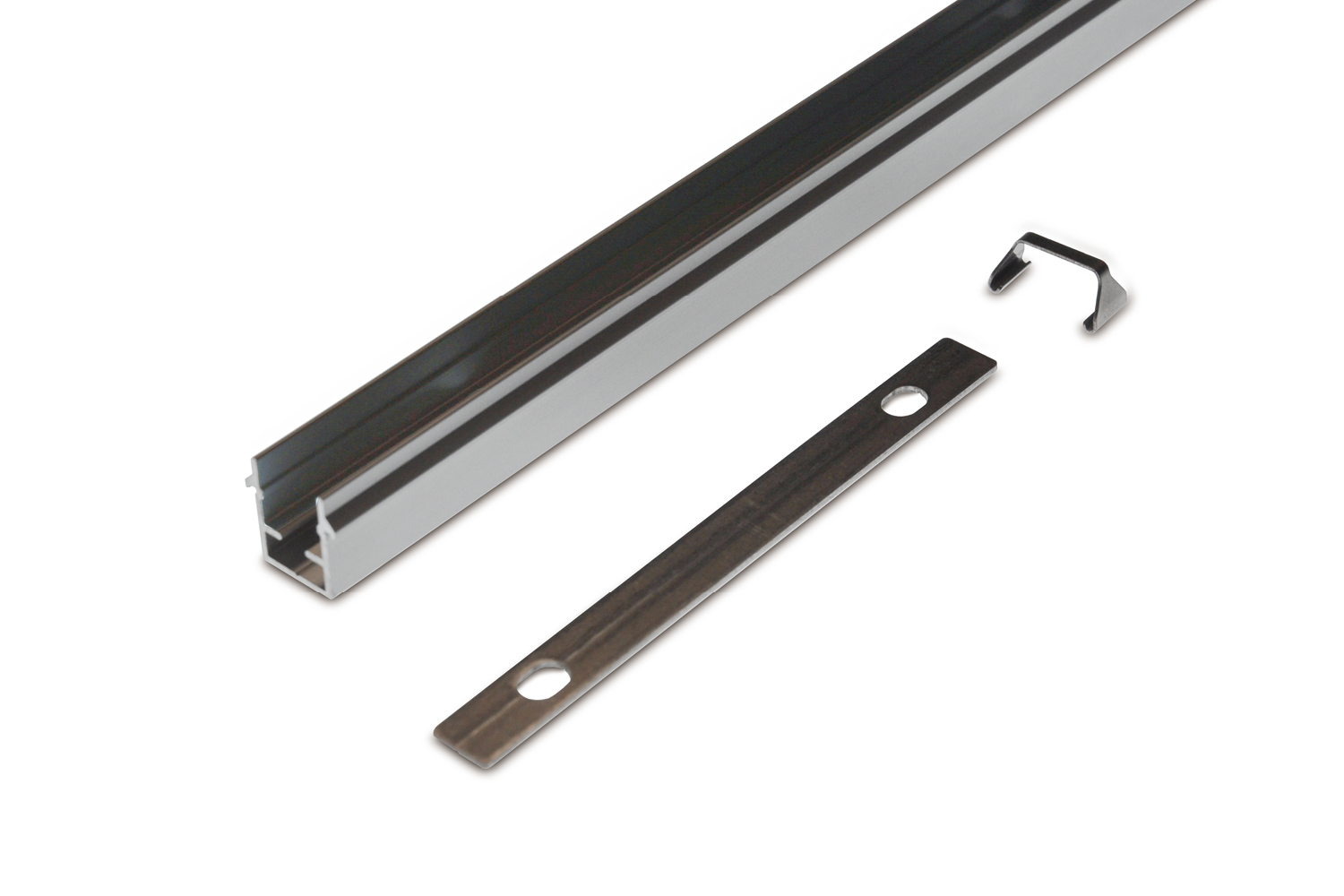

1Aluminium mounting rail High 950 set for UQ FLEX mini
LFUMY-RL0950-AL-H
The set include Mounting rail (1pc) and Hold clip (5 pcs/bag) and Joint plate(1pc)
For downwards and vertical installation
-
-
Straight installation / Upwards / Rail
-

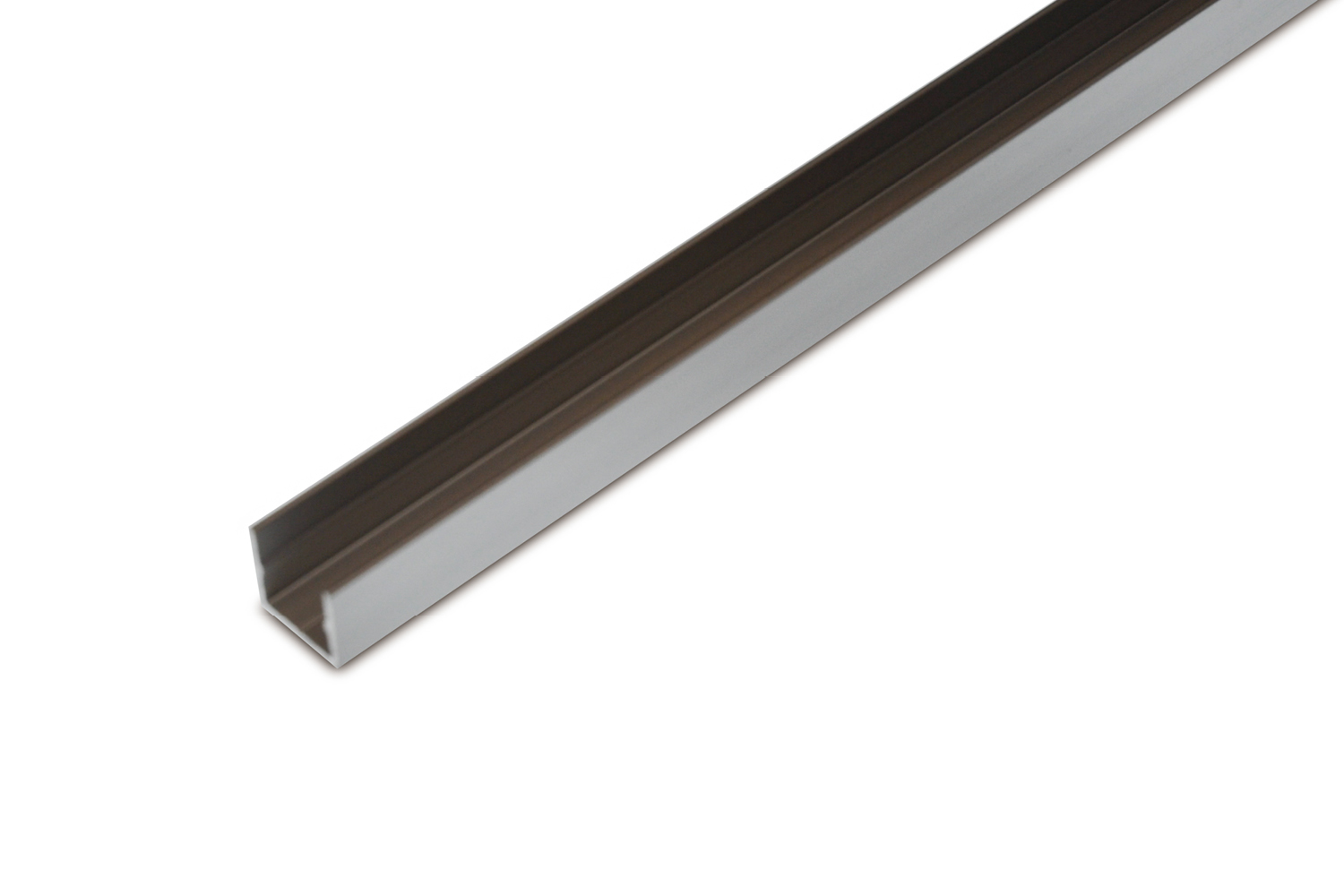

3Aluminium mounting rail Low 950 for UQ FLEX mini
LFUMY-RL0950-AL-L
For upwards installation
-
-
Curved installation / Back feed / Clip
-

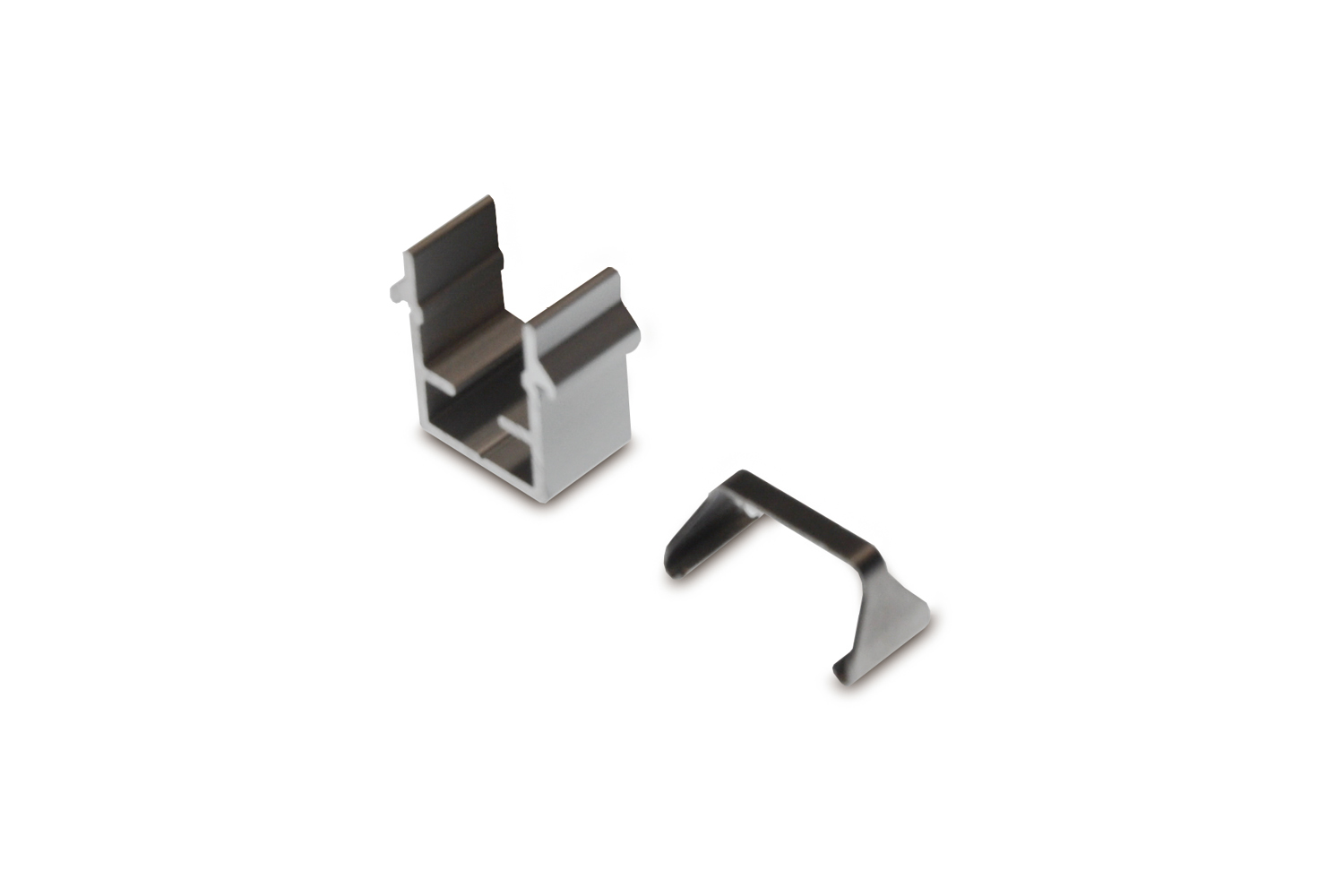

2Aluminium mounting parts High 950 set for UQ FLEX mini
LFUMY-RL0018-AL-H
The set include Mounting parts (5 pcs/bag) and Hold clip (5 pcs/bag)
Recommended each 5 pcs/m
For curved installation (Back feed)
-
-
Curved installation / Side feed / Clip
-

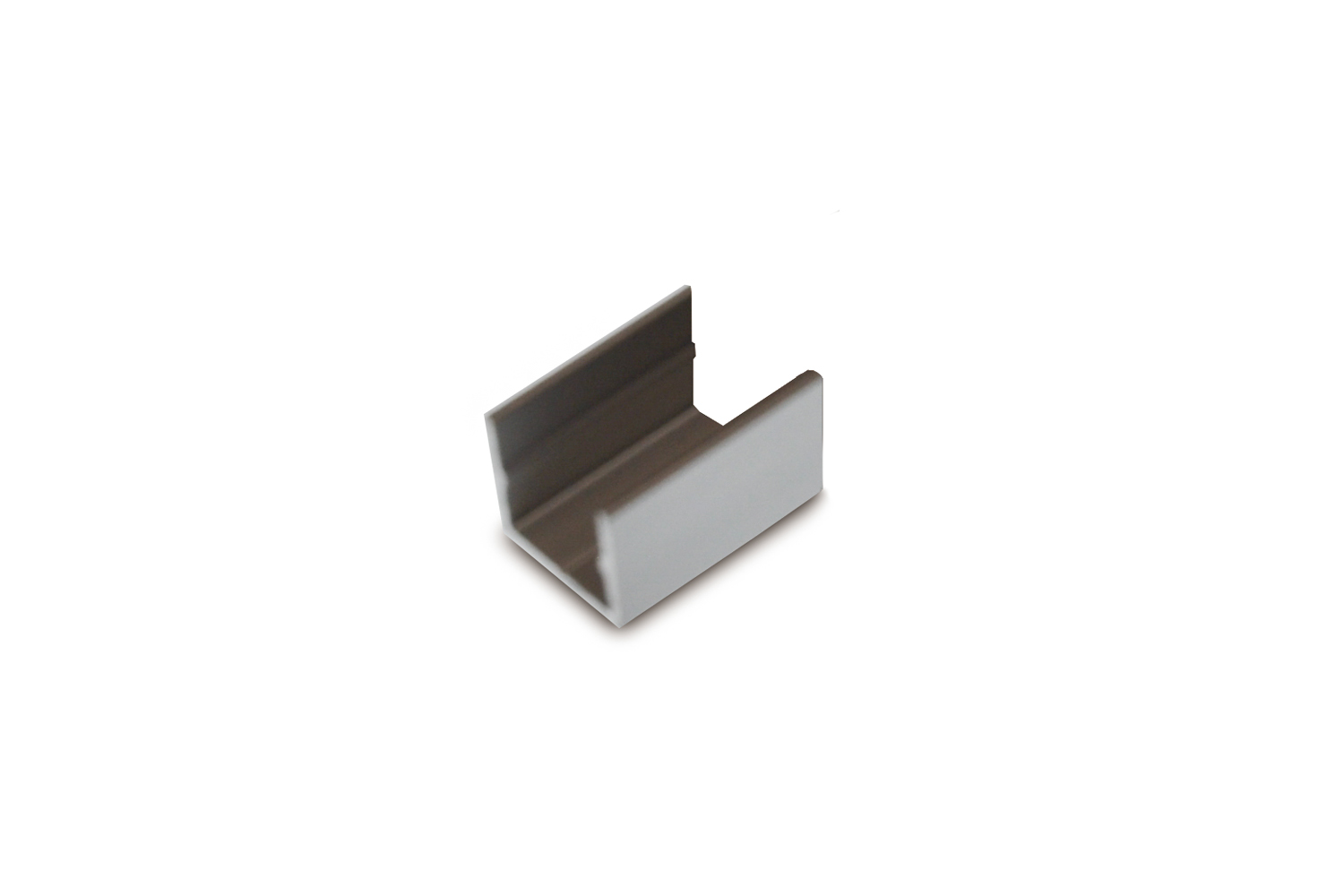

4Aluminium mounting parts Low 18 for UQ FLEX mini
LFUMY-RL0018-AL-L
5 pcs/bag
For curved installation (Side feed)
-
Accessories
-

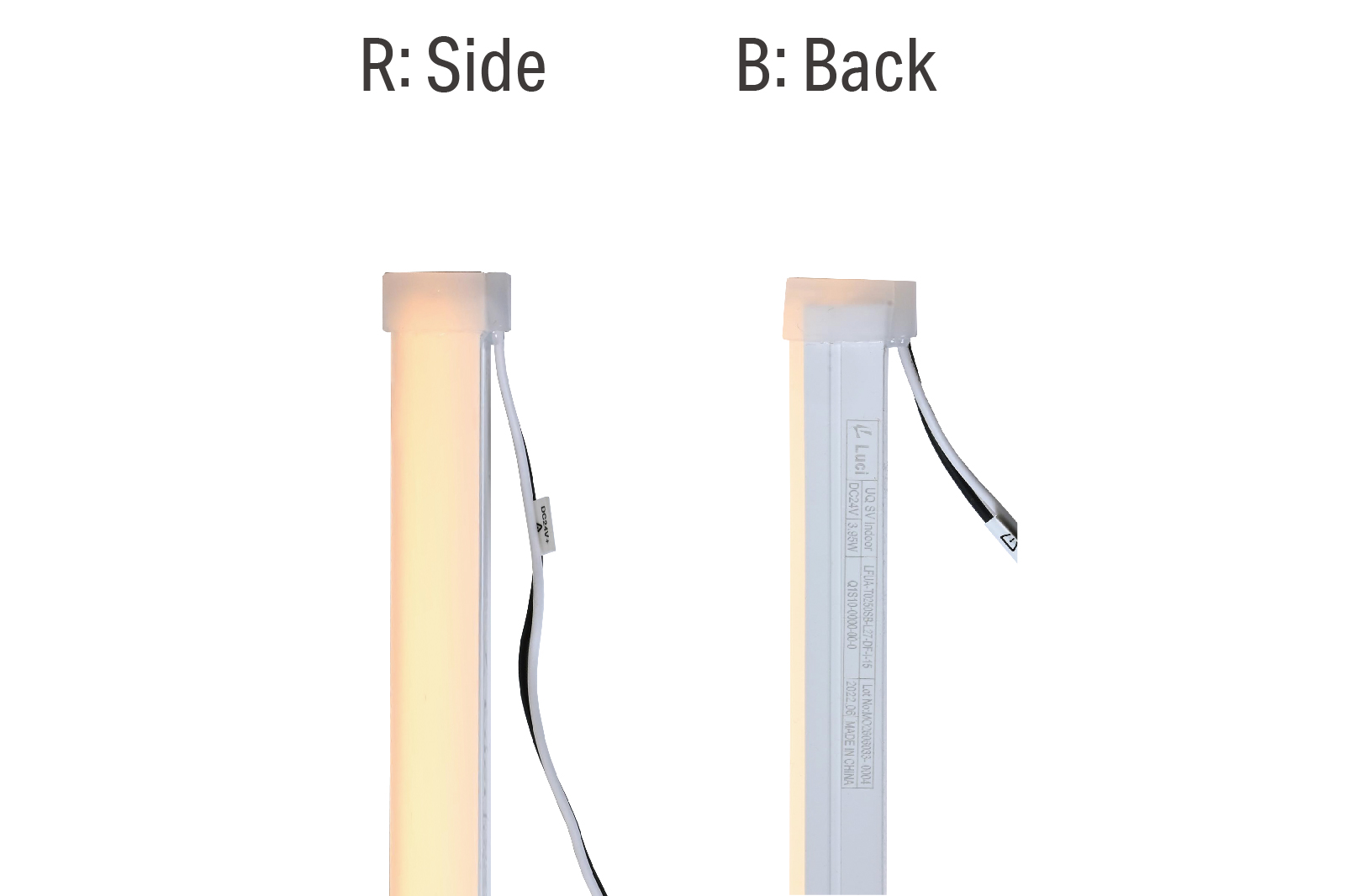

5End cap for UQ FLEX mini
LFUMY-EC
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

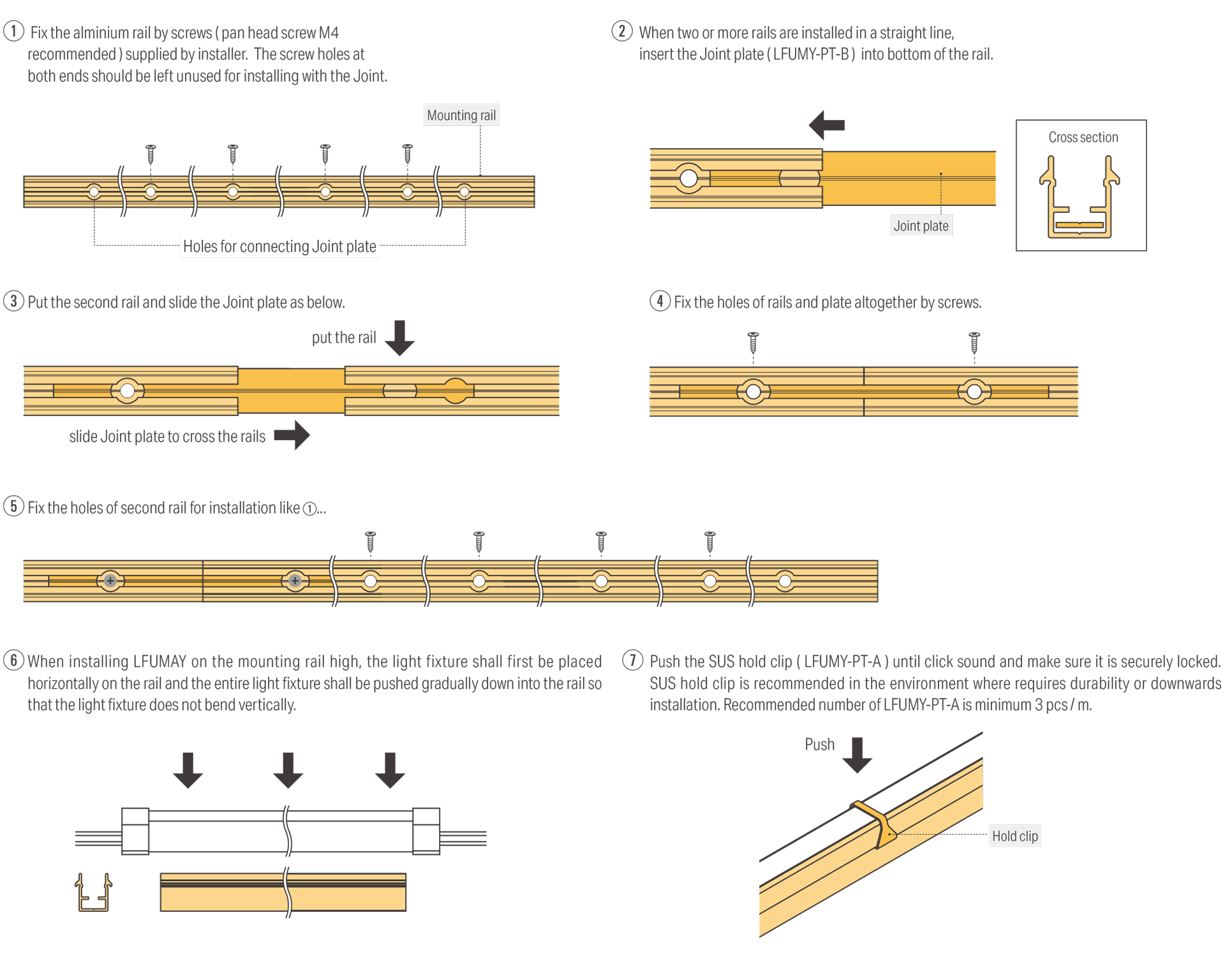

Straight Installation with Rail High

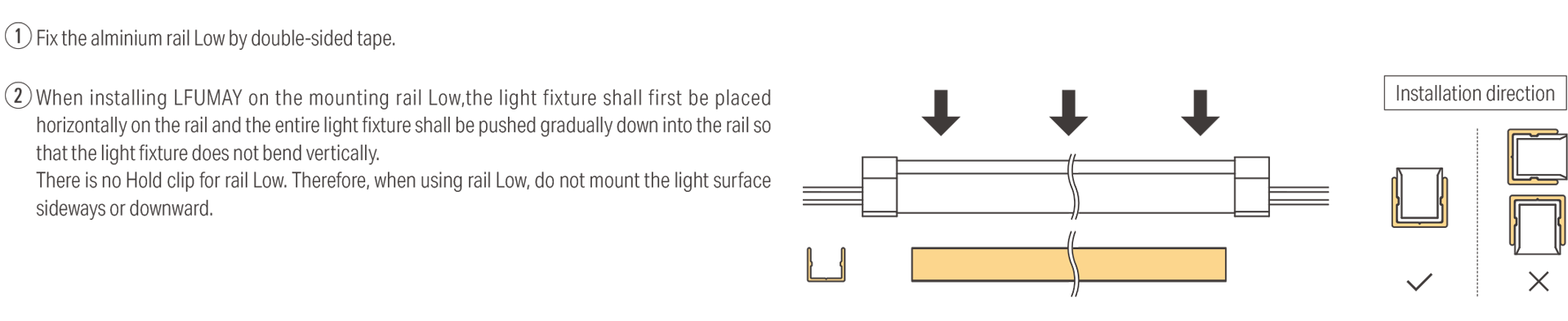

Straight Installation with Rail Low

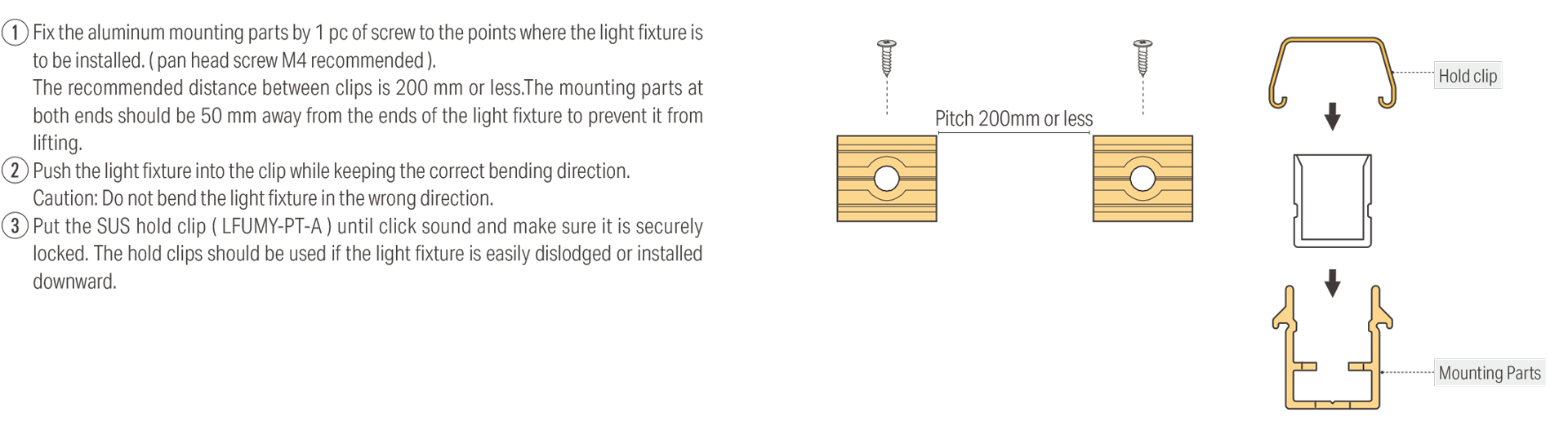

Curved Installation with Parts High

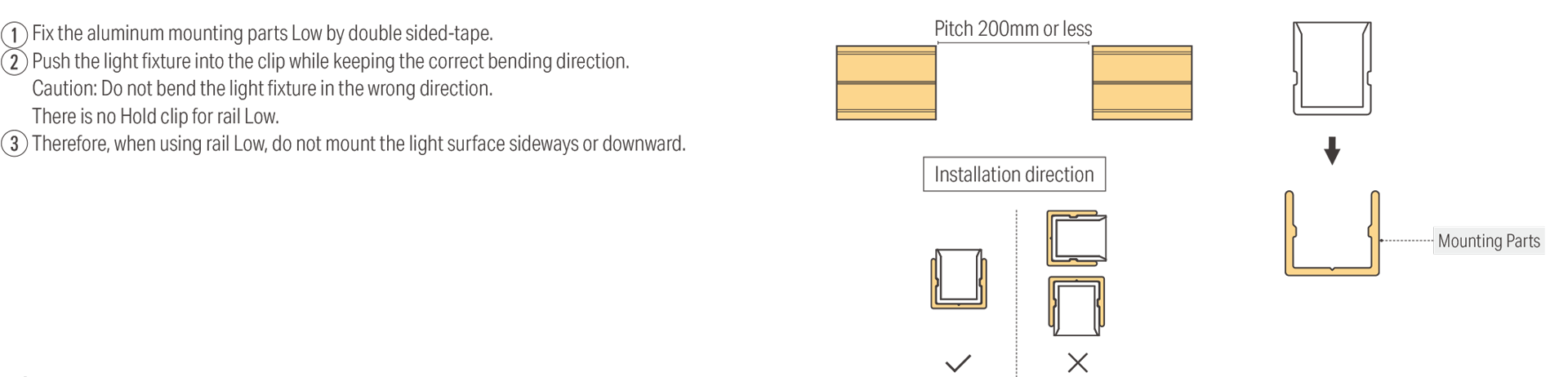

Curved Installation with Parts Low
