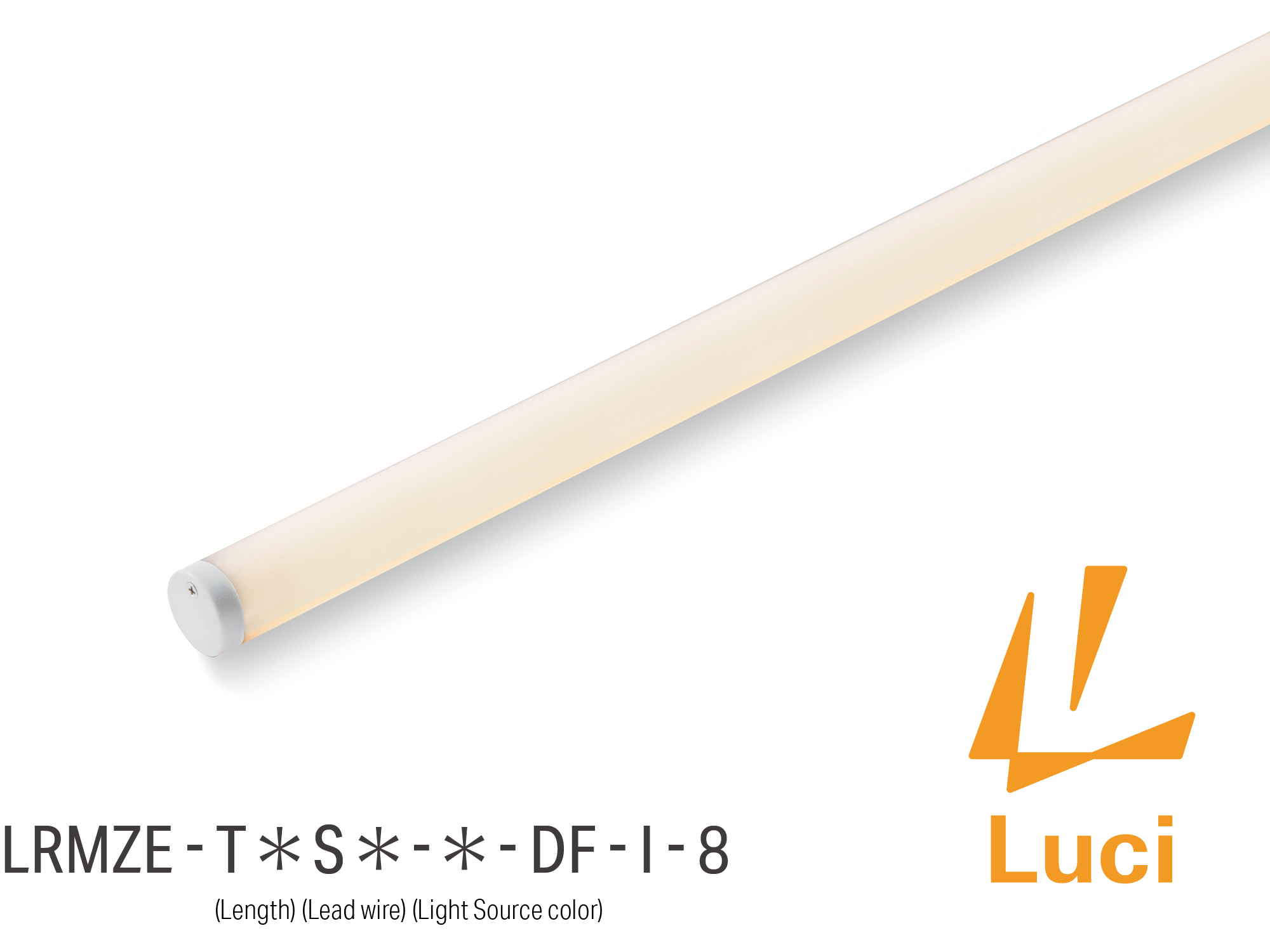

LRMZE NEW

RIMiT zen

  • 12mm diameter all-around luminous dotless line lighting
  • Midpoint lead wire option for wall mounting
  • 40 lengths up to 1009mm (one end) or 8 up to 509mm (midpoint), in 25mm increments
  • MacAdam
  • CE
  • 1 Year Warranty

Product information

Model No.

LRMZE-T1009SS-L27-DF-I-8

Detail
Length
Lead wire
Light source color
Light source color | Delivered CCT
Lead wire option

HINT

Lead wire option

SpecificationLead wire: SS：One end lead wire Length: 1009

  • Input voltage
    DC24V
  • Wattage
    8.9 W
  • Fitting length
    1009 mm
  • Light source color | Delivered CCT
    N:5000K | 4200K479 lmRa 9153.8 lm/w
    W:4000K | 3500K571 lmRa 9664.2 lm/w
    WW:3500K | 3100K578 lmRa 9465 lm/w
    L30:3000K | 2700K510 lmRa 9457.3 lm/w
    L27:2700K | 2400K501 lmRa 9556.3 lm/w
    L24:2400K | 2200K466 lmRa 9252.4 lm/w
  • Max. length per circuit
    Luci RIMiT zen cannot be connected in series.
    One end lead wire：1m　Central lead wire：0.5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Indoor (no condensation)
  • Certification
    CE
  • Material
    Polycarbonate, Aluminum

Mounting options

  • One end lead wire / Clip

    One end lead wire / Clip

    One end lead wire / Clip

    • Mounting clip for RIMiT zen

      1Mounting clip for RIMiT zen

      LRMZE-PT-L

      5 pcs /1 bag
      Magnet mounting available : Magnet set A

  • One end lead wire / Clip + Lift Parts

    One end lead wire / Clip + Lift Parts

    One end lead wire / Clip + Lift Parts

    • Mounting clip for RIMiT zen

      1Mounting clip for RIMiT zen

      LRMZE-PT-L

      5 pcs /1 bag
      Magnet mounting available : Magnet set A

    • Lift parts for RIMiT

      3Lift parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

  • One end lead wire / Clip + Magnet

    One end lead wire / Clip + Magnet

    One end lead wire / Clip + Magnet

    • Mounting clip for RIMiT zen

      1Mounting clip for RIMiT zen

      LRMZE-PT-L

      5 pcs /1 bag
      Magnet mounting available : Magnet set A

    • Magnet Set A

      4Magnet Set A

      MG-A

      5 sets/bag

  • Midpoint lead wire / Clip

    Midpoint lead wire / Clip

    Midpoint lead wire / Clip

    • Mounting clip F for RIMiT

      2Mounting clip F for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

  • Midpoint lead wire / Clip + Lift Parts

    Midpoint lead wire / Clip + Lift Parts

    Midpoint lead wire / Clip + Lift Parts

    • Mounting clip F for RIMiT

      2Mounting clip F for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

    • Lift parts for RIMiT

      3Lift parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

Accessories

  • Power supply cable 3M with TR connector

    6Power supply cable 3M with TR connector

    CAD-3000-MEFE-O

  • RIMiT stand

    5RIMiT stand

    LRM-PT-M

Download

DownloadDownload

How to Install

One end lead wire | Mounting clip for RIMiT zen installation

One end lead wire | Mounting clip for RIMiT zen installation

One end lead wire | Mounting clip for RIMiT zen and Lift parts installation

One end lead wire | Mounting clip for RIMiT zen and Lift parts installation

One end lead wire | Mounting clip for RIMiT zen and Magnet installation

One end lead wire | Mounting clip for RIMiT zen and Magnet installation

Midpoint lead wire | Mounting clip D installation

Midpoint lead wire | Mounting clip D installation

Midpoint lead wire | Mounting clip D and Lift parts installation

Midpoint lead wire | Mounting clip D and Lift parts installation
