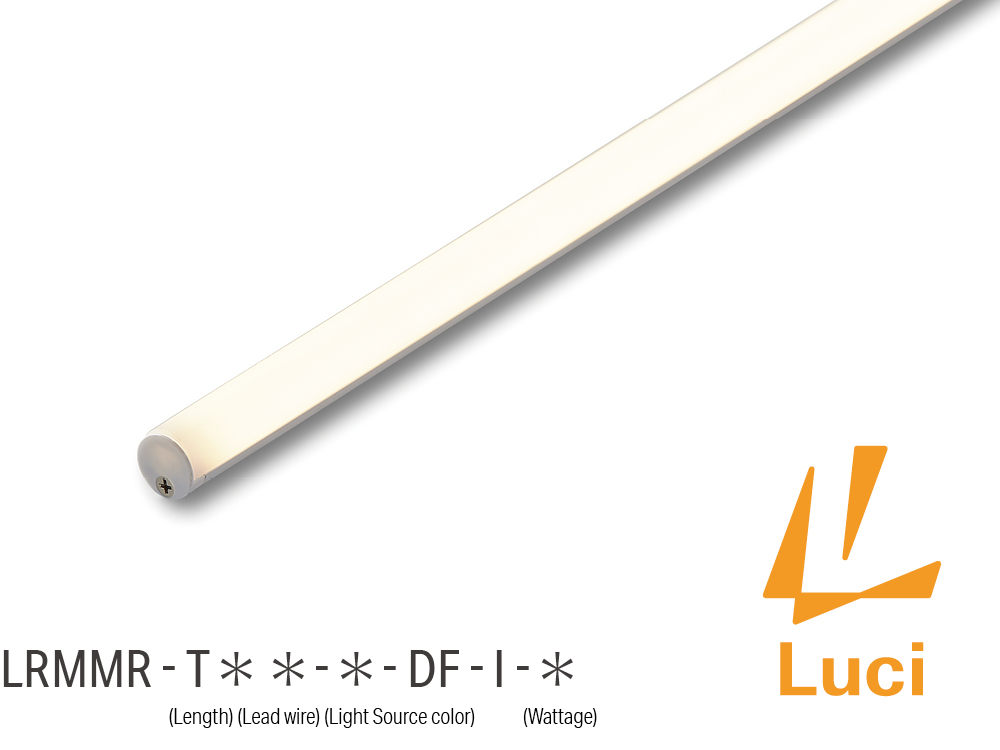

LRMMR

RIMiT mr

  • Round dotless lines with 8.8mm diameter
  • Mounting clips that allow light distribution to be freely changed 360° after installation
  • 33mm to 1508mm, 60 length selections available
  • MacAdam3steps
  • CE

Product information

Model No.

LRMMR-T1008W-L27-DF-I-6

Detail
Length
Lead wire
Light source color
Light source color | Delivered CCT
Lead wire option

HINT

Lead wire option

Wattage

SpecificationLength1170

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    3.5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Indoor
  • Material
    Polycarbonate, Aluminum

Mounting options

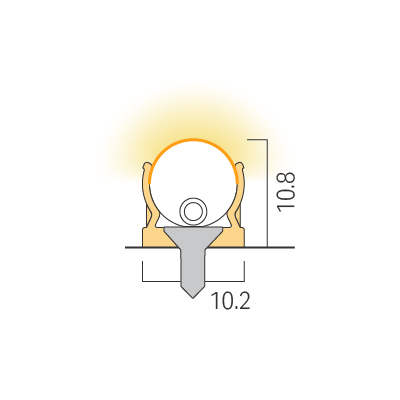

  • Bottom fixing / Clip

    Bottom fixing / Clip

    Bottom fixing / Clip

    • Mounting clip G for RIMiT mr

      1Mounting clip G for RIMiT mr

      LRMMR-PT-G

      5 pcs/bag

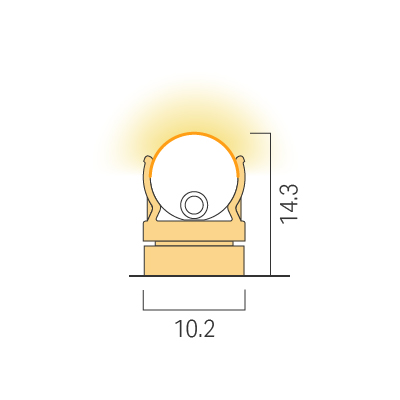

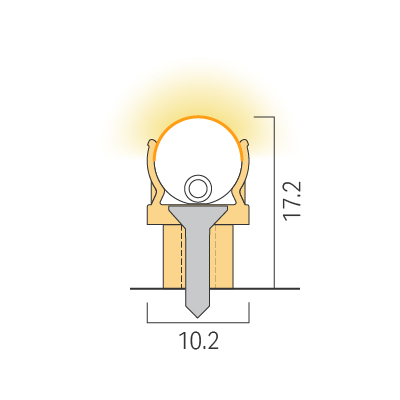

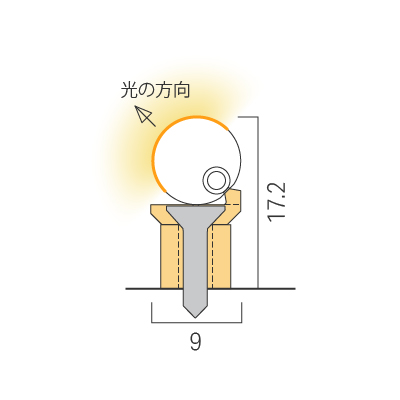

  • Bottom fixing / Clip + Lift Parts

    Bottom fixing / Clip + Lift Parts

    Bottom fixing / Clip + Lift Parts

    • Mounting clip G for RIMiT mr

      1Mounting clip G for RIMiT mr

      LRMMR-PT-G

      5 pcs/bag

    • Lift Parts for RIMiT

      4Lift Parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

  • Bottom fixing / Clip + Magnet

    Bottom fixing / Clip + Magnet

    Bottom fixing / Clip + Magnet

    • Mounting clip G for RIMiT mr

      1Mounting clip G for RIMiT mr

      LRMMR-PT-G

      5 pcs/bag

    • Magnet set A

      5Magnet set A

      MG-A

      5 sets/bag

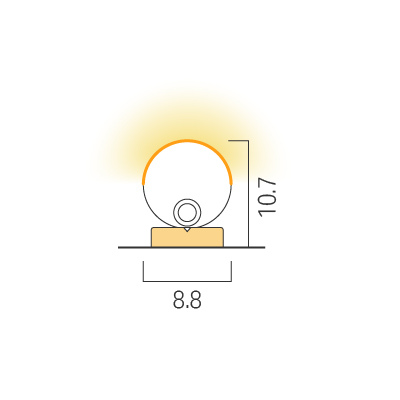

  • Bottom fixing / direct mounting / Clip

    Bottom fixing / direct mounting / Clip

    Bottom fixing / direct mounting / Clip

    • Mounting clip D for RIMiT

      2Mounting clip D for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

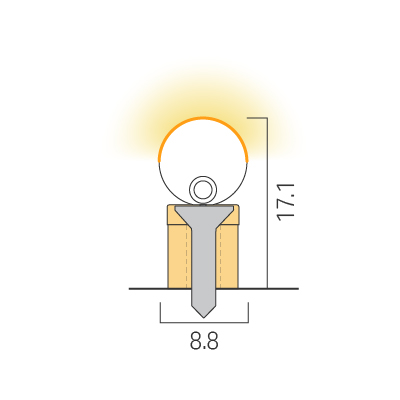

  • Bottom fixing / direct mounting / Clip + Lift Parts

    Bottom fixing / direct mounting / Clip + Lift Parts

    Bottom fixing / direct mounting / Clip + Lift Parts

    • Mounting clip D for RIMiT

      2Mounting clip D for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

    • Lift Parts for RIMiT

      4Lift Parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

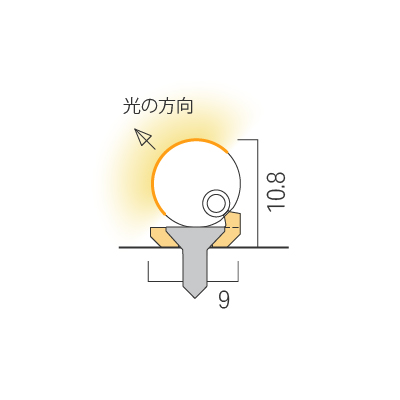

  • Bottom fixing / 45° / Clip

    Bottom fixing / 45° / Clip

    Bottom fixing / 45° / Clip

    • Mounting clip F for RIMiT

      3Mounting clip F for RIMiT

      LRM-PT-F

      5 pcs/bag

  • Bottom fixing / 45° / Clip + Lift Parts

    Bottom fixing / 45° / Clip + Lift Parts

    Bottom fixing / 45° / Clip + Lift Parts

    • Mounting clip F for RIMiT

      3Mounting clip F for RIMiT

      LRM-PT-F

      5 pcs/bag

    • Lift Parts for RIMiT

      4Lift Parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

Accessories

  • Outdoor cable 3M TR connector for FLEX

    7Outdoor cable 3M TR connector for FLEX

    CAD-3000-MEFE-O

  • Clip J for Lead Wire

    8Clip J for Lead Wire

    LRM-PT-J

  • RIMiT stand

    6RIMiT stand

    LRM-PT-M

Download

DownloadDownload

How to Install

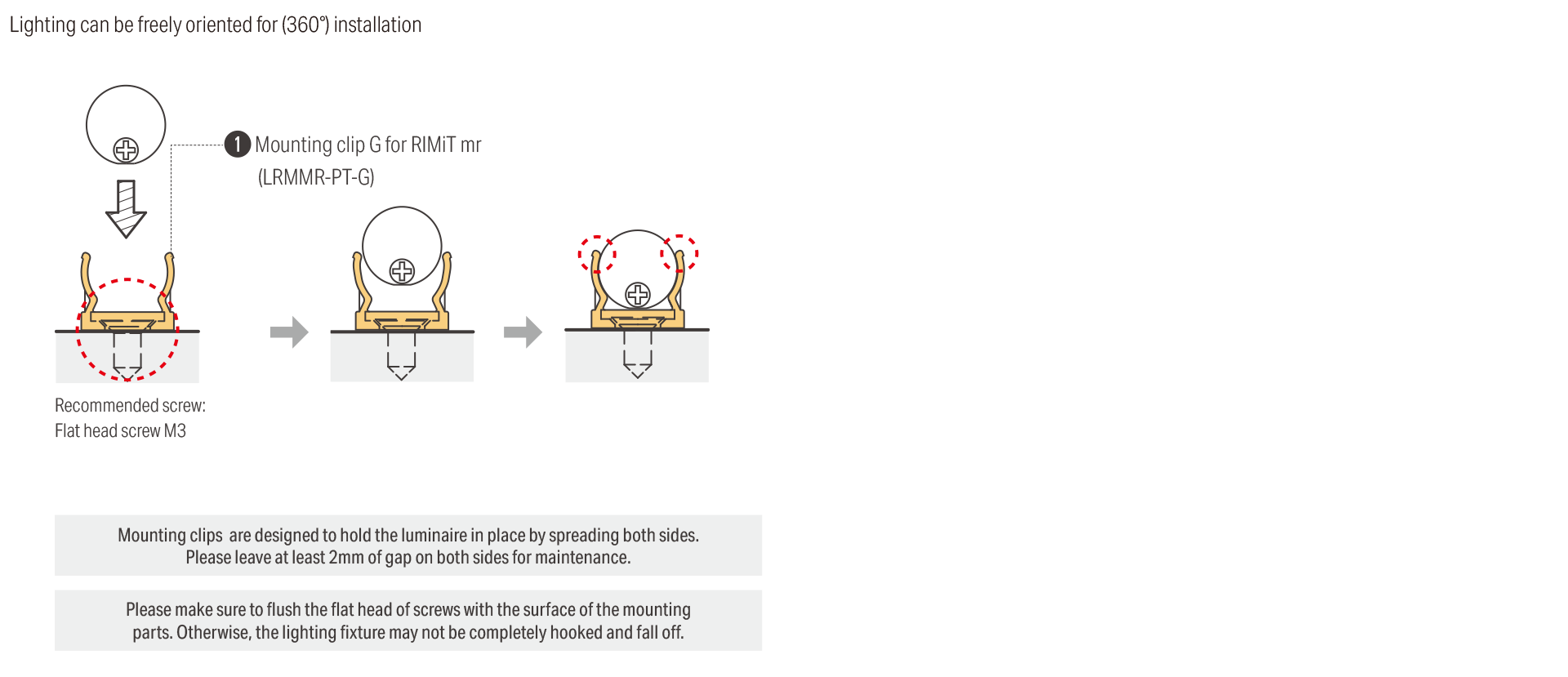

Mounting clip G installation

Mounting clip G installation

Mounting clip G and Lift Parts installation

Mounting clip G and Lift Parts installation

Mounting clip G and Magnet installation

Mounting clip G and Magnet installation

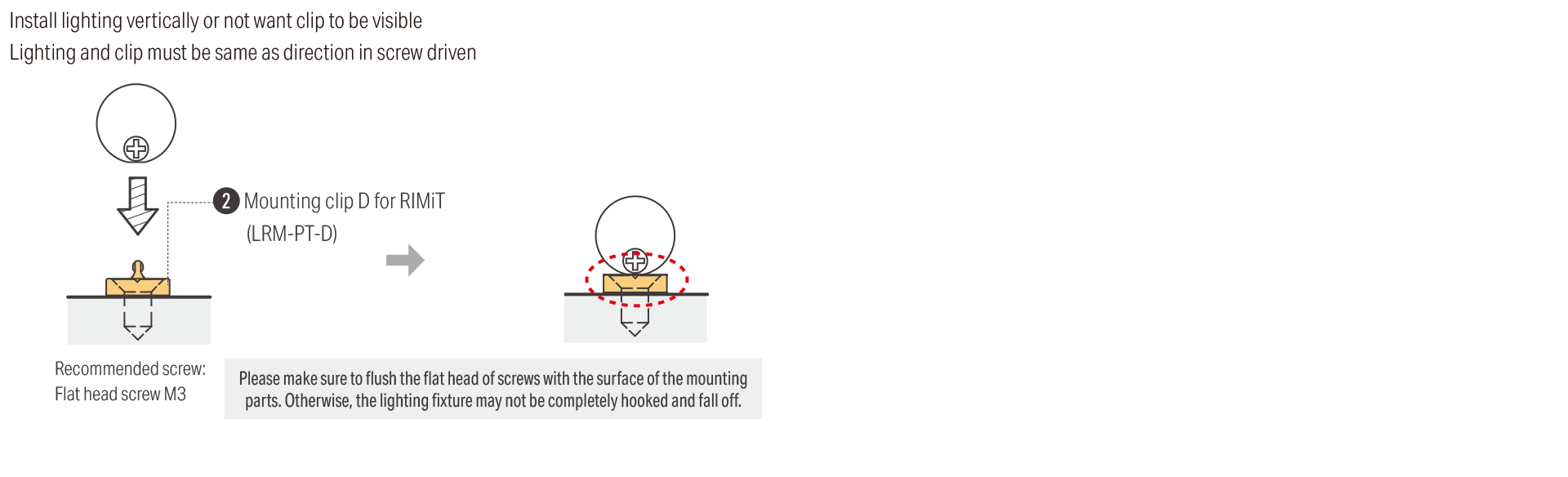

Mounting clip D installation

Mounting clip D installation

Mounting clip D and Lift Parts installation

Mounting clip D and Lift Parts installation

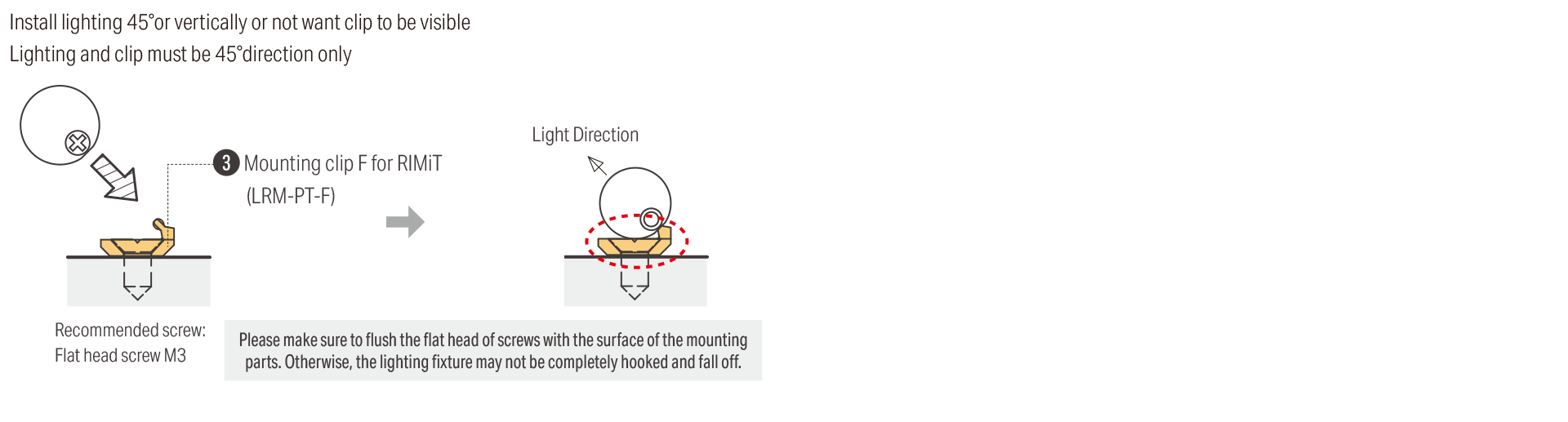

Mounting clip F installation

Mounting clip F installation

Mounting clip F and Lift Parts installation

Mounting clip F and Lift Parts installation

Works

  • FFF Coffee

    FFF Coffee

    Japan

    Japan Restaurant / Bar

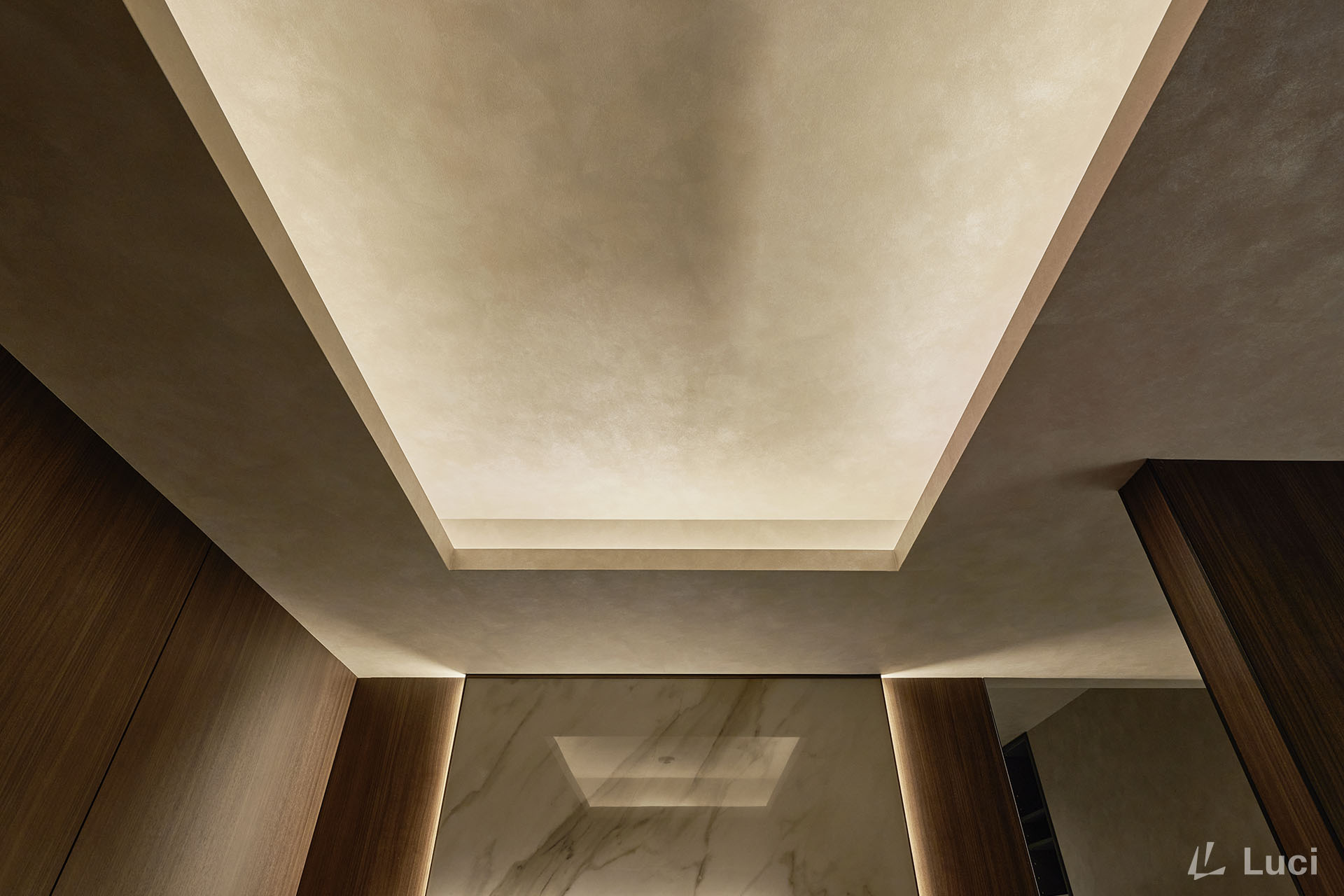

  • Bellflotz Yokohama Residence Salon

    Bellflotz Yokohama Residence Salon

    Japan

    Japan Residence

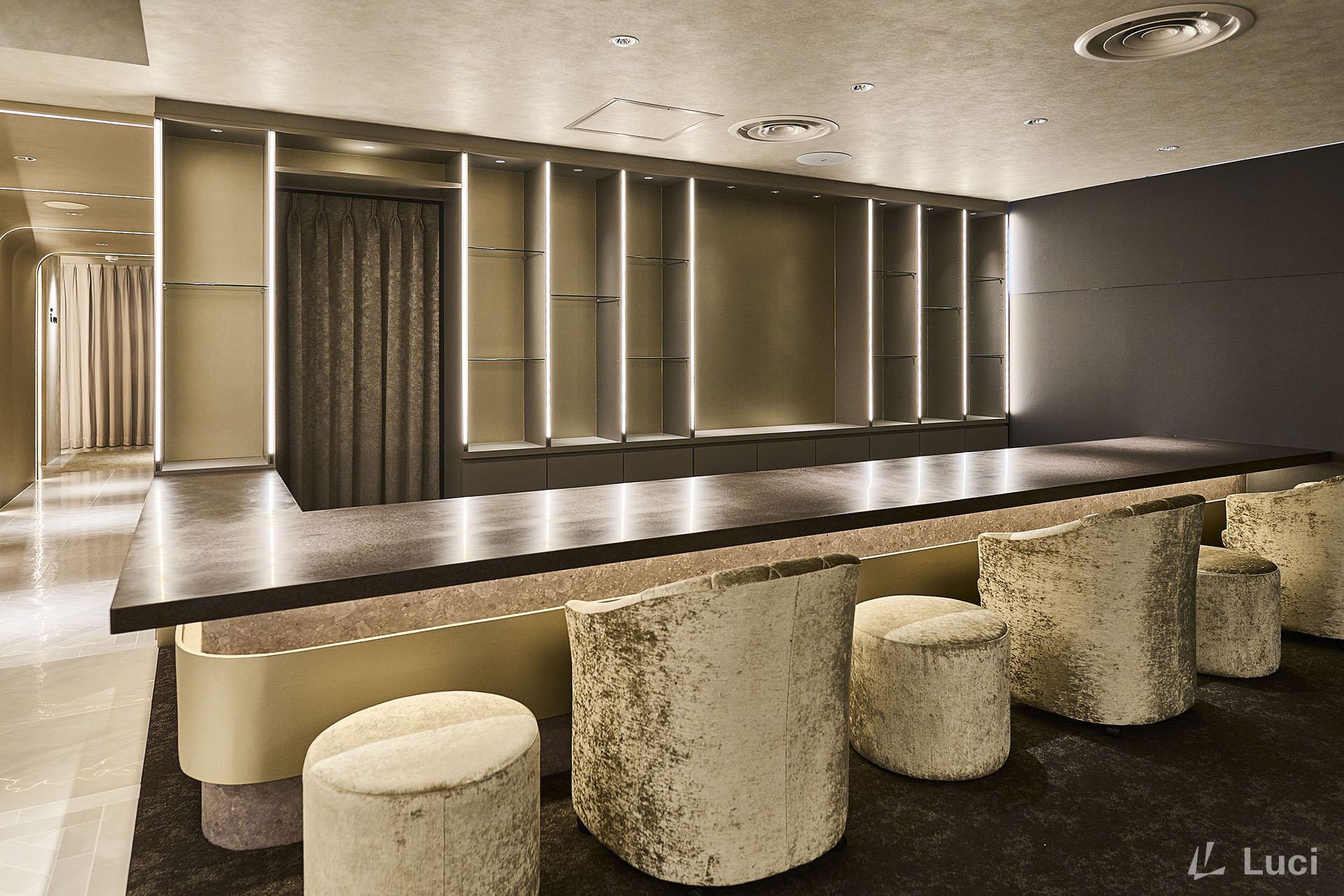

  • CLUB Fortuna
