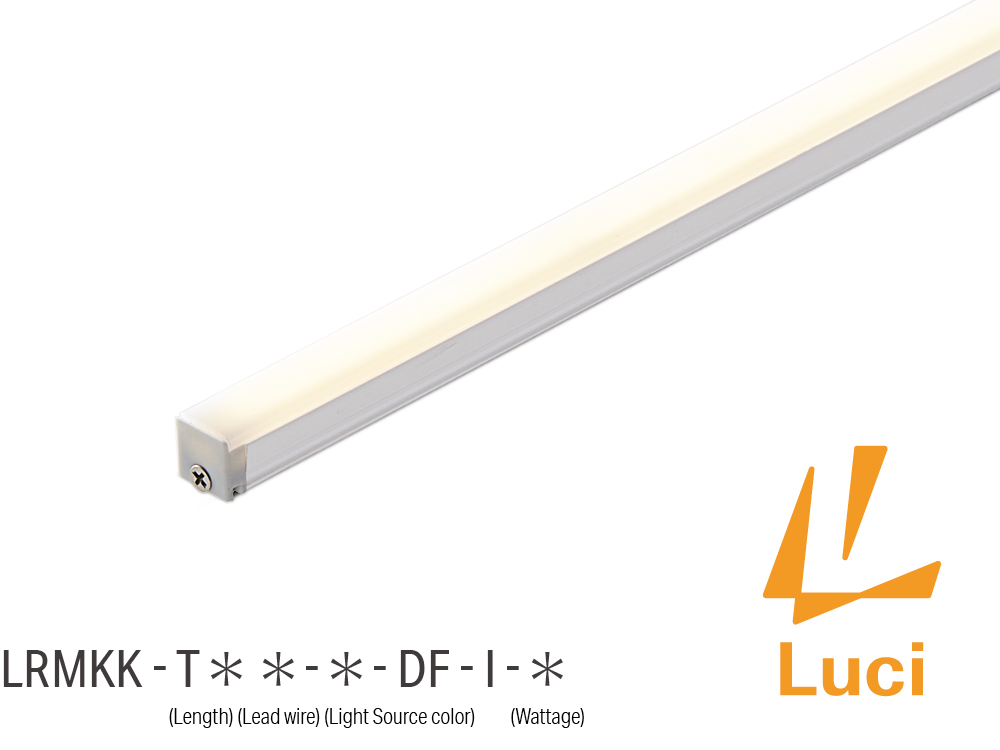

LRMKK

RIMiT kk

  • Compact 7.4 mm square cross-sectional size
  • Custom lengths available in every 25mm increment, up to 1508mm
  • Selectable between both or one side cable feed, open end or connector
  • MacAdam
  • CE
  • RIMiT kk

Product information

Model No.

LRMKK-T1008W-L27-DF-I-6

Detail
Length
Lead wire
Light source color
Light source color | Delivered CCT
Lead wire option

HINT

Lead wire option

Wattage

SpecificationLength1008

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    3.5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Indoor
  • Certification
    CE
  • Material
    Polycarbonate, Aluminum

Mounting options

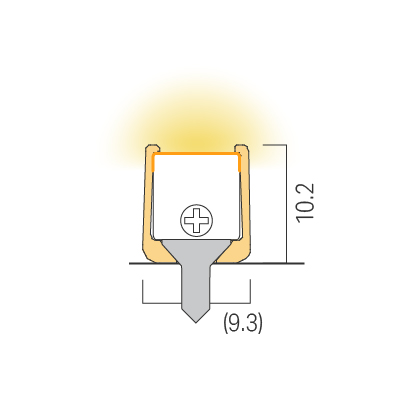

  • Bottom fixing / Clip

    Bottom fixing / Clip

    • 1Mounting clip for RIMiT kk

      LRMKK-PT-C

      5 pcs/bag

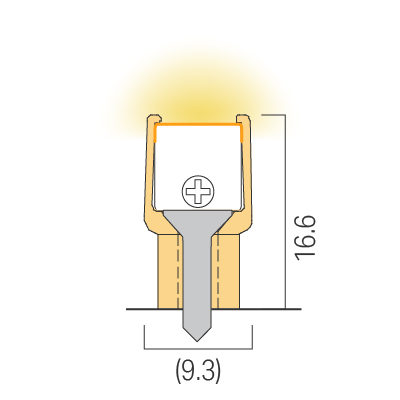

  • Bottom fixing / Clip + Lift Parts

    Bottom fixing / Clip + Lift Parts

    • 1Mounting clip for RIMiT kk

      LRMKK-PT-C

      5 pcs/bag

    • 3Lift Parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

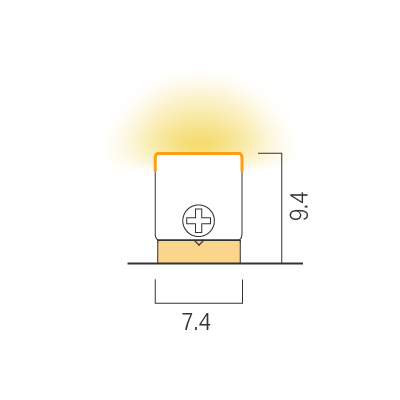

  • Bottom fixing / direct mounting / Clip

    Bottom fixing / direct mounting / Clip

    • 2Mounting clip D for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

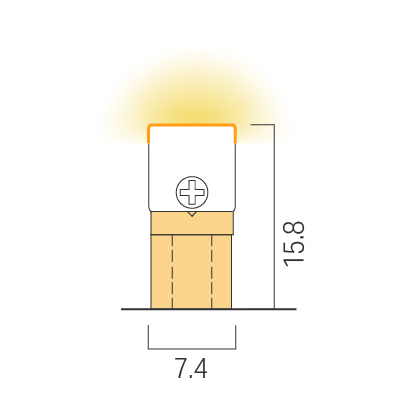

  • Bottom fixing / direct mounting / Clip + Lift Parts

    Bottom fixing / direct mounting / Clip + Lift Parts

    • 2Mounting clip D for RIMiT

      LRM-PT-D

      5 pcs/bag
      When install lighting vertically or avoid clips to be visible

    • 3Lift Parts for RIMiT

      LRM-PT-B

      2 pcs/bag
      Lift parts must be used with mounting clip

Accessories

  • 5Outdoor cable 3M TR connector for FLEX

    CAD-3000-MEFE-O

  • 6Clip J for Lead Wire

    LRM-PT-J

  • 4RIMiT stand

    LRM-PT-M

Download

Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.

How to Install

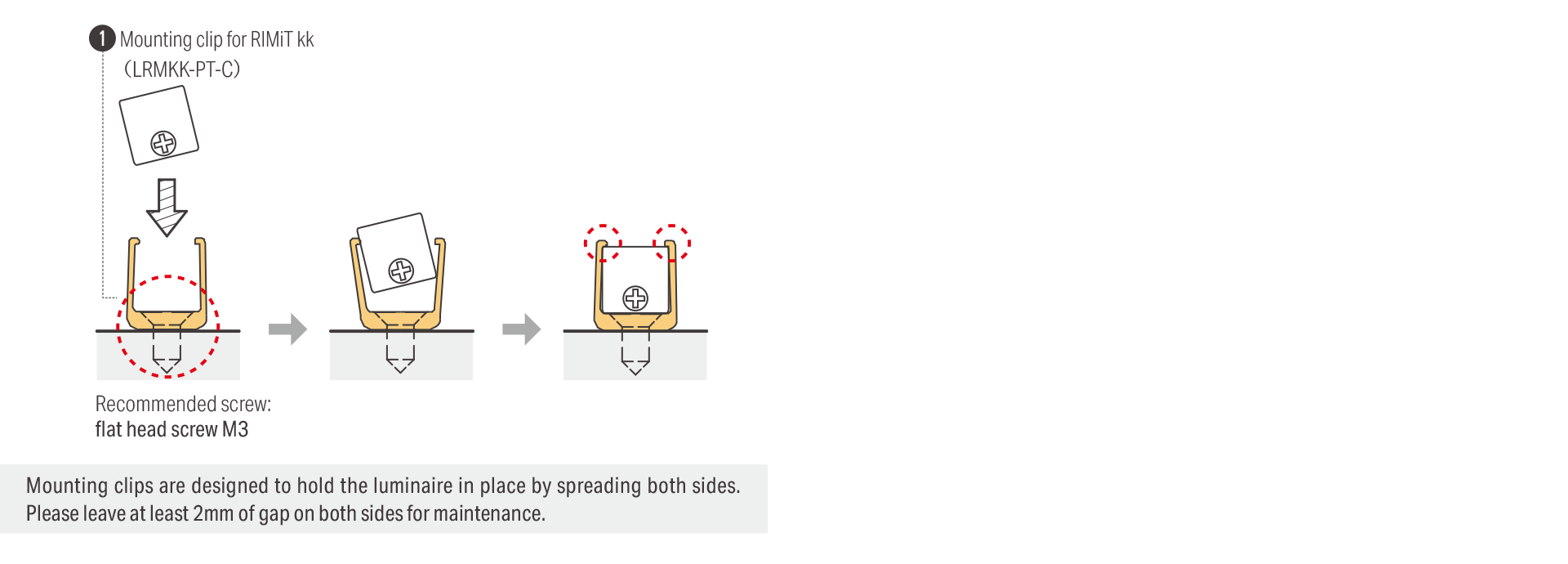

Mounting clip installation

Mounting clip installation

Mounting clip and Lift Parts installation

Mounting clip and Lift Parts installation

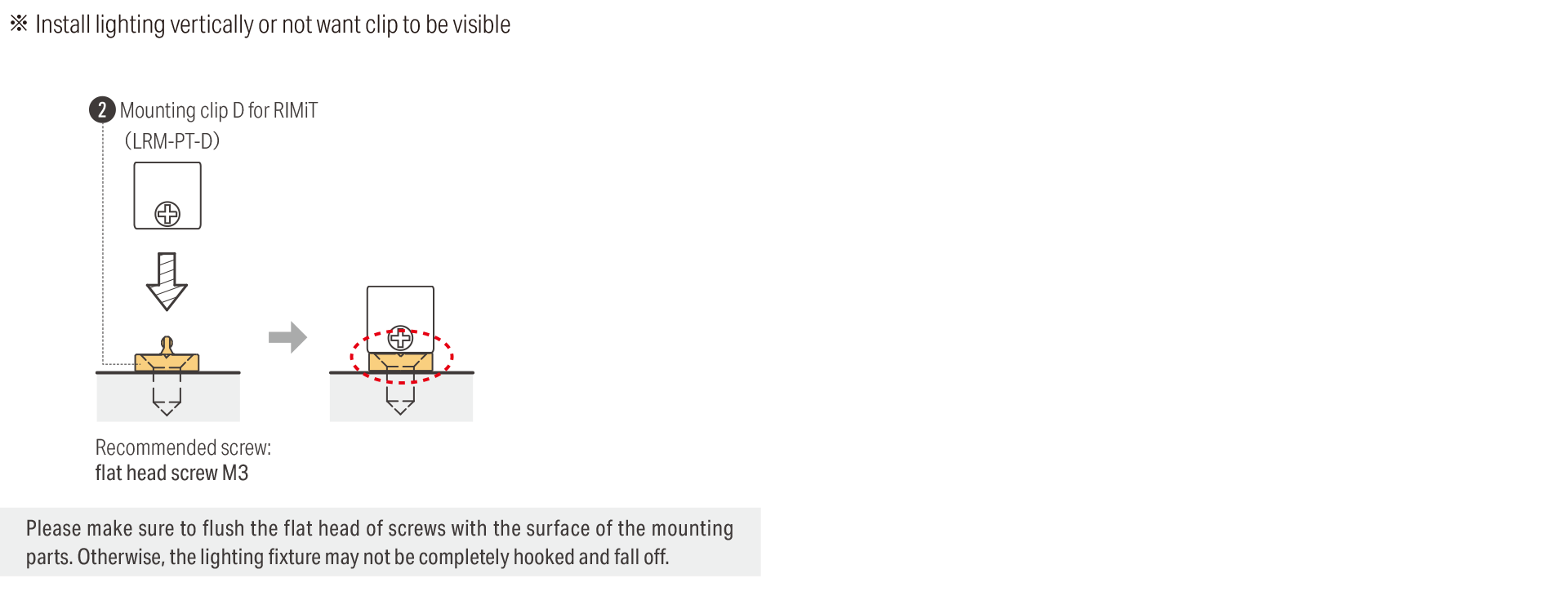

Mounting clip D installation

Mounting clip D installation

Mounting clip D and Lift Parts installation

Mounting clip D and Lift Parts installation

Works

  • Bellflotz Yokohama Residence Salon

    Bellflotz Yokohama Residence Salon

    Japan

    Japan Residence

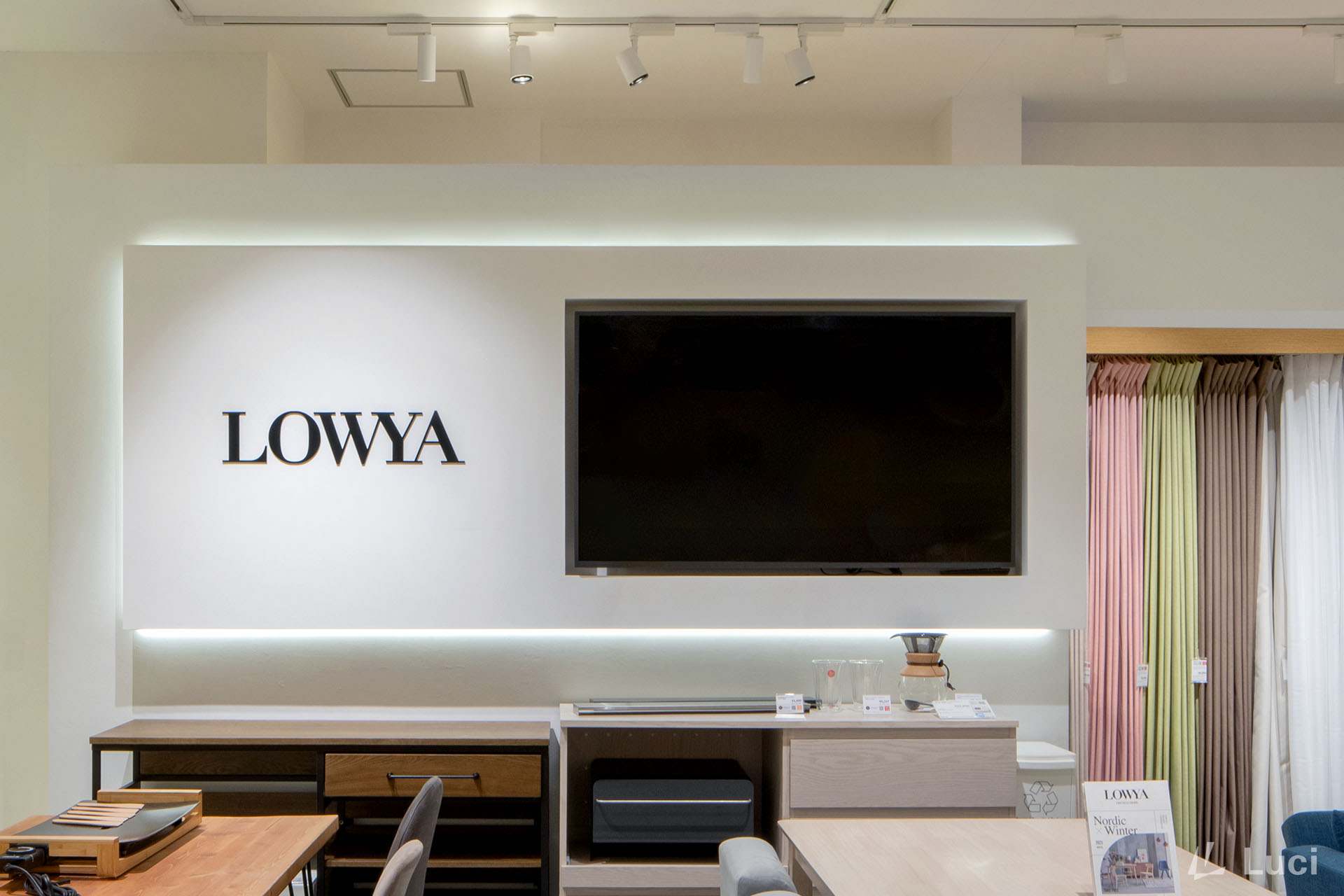

  • LOWYA Nagoya Minato store
