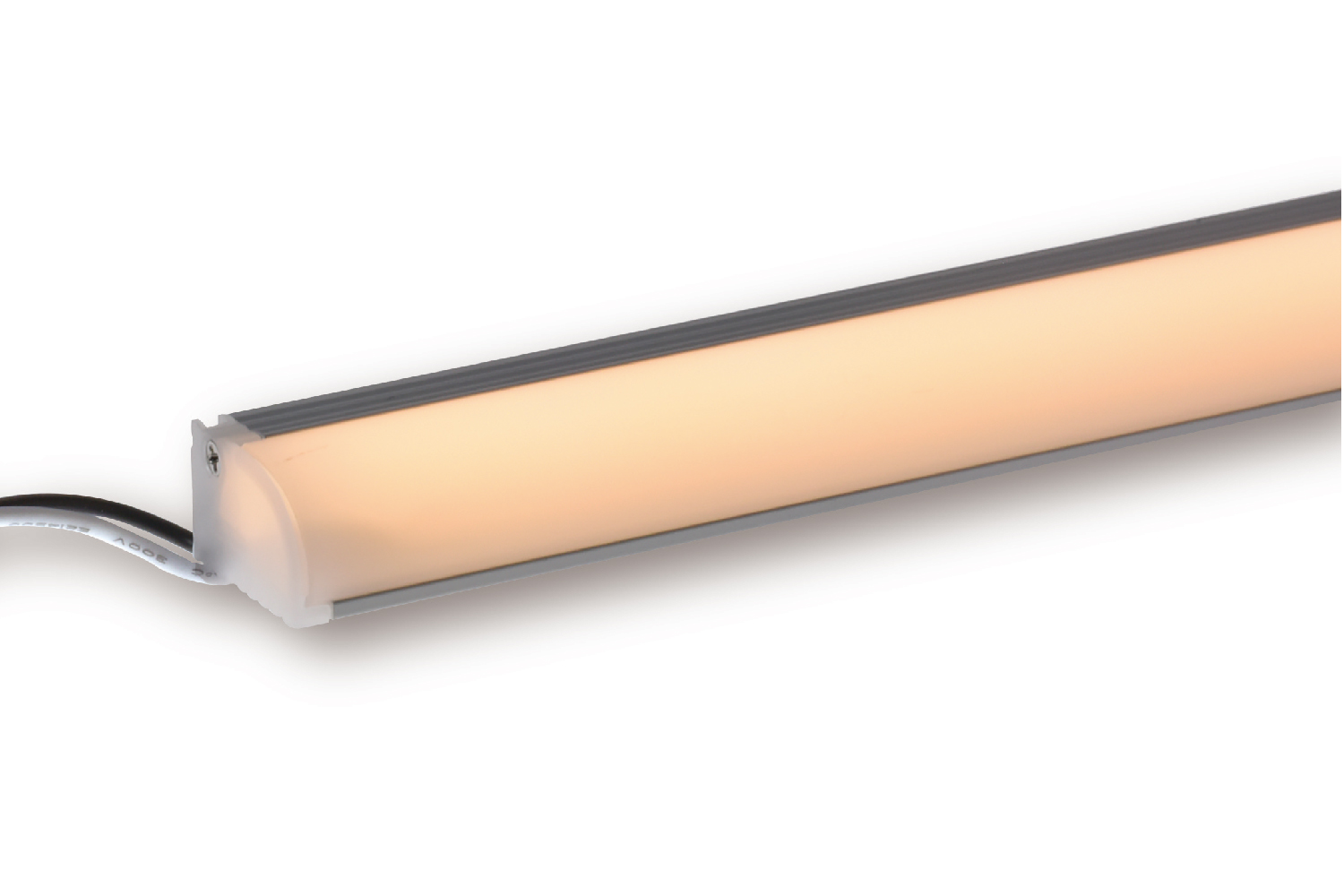

LSXWY SHINseires NEW

SHIN silux wide

  • Updated with low wattage high lumen LED series
  • Available 5 different wattage variations
  • Customisable every 50mm increment up to 1.4M
  • Homogeneous rigid light with a square shape
  • Ideal for shelf/cove light and recessed direct view light on ceiling/wall
  • MacAdam3steps
  • CE
  • 3 Year Warranty

Product information

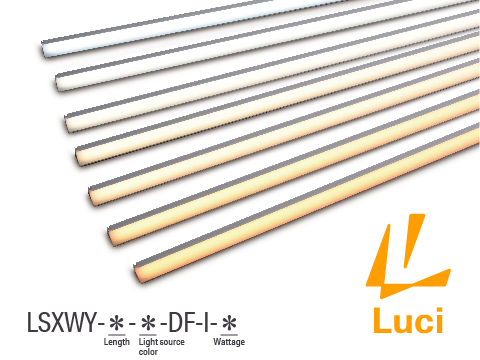

Model No.

LSXWY-1010W-L27-DF-I-15

Detail
Length
Light source color
Lead wire
Wattage

SpecificationLength: 1010Wattage: 15 : 15.9 W/m

  • Input voltage
    DC24V
  • Wattage
    15.9 W
  • Fitting length
    1010 mm
  • Light source color
    D:6500K1675 lmRa -105.4 lm/w
    N:5000K1660 lmRa 92104.5 lm/w
    W:4000K1630 lmRa 93102.6 lm/w
    WW:3500K1615 lmRa 93101.7 lm/w
    L30:3000K1571 lmRa 9498.9 lm/w
    L27:2700K1482 lmRa 9393.3 lm/w
    L25:2500K1097 lmRa 9369 lm/w
    L22:2200K1023 lmRa 9364.4 lm/w
    L20:2000K934 lmRa 6358.8 lm/w
  • Max. length per circuit
    2.1W/m, 4.2W/m, 6.4W/m, 10.8W/m : 6m
    15.9W/m : 5m
  • Dimmable
    Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Indoors (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Body : Aluminum, Cover : Polycarbonate
  • Attachments
    Multclip K for silux
    3 pcs for 760mm or shorter
    5 pcs for 810mm or longer

Mounting options

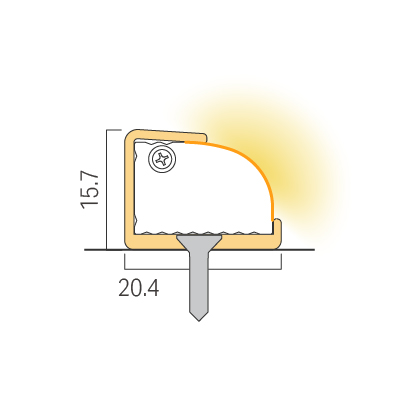

  • Bottom fixing / Clip

    Bottom fixing / Clip

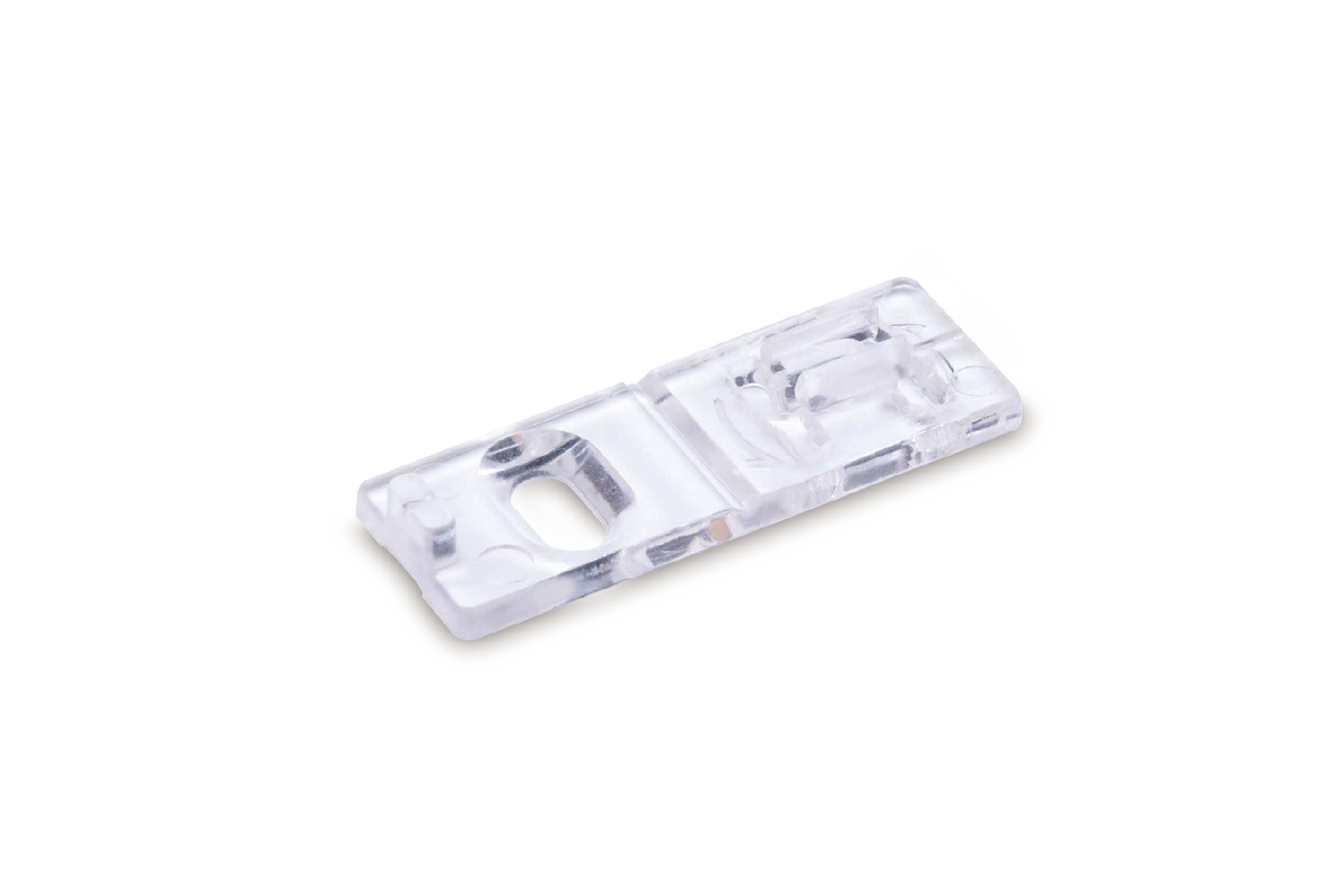

    • 1Mounting clip K for silux

      LSX-PTM-C

      Attached with light fixture
      3 pcs for 702mm or shorter
      5 pcs for 823mm or longer

      For extra order 3 pcs/bag

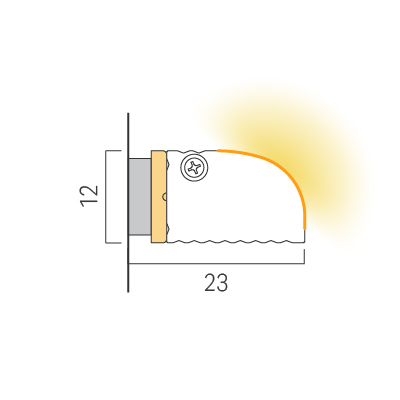

  • Bottom fixing / Clip + Magnet

    Bottom fixing / Clip + Magnet

    • 1Mounting clip K for silux

      LSX-PTM-C

      Attached with light fixture
      3 pcs for 702mm or shorter
      5 pcs for 823mm or longer

      For extra order 3 pcs/bag

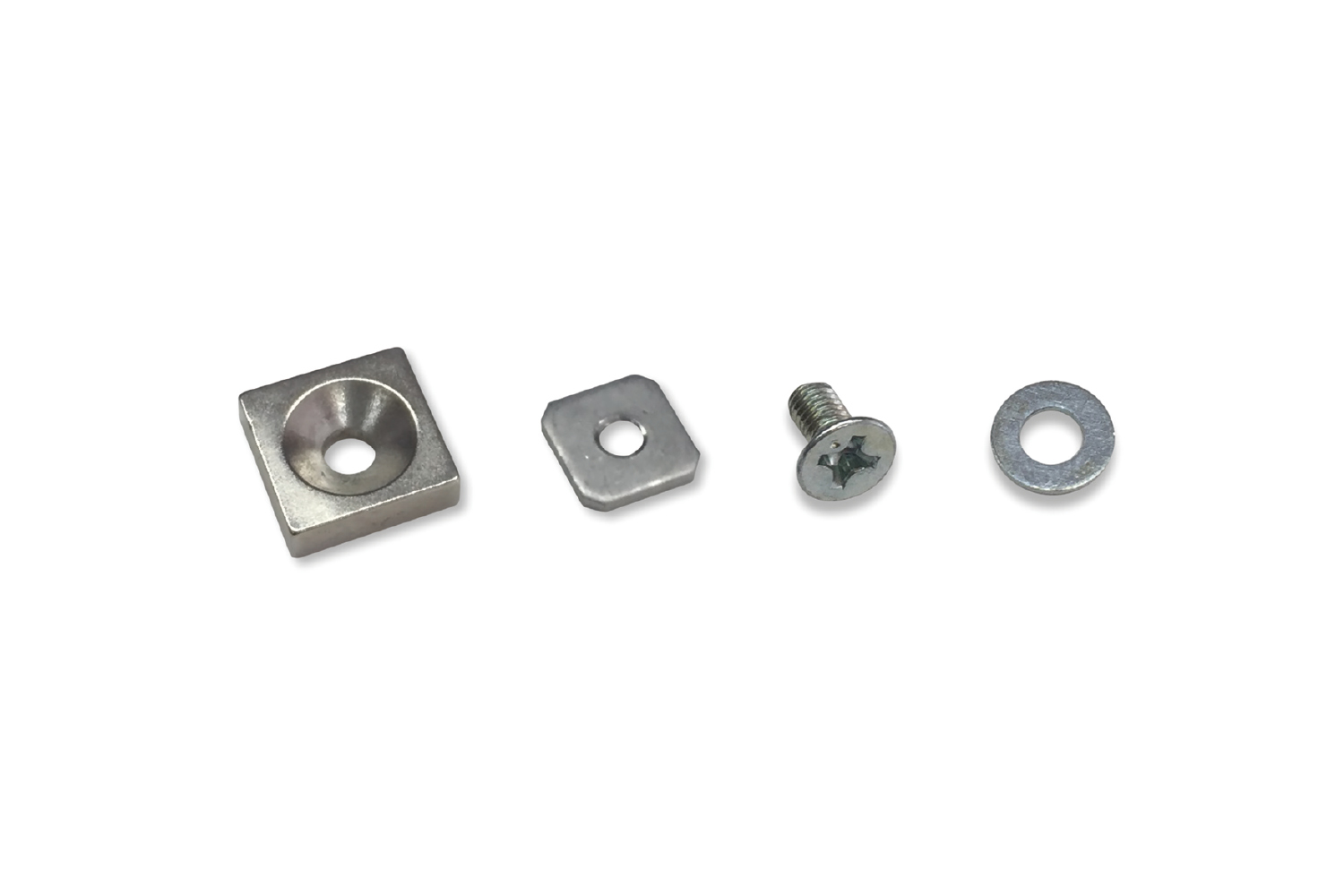

    • 4Magnet set A

      MG-A

      5 sets/bag

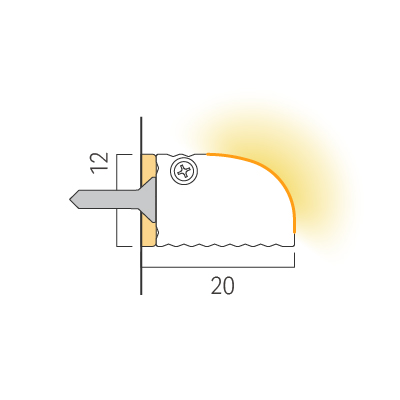

  • Side fixing / Clip

    Side fixing / Clip

    • 1Mounting clip K for silux

      LSX-PTM-C

      Attached with light fixture
      3 pcs for 702mm or shorter
      5 pcs for 823mm or longer

      For extra order 3 pcs/bag

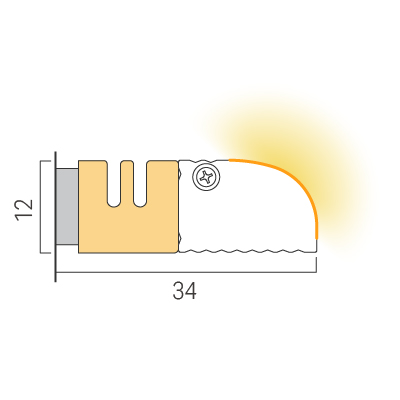

  • Standard installation direction / Clip

    Standard installation direction / Clip

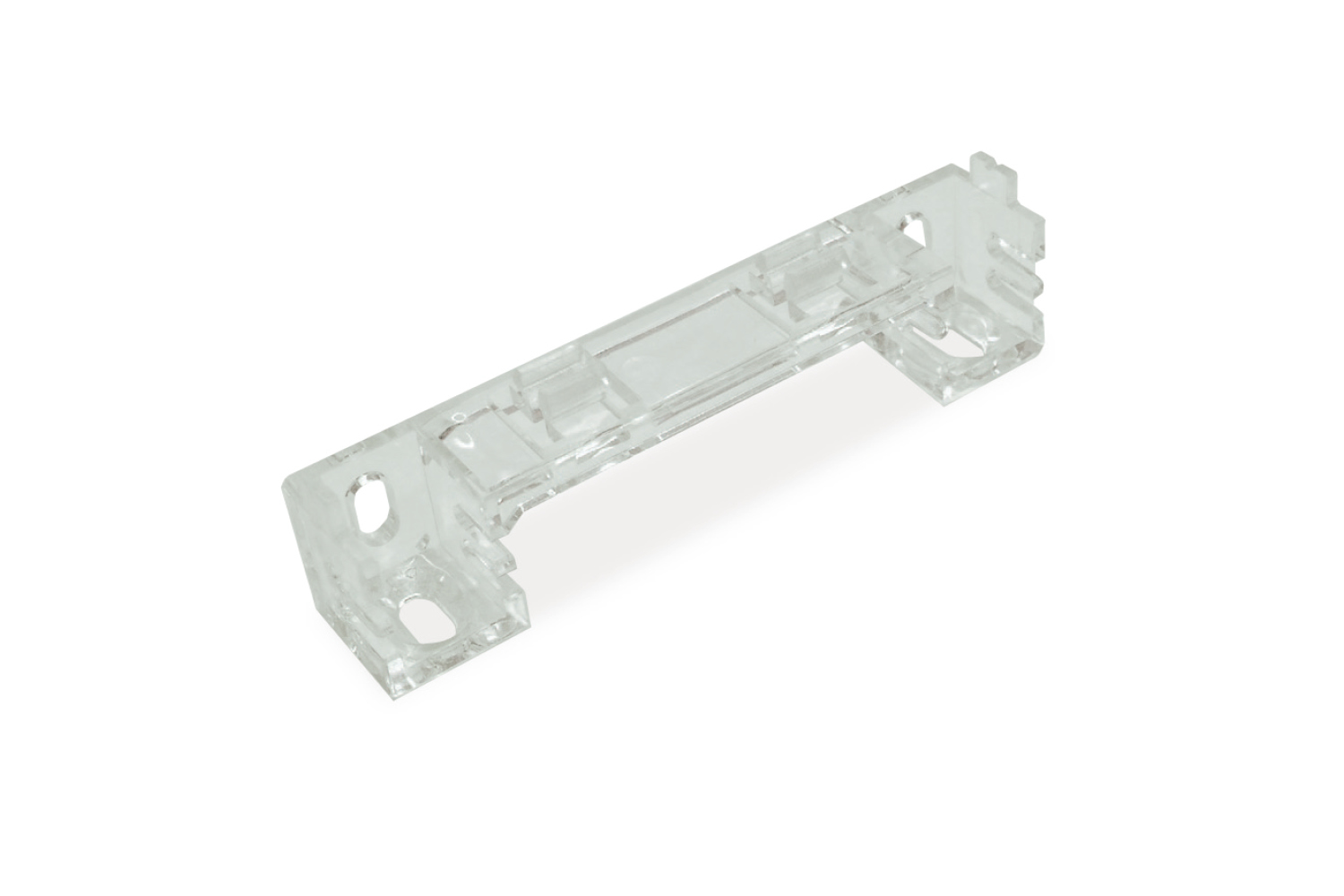

    • 2Lift clip for silux

      LSX-PTL

      2 pcs/bag
      Liftclip is for hiding the connector behind the light fixture
      There are two directions of fixing the liftclip

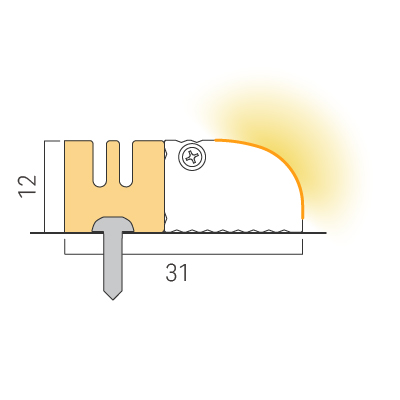

  • Standard installation direction / Clip + Magnet

    Standard installation direction / Clip + Magnet

    • 2Lift clip for silux

      LSX-PTL

      2 pcs/bag
      Liftclip is for hiding the connector behind the light fixture
      There are two directions of fixing the liftclip

    • 5Magnet set L

      MG-L

      10 sets/bag

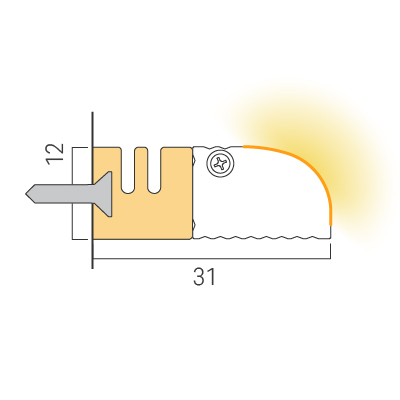

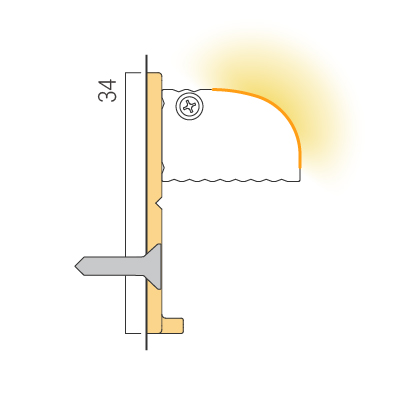

  • Horizontal installation direction / Clip

    Horizontal installation direction / Clip

    • 2Lift clip for silux

      LSX-PTL

      2 pcs/bag
      Liftclip is for hiding the connector behind the light fixture
      There are two directions of fixing the liftclip

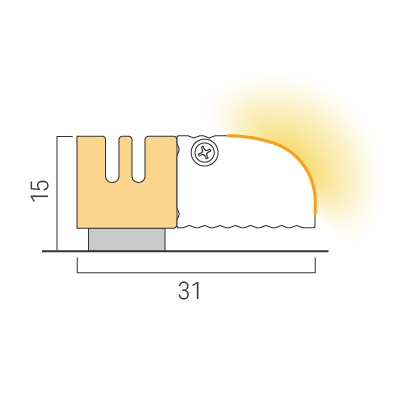

  • Horizontal installation direction / Clip + Magnet

    Horizontal installation direction / Clip + Magnet

    • 2Lift clip for silux

      LSX-PTL

      2 pcs/bag
      Liftclip is for hiding the connector behind the light fixture
      There are two directions of fixing the liftclip

    • 5Magnet set L

      MG-L

      10 sets/bag

  • For downward installation / Clip

    For downward installation / Clip

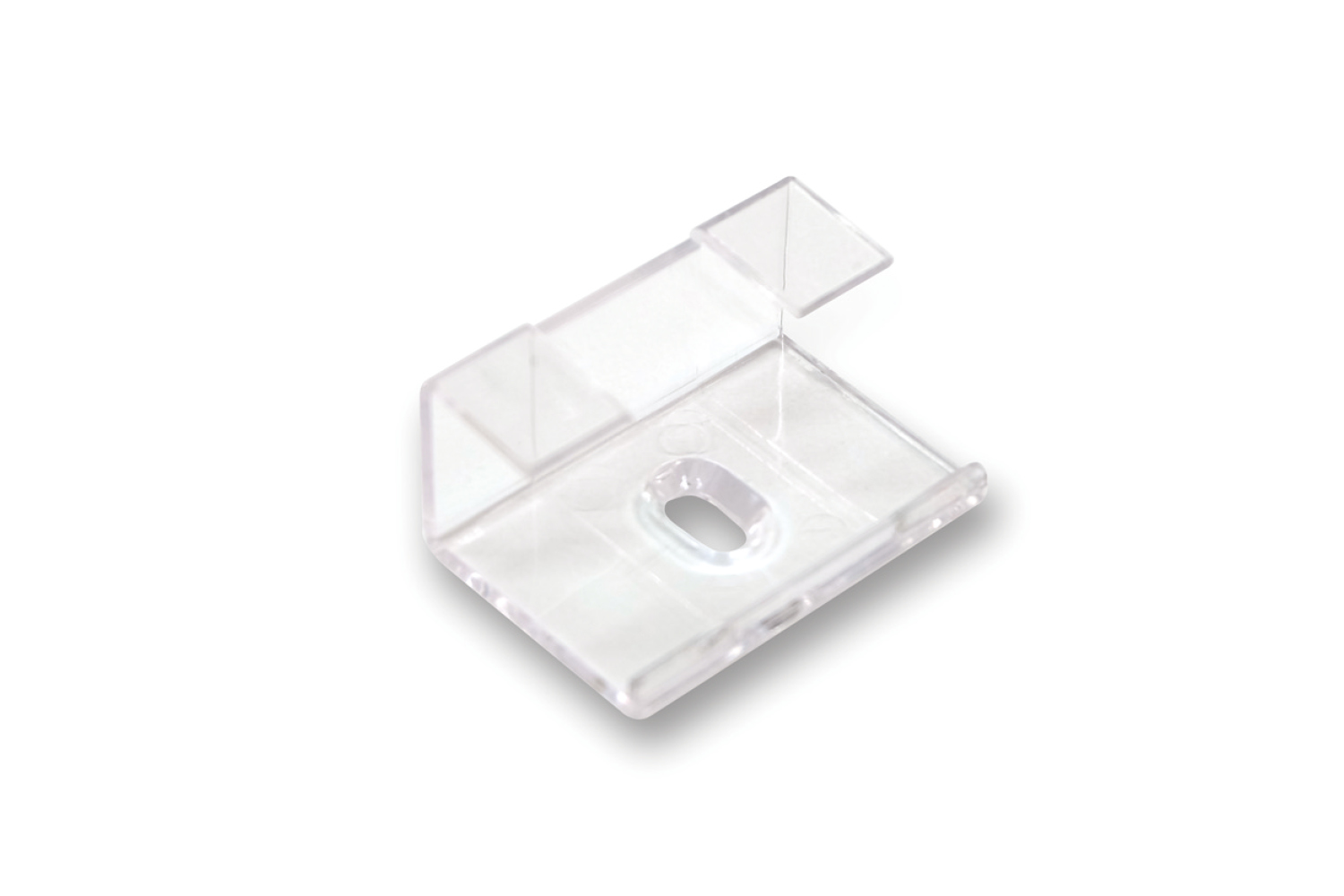

    • 3Outer Clip for silux wide

      LSXW-PT-A

      5 pcs/bag
      Recommended number
      1 pc for 74 mm
      2 pcs for 259 mm to 509 mm
      3 pcs for 573 mm and 702 mm
      4 pcs for 823 mm to 1137 mm
      5 pcs for 1451 mm
      Outerclip is for the downwards emitting installation

  • Vertical installation / Clip

    Vertical installation / Clip

    • 1Mounting clip K for silux

      LSX-PTM-C

      Attached with light fixture
      3 pcs for 702mm or shorter
      5 pcs for 823mm or longer

      For extra order 3 pcs/bag

Accessories

  • 5Power supply cable 3000mm for SL connector

    CAD-3000-MCNN-I

  • 6Joint cable 1000mm for SL connector

    CAD-1000-MCFC-I

Download

How to Install

Multiclip K installation: bottom fixing

Multiclip K installation: bottom fixing

Multiclip K installation: side fixing

Multiclip K installation: side fixing

Liftclip installation: Standard installation direction

Liftclip installation: Standard installation direction

Liftclip installation: Horizontal installation direction

Liftclip installation: Horizontal installation direction

Outerclip installation

Outerclip installation

For vertical installation

For vertical installation

Works

  • 196 Rivervale Drive, Singapore

    196 Rivervale Drive, Singapore

    Singapore

    Residence Ceiling cove

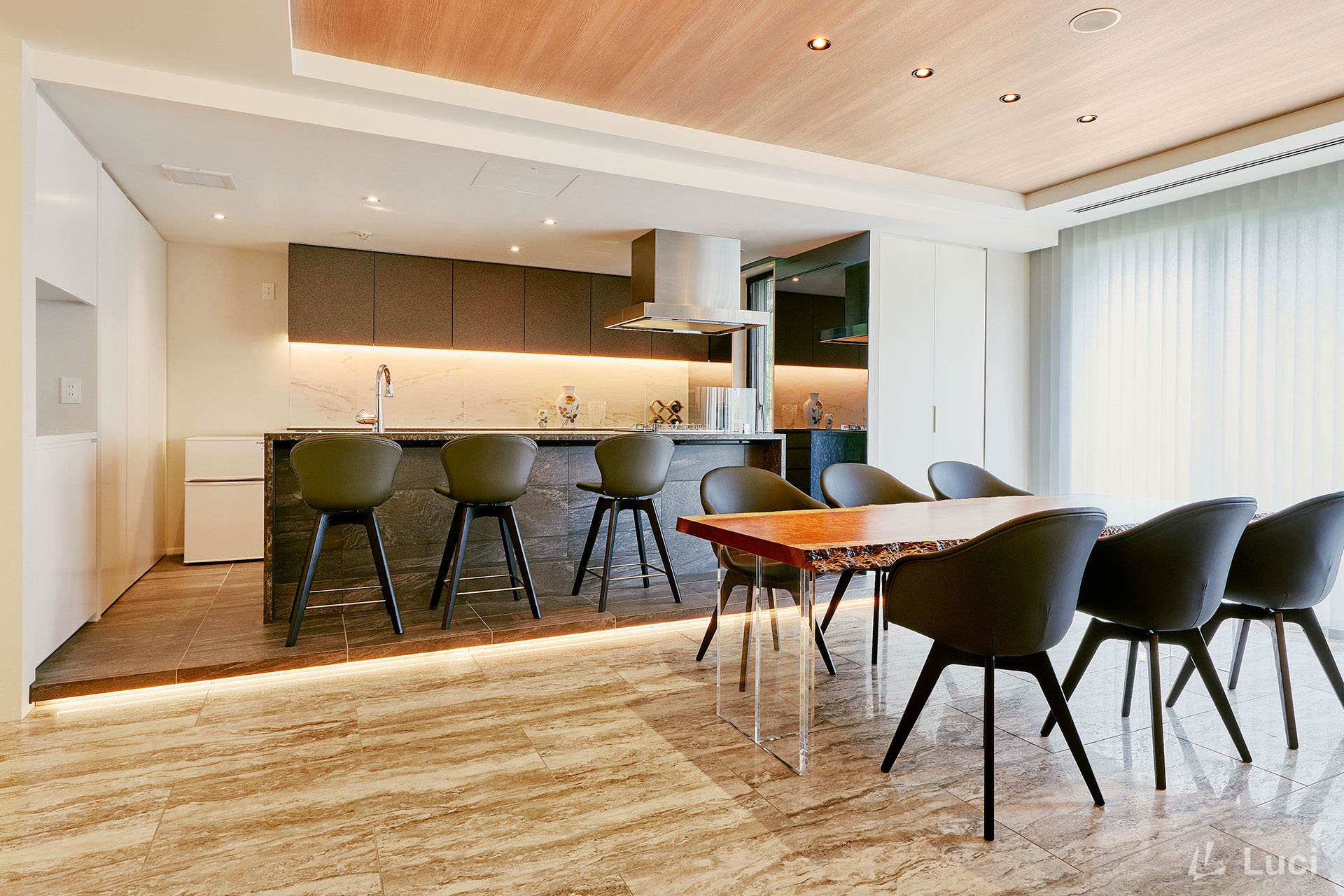

  • Mr Horiuchi's residence
