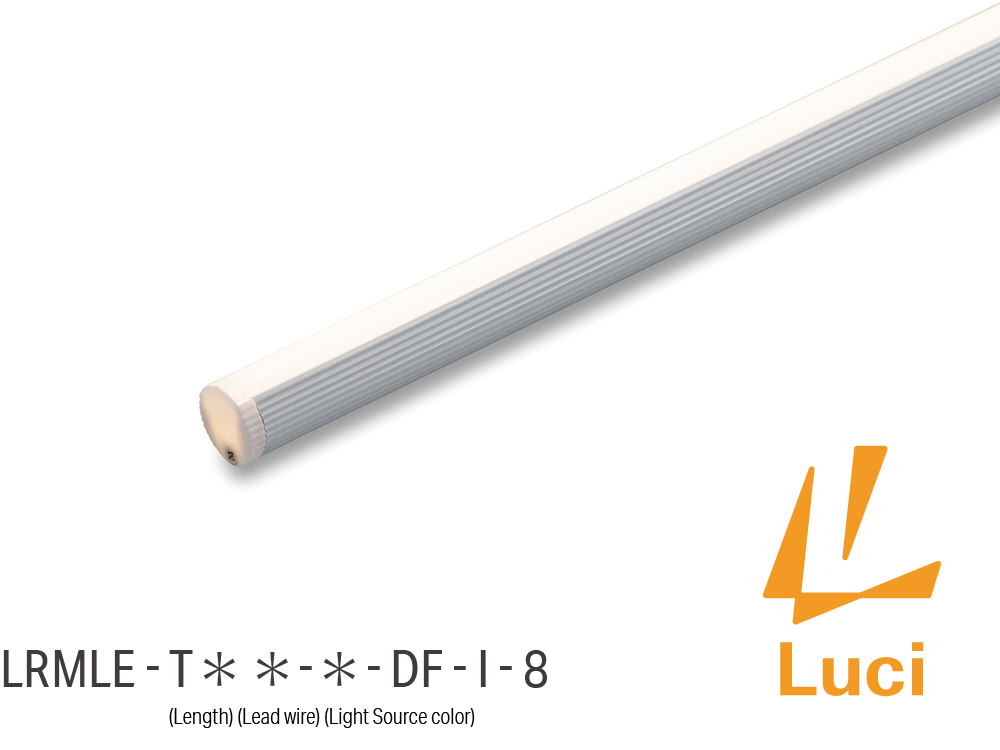

LRMLE NEW
RIMiT lens
- 12mm diameter circular line lighting featuring lens-based light disribution and a sleek, dotless design.
- Lens with extended light distribution and angle of approxiately 40°, providing a beautiful light gradation
- Available in 60 lengths from 33 mm to 1508 mm
LRMLE
RIMiT lens
Product information
Model No.
LRMLE-T1008W-L27-DF-I-8
SpecificationLength 1008
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit4 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoor (no condensation)
-
CertificationCE
-
MaterialPolycarbonate, Aluminum
Mounting options
-
Bottom fixing / Clip
-
1Mounting clip P for RIMiT lens
LRMLE-PT-P
5pcs / bag
Angle adjustable in approx. 10° increments
-
-
Bottom fixing / Clip + Lift Parts
-
1Mounting clip P for RIMiT lens
LRMLE-PT-P
5pcs / bag
Angle adjustable in approx. 10° increments -
3Lift Parts for RIMiT
LRM-PT-B
5 pcs/bag
Lift parts must be used with mounting clip
-
-
Bottom fixing / Clip + Magnet
-
1Mounting clip P for RIMiT lens
LRMLE-PT-P
5pcs / bag
Angle adjustable in approx. 10° increments -
4Magnet set A
MG-A
5 sets/bag
-
-
Bottom fixing / direct mounting / Clip
-
2Mounting clip D for RIMiT
LRM-PT-D
5 pcs/bag
When install lighting vertically or avoid clips to be visible
-
-
Bottom fixing / direct mounting / Clip + Lift Parts
-
2Mounting clip D for RIMiT
LRM-PT-D
5 pcs/bag
When install lighting vertically or avoid clips to be visible -
3Lift Parts for RIMiT
LRM-PT-B
5 pcs/bag
Lift parts must be used with mounting clip
-
Accessories
-
5Power supply cable 3M with TR connector
CAD-3000-MEFE-O
-
6Clip J for Lead Wire
LRM-PT-J
Download
How to Install
Mounting clip P installation

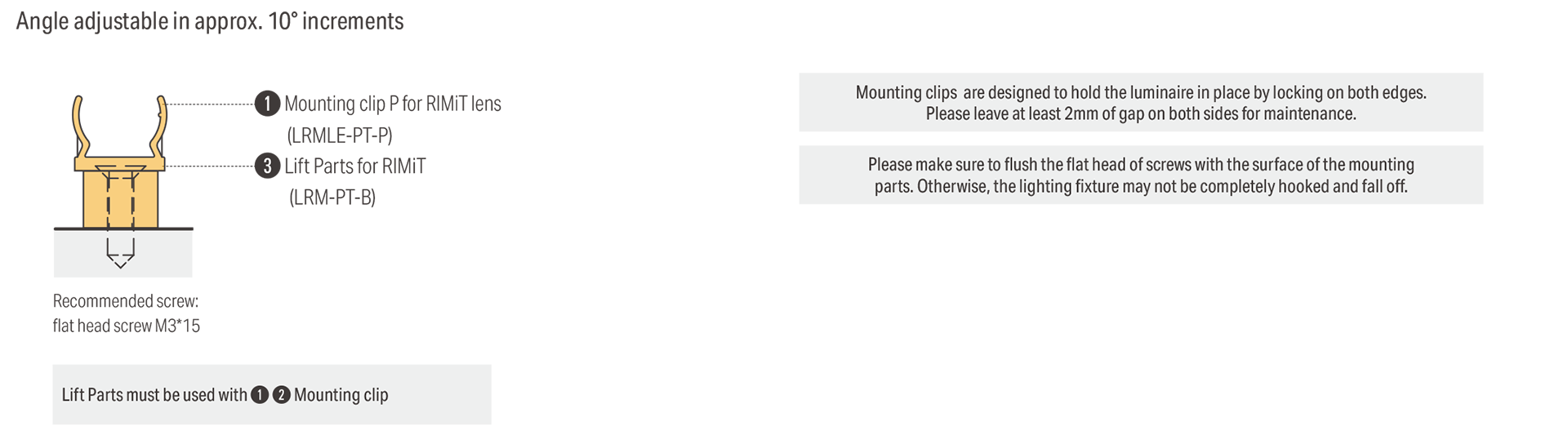

Mounting clip P and Lift Parts installation
Mounting clip P and Magnet installation

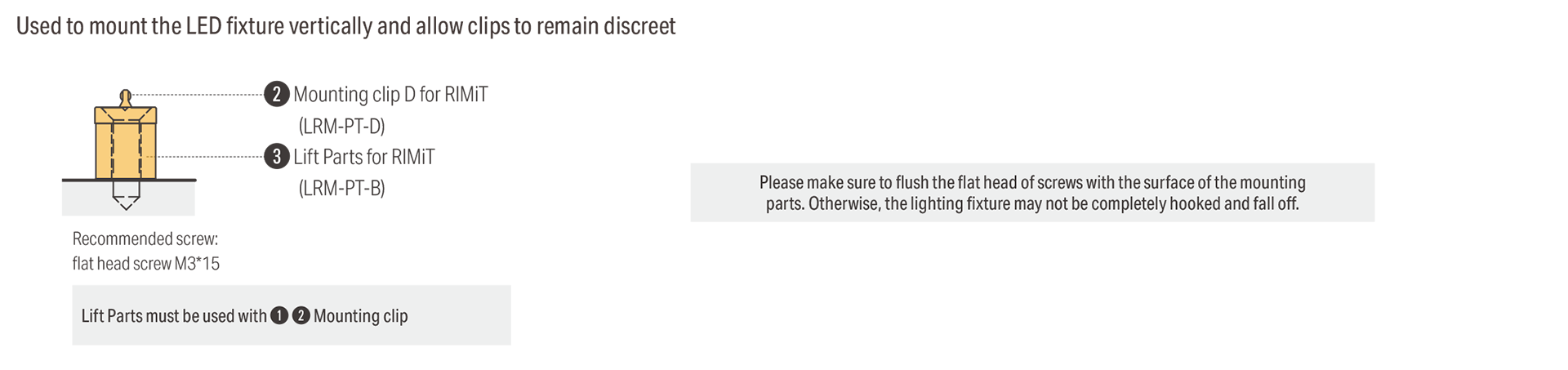

Mounting clip D installation
Mounting clip D and Lift Parts installation
