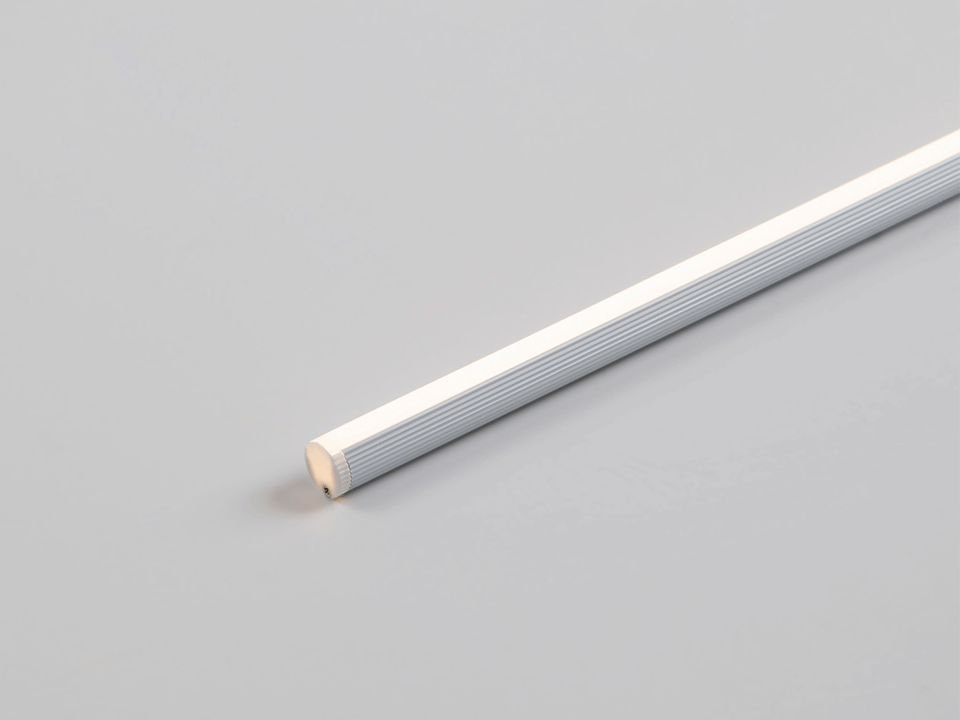

12mm diameter circular line lighting featuring lens-based light distribution and a sleek, dotless design.
8.6W
N(4700K) / W(3600K) / WW(3300K) /
L30(2900K) / L27(2600K) / L24(2300K)
The RIMiT lens, with a compact 12mm diameter, focuses and spreads light at approximately 40° to enable seamless, dotless line illumination.
Specifications
Features
Compact size with focused and extended light distribution

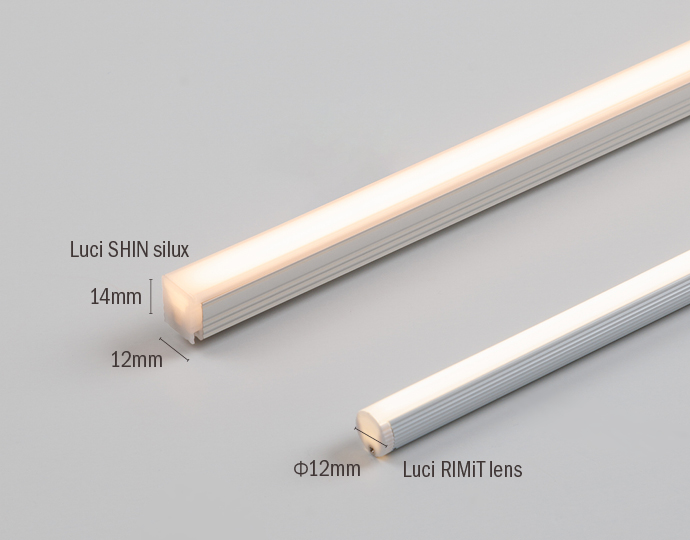

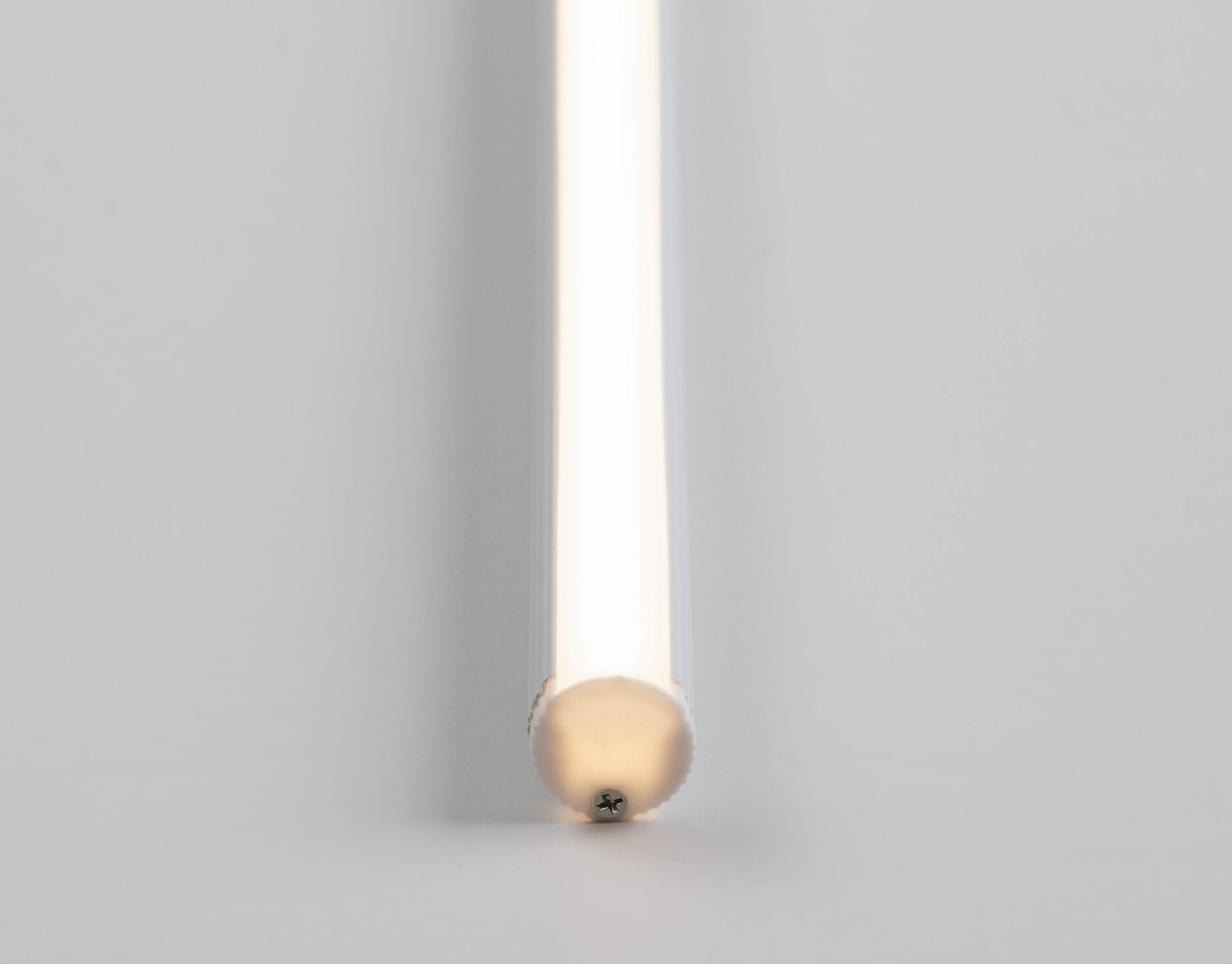

Slimmer than existing products with a diameter of just 12mm and a lens that provides a precise, dotless illumination
Enhancement of light distribution through the integration of dotless and lens technologies
The lens light distribution delivers uniform illumination to the edges of the fixture, providing dotless and seamless glow.

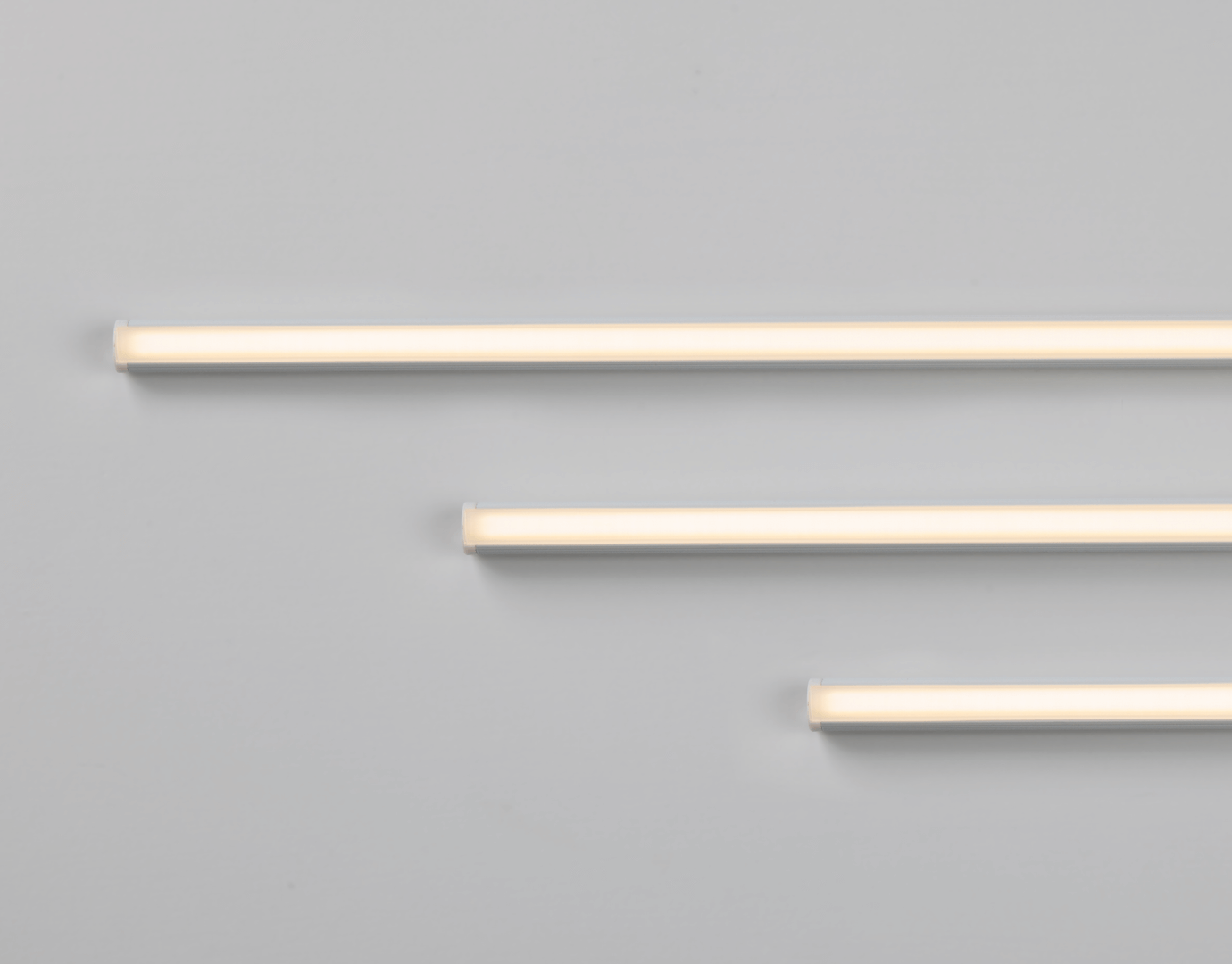

Flexible length variation
60 customizable lengths from 33mm to 1508mm.
Adjustable light distribution

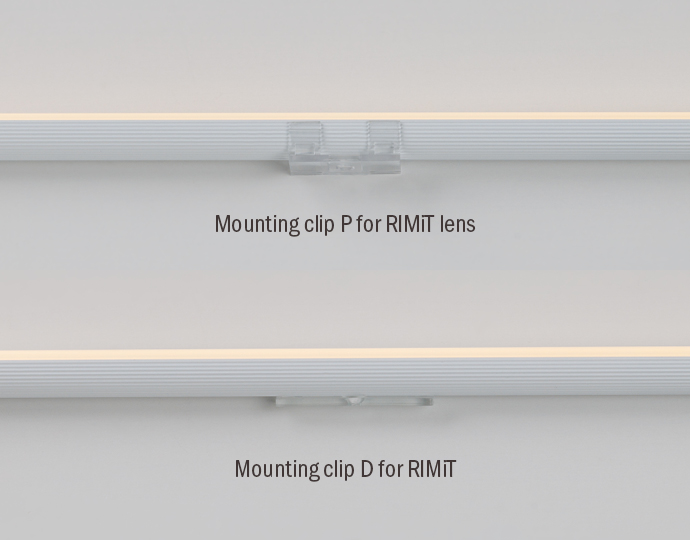

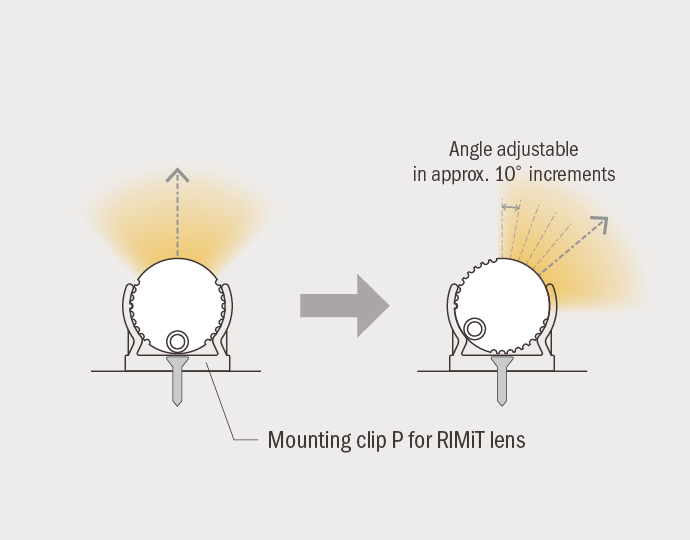

Clips for post-installation light distribution adjustment mounting clips allow angle of the light to be adjusted in 10° increments after installation.
Wide range of mounting options

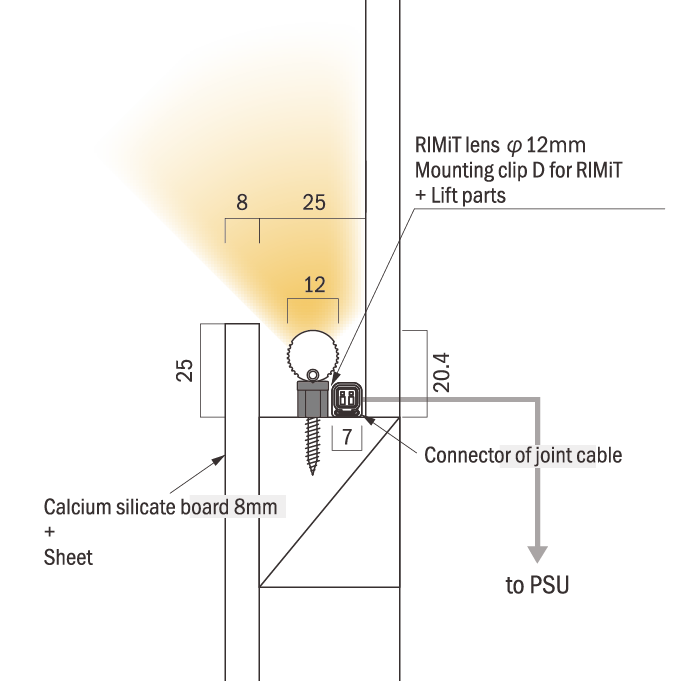

A variety of mounting methods are available to enhance both aesthetics and functionality. These include adjustable clips that allow modification of light distribution, discreet clips that can be concealed behind the fixture, and mounting components designed to enhance the overall visual appeal.
Application
RIMiT series is highly versatile and blends in with spaces in various applications.

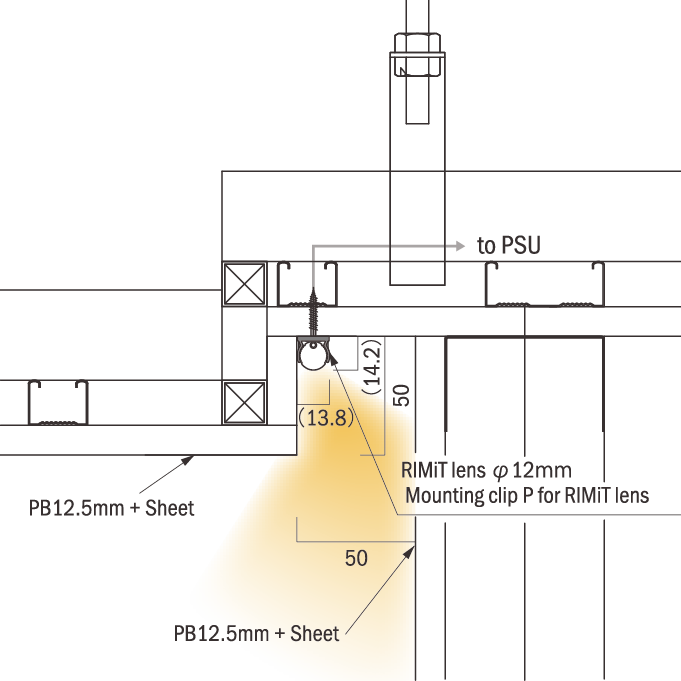

A new alternative for downlights that effectively collects and extends illumination, even within a compact depth.

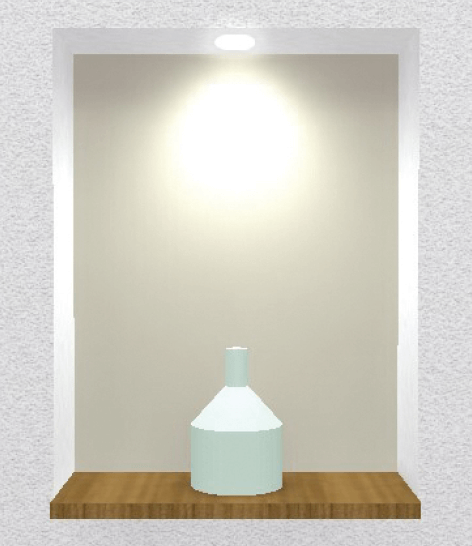

Downlight
While the downlight can effectively illuminates the displayed object, the corners remain dark and the entire shelf is not fully illuminated. This creates an illusion of glare around the object.
Lensless (RIMiT kk)
RIMiT KK is attractive for it's compact square-shaped design, but the lighting on the displayed object is a bit not enough.

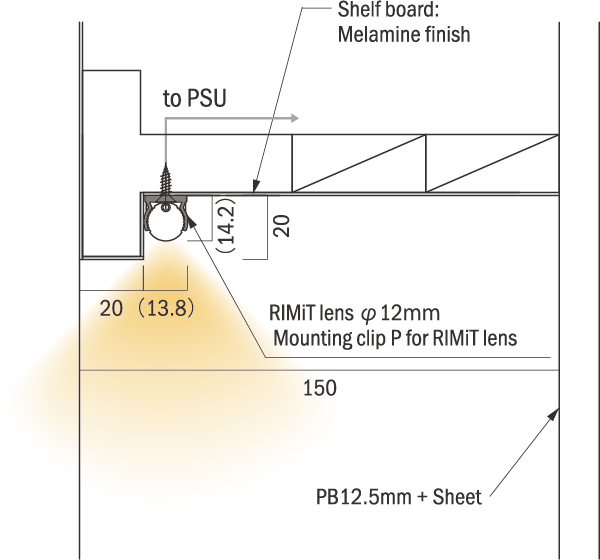

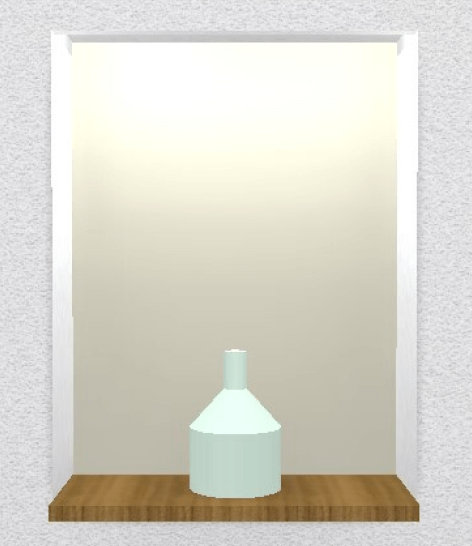

With lens (RIMiT lens)
RIMiT lens not only provides uniform illumination across the entire display shelf, ensuring that displayed object is fully lit, but also minimizes glare through its narrow light distribution. Additionally, it offers greater flexibility, as the light distribution can be easily adjusted using its adjustable clips after installation.

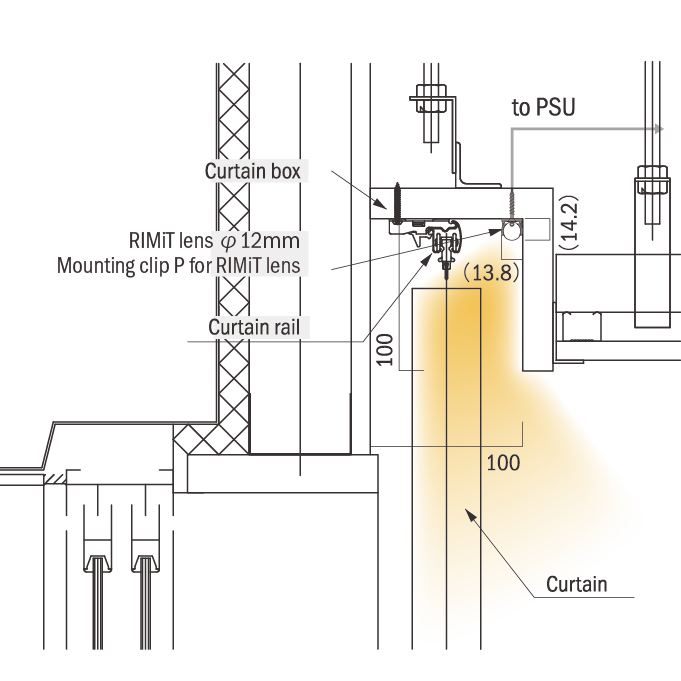

Lens light distribution highlights the material's details, enhancing the three-dimensional sense of the curtains.
Upper lighting that fits into small spaces and can be adjusted in 10° increments even after installation.
Point

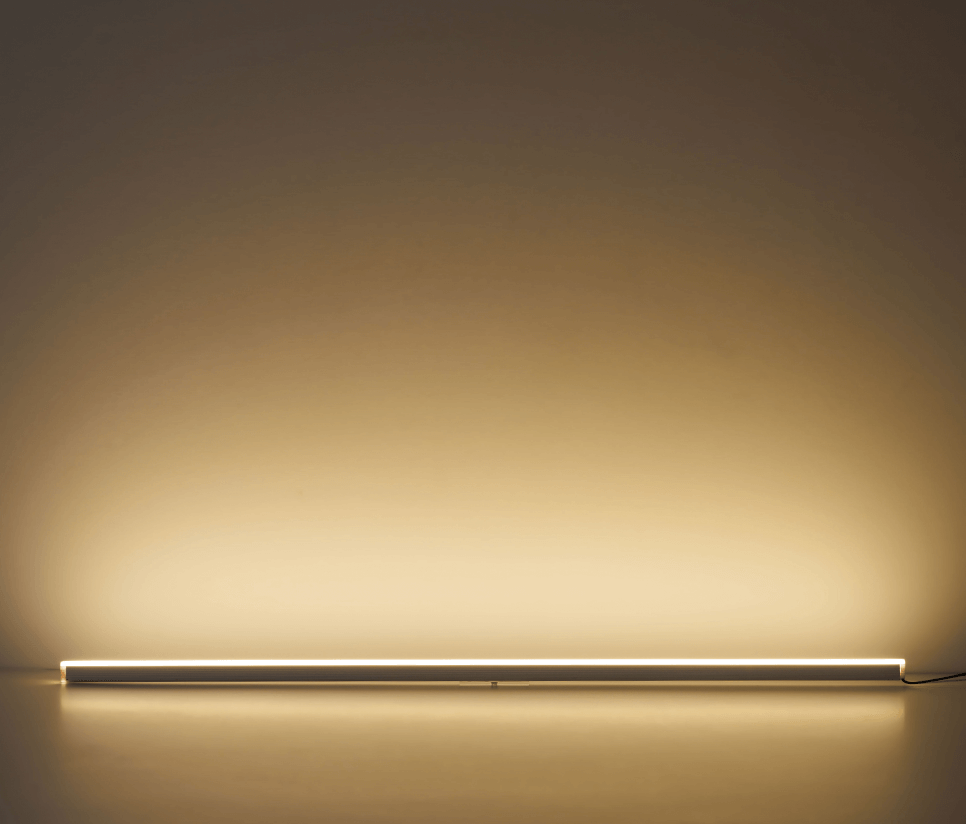

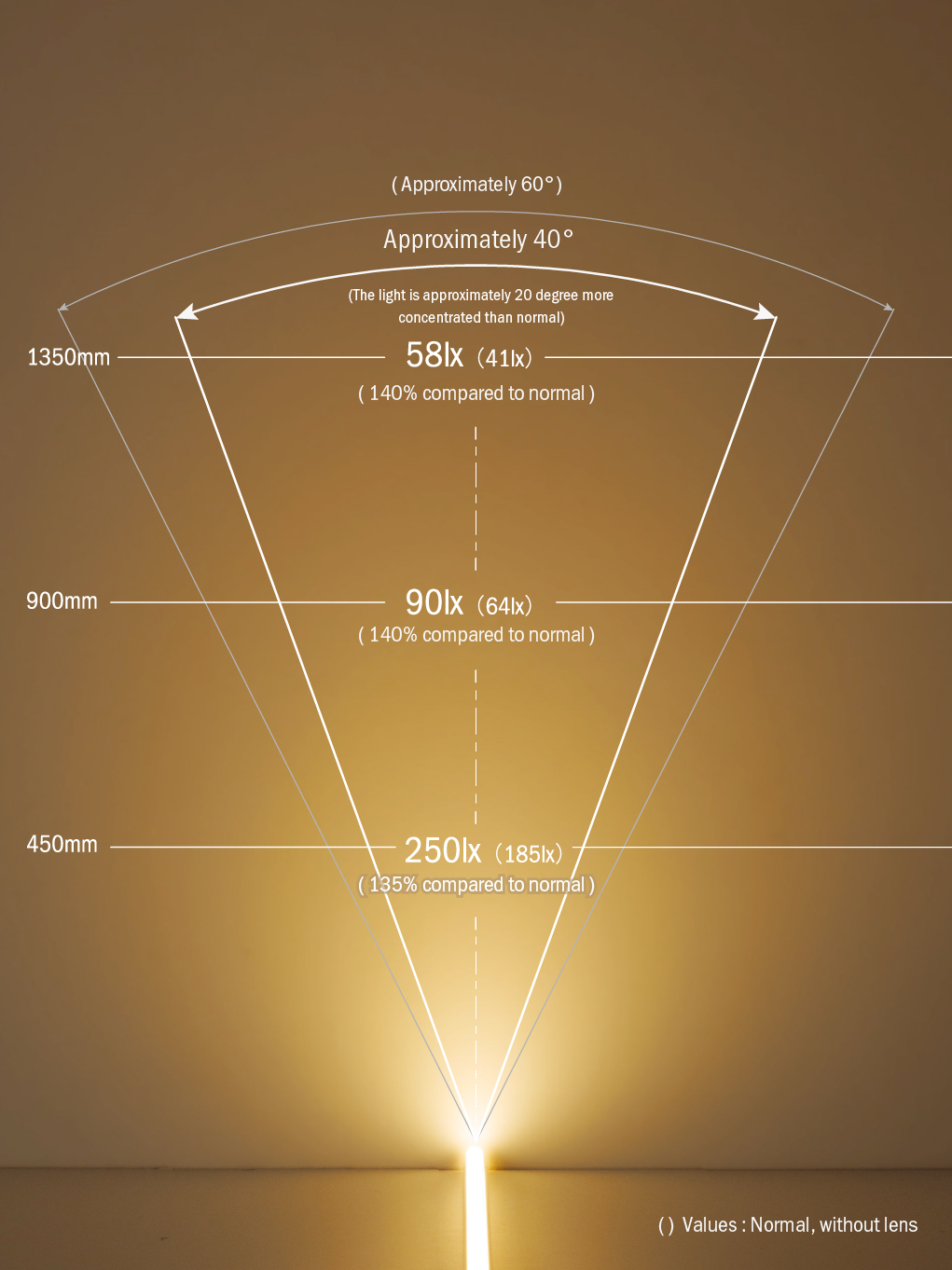

[Lens distribution that focuses and extends light]
-
- -
- Light distribution angle: approx. 40°
- -
- Compared to normal light (without lens),light extension is increased by approx. 40%
Specifications
