LNLY
NEW
SHIN nano line
- Updated with low wattage high lumen LED series
- Available in 4 different wattage variations
- Customizable every 100mm increment up to 1.4m
- 5.5mm width homogeneous rigid light
- Ideal for recessed linear light for wall, ceiling and furniture
- Available for magnet installation
LNLY

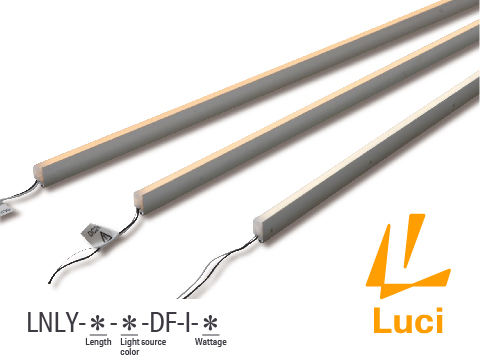

SHIN nano line
Product information
Model No.
LNLY-1011-L27-DF-I-10
SpecificationLength: 1011Wattage: 10 : 10.8 W/m
-
Input voltageDC24V
-
Wattage10.8 W
-
Fitting length1011 mm
-
Light source color
D:6500K 206 lm Ra - 19 lm/w N:5000K 204 lm Ra 92 18.8 lm/w W:4000K 200 lm Ra 93 18.5 lm/w WW:3500K 198 lm Ra 93 18.3 lm/w L30:3000K 193 lm Ra 94 17.8 lm/w L27:2700K 182 lm Ra 93 16.8 lm/w L25:2500K 135 lm Ra 93 12.4 lm/w L22:2200K 126 lm Ra 93 11.6 lm/w L20:2000K 115 lm Ra 63 10.6 lm/w -
Max. length per circuit5m
-
DimmableYes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoors (no condensation)
-
CertificationCE , PTB FREE
-
MaterialBody : Aluminum, Cover : Polycarbonate
-
AttachmentsMounthing parts A
2 pcs for standard and 2 pcs of end mounting clip - Length 0111-1011
4 pcs for standard and 2 pcs of end mounting clip - Length 1061-1411
Mounting options
-

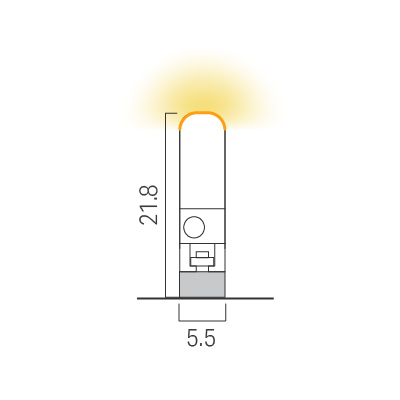

Horizontal installation / Clip
-
Vertical installation / Clip
-

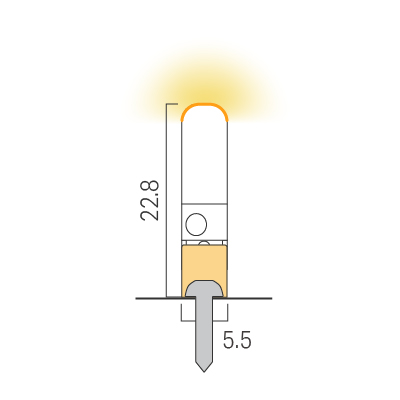

Recessed installation / Clip + Magnet
-
2Magnet for nano line
LNL-MG
10 pcs/bag
Recommended number of magnets
2 pcs for 109 mm to 303 mm
3 pcs for 400 mm to 595 mm
4 pcs for 692 mm to 984 mm
Used for installing light fixture on metal plate
Metal plate is required to be supplied by installer
The magnets need to be fixed onto the metal plate by installer
-
Download
How to Install
For horizontal installation
For vertical installation
For Magnet installation
