LFUY-I SHINseires

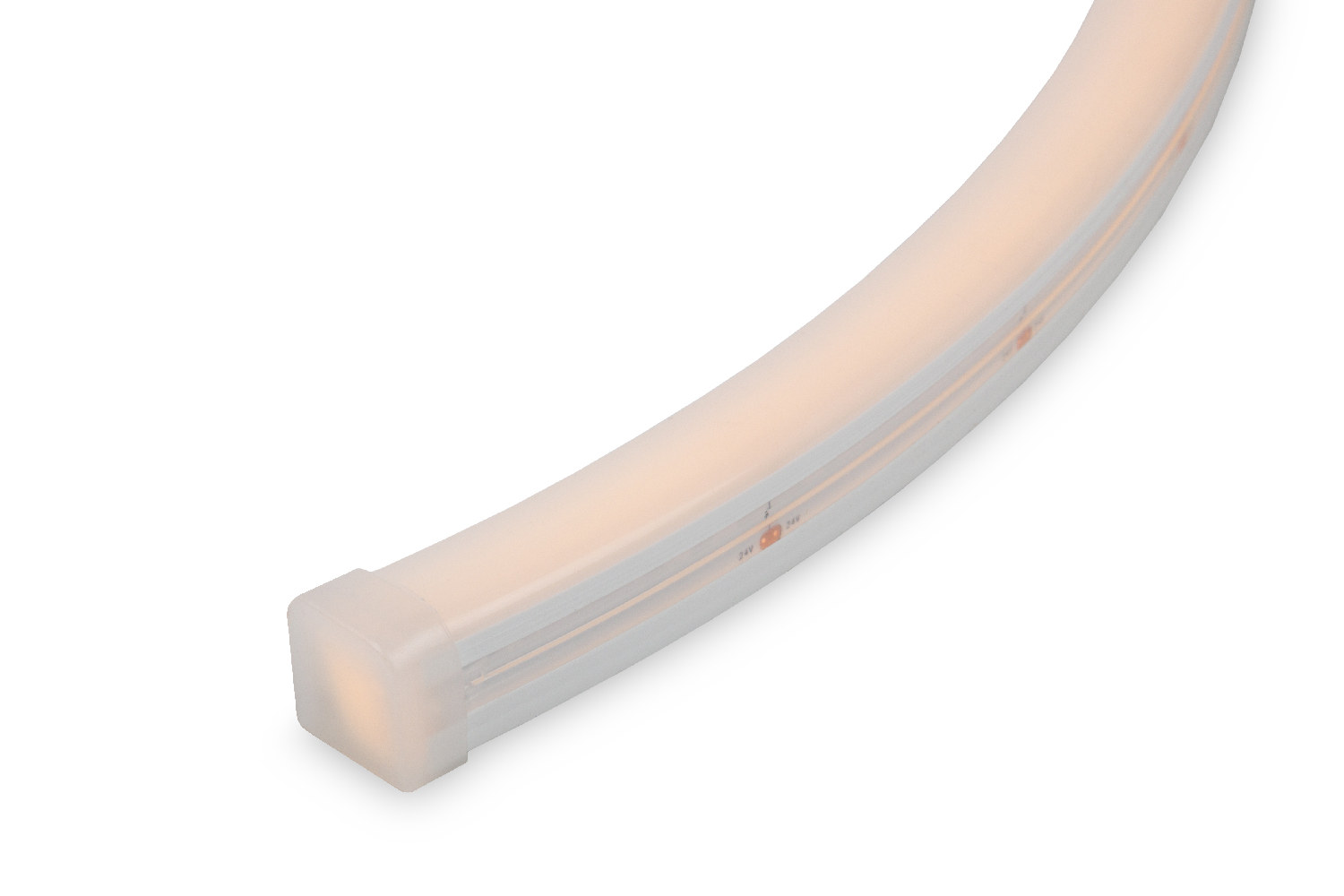

SHIN UQ FLEX Indoor

  • Top bend dot-free flexible light, cuttable every 50mm at site
  • Updated with low wattage high lumen LED series
  • Available 4 different wattage variations
  • Indoor usage only, custom length max.5m per roll, connectable 10m per circuit
  • MacAdam3steps
  • CE
  • Top bend
  • SHIN UQ FLEX Indoor

Product information

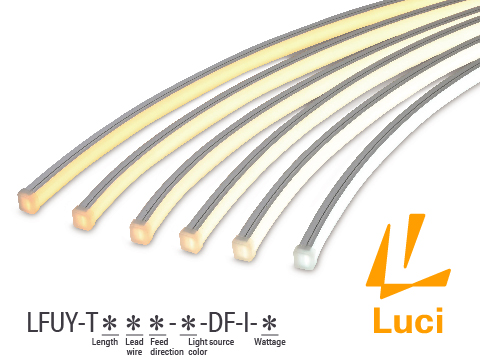

Model No.

LFUY-TB--DF-I-

Detail
Length
Lead wire
Feed direction

HINT

Feed direction

Light source color
Light source color | Delivered CCT
Wattage

Specification

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    5 m
  • Dimmable
    Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Indoors (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Silicone

Mounting options

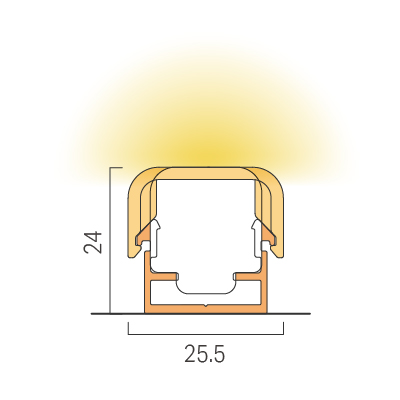

  • Straight installation / Rail

    Straight installation / Rail

    • 1Aluminium mounting rail 950 set for UQ FLEX Indoor

      LFU-RL0950-AL-C-I

      The set include Mounting rail (1pc) , PC Hold clip (5 pcs/bag) and Joint plate (1pc)

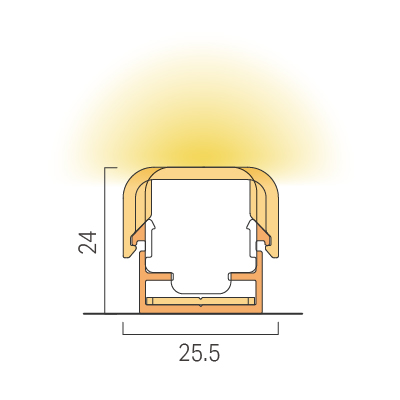

  • Straight installation / Clip

    Straight installation / Clip

    • 3PC Mounting clip for UQ FLEX

      LFU-RC

      Recommended 5 pcs/m
      For curved installation (Side feed)
      *When back feed, need a hole for endcap on installation surface

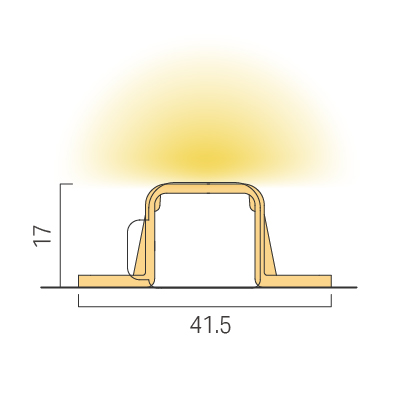

  • Curved installation / Parts

    Curved installation / Parts

    • 2AL mounting parts set for UQ FLEX Indoor

      LFU-RL0018-AL-C-I

      The set include Mounting parts (5 pcs/bag) and PC Hold clip (5 pcs/bag)
      Recommended each 5 pcs/m

  • Curved installation / Clip

    Curved installation / Clip

    • 3PC Mounting clip for UQ FLEX

      LFU-RC

      Recommended 5 pcs/m
      For curved installation (Side feed)
      *When back feed, need a hole for endcap on installation surface

Accessories

  • 4Endcap for UQ FLEX indoor

    LFU-EC

  • 5Power supply cable 3000mm for SL connector

    CAD-3000-MCNN-I

  • 6Joint cable 1000mm for SL connector

    CAD-1000-MCFC-I

  • 6Joint cable 5000mm for SL connector

    CAD-5000-MCFC-I

Download

Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.

How to Install

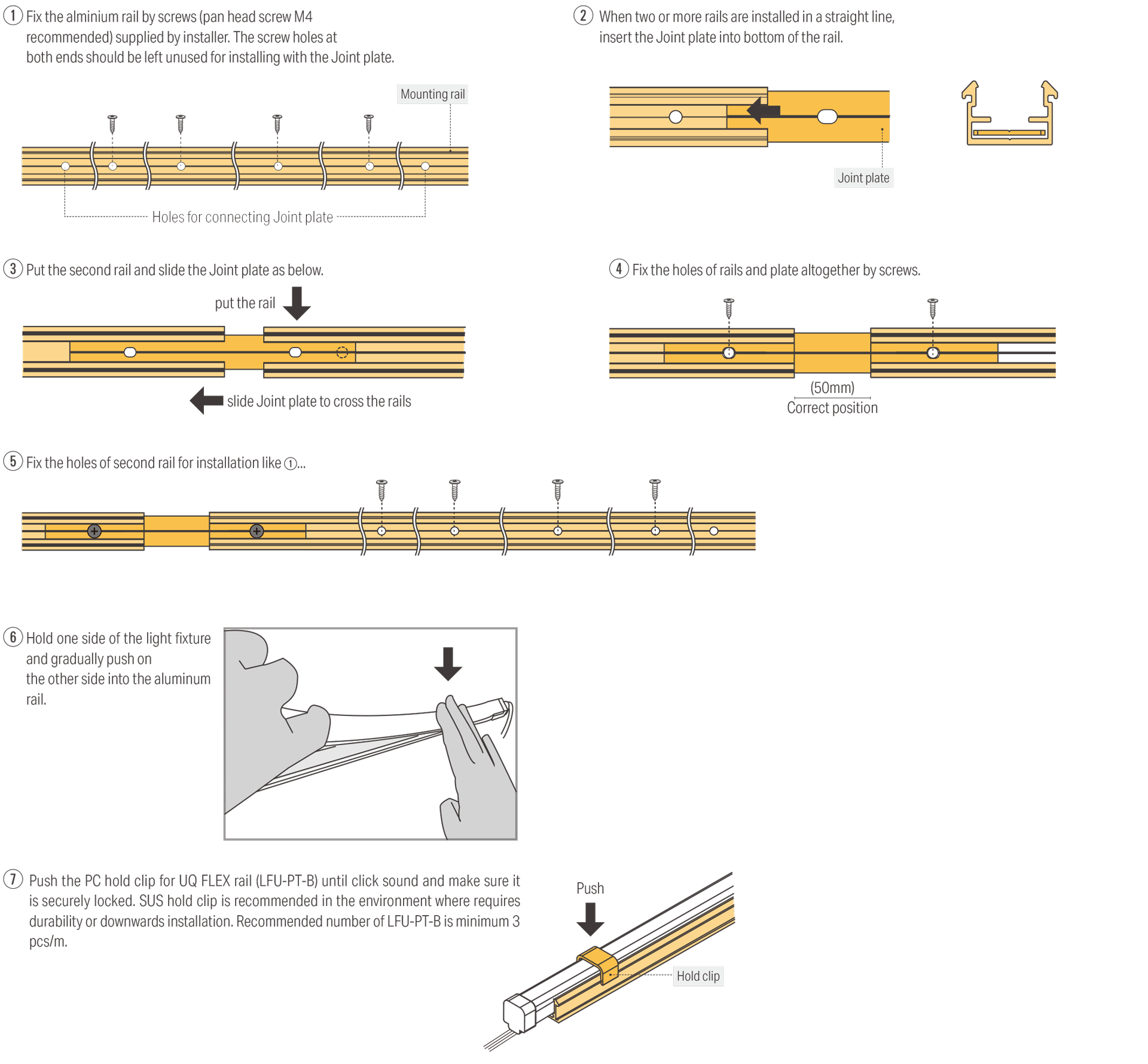

Installation with Mounting rail

Installation with Mounting rail

Installation with Mounting clip

Installation with Mounting clip

Installation with Mounting parts

Installation with Mounting parts
