Discontinued

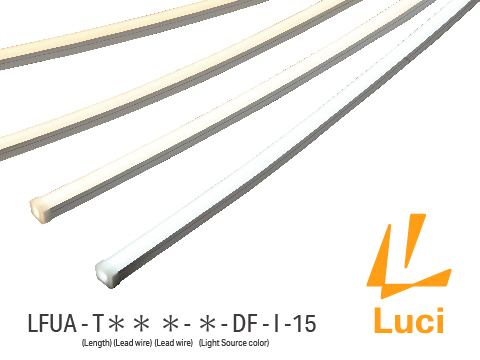

LFUA-I
UQ FLEX α Indoor
- Successor product: SHIN UQ FLEX α Indoor (LFUAY-I)
- Side bending dot-free flexible strip
- Maximum custom length of 2m for outdoor use, up to 10m per run
- Available in 15.8W/m, 12.6W/m, and 8.4W/m types
LFUA-I
UQ FLEX α Indoor
Product information
Model No.
LFUA-T1000WB-L27-DF-I-10
SpecificationSize1000wattage: 10.8W/m
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
Please refer to the Specification sheet for the Delivered CCT. -
Max. length per circuit10 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE
-
MaterialSilicone
Mounting options
-
Straight installation / Rail
-
1Aluminium mounting rail 950 set for UQ FLEX Indoor
LFU-RL0950-AL-C-I
The set include Mounting rail (1pc) , PC Hold clip (5 pcs/bag) and Joint plate (1pc)
-
-
Straight installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
Recommended 5 pcs/m
For curved installation (Side feed)
*When back feed, need a hole for endcap on installation surface
-
-
Curved installation / Parts
-
2AL mounting parts set for UQ FLEX Indoor
LFU-RL0018-AL-C-I
The set include Mounting parts (5 pcs/bag) and PC Hold clip (5 pcs/bag)
Recommended each 5 pcs/m
-
-
Curved installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
Recommended 5 pcs/m
For curved installation (Side feed)
*When back feed, need a hole for endcap on installation surface
-
Accessories
-
4Endcap for UQ FLEX indoor
LFU-EC
-
5Power supply cable 3000mm for SL connectorRequired
CAD-3000-MCNN-I
-
6Joint cable 1000mm for SL connector
CAD-1000-MCFC-I
-
7Joint cable 5000mm for SL connector
CAD-5000-MCFC-I
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

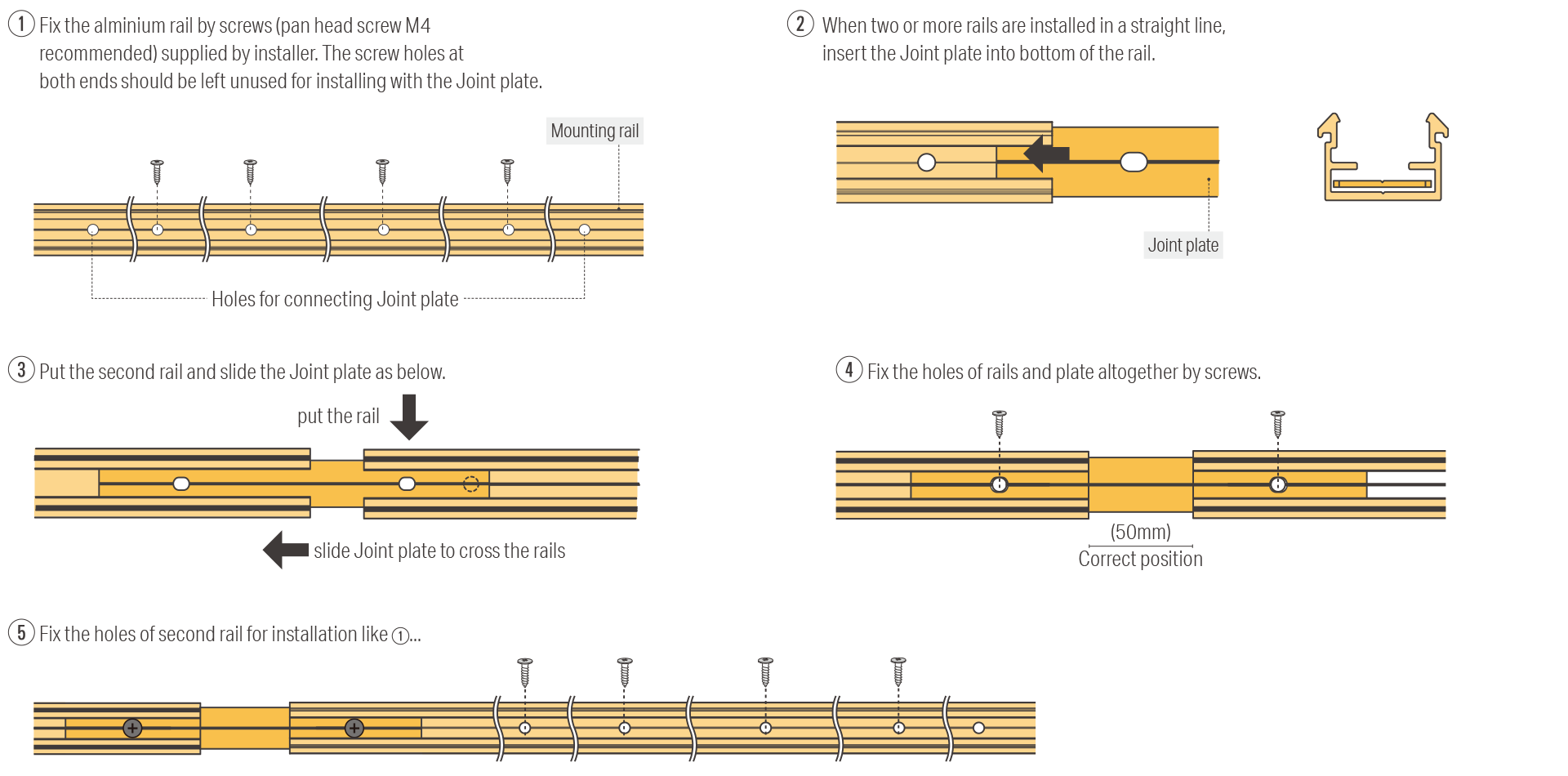

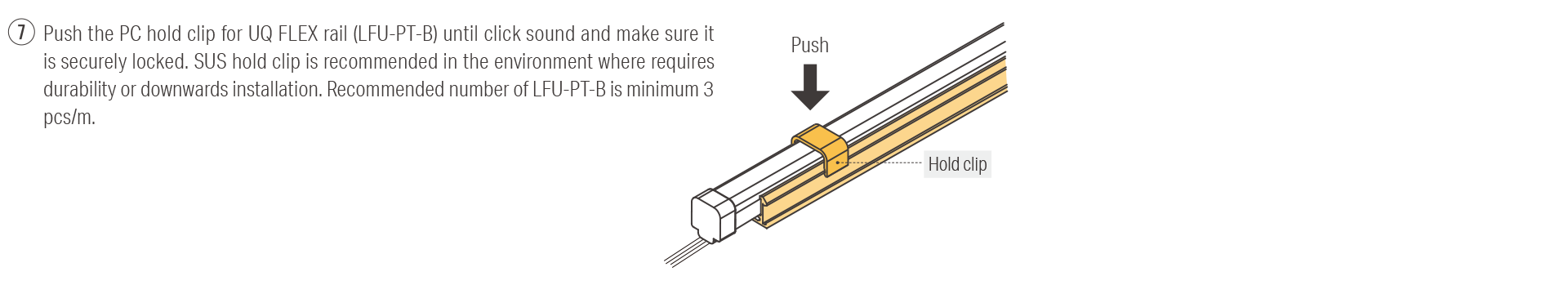

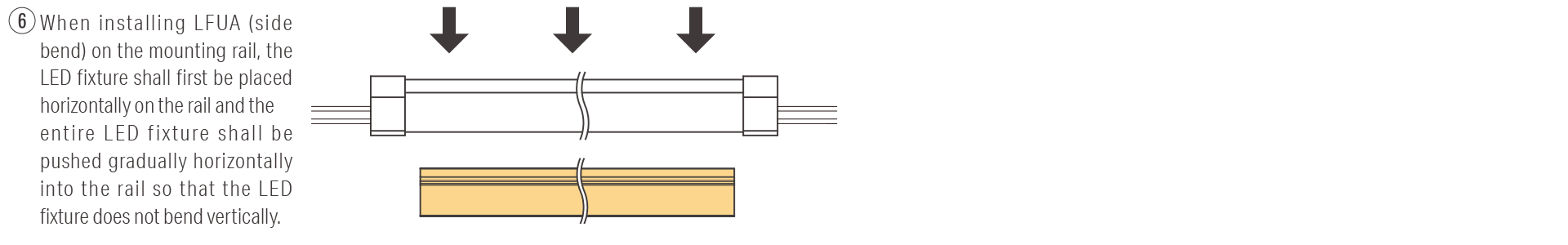

Installation with Mounting rail

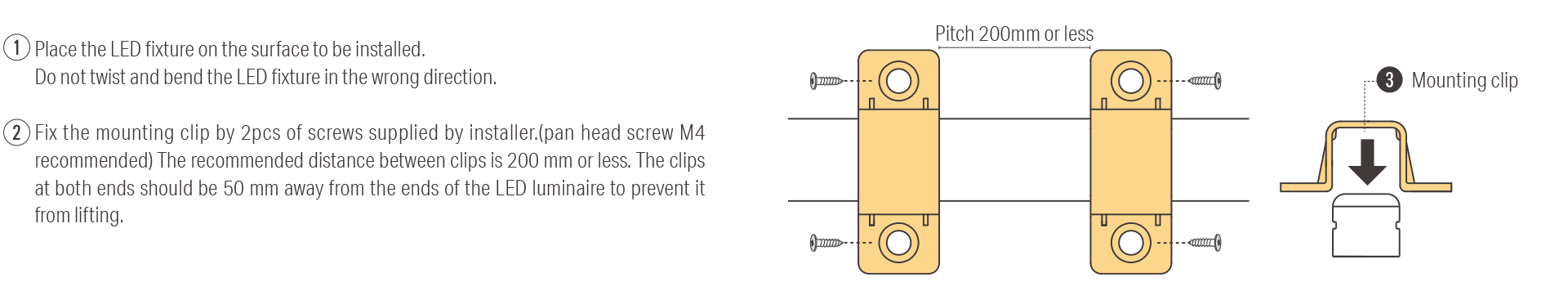

Installation with Mounting clip

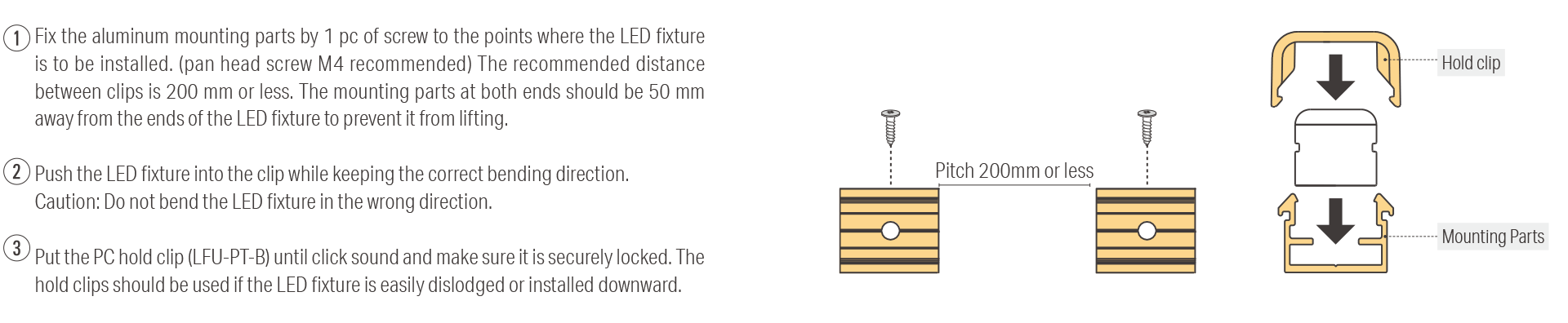

Installation with Mounting parts
