Discontinued

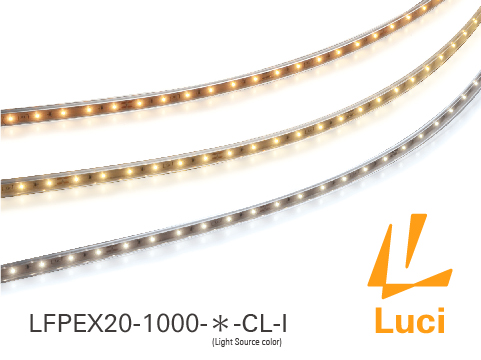

LFPEX-I
Power FLEX EX Indoor
- Successor product : SHIN FLEX (LFY-I)
- Flexible strip covered with soft acrylic tube
- Customized length available up to 3.5m(LFPEX15-I), 5m(LFPEX20/30-I)
- 5 types of wattage and lumen output in 3 kinds of LED pitch
LFPEX-I
Power FLEX EX Indoor
Product information
Model No.
LFPEX20-T1000W-L27-CL-I
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit5m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
MaterialSoft acrylic
-
AttachmentsEnd cap 2pcs
Mounting options
-
Straight installation / Rail
-
1Mounting rail 1000 for Power FLEX
LFP-RL1000
Mounting clip for rail (5pcs) is included
-
-
Straight installation / Aluminum rail
-
3Aluminum mounting rail 1000 for Power FLEX
LFP-RL1000-AL
-
-
Straight installation / Magnet + Rail
-
1Mounting rail 1000 for Power FLEX
LFP-RL1000
Mounting clip for rail (5pcs) is included
-
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Straight installation / Magnet + Aluminum rail
-
3Aluminum mounting rail 1000 for Power FLEX
LFP-RL1000-AL
-
7Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Straight installation / 45° rail
-
245°Mounting rail 1000 for Power FLEX
LFP-45RL1000
Mounting clip for rail (5pcs) is included
-
-
Curved installation / Clip
-
4Mounting clip for Power FLEX
LFP-RC
5 pcs / bag
For curved installation
-
Accessories
-
5Mounting clip for rail
LFP-PT
-
6End cap for Power FLEX
LFP-EC
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

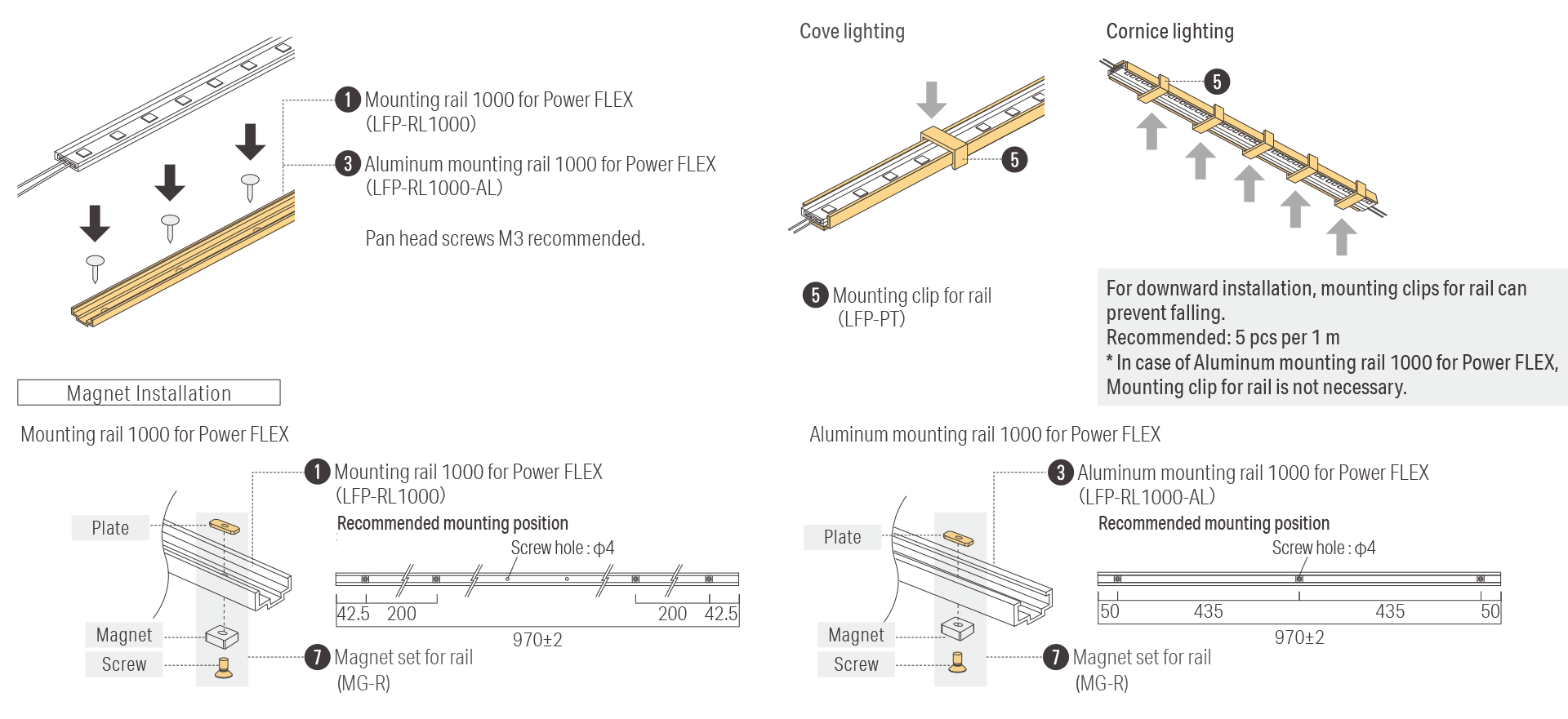

Straight installation

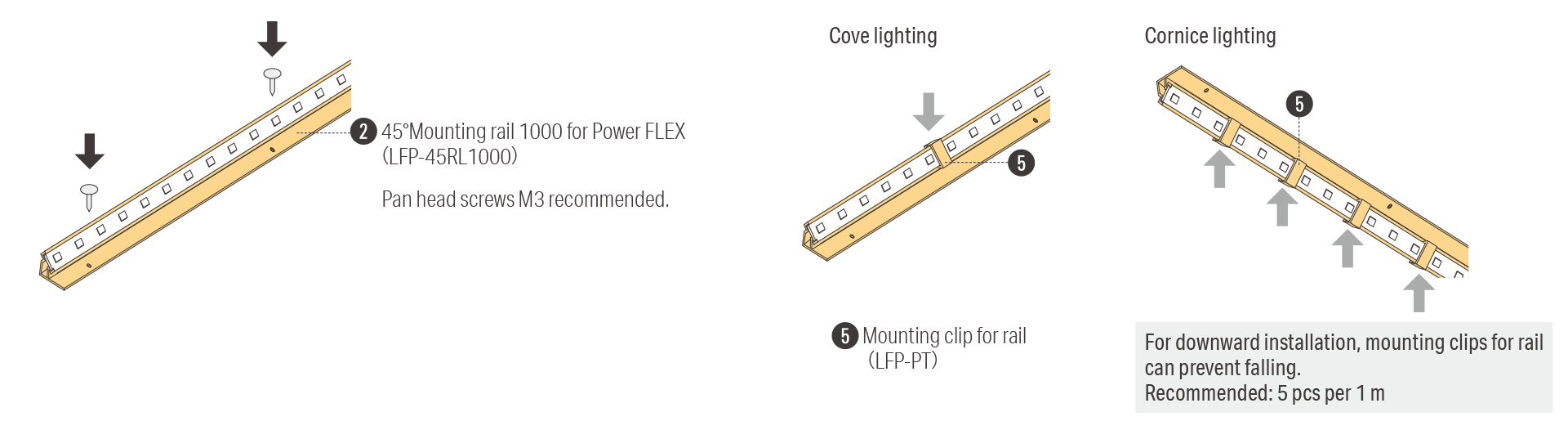

Straight installation by 45 degree rail

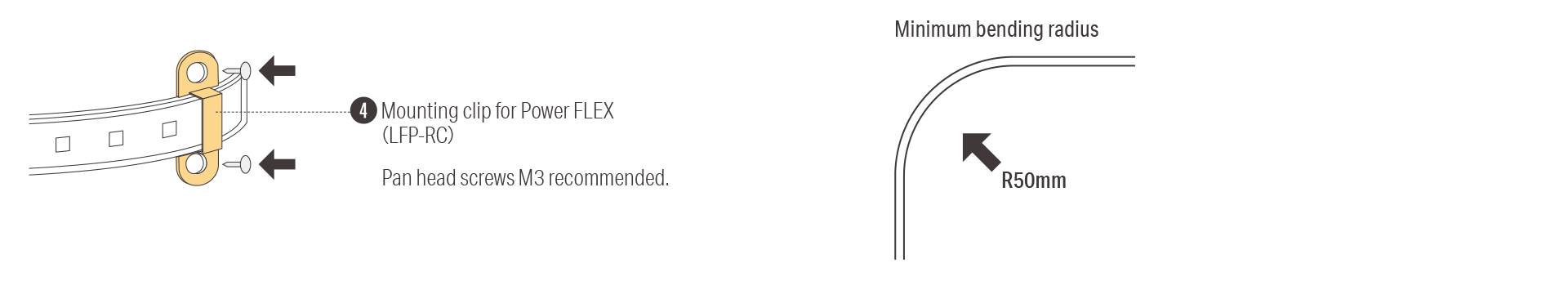

Curved installation
