Discontinued
LFPA
Power FLEX α
- Successor pruduct: SHIN FLEX α (LFAY)
- Side-bending flexible strip light suitable for curved light trough
- Cuttable every 2 LEDs (40mm) unit
- Accessories avalialbe for straight/ curved installation
LFPA
Power FLEX α
Product information
Model No.
LFPA20-0960-L27-CL-I
SpecificationSize970
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit5m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE, BIS
-
MaterialSoft acrylic
-
AttachmentsEnd cap 2pcs
Mounting options
-
Straight installation / Rail
-
1Mounting rail 900 for Power FLEX α
LFPA-RL0900
Mounting clip for rail (5 pcs) is included.
-
-
Straight installation / Magnet + Rail
-
1Mounting rail 900 for Power FLEX α
LFPA-RL0900
Mounting clip for rail (5 pcs) is included.
-
5Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Curved installation / parts
-
2Mounting parts for Power FLEX α
LFPA-RL0030
5 pcs / bag
Mounting clip for rail (5 pcs) is included.
-
Accessories
-
3Mounting clip for rail
LFPA-PT
-
4End cap for Power FLEX α
LFPA-EC
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

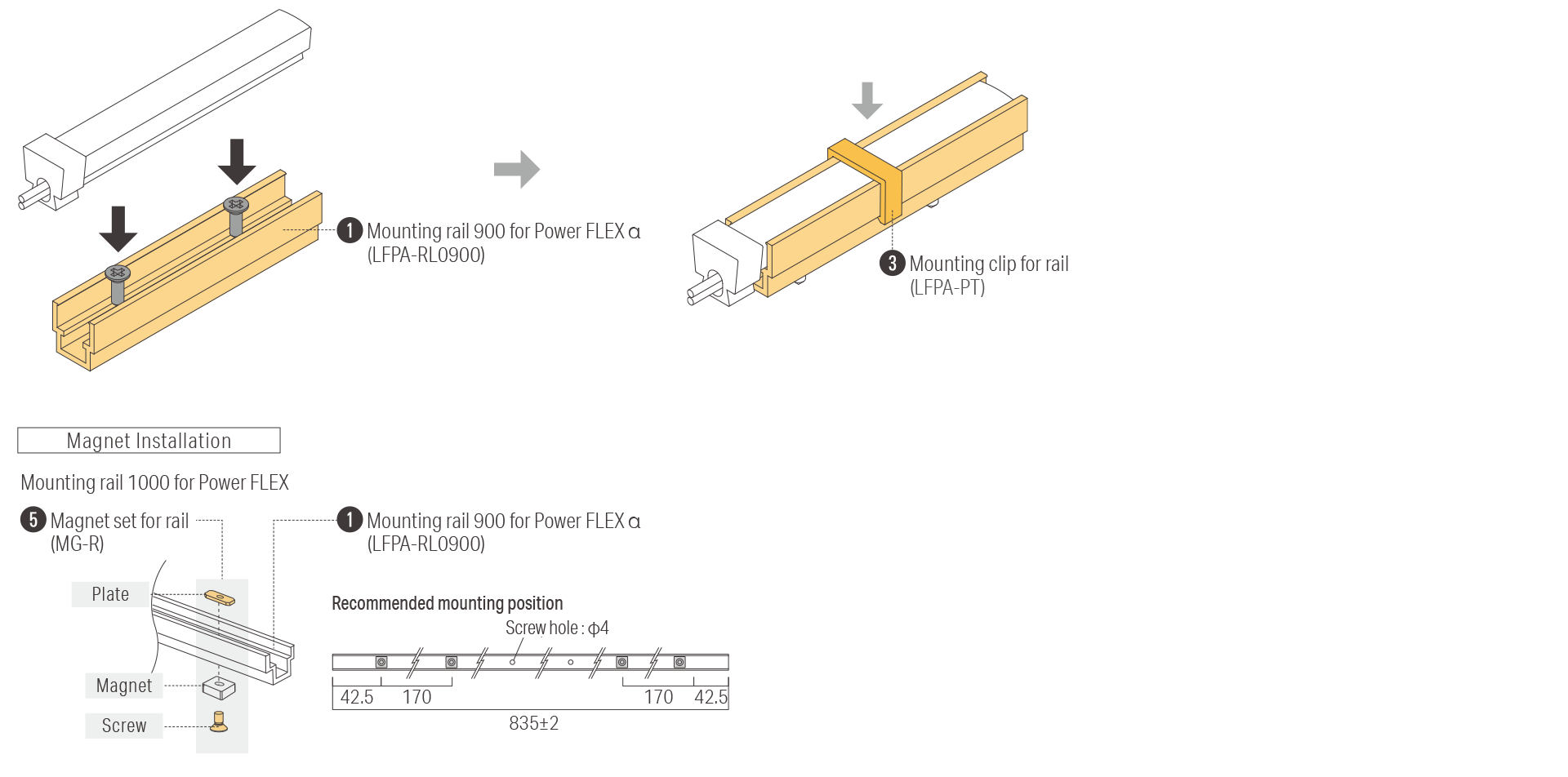

Straight installation

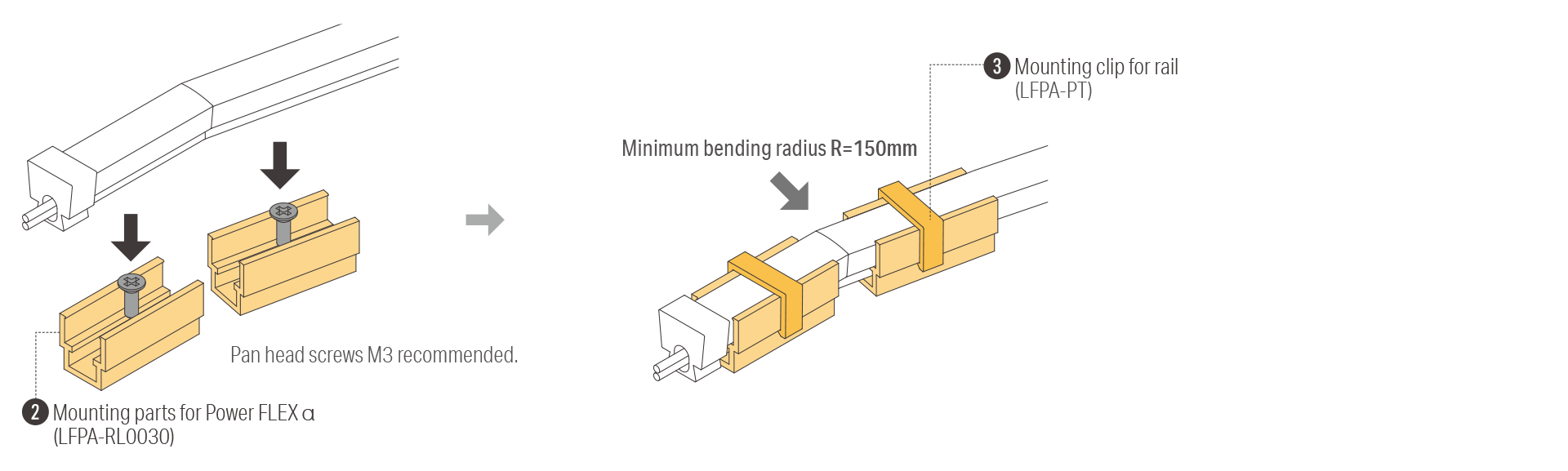

Curved installation
