Discontinued
LFP-O
Power FLEX IP65
- Successor product : SHIN FLEX (LFY-O)
- Customized length available up to 4.5m (LFP15-O), 5m (LFP20-O)
- 2 types of wattage and LED pitch: 15.4W/m (LFP15-O), 10.5W/m (LFP20-O)
- Covered with soft acrylic tube
LFP-O
Power FLEX IP65
Product information
Model No.
LFP20-T1000W-L27-CL-O
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit4.5m (LFP15-O), 5m (LFP20-O)
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIn/Outdoor (no condensation) IP65
-
MaterialSoft acrylic
Mounting options
-
Straight installation / Rail
-
1Mounting rail 1000 for Power FLEX
LFP-RL1000
for 20mmpitchMounting clip for rail (5pcs) is included
-
2Mounting rail 900 for Power FLEX
LFP-RL0900
for 15mmpitchMounting clip for rail (5pcs) is included
For 15mm Pitch
-
-
Straight installation / Aluminum rail
-
4Aluminum mounting rail 1000 for Power FLEX
LFP-RL1000-AL
-
-
Straight installation / 45° rail
-
345°Mounting rail 1000 for Power FLEX
LFP-45RL1000
Mounting clip for rail (5pcs) is included.
-
-
Curved installation / Clip
-
5Mounting clip for Power FLEX
LFP-RC
5 pcs / bag
For curved installation
-
Accessories
-
6Mounting clip for rail
LFP-PT
-
7Outdoor cable 3M TR connector for FLEXRequired
CAD-3000-MEFE-O
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

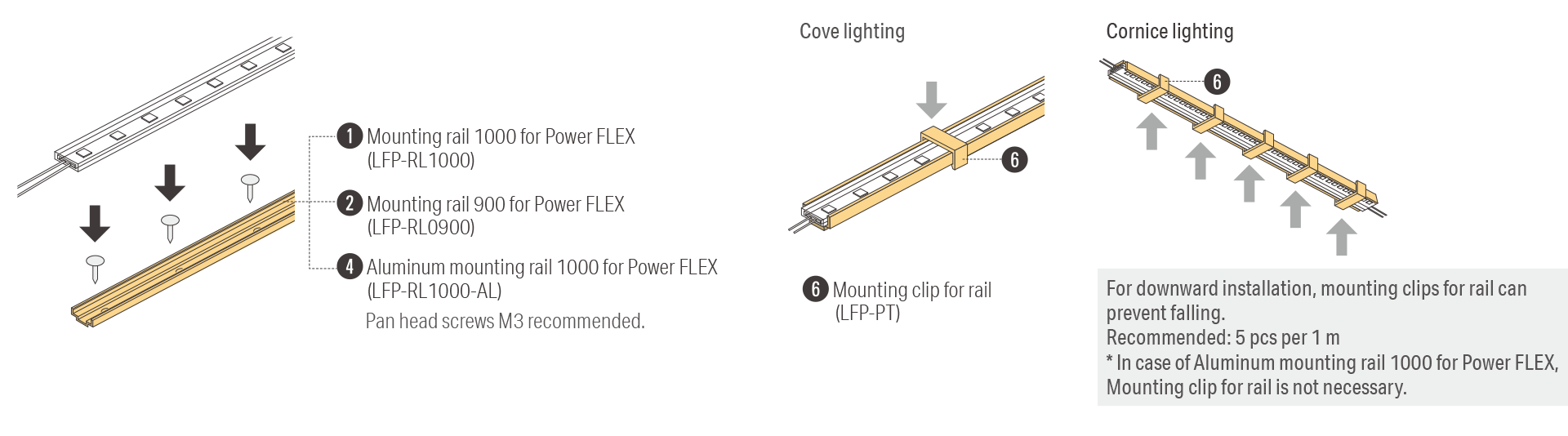

Straight installation

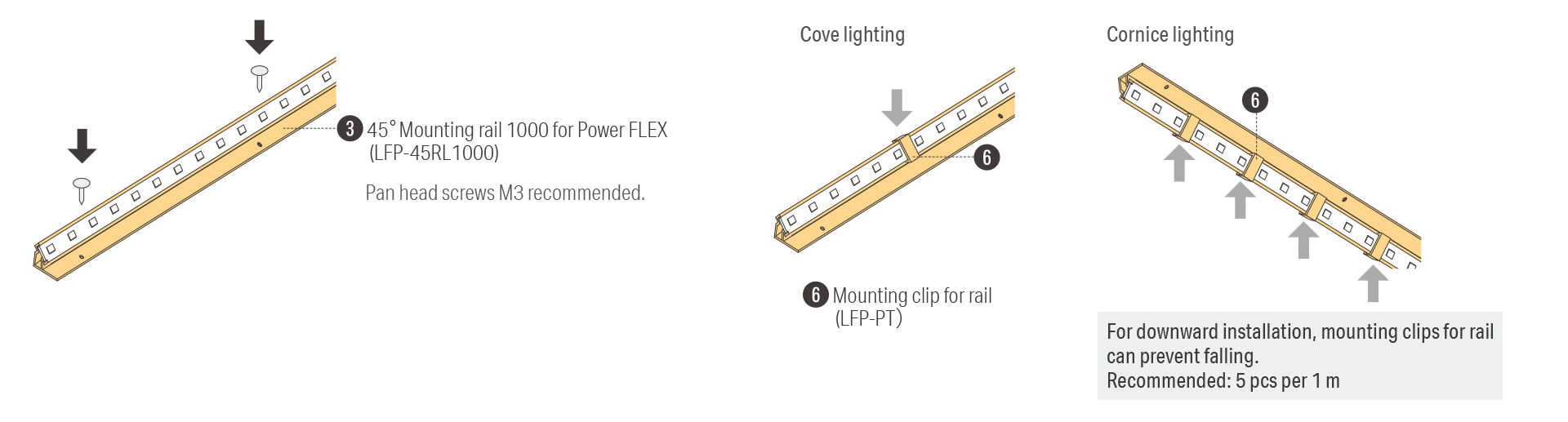

Straight installation by 45 degree rail

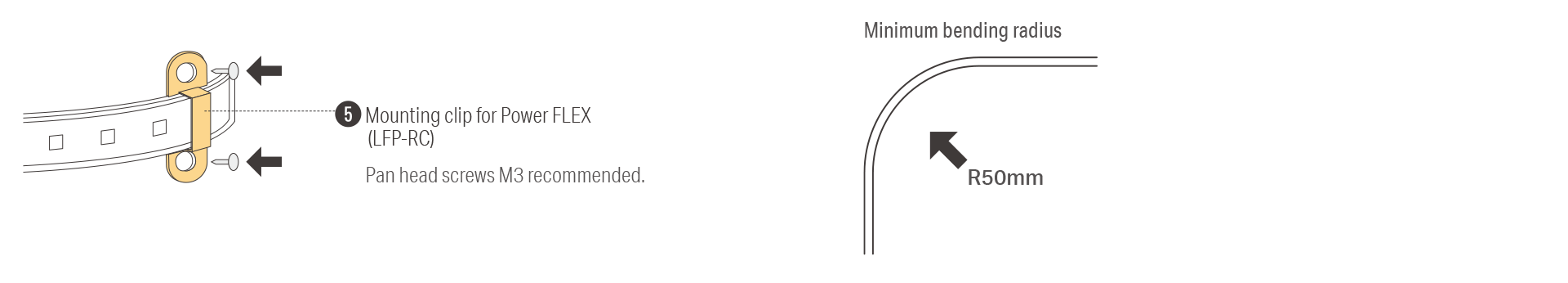

Curved installation
