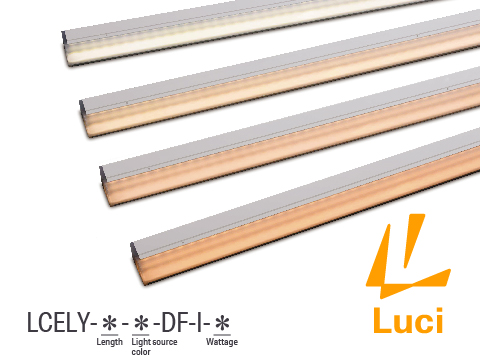

LCELY SHINseires NEW

SHIN Creide lens

  • Updated with low wattage high lumen LED series and 2 wattage variations
  • Increased 160% efficacy
  • Narrower spread angle with the lens in diffused cover
  • MacAdam3steps
  • CE

Product information

Model No.

LCELY-1170-L27-DF-I-10

Detail
Length
Light source color
Wattage

Specification

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color
  • Max. length per circuit
    5m
  • Dimmable
    Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Indoors (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Body : Aluminum, Cover : Polycarbonate
  • Attachments
    Mounting clip
    1pc - Length 0110, 0210
    2pcs - Length 0310, 0410, 0510, 0610, 0710
    3pcs - Length 0810, 0910, 1010, 1110
    4pcs - Length 1210, 1310, 1410

Mounting options

  • Behind fixing / Clip

    Behind fixing / Clip

    • 1Mounting clip A for Creide

      LCE-PT-A

      Attached with light fixture
      -1 pc for 150mm
      -2 pcs for 300mm and 510mm
      -3 pcs for 880mm and 1170mm
      -4 pcs for 1460
      For extra order, 2 pcs/bag
      For magnet installation, please refer to the required number of clips in the product catalog.

  • Behind fixing / Clip + Magnet

    Behind fixing / Clip + Magnet

    • 1Mounting clip A for Creide

      LCE-PT-A

      Attached with light fixture
      -1 pc for 150mm
      -2 pcs for 300mm and 510mm
      -3 pcs for 880mm and 1170mm
      -4 pcs for 1460
      For extra order, 2 pcs/bag
      For magnet installation, please refer to the required number of clips in the product catalog.

    • 3Magnet Set L

      MG-L

      10 sets/bag

  • Behind fixing / Downwards

    Behind fixing / Downwards

    • 2Outer clip for Creide

      LCE-PT-B

      2 pcs/bag
      Recommended number
      -1 pc for 150 mm
      -2 pcs for 300 mm
      -3 pcs for 510 mm
      -4 pcs for 880 mm and 1170 mm
      -5 pcs for 1460 mm
      For magnet installation, please refer to the required number of clips in the product catalog.

  • Behind fixing / Downwards + Magnet

    Behind fixing / Downwards + Magnet

    • 2Outer clip for Creide

      LCE-PT-B

      2 pcs/bag
      Recommended number
      -1 pc for 150 mm
      -2 pcs for 300 mm
      -3 pcs for 510 mm
      -4 pcs for 880 mm and 1170 mm
      -5 pcs for 1460 mm
      For magnet installation, please refer to the required number of clips in the product catalog.

    • 4Magnet Set A

      MG-A

      5 sets/bag

  • Vertical installation / clip

    Vertical installation / clip

    • 1Mounting clip A for Creide

      LCE-PT-A

      Attached with light fixture
      -1 pc for 150mm
      -2 pcs for 300mm and 510mm
      -3 pcs for 880mm and 1170mm
      -4 pcs for 1460
      For extra order, 2 pcs/bag
      For magnet installation, please refer to the required number of clips in the product catalog.

Accessories

  • 5Power supply cable 3000mm for SL connector

    CAD-3000-MCNN-I

  • 6Joint cable 1000mm for SL connector

    CAD-1000-MCFC-I

Download

How to Install

Mounting clip A installation: behind fixing

Mounting clip A installation: behind fixing

Outer clip installation

Outer clip installation

For vertical installation

For vertical installation

Works

  • Lobbies at SGX Centre, Singapore

    Lobbies at SGX Centre, Singapore

    Singapore

    Office Ceiling cove

  • Meyer House

    Meyer House

    Jpan

    Residence Ceiling cove

  • Okayama Central Hospital

    Okayama Central Hospital

    Jpan

    Education / Medical / Welfare Wall indirect

  • Qatar Airways Lounge A&A (T1)

    Qatar Airways Lounge A&A (T1)

    Singapore

    Public facilities Wall graze
