Discontinued
LSXK
silux K
- Squared-shaped homogeneous rigid light
- 3 different wattages, 10 types of length available for selection
- Ideal for shelf/cove light and recessed direct view light on ceiling/wall

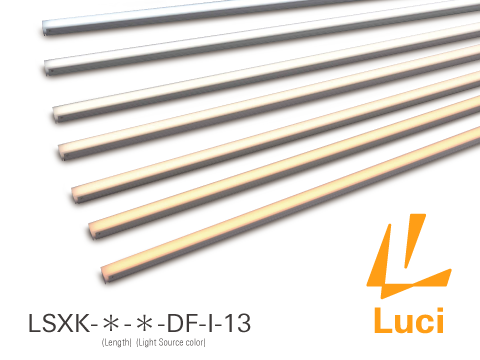

LSXK
silux K
Product information
Model No.
LSXK-1008-L27-DF-I-13
SpecificationLength: 1008Wattage: 13 : 13.3 W/m
-
Input voltageDC24V
-
Wattage13.3 W
-
Fitting length1008.0 mm
-
Light source color
N:5000K 620 lm Ra 93 57.9 lm/w W:4000K 620 lm Ra 94 57.9 lm/w WW:3500K 594 lm Ra 94 55.5 lm/w L30:3000K 581 lm Ra 93 54.2 lm/w L27:2700K 554 lm Ra 93 51.8 lm/w L24:2400K 554 lm Ra 94 48.1 lm/w L21:2100K 483 lm Ra 90 45.1 lm/w -
Max. length per circuit6m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoor
-
CertificationCE, BIS
-
MaterialPolycarbonate, Aluminum
-
AttachmentsMulticlip
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
Mounting options
-
Bottom fixing / Clip
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Bottom fixing / Clip + Magnet
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag -
4Magnet set A
MG-A
5 sets/bag
-
-
Side fixing / Clip
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Standard installation direction / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-
Standard installation direction / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-
Horizontal installation direction / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-
Horizontal installation direction / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-
For downward installation / Clip
-
3Outer Clip for silux
LSX-PT-A
5 pcs/bag
Recommended for downward installation
-
-
Vertical installation / Clip
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-

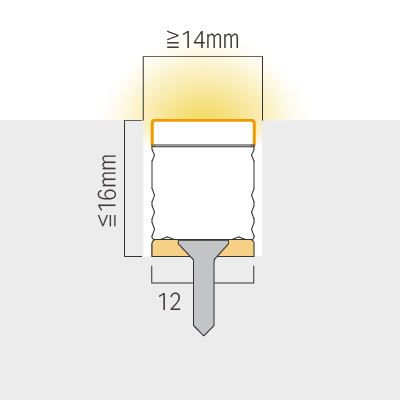

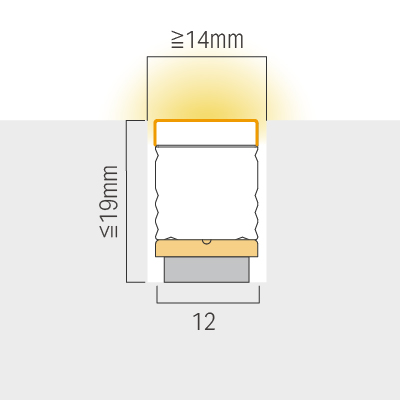

Recessed installation / Clip
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Recessed installation / Clip + Magnet
-
1Multiclip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag -
4Magnet set A
MG-A
5 sets/bag
-
-
Recessed installation / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-

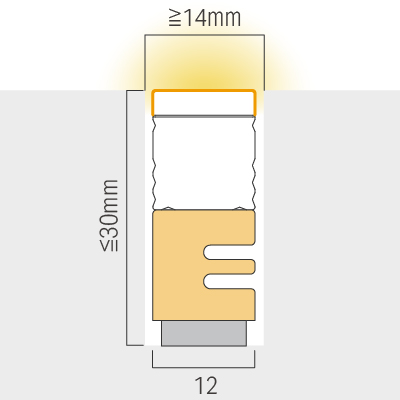

Recessed installation / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-

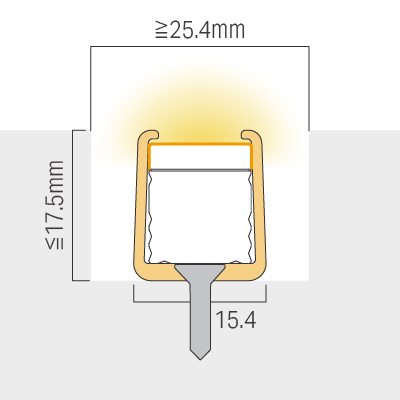

Recessed installation / For downward
-
3Outer Clip for silux
LSX-PT-A
5 pcs/bag
Recommended for downward installation
-
Accessories
-
5Power supply cable 3M Required
CAD-3000-MCNN-I
-
6Joint cable 1M
CAD-1000-MCFC-I
Download
How to Install

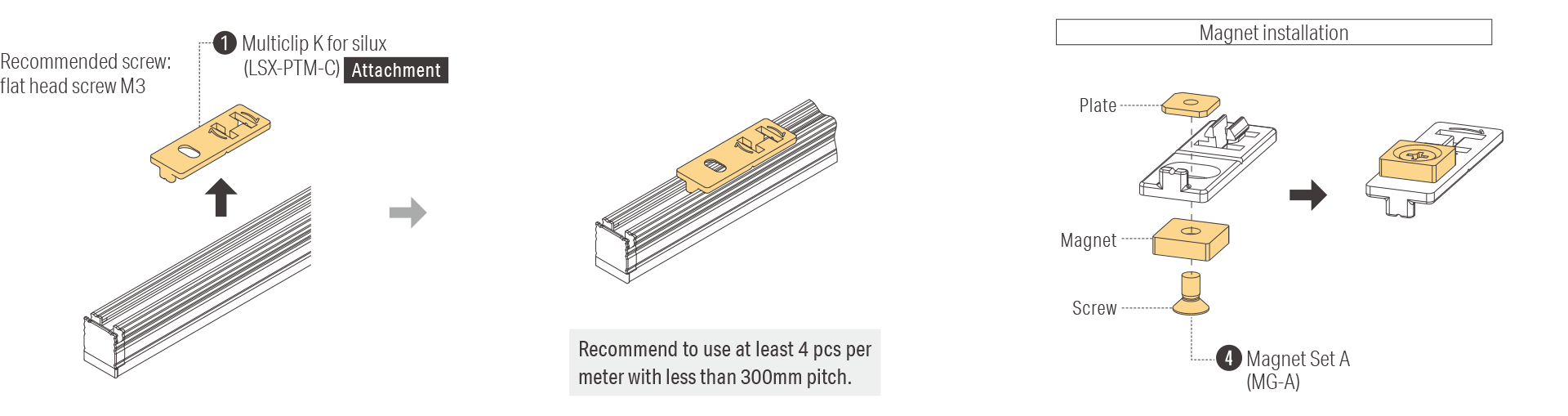

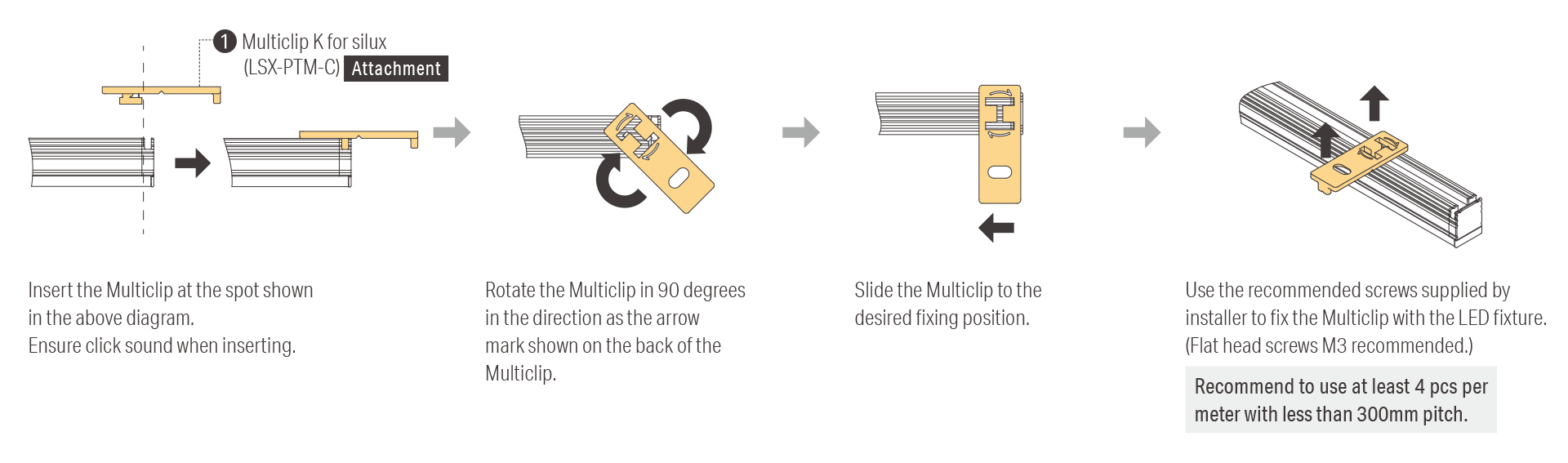

Multiclip K installation: bottom fixing
Multiclip K installation: side fixing

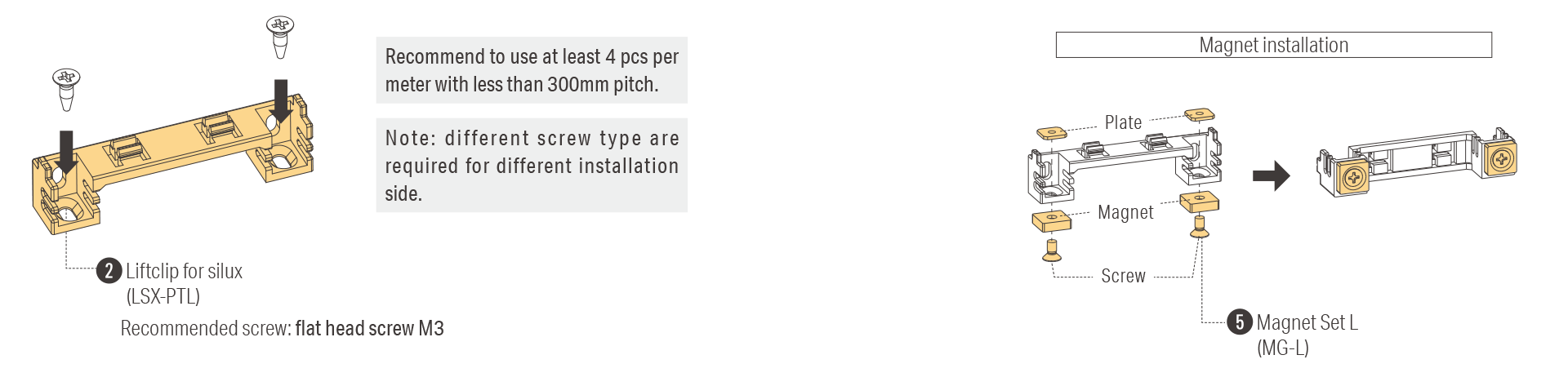

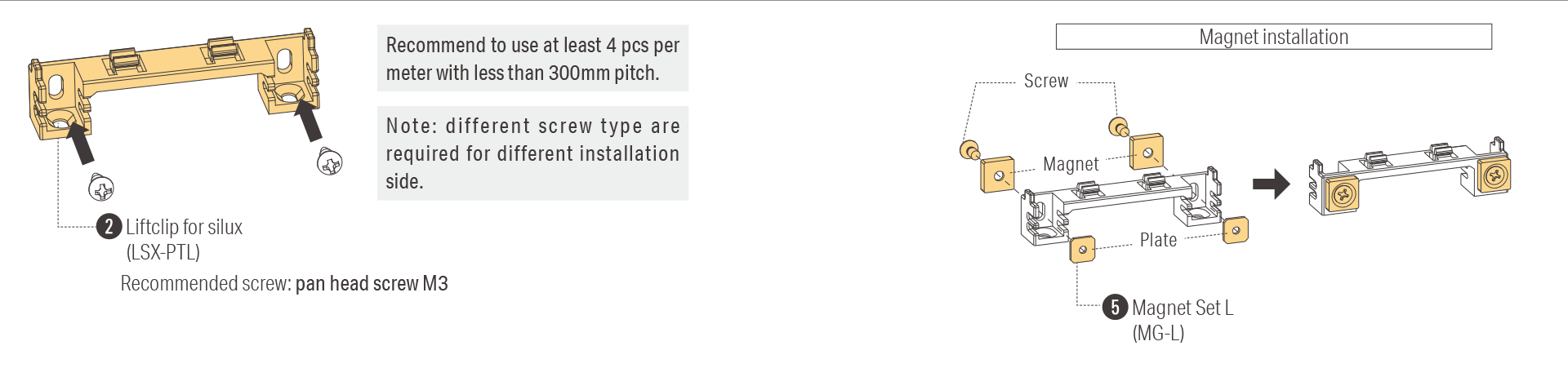

Liftclip installation: Standard installation direction
Liftclip installation: Horizontal installation direction

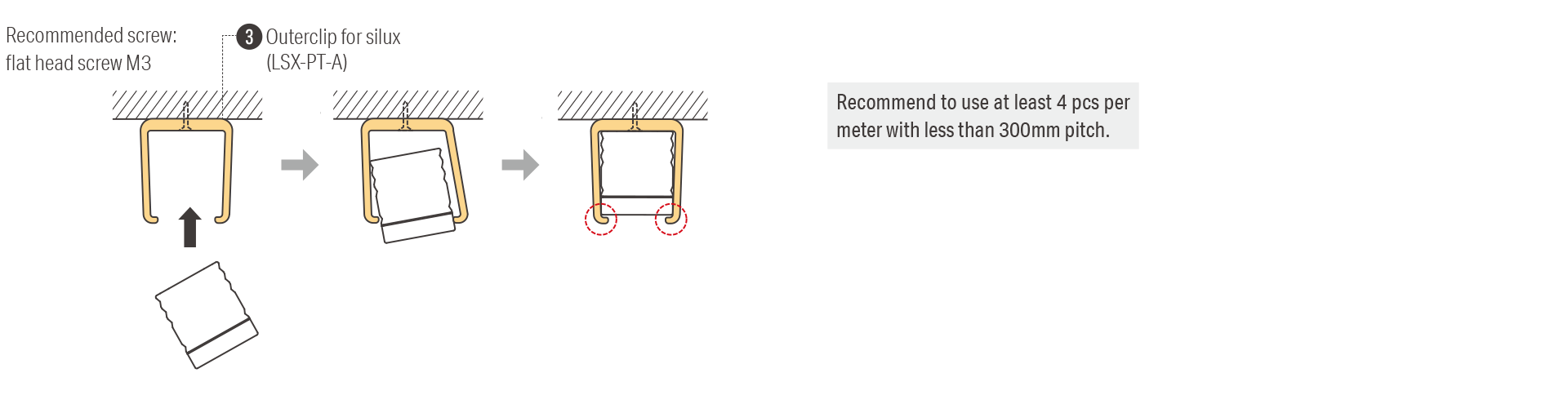

Outerclip installation

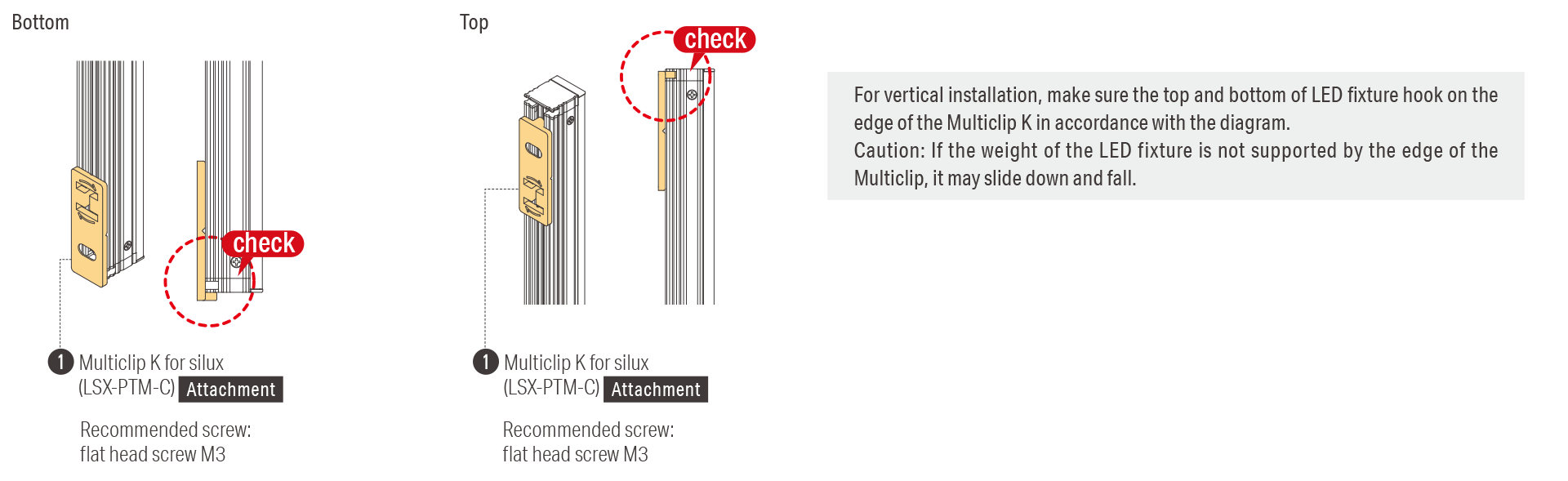

For vertical installation

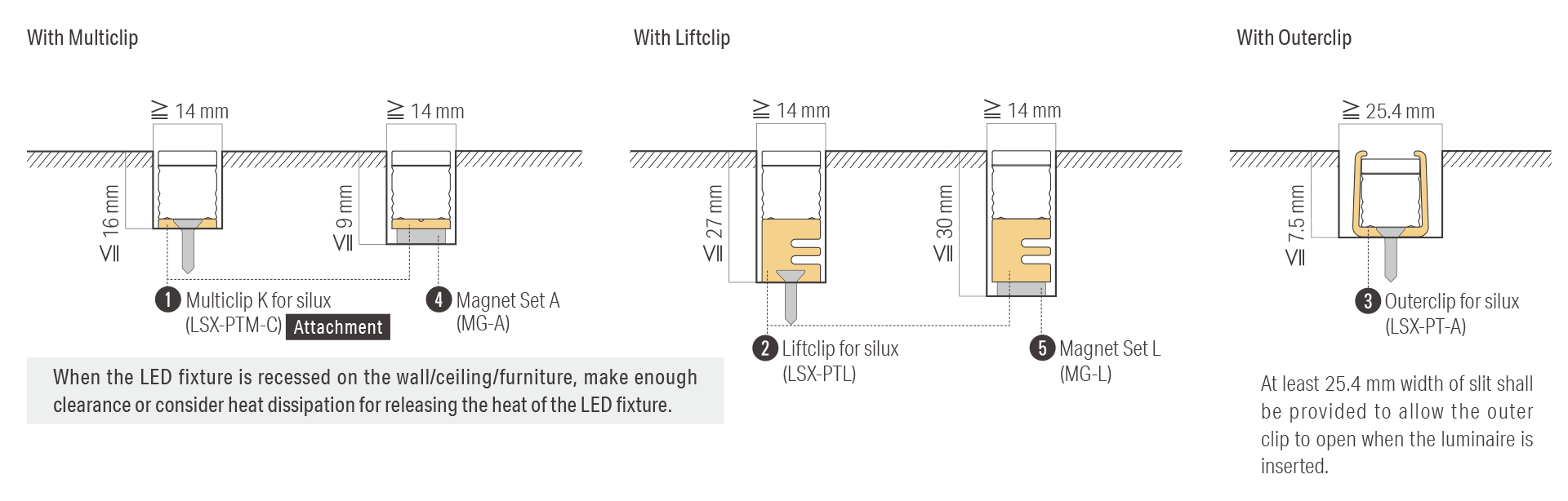

For recessed installation
