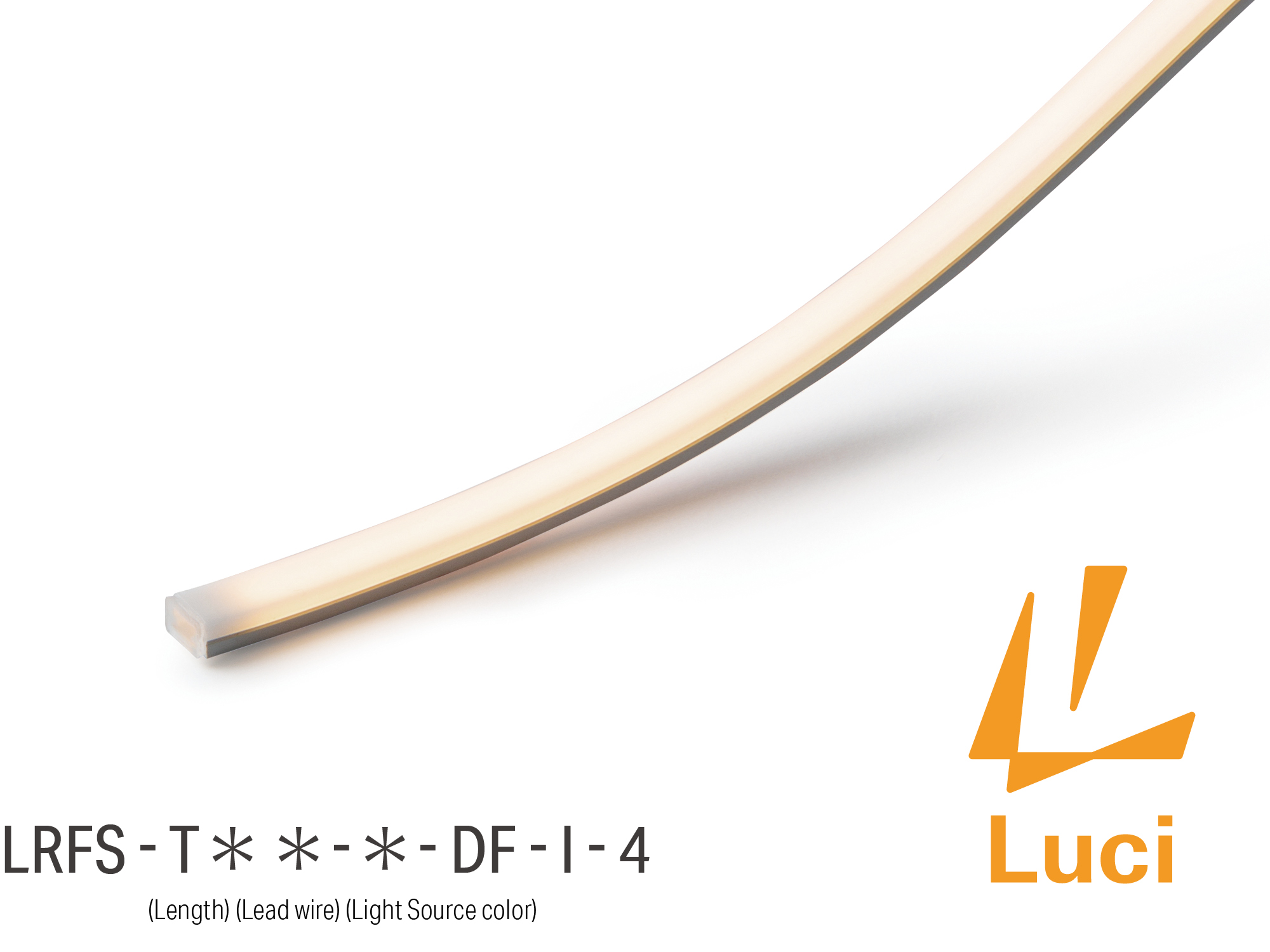

LRFS-I NEW
RIMiT flex-s Indoor
- Unique flexible strip light featuring a dot-free design, ideal for a wide range of creative designs and applications both indoors and outdoors.
- Exceptionally slim design emitting a soothing brightness at 244lm per meter
- Customizable from 25mm to 4000mm, with on-site length adjustments available for the indoor version, ensuring for a perfect fit.
LRFS-I
RIMiT flex-s Indoor
Product information
Model No.
LRFS-T1000W-L27-DF-I-4
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color | Delivered CCT
-
Max. length per circuit4 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE
-
MaterialSilicone
-
AttachmentsOutercap B for RIMiT flex-s 1pc
Mounting options
-
Straight installation／Mounting rail
-
1Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail
-
-
Straight installation／Aruminum mounting rail
-
2Aluminum Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail
-
-
Straight installation／Mounting rail + Magnet
-
1Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
9Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Straight installation／Aruminum mounting rail + Magnet
-
2Aluminum Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
9Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Downward or vertical installation／Mounting rail
-
1Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
5Rail cover for RIMiT flex-s
LRFS-C1000
Fixing the luminaire to the mounting rail
-
-
Downward or vertical installation／Aruminum mounting rail
-
2Aluminum Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
5Rail cover for RIMiT flex-s
LRFS-C1000
Fixing the luminaire to the mounting rail
-
-
Downward or vertical installation／Mounting rail + Magnet
-
1Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000
Straight installation
Magnet mounting available : Magnet set R for rail -
5Rail cover for RIMiT flex-s
LRFS-C1000
Fixing the luminaire to the mounting rail
-
9Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Downward or vertical installation／Aruminum mounting rail + Magnet
-
2Aluminum Mounting rail 1000 for RIMiT flex-s
LRFS-RL1000-AL
Straight installation
Magnet mounting available : Magnet set R for rail -
5Rail cover for RIMiT flex-s
LRFS-C1000
Fixing the luminaire to the mounting rail
-
9Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Straight installation／Mounting clip A
-
3Mounting clip A for RIMiT flex-s
LRFS-PT-A
Straight / Curved installation
-
-
Straight installation／Mounting clip B
-
4Mounting clip B for RIMiT flex-s
LRFS-PT-B
Straight / Curved installation
(emission surface: sideway)
-
-
Curved installation／Mounting clip A
-
3Mounting clip A for RIMiT flex-s
LRFS-PT-A
Straight / Curved installation
-
-
Curved installation／Mounting clip B
-
4Mounting clip B for RIMiT flex-s
LRFS-PT-B
Straight / Curved installation
(emission surface: sideway)
-
Accessories
-
8Outercap B for RIMiT flex-s
LRFS-PT-C
-
7Power supply cable 5M
CAD-5000-MEFE-O
-
6Clip J for Lead Wire
LRM-PT-J
Download
How to Install
Straight installation
Curved installation
