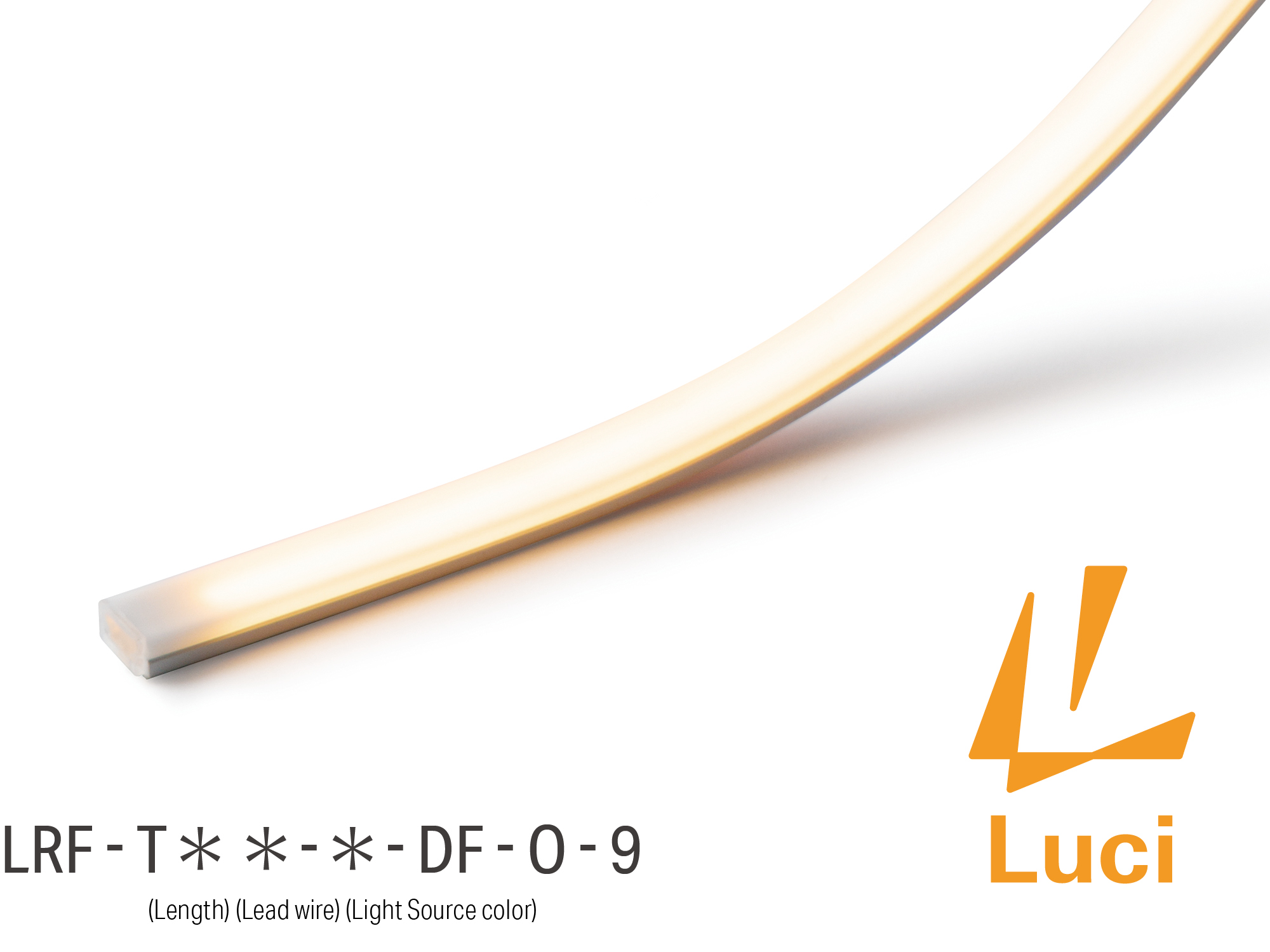

LRF-O NEW

RIMiT flex IP65

  • Revolutionize designs with sleek 5.8mm dot-free tape light! 9.7 W/m, 535 lm/m
  • Beautiful surface emission enhances the versatility of design possibilities
  • Available in 160 different lengths ranging from 25mm to 4000mm for IP67 specification
  • MacAdam3steps
  • CE
  • bin
  • Top bend
  • 1 Year Warranty

Product information

Model No.

LRF-T1000W-L27-DF-O-9

Detail
Length
Lead wire
Light source color
Light source color | Delivered CCT
Lead wire option

HINT

Lead wire option

Specification

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    4 m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Outdoor IP67
  • Certification
    CE
  • Material
    Silicone

Mounting options

  • Straight installation／Mounting rail

    Straight installation／Mounting rail

    Straight installation／Mounting rail

    • Mounting rail 1000 for RIMiT flex

      1Mounting rail 1000 for RIMiT flex

      LRF-RL1000

      Straight installation
      Magnet mounting available : Magnet set R for rail

  • Straight installation／Aruminum mounting rail

    Straight installation／Aruminum mounting rail

    Straight installation／Aruminum mounting rail

    • Aluminum Mounting rail 1000 for RIMiT flex

      2Aluminum Mounting rail 1000 for RIMiT flex

      LRF-RL1000-AL

      Straight installation
      Magnet mounting available : Magnet set R for rail

  • Downward or vertical installation／Mounting rail

    Downward or vertical installation／Mounting rail

    Downward or vertical installation／Mounting rail

    • Mounting rail 1000 for RIMiT flex

      1Mounting rail 1000 for RIMiT flex

      LRF-RL1000

      Straight installation
      Magnet mounting available : Magnet set R for rail

    • Rail cover for RIMiT flex

      5Rail cover for RIMiT flex

      LRF-C1000

      Fixing the luminaire to the mounting rail

  • Downward or vertical installation／Aruminum mounting rail

    Downward or vertical installation／Aruminum mounting rail

    Downward or vertical installation／Aruminum mounting rail

    • Aluminum Mounting rail 1000 for RIMiT flex

      2Aluminum Mounting rail 1000 for RIMiT flex

      LRF-RL1000-AL

      Straight installation
      Magnet mounting available : Magnet set R for rail

    • Rail cover for RIMiT flex

      5Rail cover for RIMiT flex

      LRF-C1000

      Fixing the luminaire to the mounting rail

  • Straight installation／Mounting clip A

    Straight installation／Mounting clip A

    Straight installation／Mounting clip A

    • Mounting clip A for RIMiT flex

      3Mounting clip A for RIMiT flex

      LRF-PT-A

      Straight / Curved installation

  • Straight installation／Mounting clip B

    Straight installation／Mounting clip B

    Straight installation／Mounting clip B

    • Mounting clip B for RIMiT flex

      4Mounting clip B for RIMiT flex

      LRF-PT-B

      Straight / Curved installation
      (emission surface: sideway)

  • Curved installation／Mounting clip A

    Curved installation／Mounting clip A

    Curved installation／Mounting clip A

    • Mounting clip A for RIMiT flex

      3Mounting clip A for RIMiT flex

      LRF-PT-A

      Straight / Curved installation

  • Curved installation／Mounting clip B

    Curved installation／Mounting clip B

    Curved installation／Mounting clip B

    • Mounting clip B for RIMiT flex

      4Mounting clip B for RIMiT flex

      LRF-PT-B

      Straight / Curved installation
      (emission surface: sideway)

Accessories

  • Power supply cable 5M

    7Power supply cable 5M

    CAD-5000-MEFE-O

  • Clip J for Lead Wire

    6Clip J for Lead Wire

    LRM-PT-J

Download

DownloadDownload

How to Install

Straight installation

Straight installation

Curved installation

Curved installation
