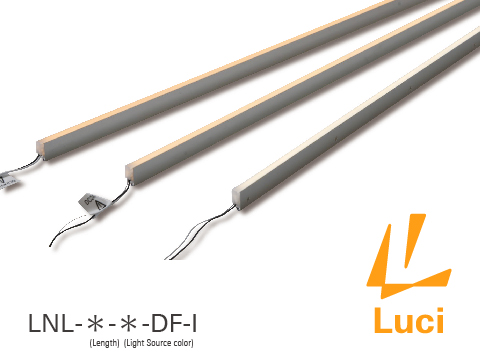

Model No.

SpecificationLength984

• Input voltage
  DC24V
• Wattage
  W
• Fitting length
  mm
• Light source color
• Max. length per circuit
  5m
• Dimmable
  Yes (0-10V/1-10V, DMX, DALI, PWM)
• Environment
  Indoors (no condensation)
• Certification
  CE, BIS
• Material
  Polycarbonate, Aluminum
• Attachments
  Mounting clip
  2 pcs for the body installation
  2 pcs for the end part installation

•

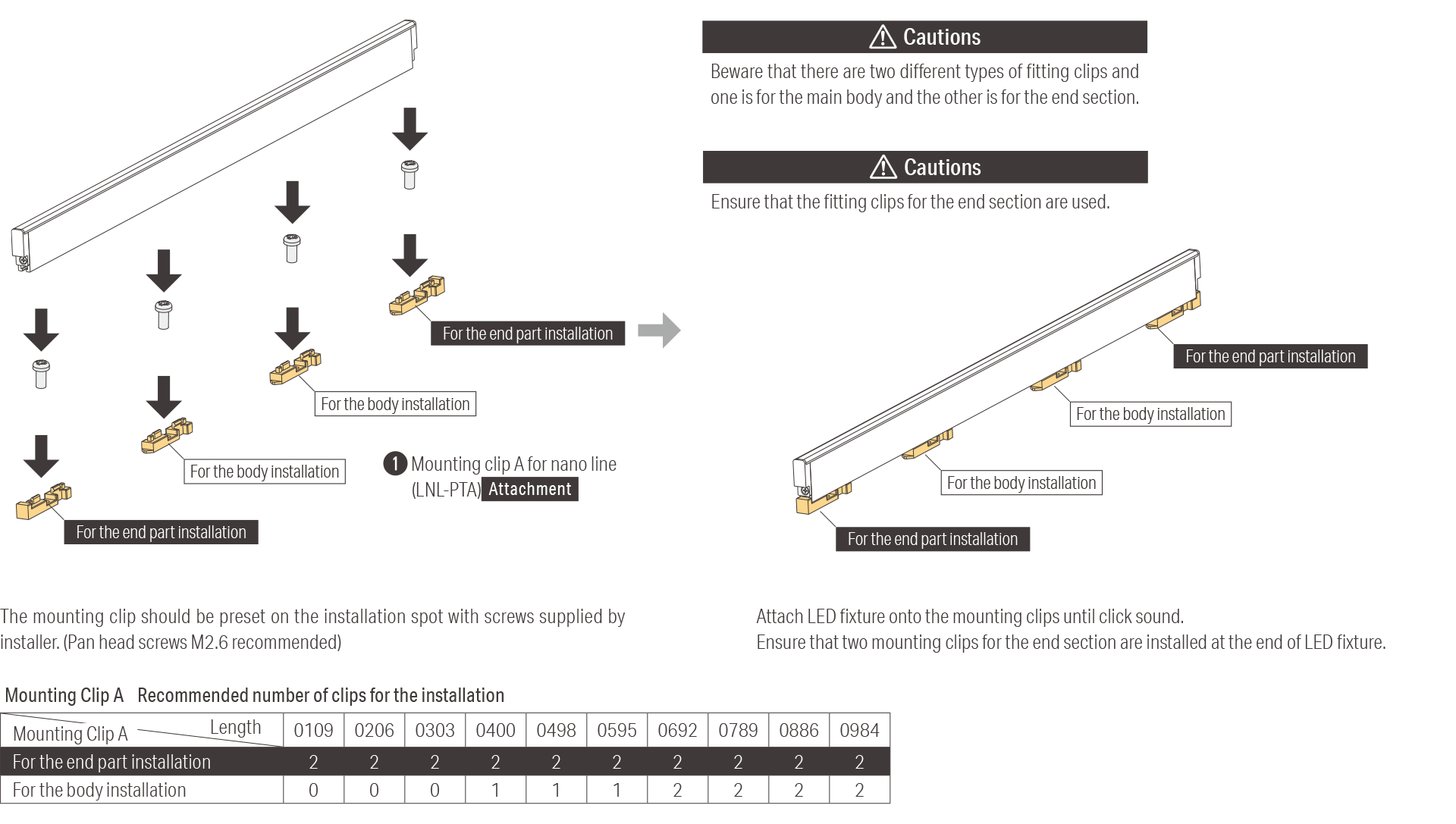

  Horizontal installation / Clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for nano line

    LNL-PTA

    Attached with light fixture
    2 pcs for the end part and 2 pcs for body part
    For extra order
    4 pcs for the end part and 4 pcs for body part per bag

•

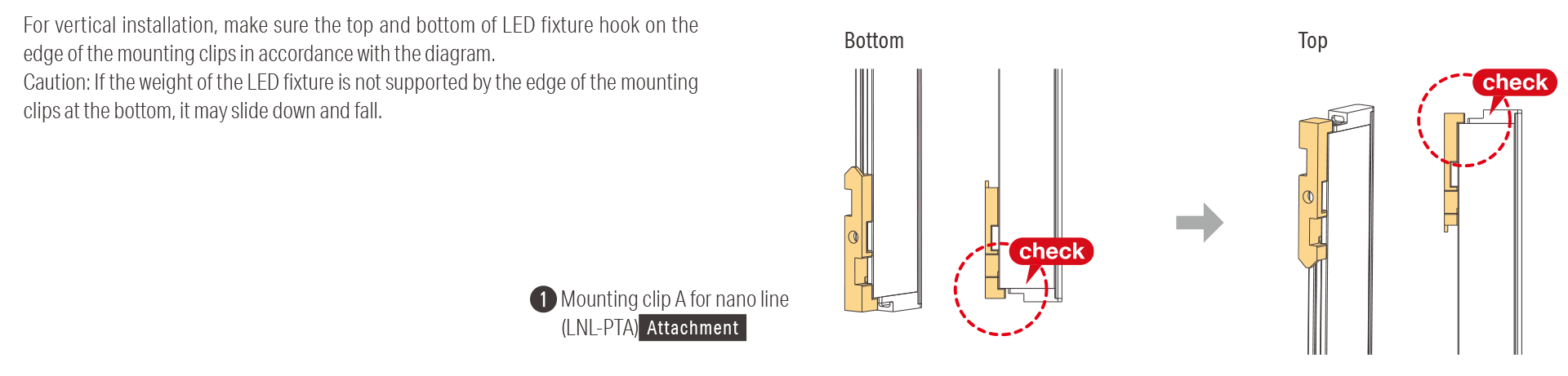

  Vertical installation / Clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for nano line

    LNL-PTA

    Attached with light fixture
    2 pcs for the end part and 2 pcs for body part
    For extra order
    4 pcs for the end part and 4 pcs for body part per bag

•

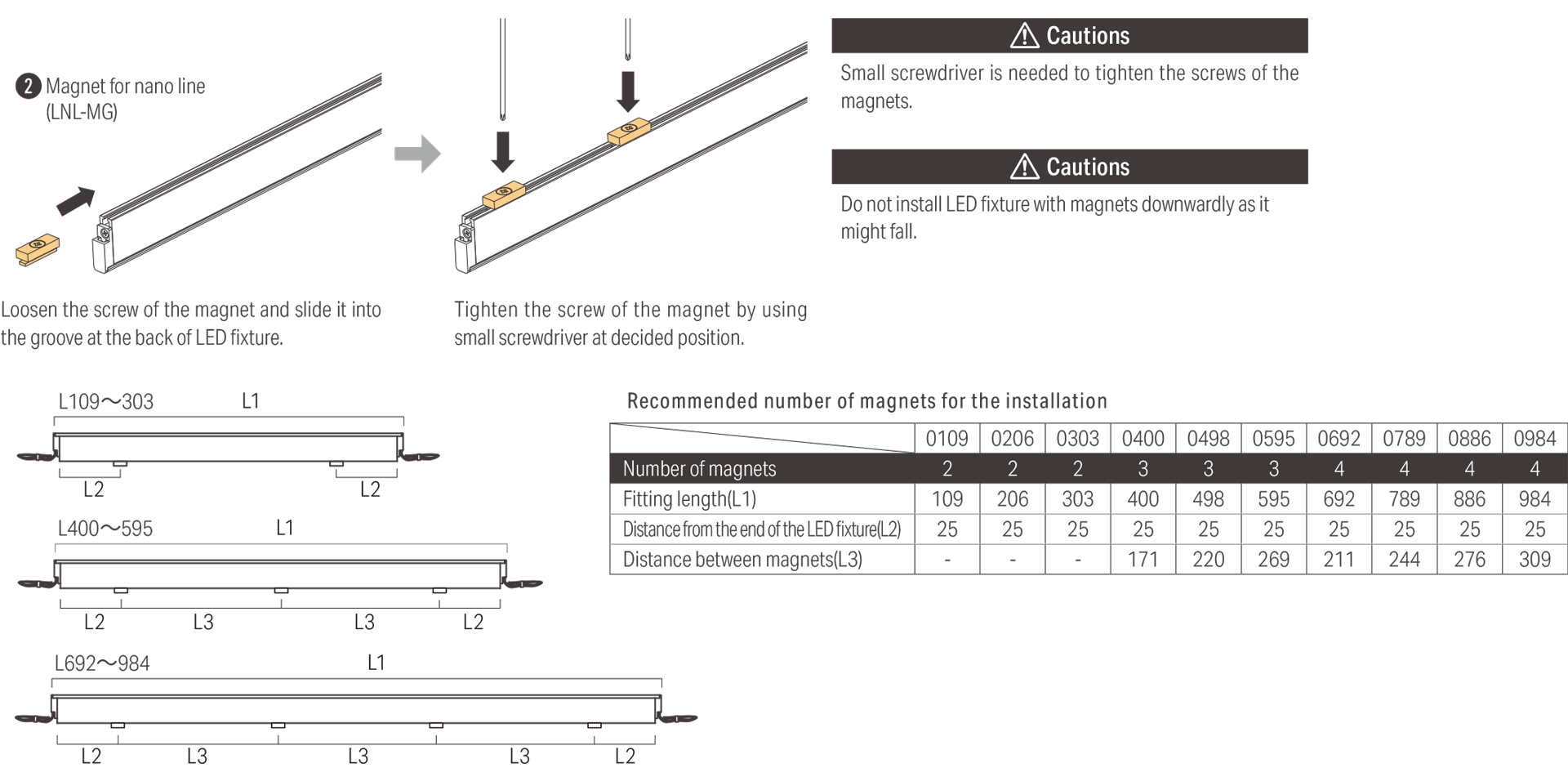

  Recessed installation / Clip + Magnet



  • View How to Install
  • Download(DXF)

  •

    2Magnet for nano line

    LNL-MG

    10 pcs/bag
    Recommended number of magnets
    2 pcs for 109 mm to 303 mm
    3 pcs for 400 mm to 595 mm
    4 pcs for 692 mm to 984 mm
    Used for installing light fixture on metal plate
    Metal plate is required to be supplied by installer
    The magnets need to be fixed onto the metal plate by installer
