LFXF-I

FLEX α F Indoor

  • Side bend flexible strip with 4 × 10 mm cross-section
  • Cuttable every 6 LEDs (62.4mm)
  • Accessories available for straight/curved installation
  • ANSIBIN
  • CE
  • bin
  • Side bend
  • 3 Year Warranty
  • FLEX α F Indoor

Product information

Model No.

LFXF10-T1000W-L27-CL-I

Detail
Length
  • 0063〜1000
  • 1063〜2000
  • 2063〜3000
  • 3063〜4000
  • 4063〜5000
Lead wire
Light source color
Tube type

SpecificationLength: 1000

  • Input
    DC24V
  • Wattage
    4.2 W
  • Fitting length
    1011 mm
  • Light source color
    D:7100K329 lmRa 7478.2 lm/w
    W:4200K317 lmRa 7075.6 lm/w
    WW:3500K298 lmRa 7570.9 lm/w
    L30:3000K292 lmRa 7069.6 lm/w
    L27:2700K278 lmRa 7166.3 lm/w
    L24:2400K251 lmRa 6559.7 lm/w
  • Max. length per circuit
    5m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Indoors (no condensation)
  • Certification
    CE, BIS
  • Material
    Soft acrylic
  • Attachments
    End cap 2pcs

Mounting options

  • Straight installation / Rail

    Straight installation / Rail

    Straight installation / Rail

    • Mounting rail 1000 for FLEX α

      1Mounting rail 1000 for FLEX α

      LFX-RL1000

      Mounting clip for FLEX α rail (10 pcs / bag) is included

  • Curved installation / parts

    Curved installation / parts

    Curved installation / parts

    • Mounting parts for FLEX α

      2Mounting parts for FLEX α

      LFX-RL0015

      10 pcs/bag
      Mounting clip for FLEX α rail (10 pcs/bag) is included
      For curved installation

  • Straight installation / Rail / Narrow clip

    Straight installation / Rail / Narrow clip

    Straight installation / Rail / Narrow clip

    • Mounting rail 1000 for FLEX α

      1Mounting rail 1000 for FLEX α

      LFX-RL1000

      Mounting clip for FLEX α rail (10 pcs / bag) is included

    • Mounting clip B for FLEX α

      3Mounting clip B for FLEX α

      LFX-RC-B

      10 pcs/bag
      Narrower clip for limited space installation
      Used in conjunction with rails or parts

  • Curved installation / parts / Narrow clip

    Curved installation / parts / Narrow clip

    Curved installation / parts / Narrow clip

    • Mounting parts for FLEX α

      2Mounting parts for FLEX α

      LFX-RL0015

      10 pcs/bag
      Mounting clip for FLEX α rail (10 pcs/bag) is included
      For curved installation

    • Mounting clip B for FLEX α

      3Mounting clip B for FLEX α

      LFX-RC-B

      10 pcs/bag
      Narrower clip for limited space installation
      Used in conjunction with rails or parts

Accessories

  • End cap for α Flat

    5End cap for α Flat

    LFX-EC

  • LFX-RC

    4Mounting clip 1000 for FLEX α

    LFX-RC

Download

DownloadDownload

How to Install

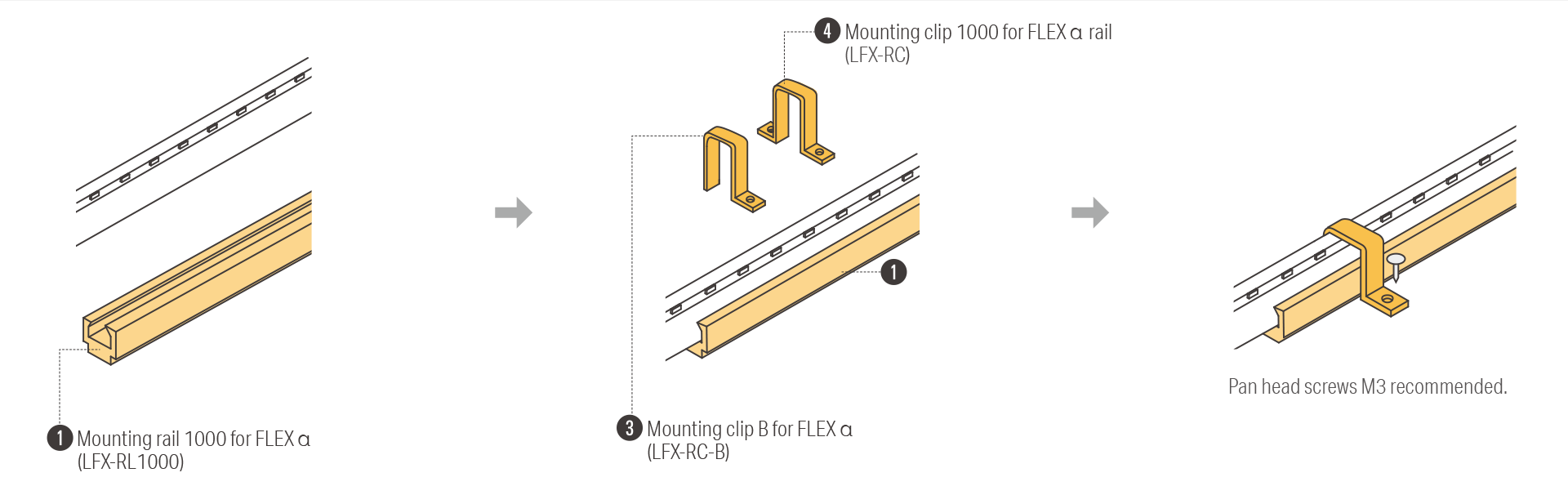

Straight installation

Straight installation

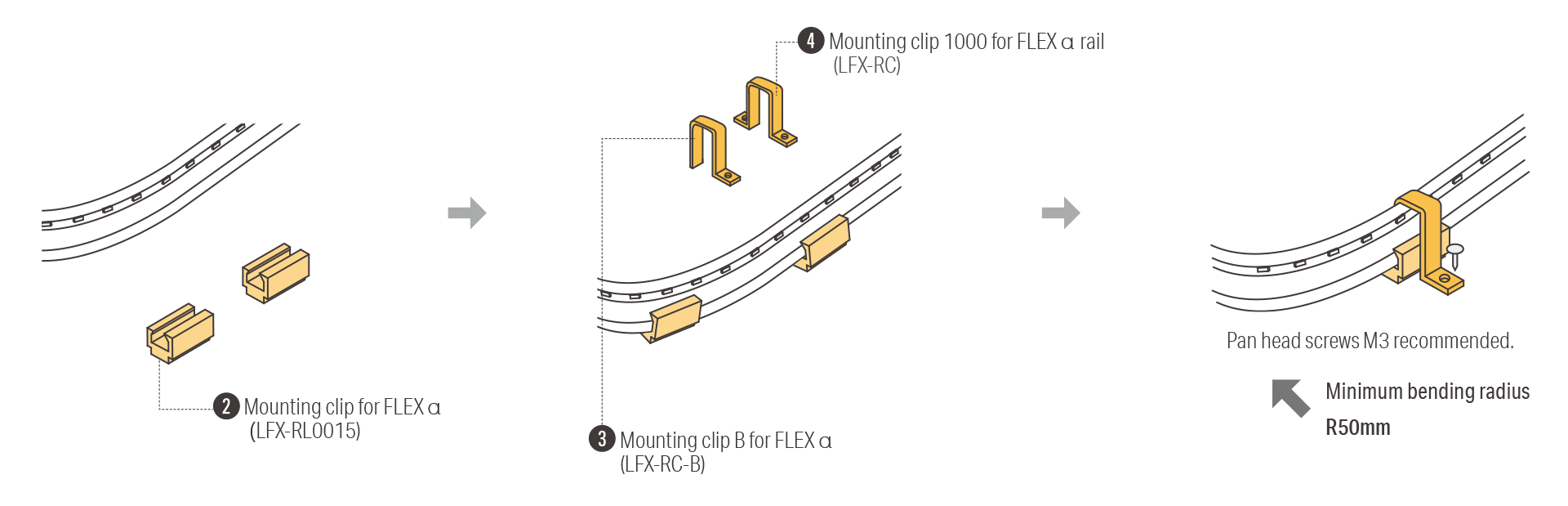

Curved installation

Curved installation
