LFUAY-I
NEW

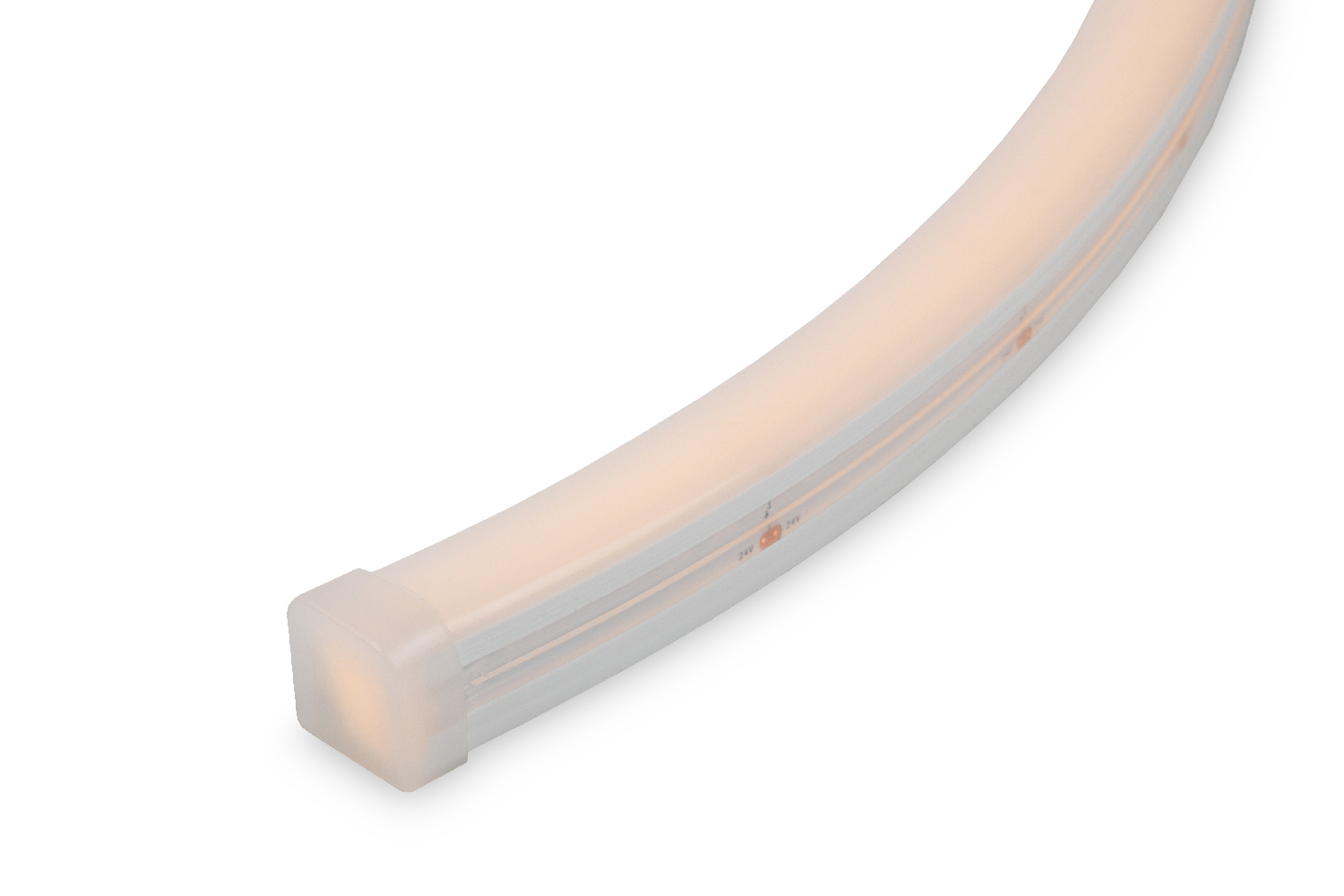

SHIN UQ FLEX α Indoor
- Side bend dot-free flexible light, cuttable every 50mm at site
- Updated with low wattage high lumen LED series
- Available 4 different wattage variations
- Indoor usage only, custom length max.5m per roll, connectable 10m per circuit
LFUAY-I
SHIN UQ FLEX α Indoor
Product information

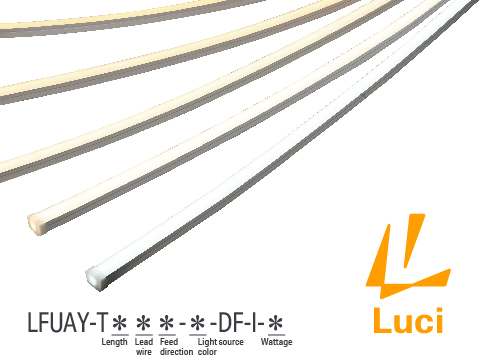

Model No.
LFUAY-TB--DF-I-
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color | Delivered CCT
-
Max. length per circuit5 m
-
DimmableYes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoors (no condensation)
-
CertificationCE , PTB FREE
-
MaterialSilicone
Mounting options
-

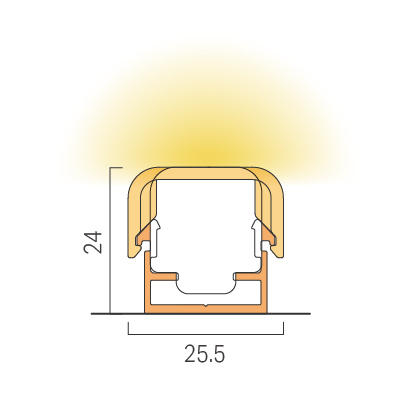

Straight installation / Rail
-
1Aluminium mounting rail 950 set for UQ FLEX Indoor
LFU-RL0950-AL-C-I
The set include Mounting rail (1pc) , PC Hold clip (5 pcs/bag) and Joint plate (1pc)
-
-
Straight installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
Recommended 5 pcs/m
For curved installation (Side feed)
*When back feed, need a hole for endcap on installation surface
-
-
Curved installation / Parts
-

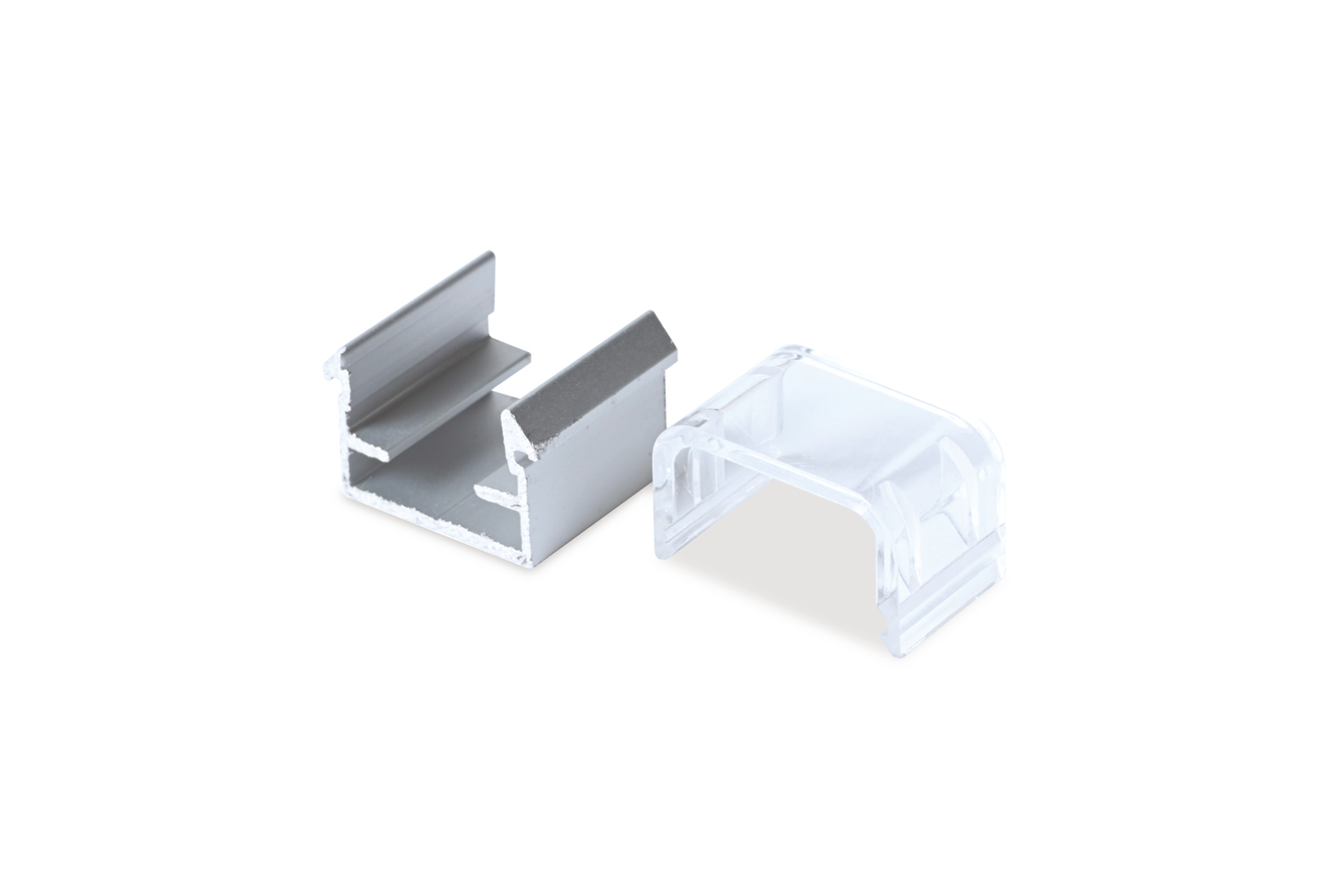

2AL mounting parts set for UQ FLEX Indoor
LFU-RL0018-AL-C-I
The set include Mounting parts (5 pcs/bag) and PC Hold clip (5 pcs/bag)
Recommended each 5 pcs/m
-
-
Curved installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
Recommended 5 pcs/m
For curved installation (Side feed)
*When back feed, need a hole for endcap on installation surface
-
Accessories
-

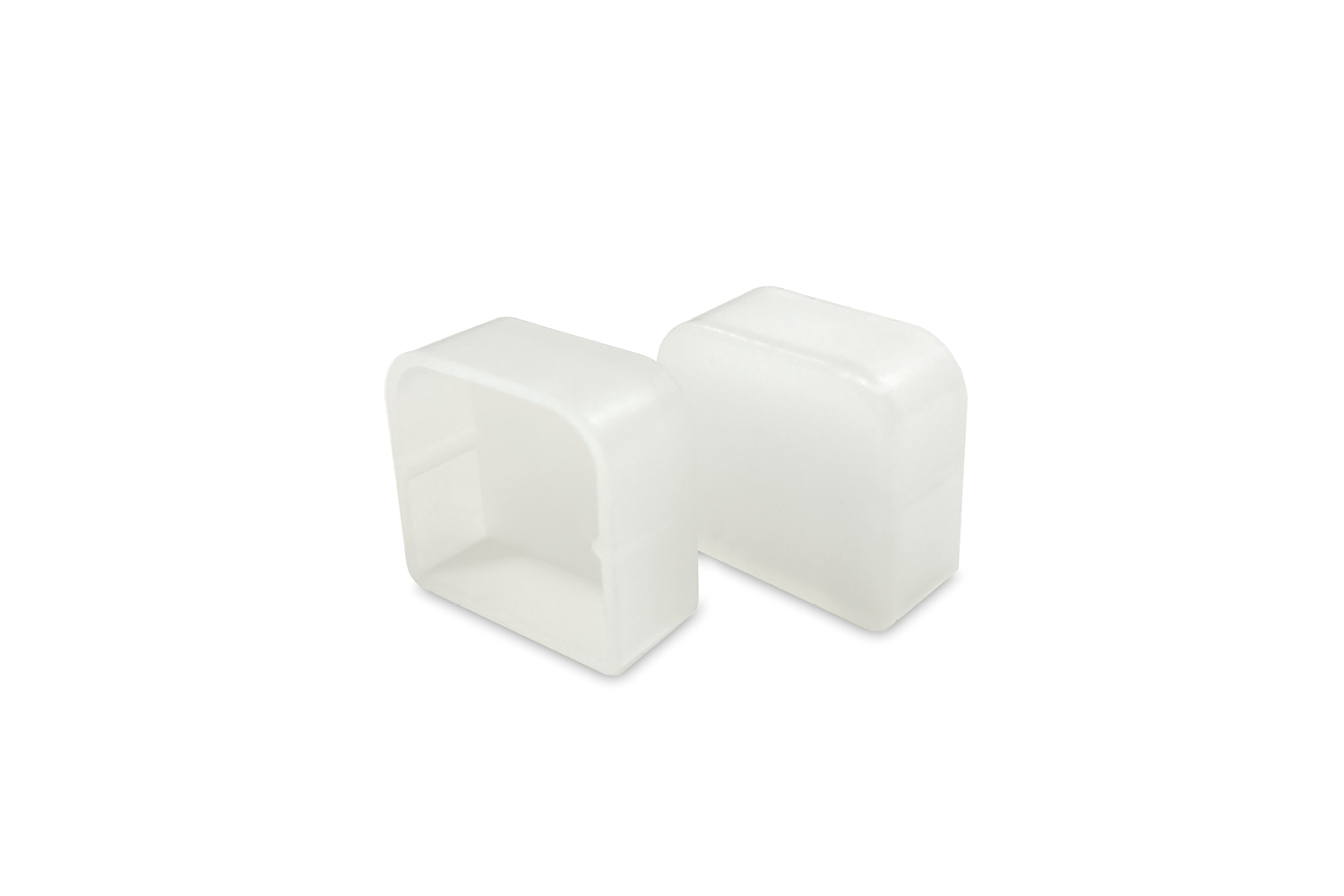

4Endcap for UQ FLEX indoor
LFU-EC
-

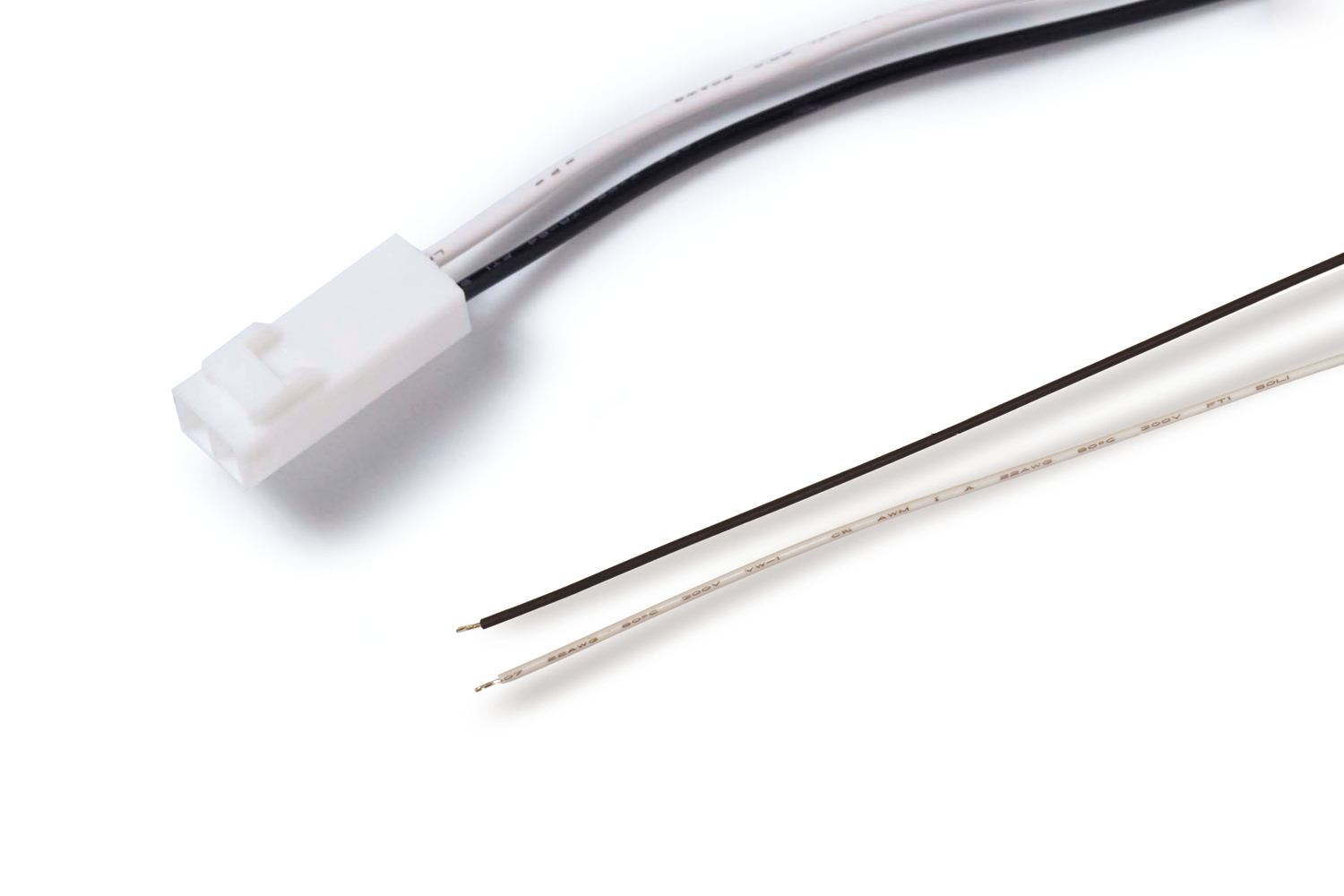

5Power supply cable 3000mm for SL connectorRequired
CAD-3000-MCNN-I
-
6Joint cable 1000mm for SL connector
CAD-1000-MCFC-I
-
6Joint cable 5000mm for SL connector
CAD-5000-MCFC-I
Download
How to Install
Installation with Mounting rail
Installation with Mounting clip
Installation with Mounting parts
