Discontinued
LFUA-O
UQ FLEX α IP67
- Side bend dot-free flexible strip
- IP67, max custom length 2m for outdoor usage, up to 10m per run
- 15.8W/m, 12W/m, 8W/m type
LFUA-O
UQ FLEX α IP67
Product information
Model No.
LFUA-T1000WB-L27-DF-O-15
Detail
Length
Lead wire
Feed direction
Light source color
Wattage
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
Please refer to the Specification sheet for the Delivered CCT. -
Max. length per circuit10 m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentOutdoor IP67
-
CertificationCE
-
MaterialSilicone
Mounting options
-
Straight installation / Rail
-
1Aluminum mounting rail 950 set for UQ FLEX
LFU-RL0950-AL-C
The set include Mounting rail (1pc) , SUS Hold clip (5 pcs/bag) and Joint plate (1pc)
-
-
Straight installation / Clip
-
3SUS Mounting clip for UQ FLEX
LFU-RC-B
For curved or straight installation
Curved installation / Parts
-
2Aluminum mounting parts set for UQ FLEX
LFU-RL0018-AL-C
The set include Mounting parts (5 pcs/bag) and SUS Hold clip (5 pcs/bag)
Recommended each 5 pcs/m
Curved installation / Clip
-
3SUS Mounting clip for UQ FLEX
LFU-RC-B
For curved or straight installation
Accessories
-
4Power supply cable 10M for UQ FLEXRequired
CAD-V010M-FPNN-O
-
5Joint cable 1M for UQ FLEX
CAD-1000-MPFP-O
-
Download

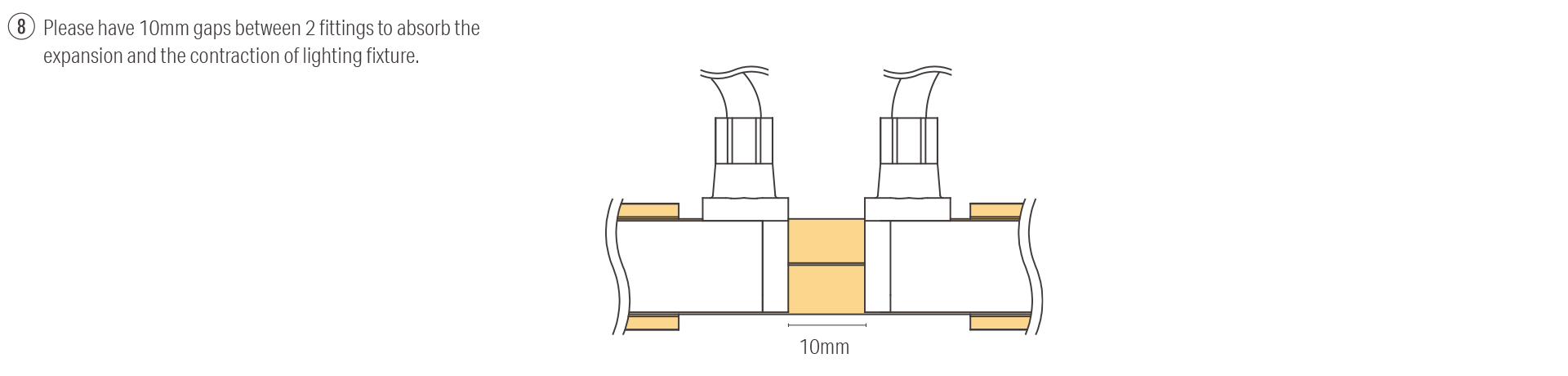

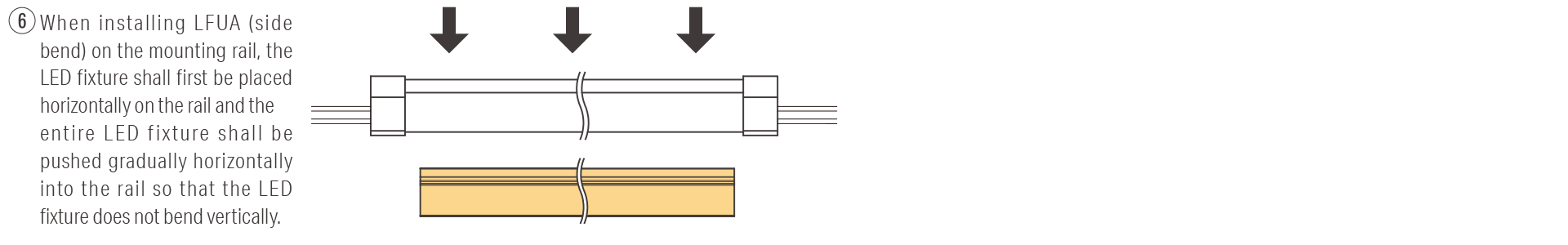

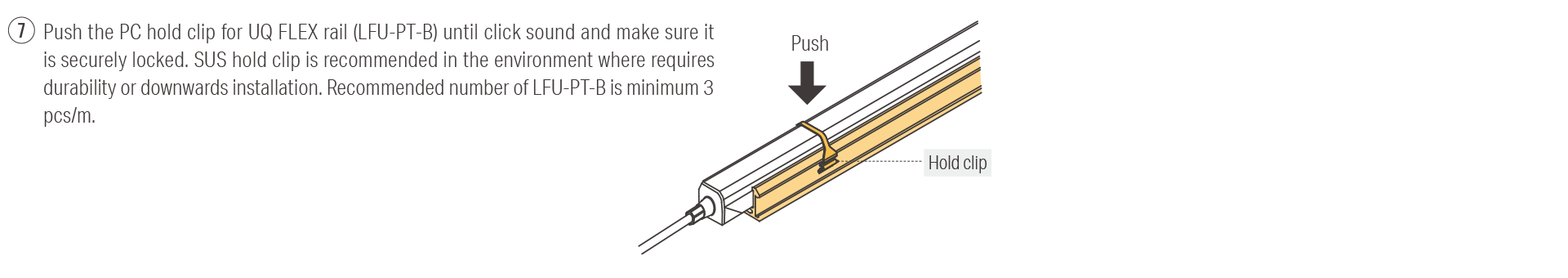

How to Install

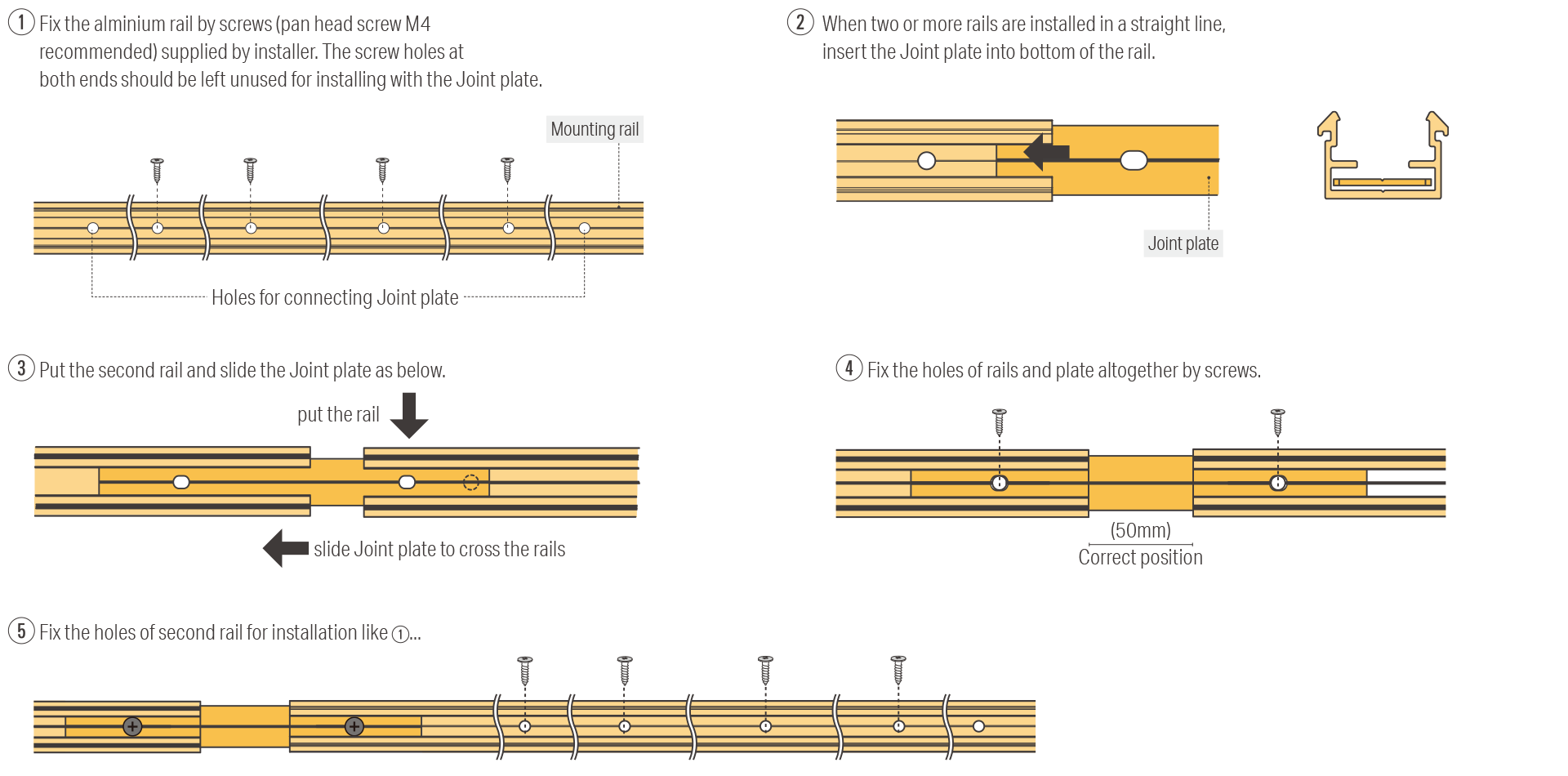

Installation with Mounting rail

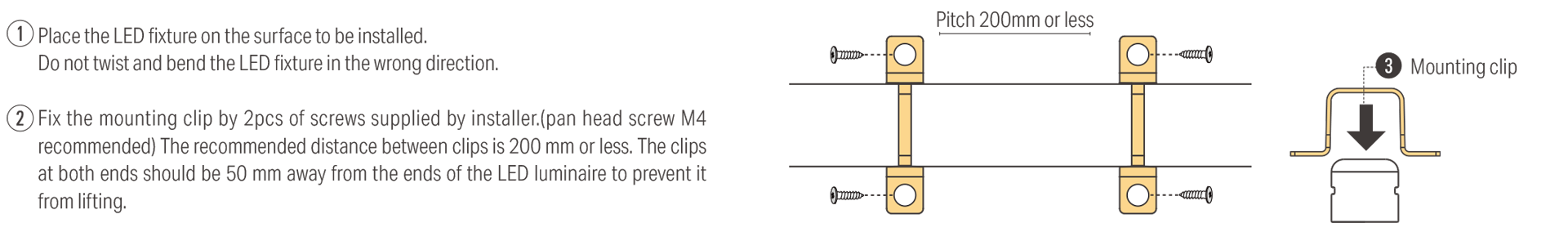

Installation with Mounting clip

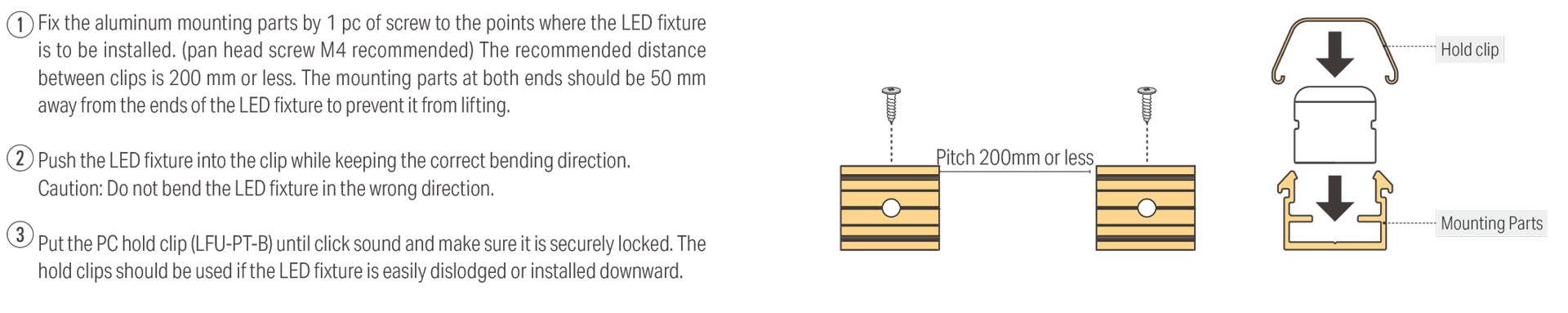

Installation with Mounting parts
