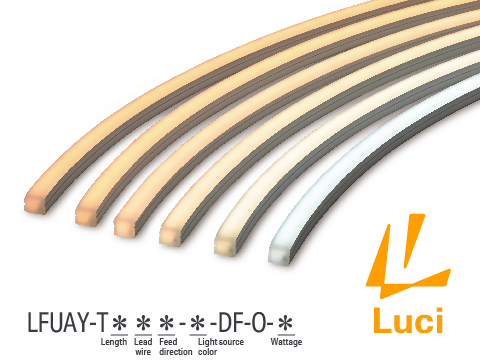

LFUAY-O SHINseires

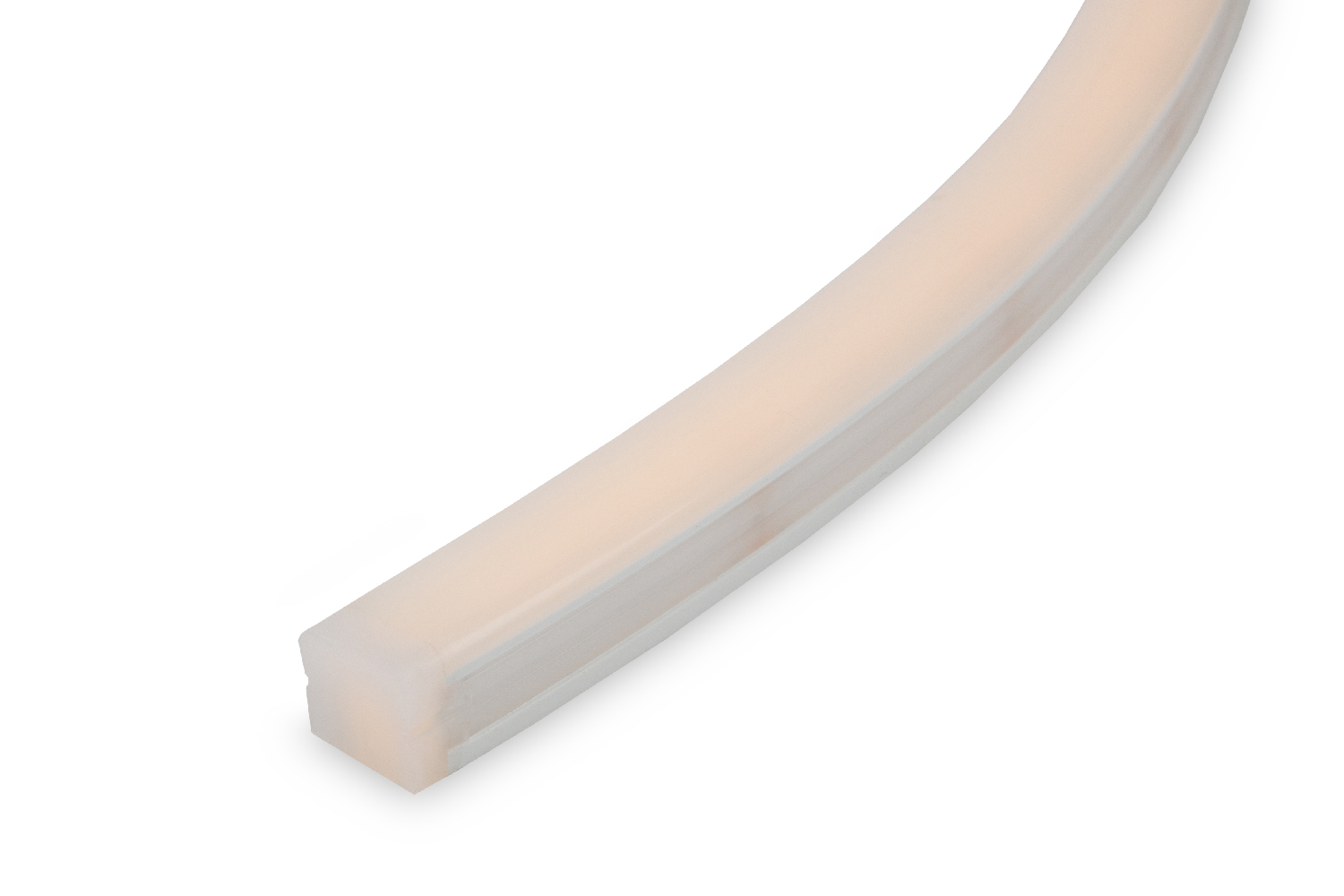

SHIN UQ FLEX α IP67

  • Updated with low wattage high lumen LED series
  • Available 4 different wattage variations
  • Side bend dot-free flexible strip
  • IP67, max custom length 2m for outdoor usage, up to 10m per circuit
  • MacAdam3steps
  • CE
  • IP67
  • Side bend

Product information

Model No.

LFUAY-T1000WB-L27-DF-O-19

Detail
Length
  • 0050〜1000
  • 1050〜2000
Lead wire
Feed direction

HINT

Feed direction

Light source color
Light source color | Delivered CCT
Wattage

SpecificationLength: 1000Lead wire: W : Both ends Feed direction: B：Back feed Wattage: 19.8 W/m

  • Input voltage
    DC24V
  • Wattage
    19.8 W
  • Fitting length
    1009 mm
  • Light source color | Delivered CCT
    D:6500K | 6000K1369 lmRa 9669.2 lm/w
    N:5000K | 4700K1357 lmRa 9368.5 lm/w
    W:4000K | 3700K1333 lmRa 9767.3 lm/w
    WW:3500K | 3300K1321 lmRa 9766.7 lm/w
    L30:3000K | 2800K1284 lmRa 9564.9 lm/w
    L27:2700K | 2500K1212 lmRa 9461.2 lm/w
    L25:2500K | 2400K897 lmRa 9445.3 lm/w
    L22:2200K | 2100K836 lmRa 9342.2 lm/w
    L20:2000K | 1900K763 lmRa 9138.6 lm/w
    L18:1800K | 1700K739 lmRa 9037.3 lm/w
  • Max. length per circuit
    7.5m (19.8W/m), 10m (Others)
  • Dimmable
    Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Outdoor (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Silicone

Mounting options

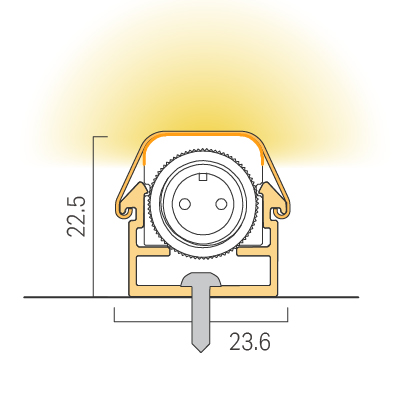

  • Straight installation / Rail

    Straight installation / Rail

    Straight installation / Rail

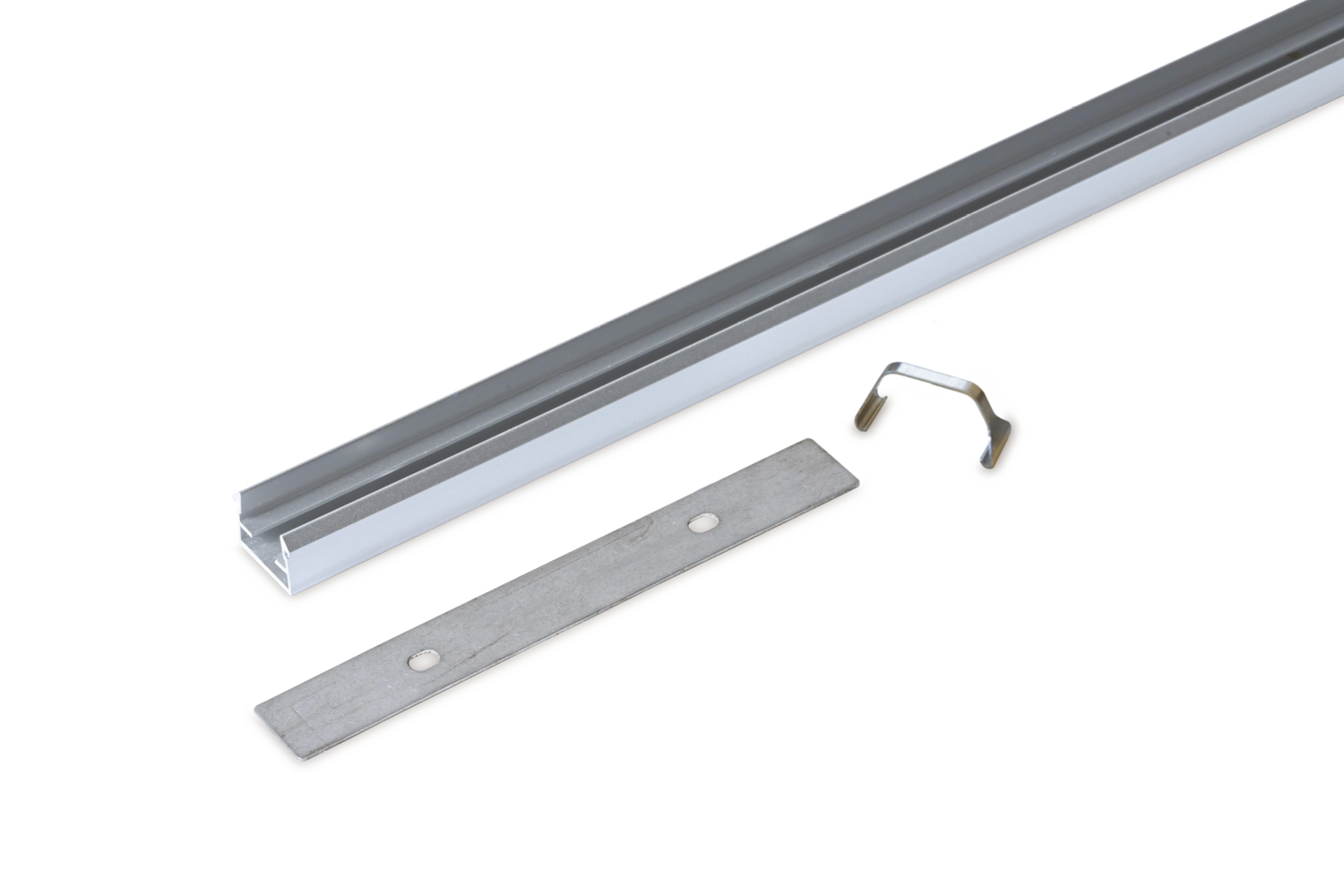

    • Aluminum mounting rail 950 set for UQ FLEX

      1Aluminum mounting rail 950 set for UQ FLEX

      LFU-RL0950-AL-C

      The set include Mounting rail (1pc) , SUS Hold clip (5 pcs/bag) and Joint plate (1pc)

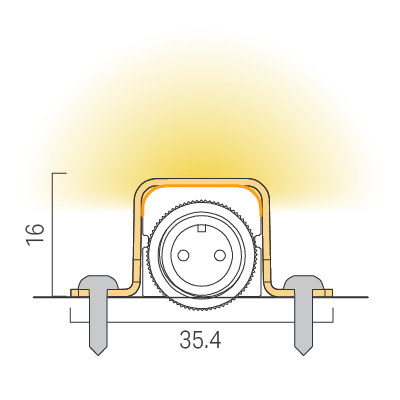

  • Straight installation / Clip

    Straight installation / Clip

    Straight installation / Clip

    • SUS Mounting clip for UQ FLEX

      3SUS Mounting clip for UQ FLEX

      LFU-RC-B

      For curved or straight installation

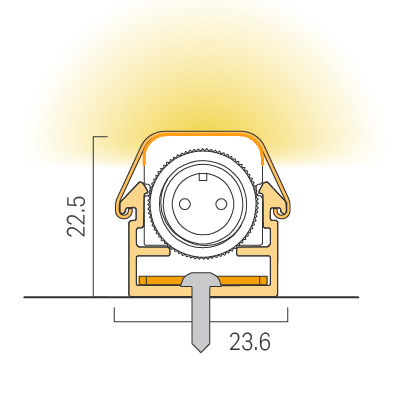

  • Curved installation / Parts

    Curved installation / Parts

    Curved installation / Parts

    • Aluminum mounting parts set for UQ FLEX

      2Aluminum mounting parts set for UQ FLEX

      LFU-RL0018-AL-C

      The set include Mounting parts (5 pcs/bag) and SUS Hold clip (5 pcs/bag)
      Recommended each 5 pcs/m

  • Curved installation / Clip

    Curved installation / Clip

    Curved installation / Clip

    • SUS Mounting clip for UQ FLEX

      3SUS Mounting clip for UQ FLEX

      LFU-RC-B

      For curved or straight installation

Accessories

  • Power supply cable 10M for UQ FLEX

    4Power supply cable 10M for UQ FLEXRequired

    CAD-V010M-FPNN-O

  • Joint cable 1M for UQ FLEX

    5Joint cable 1M for UQ FLEX

    CAD-1000-MPFP-O

Download

DownloadDownload

How to Install

Installation with Mounting rail

Installation with Mounting rail

Installation with Mounting clip

Installation with Mounting clip

Installation with Mounting parts

Installation with Mounting parts
