Discontinued

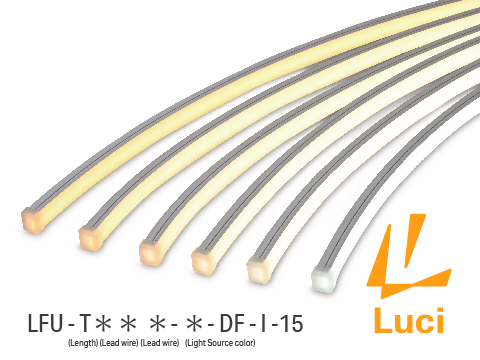

LFU-I
UQ FLEX Indoor
- Successor product: SHIN UQ FLEX Indoor (LFUY-I)
- Top bend dot-free flexible light, cuttable every 50mm at site
- Indoor usage only, custom length max.5m per roll, connectable 10m in run
LFU-I
UQ FLEX Indoor
Product information
Model No.
LFU-T1000WB-L27-DF-I-10
SpecificationSize1000wattage: 10.8W/m
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
Please refer to the Specification sheet for the Delivered CCT. -
Max. length per circuit10m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE
-
MaterialSilicone
Mounting options
-
Straight installation / Rail
-
Aluminium mounting rail 950 set for UQ FLEX Indoor
LFU-RL0950-AL-C-I
The set includes Mounting rail (1pc) and PC Hold clip (5 pcs/bag) andJoint plate (1pc)
-
-
Straight installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
For curved or straight installation
-
-
Curved installation / Parts
-
2AL mounting parts set for UQ FLEX Indoor
LFU-RL0018-AL-C-I
The set include Mounting parts (5 pcs/bag) and PC Hold clip (5 pcs/bag)
Recommended each 5 pcs/m
-
-
Curved installation / Clip
-
3PC Mounting clip for UQ FLEX
LFU-RC
For curved or straight installation
-
Accessories
-
4Endcap for UQ FLEX indoor
LFU-EC
-
5Power supply cable 3000mm for SL connectorRequired
CAD-3000-MCNN-I
-
6Joint cable 1000mm for SL connector
CAD-1000-MCFC-I
-
6Joint cable 5000mm for SL connector
CAD-5000-MCFC-I
Download
Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.
How to Install

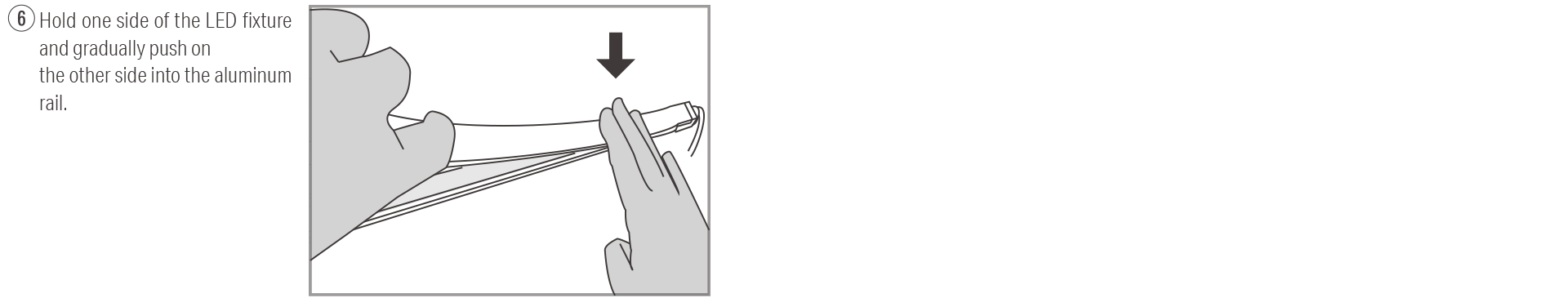

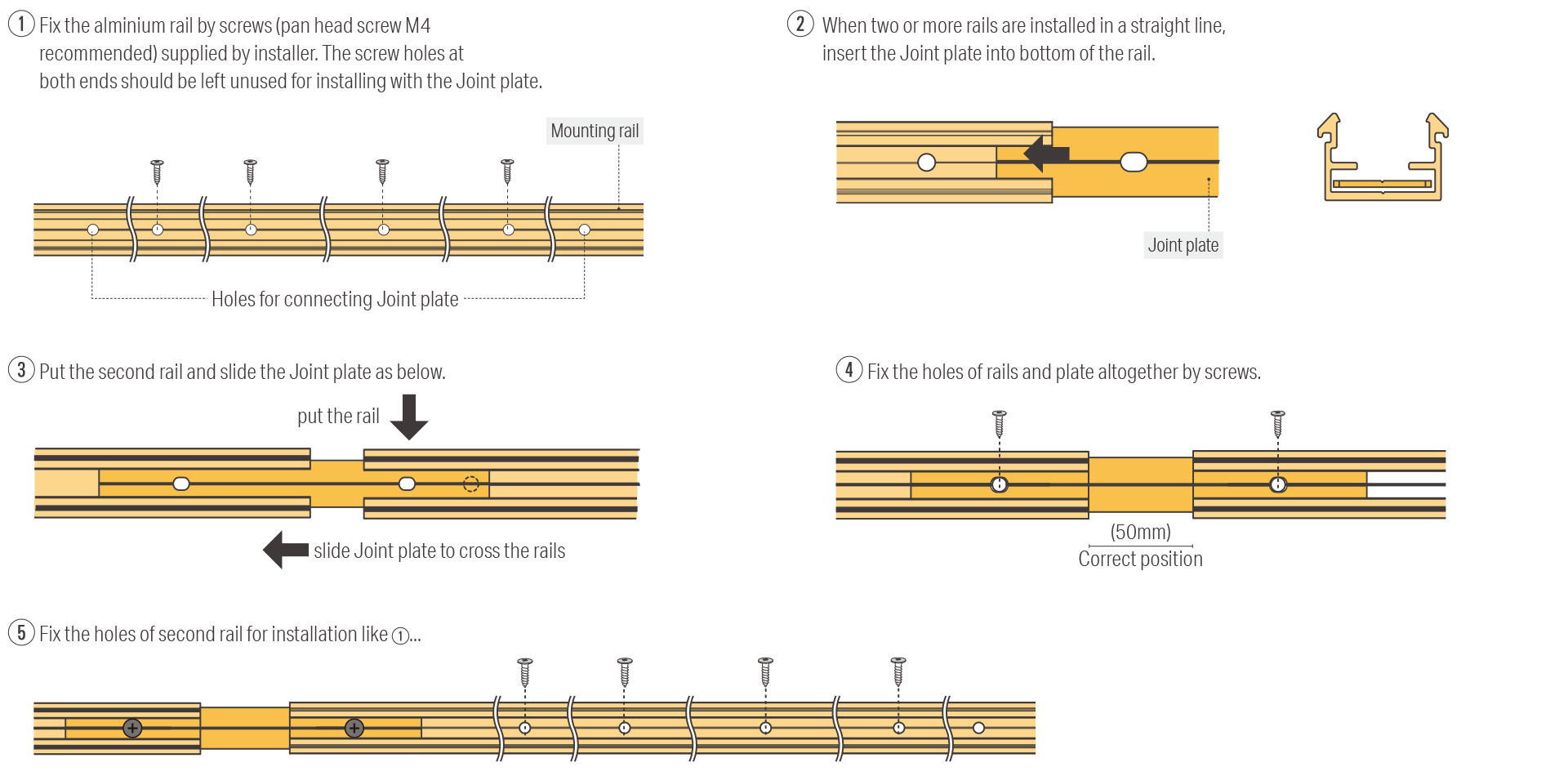

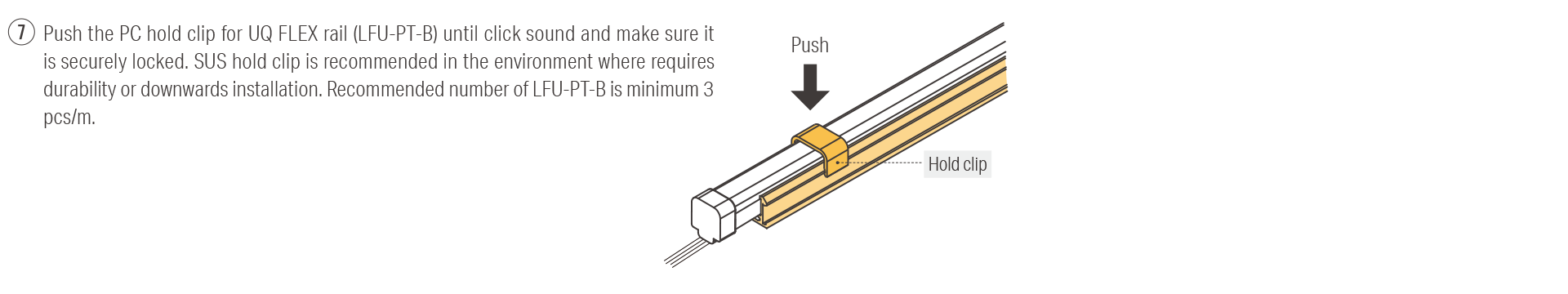

Installation with Mounting rail

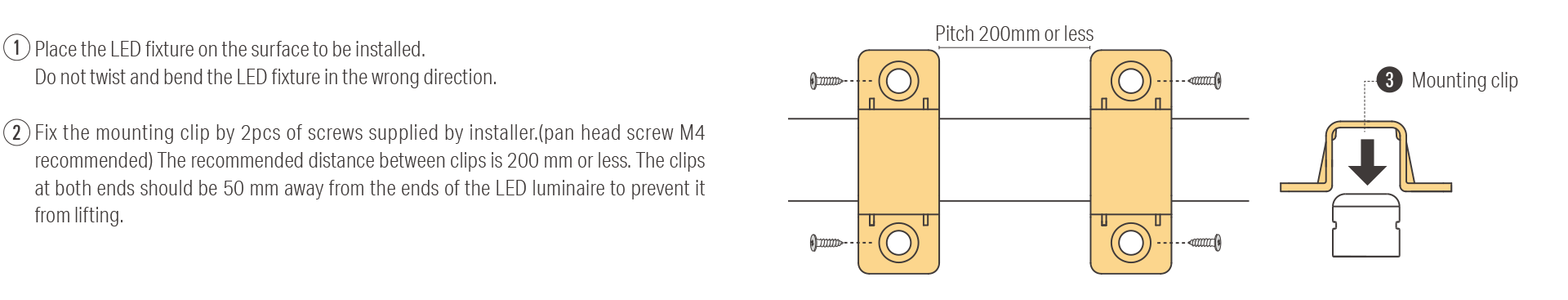

Installation with Mounting clip

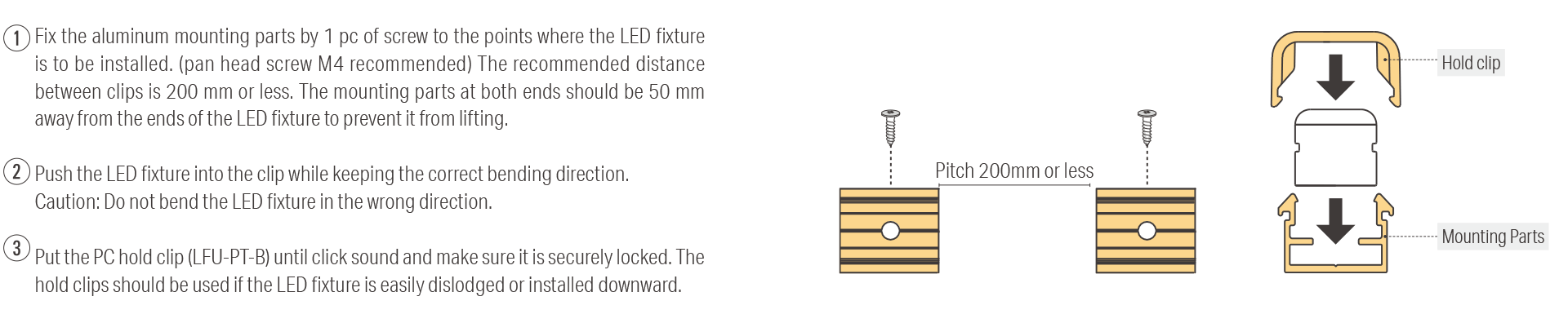

Installation with Mounting parts
