Discontinued

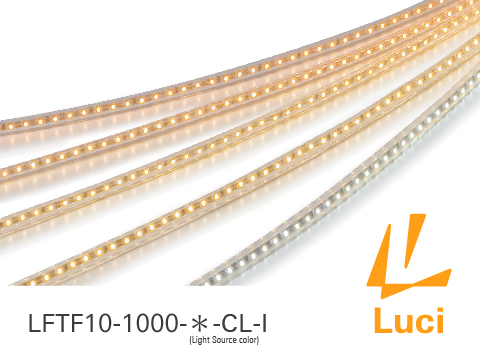

LFTF-I
Flat FLEX F Indoor
- Successor product : SHIN FLEX (LFY-I)
- Narrow LED pitch (10 or 16mm) suitable for limited space installation
- 2 types of wattage and LED pitch (3.9 W/m, 2.5 W/m)
- Customized length available up to 5m per roll
LFTF-I
Flat FLEX F Indoor
Product information
Model No.
LFTF10-T1000W-L27-CL-I
- 0063〜1000
- 1063〜2000
- 2063〜3000
- 3063〜4000
- 4063〜5000
SpecificationPitch: LFTF10 : 10mm Pitch Length: 1000
-
Input voltageDC24V
-
Wattage3.9 W
-
Fitting length1010 mm
-
Light source color
D:7100K 324 lm Ra 94 87.6 lm/w N:5300K 329 lm Ra 94 86.8 lm/w W:4200K 294 lm Ra 90 84.6 lm/w WW:3500K 305 lm Ra 90 79.4 lm/w L30:3000K 300 lm Ra 90 77.9 lm/w L27:2700K 282 lm Ra 87 74.2 lm/w L24:2400K 229 lm Ra 83 66.8 lm/w -
Max. length per circuit5m
-
DimmableYes (0-10V/1-10V, DMX, DALI, PWM)
-
EnvironmentIndoors (no condensation)
-
CertificationCE, BIS
-
MaterialSoft acrylic
-
AttachmentsEnd cap 2pcs

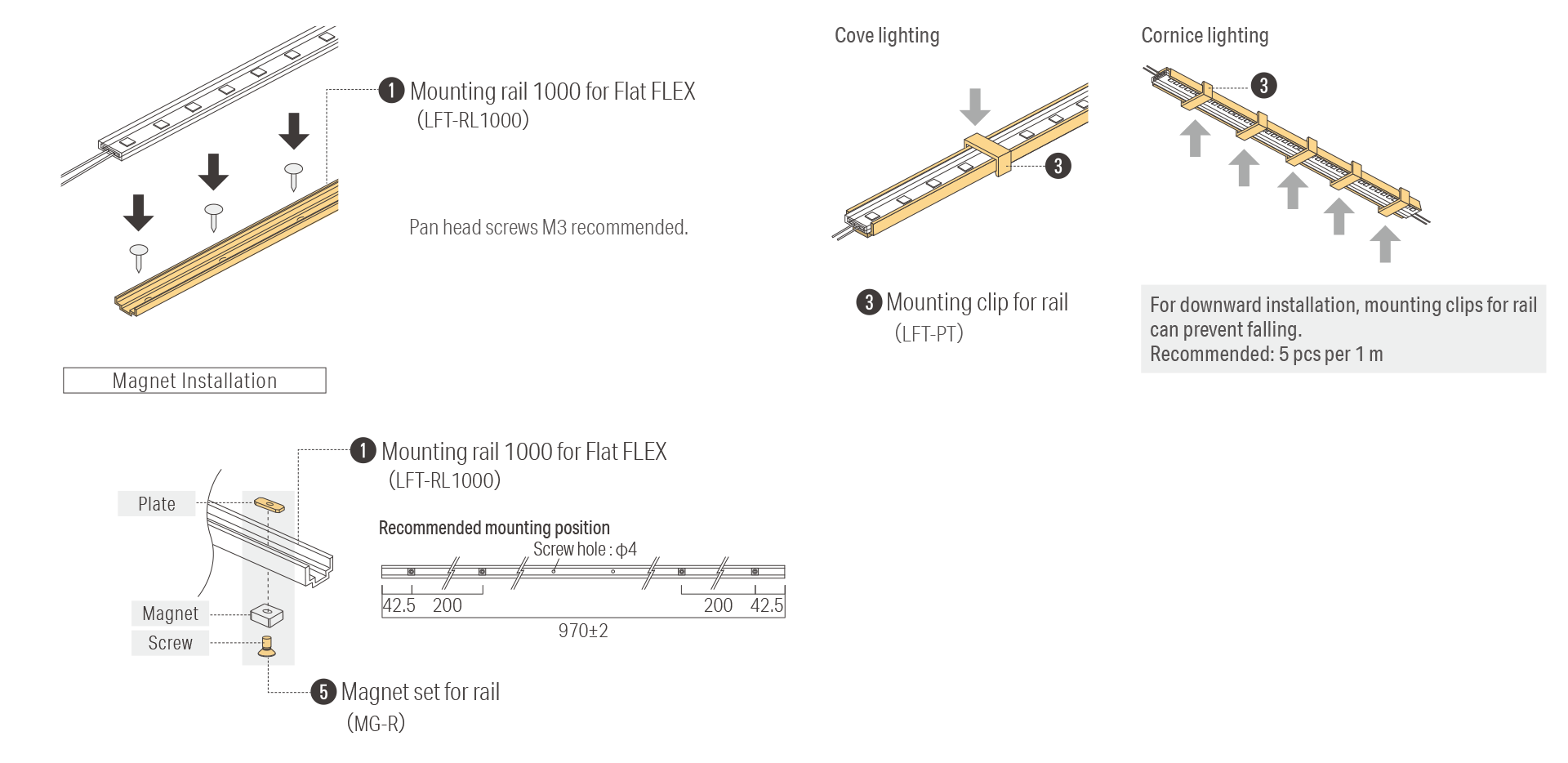

Mounting options
-
Straight installation / Rail
-
1Mounting rail 1000 for Flat FLEX
LFT-RL1000
Mounting clip for rail (5 pcs) is included
-
-
Straight installation / Magnet + Rail
-
1Mounting rail 1000 for Flat FLEX
LFT-RL1000
Mounting clip for rail (5 pcs) is included
-
5Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-

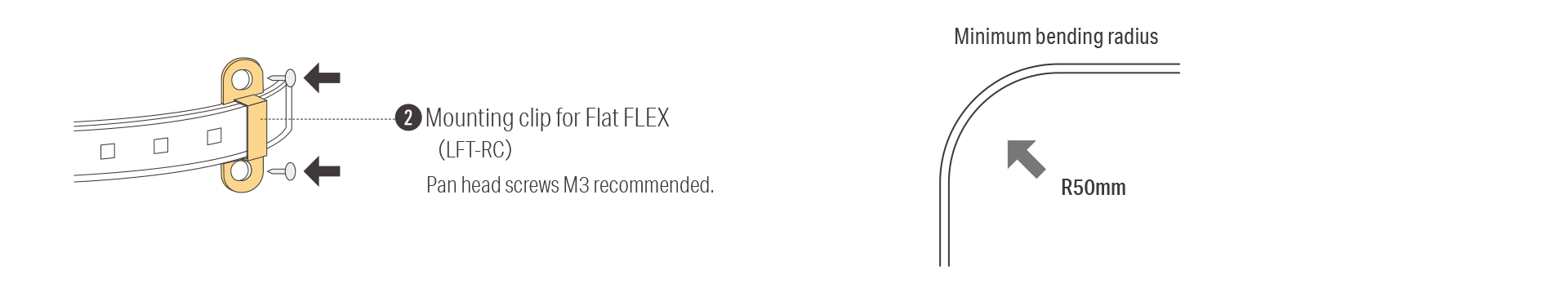

Curved installation / Clip
-
2Mounting clip for Flat FLEX
LFT-RC
10 pcs / bag
For curved installation
-
Accessories
-
3Mounting clip for rail
LFT-PT
Download
How to Install
Straight installation
Curved installation
