LFAY
NEW
SHIN FLEX α
- Updated with low lumen high wattage LED series
- Increased 270% efficacy, Max. 160lm/W
- Customisable up to 1.5M
- Flexible strip with bending sideways suitable for curved application
- Cuttable every 7 LEDs (50mm)
LFAY

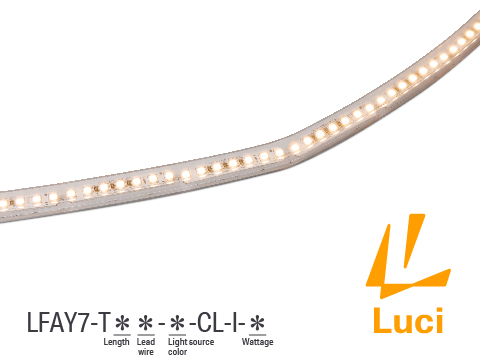

SHIN FLEX α
Product information
Model No.
LFAY7-T1000-L27-CL-I-10
SpecificationSize970
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit5 m
-
DimmableYes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoors (no condensation)
-
CertificationCE , PTB FREE
-
MaterialBody : Aluminum, Cover : Polycarbonate
-
AttachmentsEnd cap 2pcs
Mounting options
-
Straight installation / Rail
-

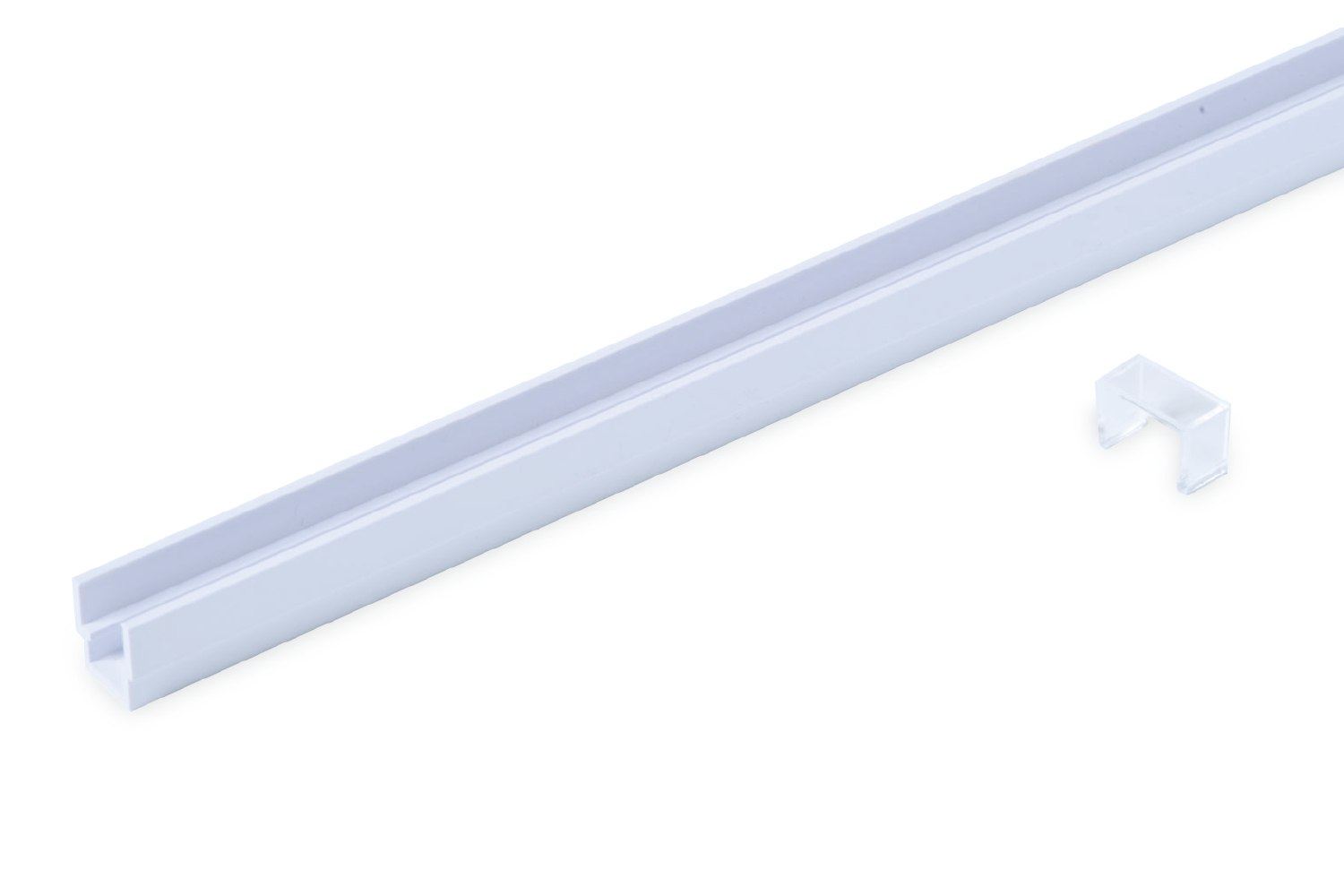

1Mounting rail 900 for Power FLEX α
LFPA-RL0900
Mounting clip for rail (5 pcs) is included.
-
-
Straight installation / Magnet + Rail
-
1Mounting rail 900 for Power FLEX α
LFPA-RL0900
Mounting clip for rail (5 pcs) is included.
-

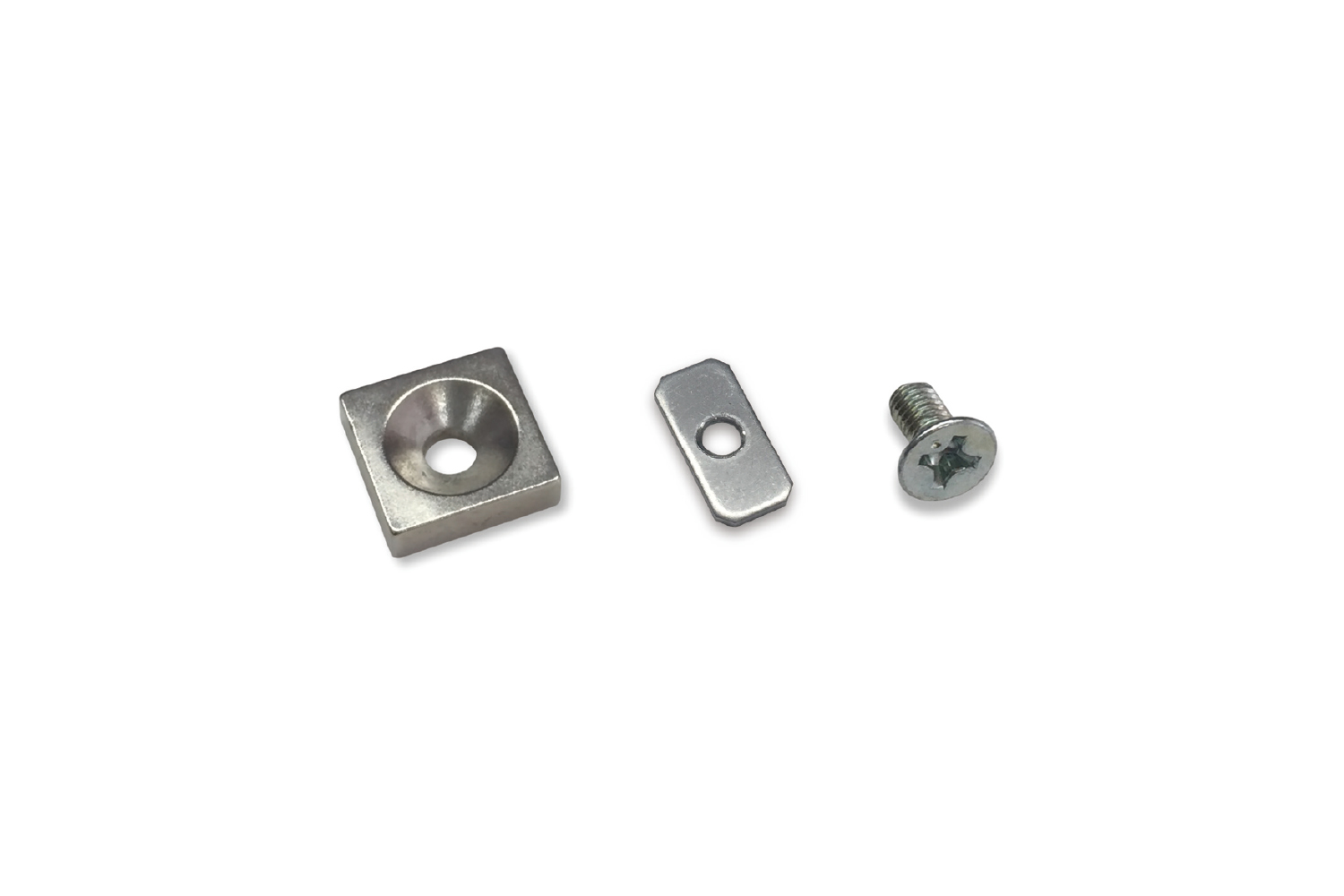

5Magnet set for rail
MG-R
4 pcs/bag
Used for installing light fixture with mounting rail on metal plate
Metal plate is required by installer
-
-
Curved installation / parts
-

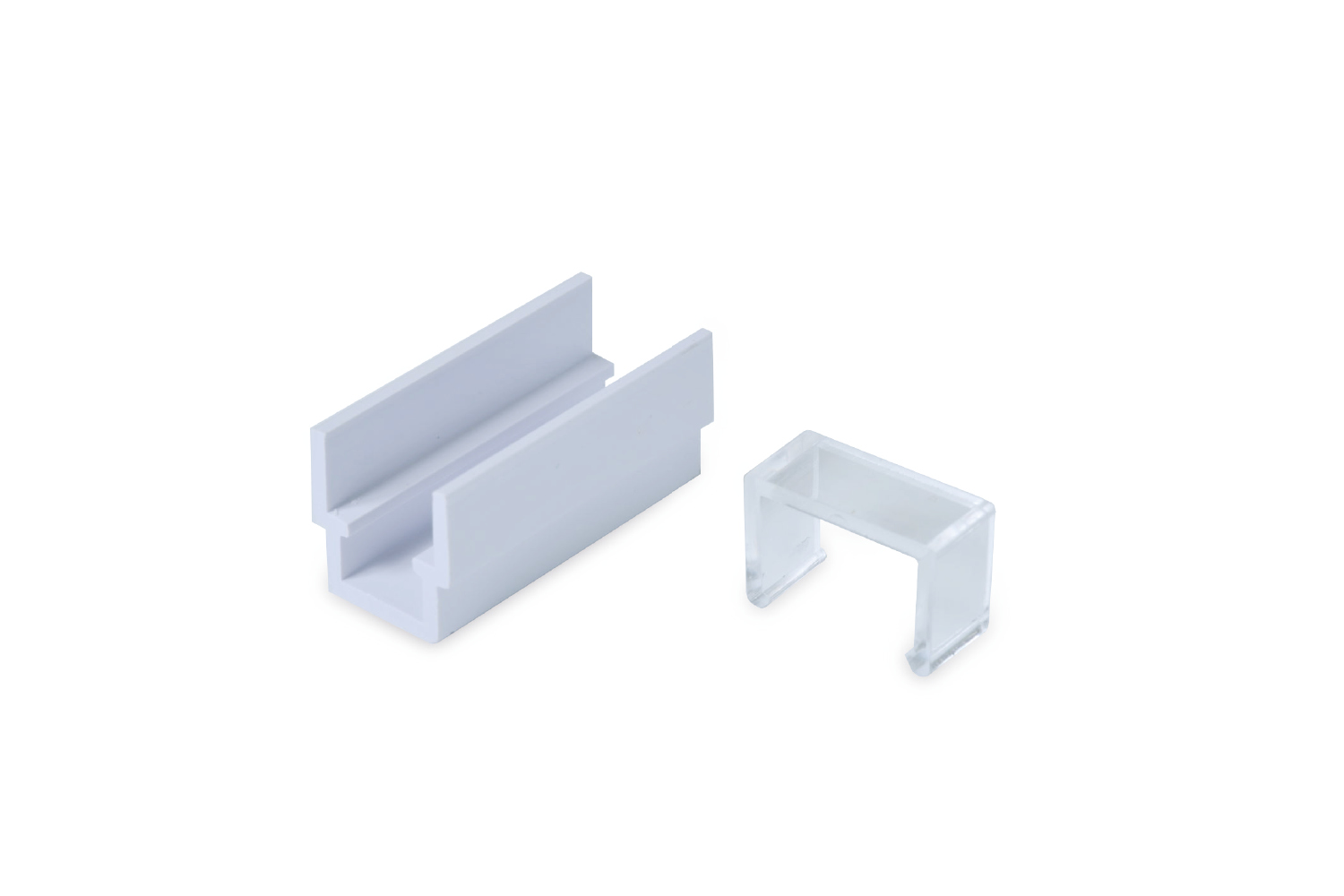

2Mounting parts for Power FLEX α
LFPA-RL0030
5 pcs / bag
Mounting clip for rail (5 pcs) is included.
-
Accessories
-

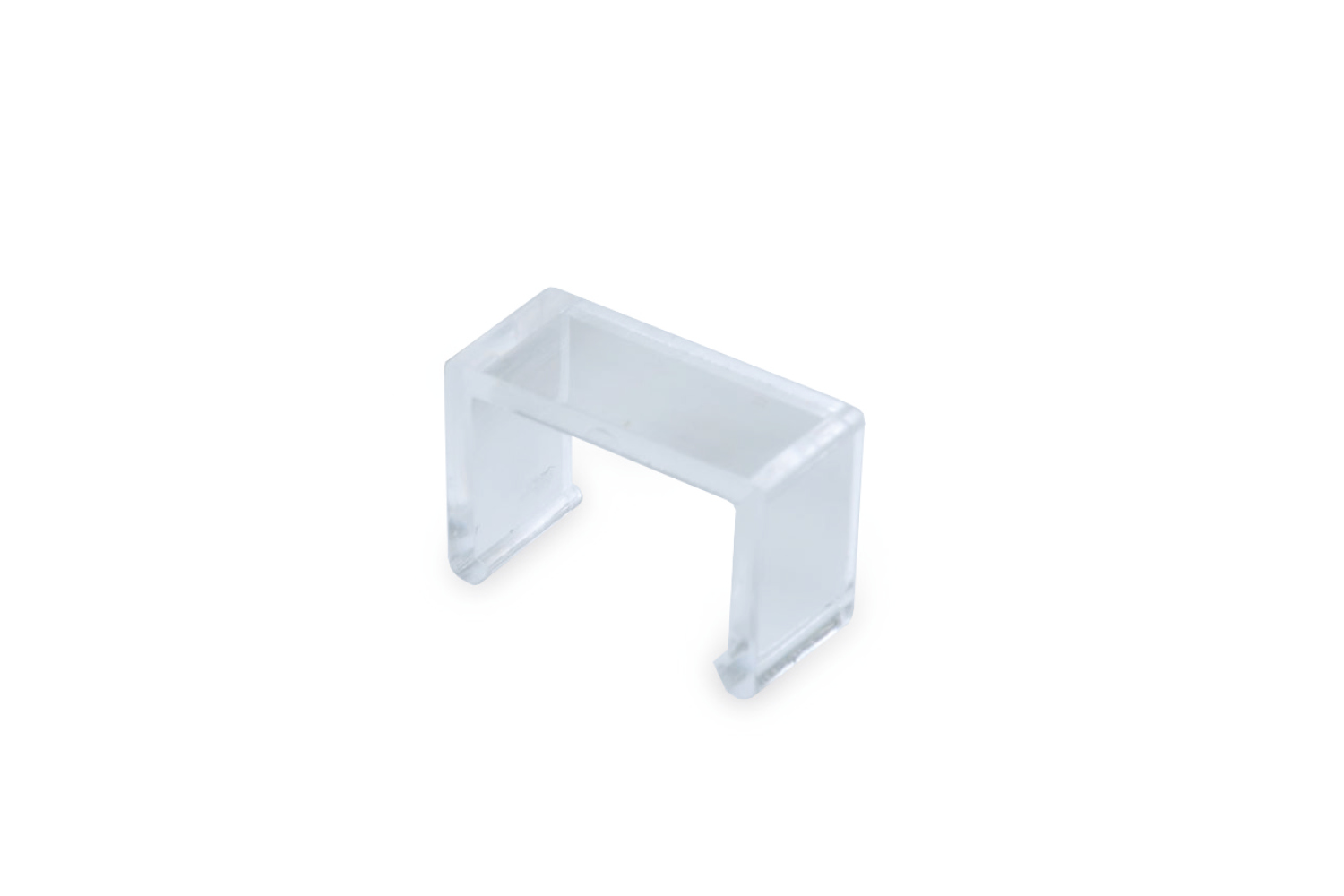

3Mounting clip for rail
LFPA-PT
Download
How to Install

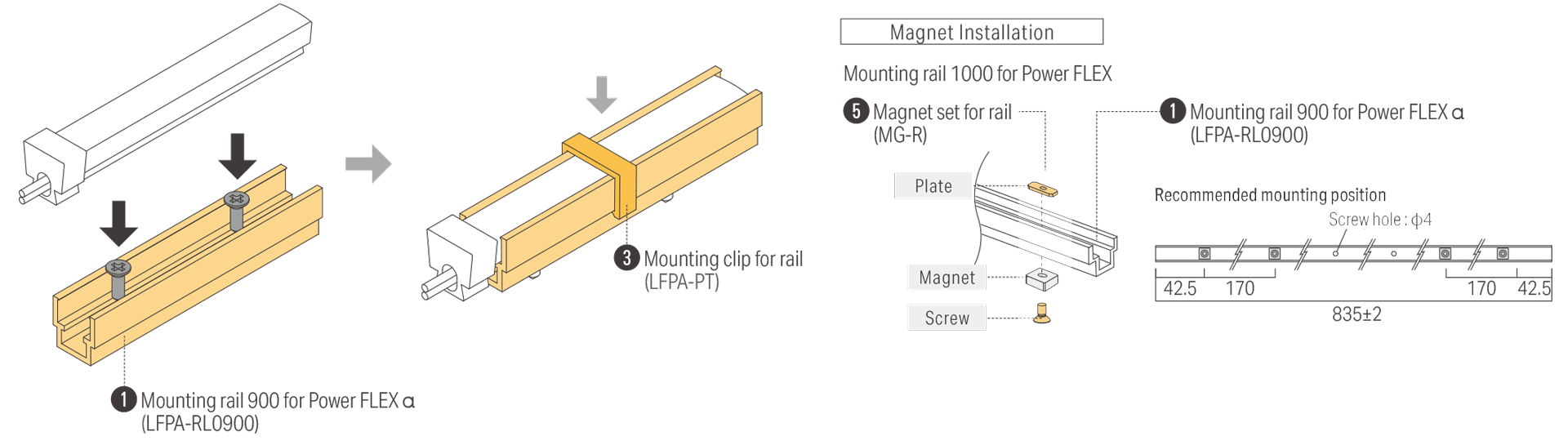

Straight installation

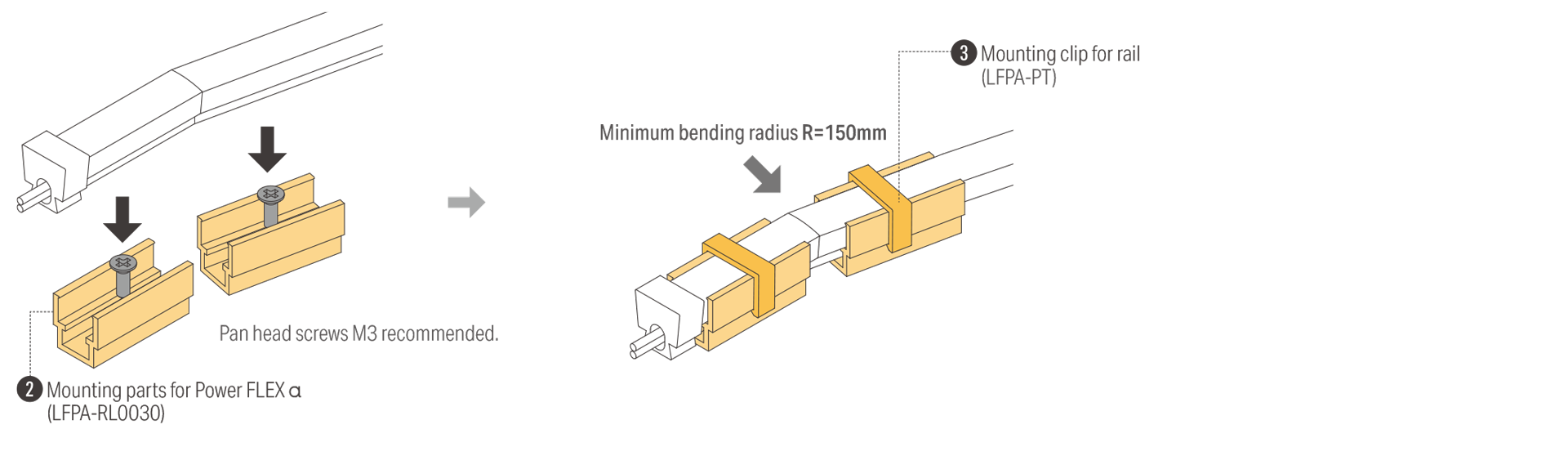

Curved installation
Works
-
Okayama Central Hospital
Japan
Education / Medical / Welfare Wall indirect
-
THE QUAYSIDE
Hong Kong
Office Entrance / Lobby / Common area
-
Ito-Yokado Abeno
Japan
Shopping mall Ceiling cove
-
The Prince Gallery Tokyo Kioicho
Japan
Hospitality Ceiling cove
