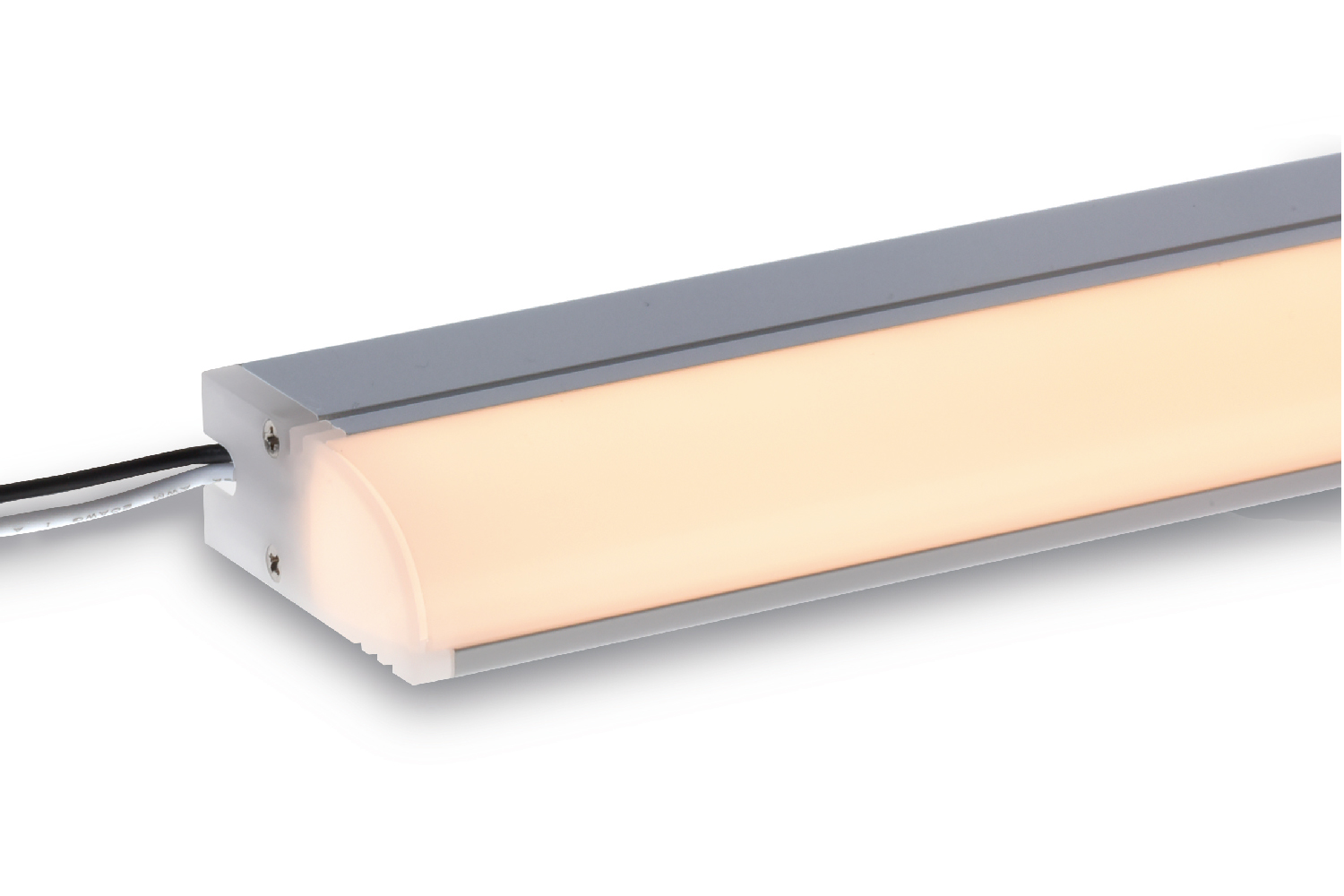

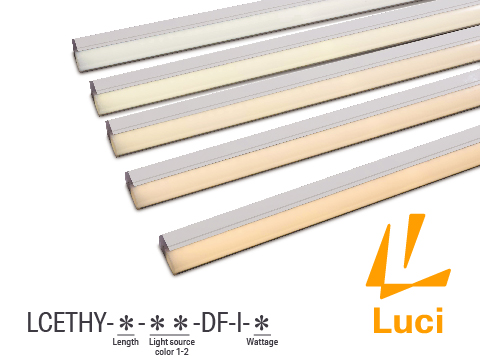

Model No.

SpecificationLength: 1010Wattage: 10.7 W/m

• Input voltage
  DC24V
• Wattage
  10.7 W
• Fitting length
  1011 mm
• Light source color
  Luminaire flux ※Light source color1・Light source color2：100%

  		Light source color2
  		N	W	WW	L30	L27	L25	L22	L20	L18
  Light source color 1	D	1070 lm	1060 lm	1056 lm	1041 lm	1013 lm	889 lm	865 lm	837 lm	827 lm
  	N		1056 lm	1051 lm	1037 lm	1008 lm	885 lm	861 lm	832 lm	823 lm
  	W			1041 lm	1027 lm	999 lm	875 lm	851 lm	823 lm	813 lm
  	WW				1022 lm	994 lm	870 lm	846 lm	818 lm	808 lm
  	L30					980 lm	856 lm	832 lm	804 lm	794 lm
  	L27						827 lm	804 lm	775 lm	766 lm
  	L25							680 lm	651 lm	642 lm
  	L22								628 lm	618 lm
  	L20									590 lm

• Color rendering index ※Light source color1・Light source color2：100%

  		Light source color2
  		N	W	WW	L30	L27	L25	L22	L20	L18
  Light source color 1	D	Ra 93	Ra 95	Ra 95	Ra 96	Ra 96	Ra 96	Ra 96	Ra 95	Ra 95
  	N		Ra 93	Ra 93	Ra 94	Ra Ra95	Ra Ra95	Ra 96	Ra 97	Ra 97
  	W			Ra 95	Ra 95	Ra 96	Ra 96	Ra 97	Ra 96	Ra 96
  	WW				Ra 95	Ra 95	Ra 96	Ra 96	Ra 95	Ra 95
  	L30					Ra 94	Ra 94	Ra 94	Ra 95	Ra 95
  	L27						Ra 94	Ra 94	Ra 94	Ra 94
  	L25							Ra 94	Ra 94	Ra 94
  	L22								Ra 93	Ra 93
  	L20									Ra 91

• Luminaire efficacy ※Light source color1・Light source color2：100%

  		Light source color2
  		N	W	WW	L30	L27	L25	L22	L20	L18
  Light source color 1	D	99.5lm/w	98.7lm/w	98.2lm/w	96.9lm/w	94.2lm/w	82.7lm/w	80.5lm/w	77.9lm/w	77lm/w
  	N		98.2lm/w	97.8lm/w	96.4lm/w	93.8lm/w	82.3lm/w	80.1lm/w	77.4lm/w	76.5lm/w
  	W			96.9lm/w	95.6lm/w	92.9lm/w	81.4lm/w	79.2lm/w	76.5lm/w	75.7lm/w
  	WW				95.1lm/w	92.5lm/w	81lm/w	78.8lm/w	76.1lm/w	75.2lm/w
  	L30					91.1lm/w	79.6lm/w	77.4lm/w	74.8lm/w	73.9lm/w
  	L27						77lm/w	74.8lm/w	72.1lm/w	71.2lm/w
  	L25							63.3lm/w	60.6lm/w	59.7lm/w
  	L22								58.4lm/w	57.5lm/w
  	L20									54.9lm/w

• Max. length per circuit
  5 m
• Dimmable
  Yes (Dynamic white driver is required)
• Environment
  Indoors (no condensation)
• Certification
  CE , PTB FREE
• Material
  Body : Aluminum, Cover : Polycarbonate
• Attachments
  Mounting clip
  1pc - Length 0110, 0210
  2pcs - Length 0310, 0410, 0510, 0610, 0710
  3pcs - Length 0810, 0910, 1010, 1110
  4pcs - Length 1210, 1310, 1410

•

  Behind fixing / Clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

•

  Behind fixing / Clip + Magnet



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

  •

    3Magnet Set L

    MG-L

    10 sets/bag

•

  Behind fixing / Downwards



  • View How to Install
  • Download(DXF)

  •

    2Outer clip for Creide

    LCE-PT-B

    2 pcs/bag
    Recommended number
    -1 pc for 150 mm
    -2 pcs for 300 mm
    -3 pcs for 510 mm
    -4 pcs for 880 mm and 1170 mm
    -5 pcs for 1460 mm
    For magnet installation, please refer to the required number of clips in the product catalog.

•

  Behind fixing / Downwards + Magnet



  • View How to Install
  • Download(DXF)

  •

    2Outer clip for Creide

    LCE-PT-B

    2 pcs/bag
    Recommended number
    -1 pc for 150 mm
    -2 pcs for 300 mm
    -3 pcs for 510 mm
    -4 pcs for 880 mm and 1170 mm
    -5 pcs for 1460 mm
    For magnet installation, please refer to the required number of clips in the product catalog.

  •

    4Magnet Set A

    MG-A

    5 sets/bag

•

  Vertical installation / clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

Accessories

•

  5Power supply cable 500mm for THOF

  CAD-0500-MDFD-I
