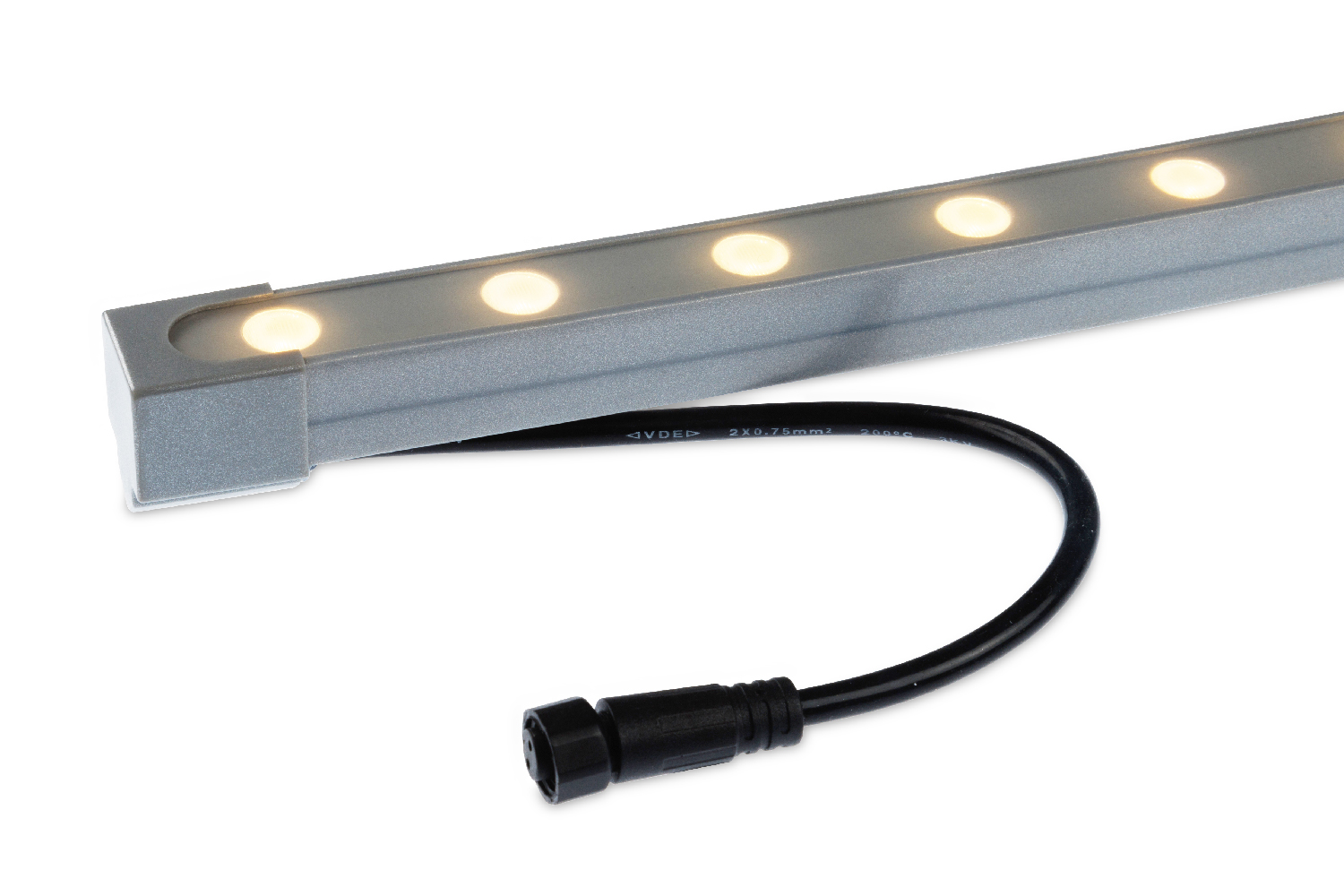

Model No.

SpecificationLength1000

• Input voltage
  DC24V
• Wattage
  W
• Fitting length
  mm
• Light source color
• Max. length per circuit
  5 m
• Dimmable
  Yes (0-10V/1-10V, DMX, DALI, PWM)
• Environment
  Outdoor IP67
• Certification
  CE
• Material
  Silicone

•

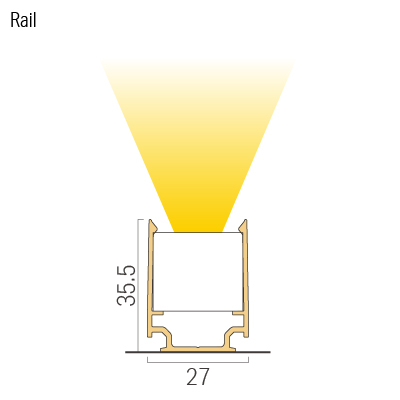

  Straight & Curved installation / Rail



  • View How to Install
  • Download(DXF)

  •

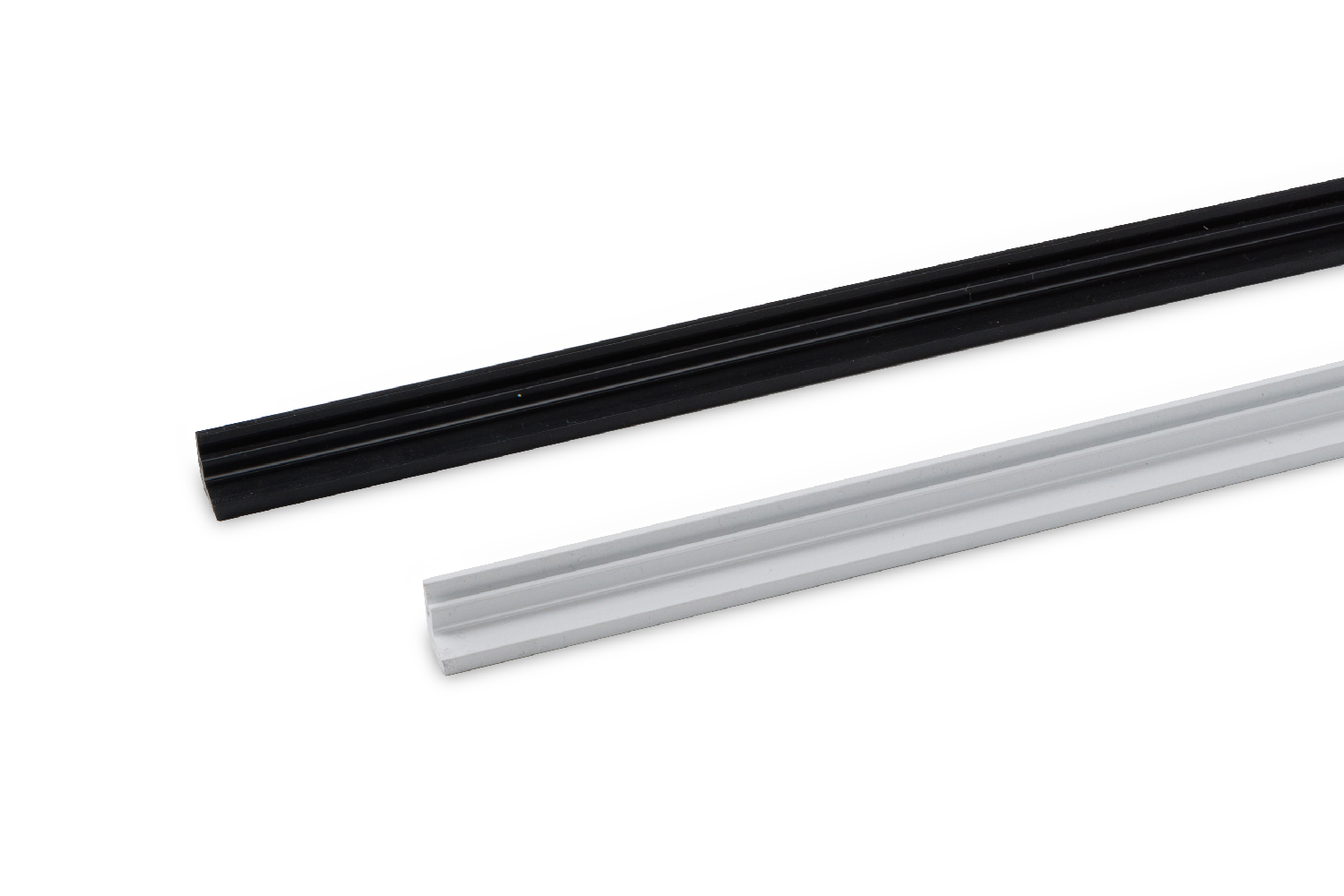

    1Bendable AL Low rail 1000 for LVF

    LVF-RL1000-AL-W-L (White)
    LVF-RL1000-AL-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

•

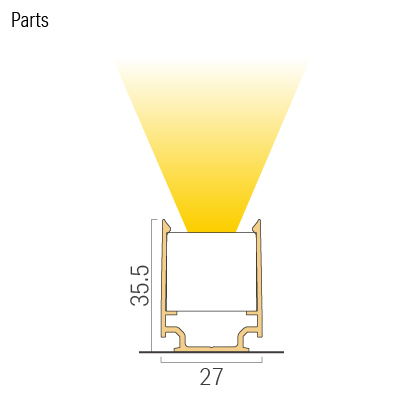

  Straight & Curved installation / Parts



  • View How to Install
  • Download(DXF)

  •

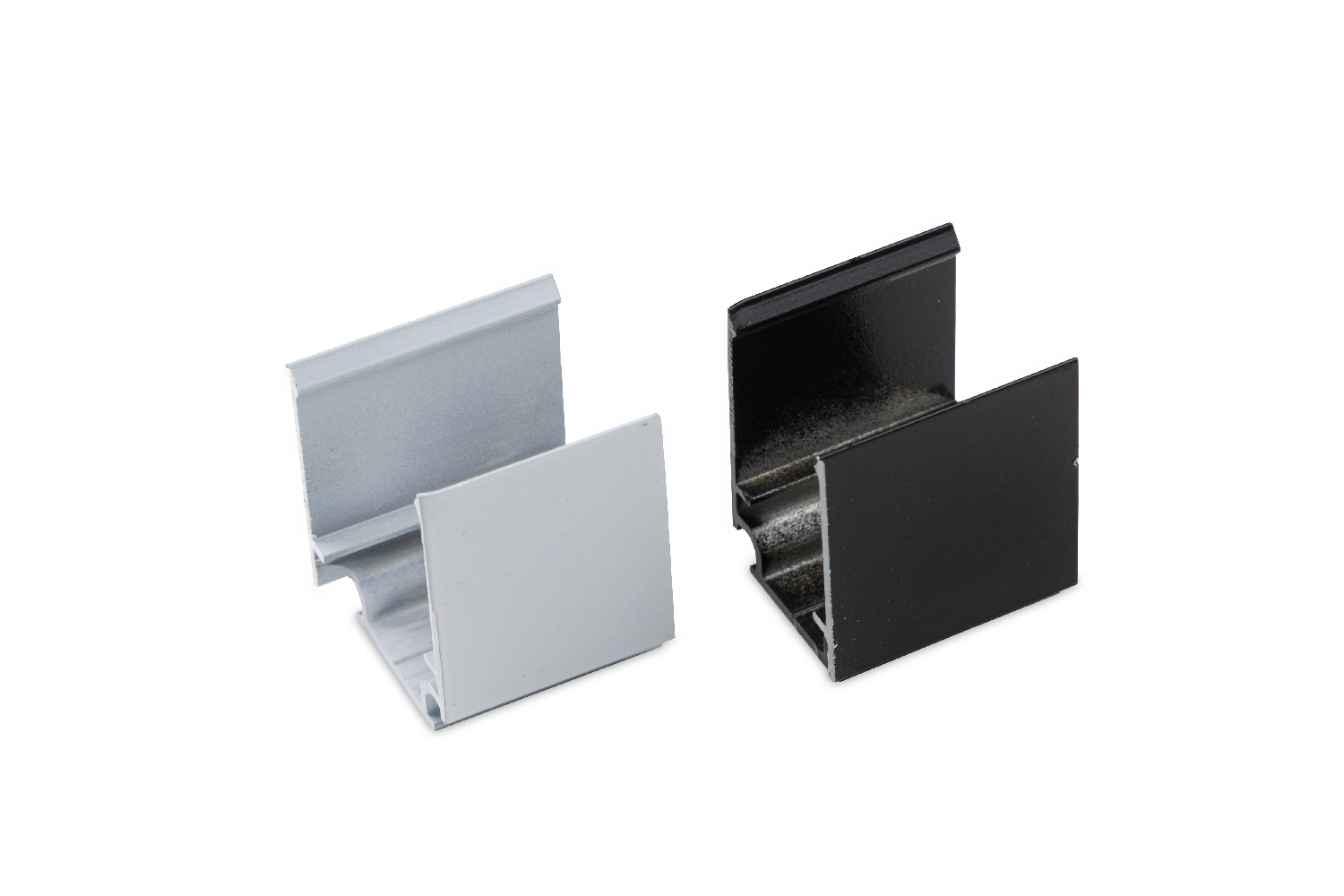

    2Mounting Low parts for LVF

    LVF-RL0030-AL-W-L (White)
    LVF-RL0030-AL-B-L (Black)

    5 pcs/bag
    White : Built to order

•

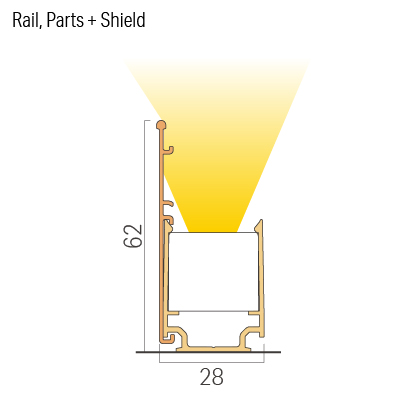

  the front view / Straight & Curved installation / Rail, Parts + shield / Glare cut



  • View How to Install
  • Download(DXF)

  •

    1Bendable AL Low rail 1000 for LVF

    LVF-RL1000-AL-W-L (White)
    LVF-RL1000-AL-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

    2Mounting Low parts for LVF

    LVF-RL0030-AL-W-L (White)
    LVF-RL0030-AL-B-L (Black)

    5 pcs/bag
    White : Built to order

  •

    3Glare cut shield 1000 for LVF rail

    LVF-GS1000-W-L (White)
    LVF-GS1000-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

•

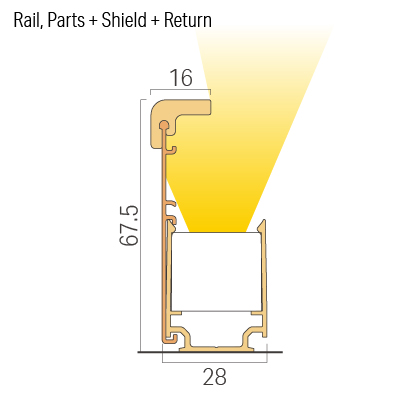

  the diagonal view / Straight & Curved installation / Rail, parts + Return / Glare cut

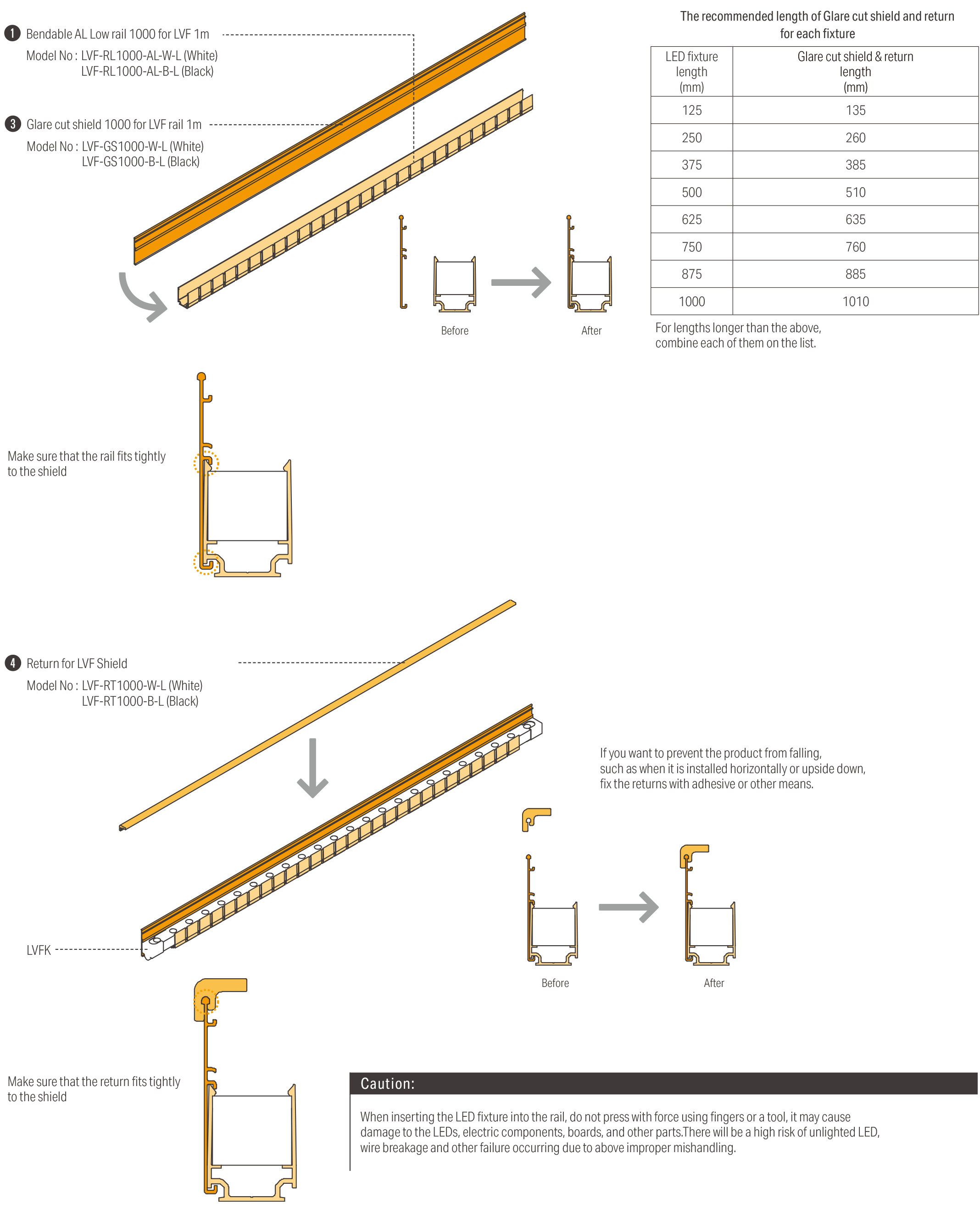

  • View How to Install
  • Download(DXF)

  •

    1Bendable AL Low rail 1000 for LVF

    LVF-RL1000-AL-W-L (White)
    LVF-RL1000-AL-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

    2Mounting Low parts for LVF

    LVF-RL0030-AL-W-L (White)
    LVF-RL0030-AL-B-L (Black)

    5 pcs/bag
    White : Built to order

  •

    3Glare cut shield 1000 for LVF rail

    LVF-GS1000-W-L (White)
    LVF-GS1000-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

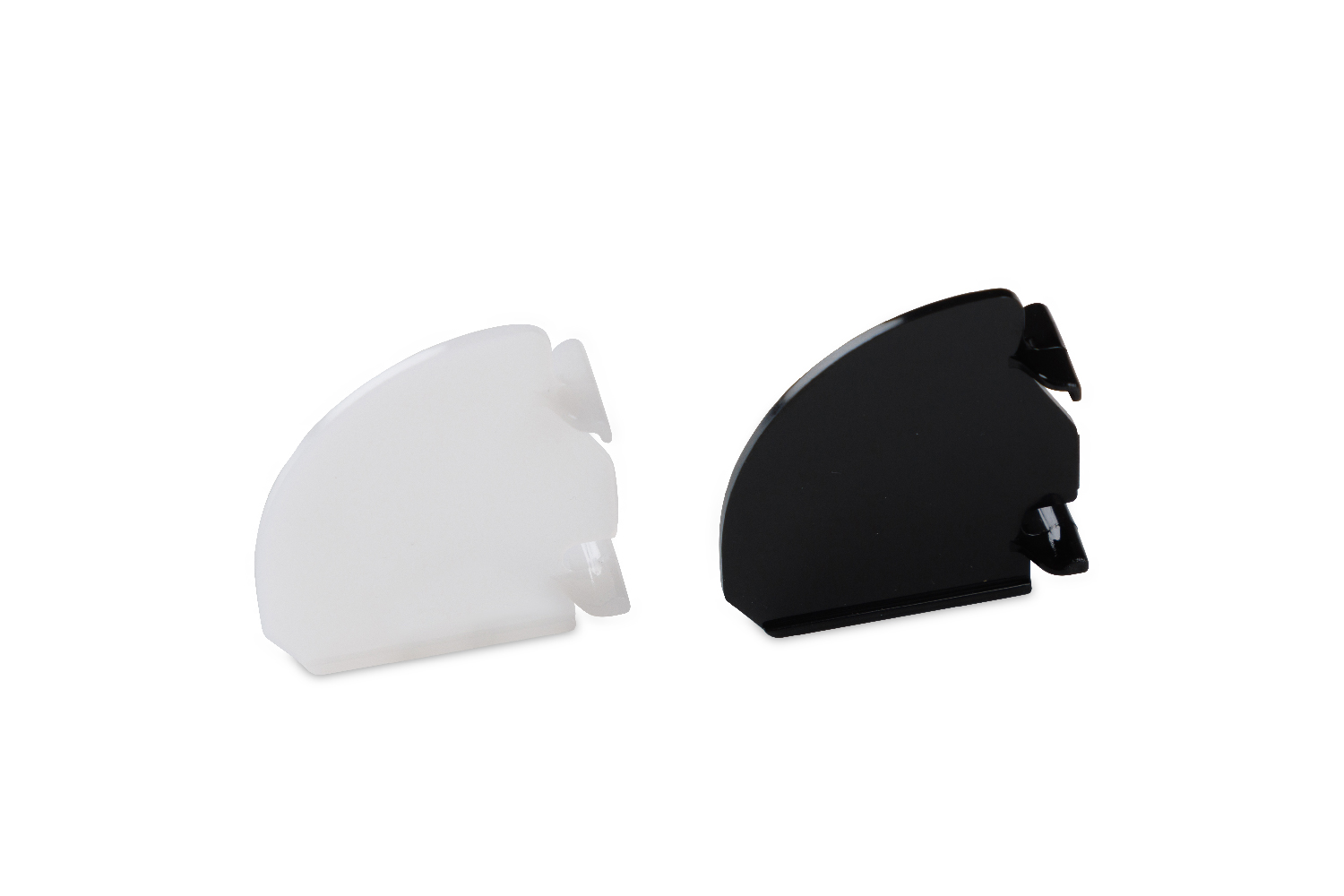

    4Return for LVF Shield

    LVF-LV-W-L (White)
    LVF-LV-B-L (Black)

    25 pcs/bag
    White : Built to order

•

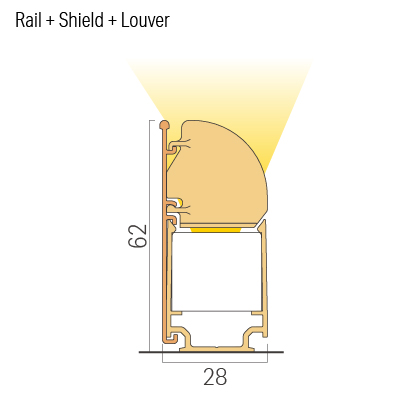

  the side xiew / Straight & Curved installation / Rail + Louver / Glare cut



  • View How to Install
  • Download(DXF)

  •

    1Bendable AL Low rail 1000 for LVF

    LVF-RL1000-AL-W-L (White)
    LVF-RL1000-AL-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

    3Glare cut shield 1000 for LVF rail

    LVF-GS1000-W-L (White)
    LVF-GS1000-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

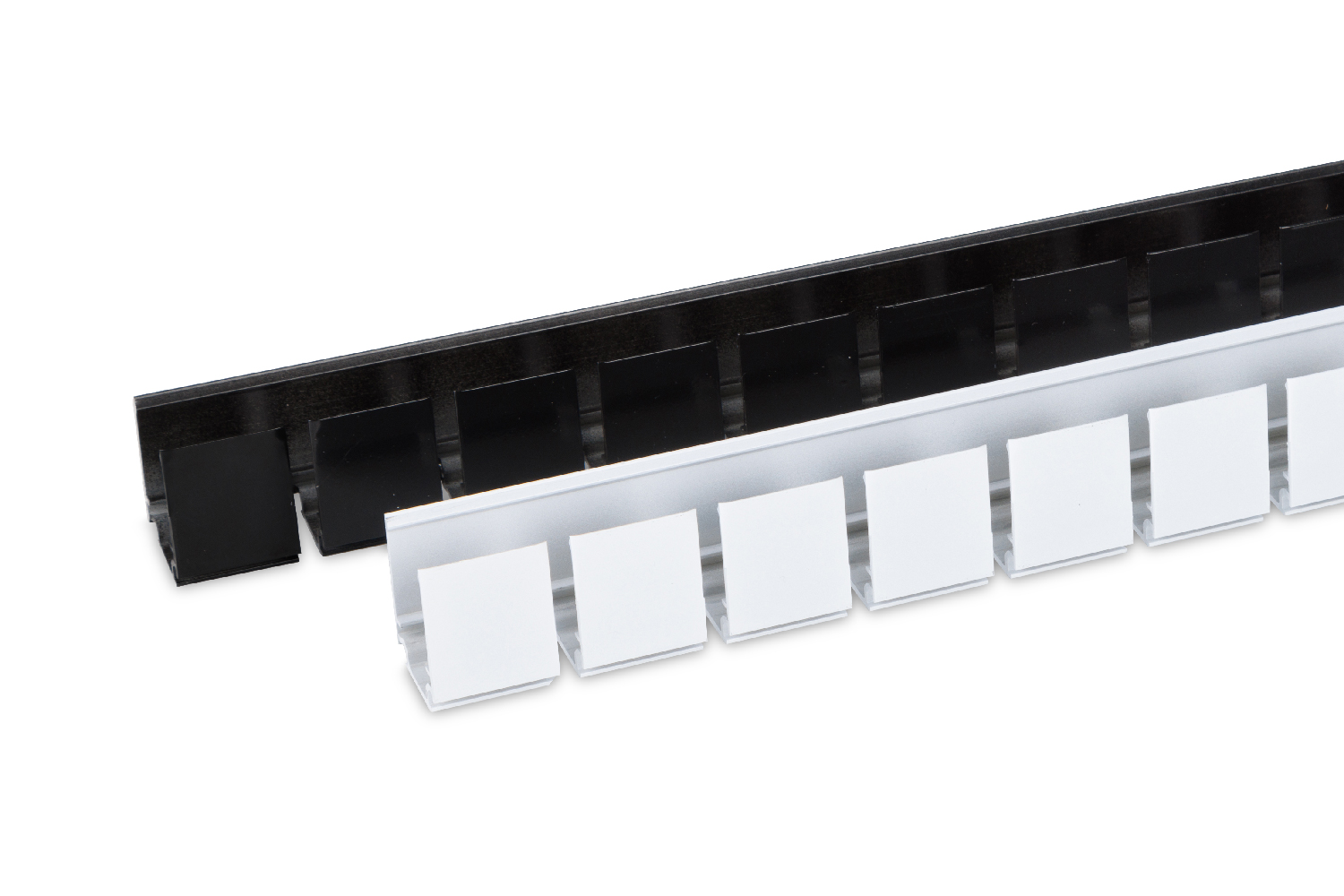

    5Louver for LVF Shield

    LVF-LV-W-L (White)
    LVF-LV-B-L (Black)

    The silicone bendable ’Return for LVF Shield’ that mounts to the rail can be covered LED half to avoiding unexpected light spill, glare, light pollution for exterior
    White : Built to order

•

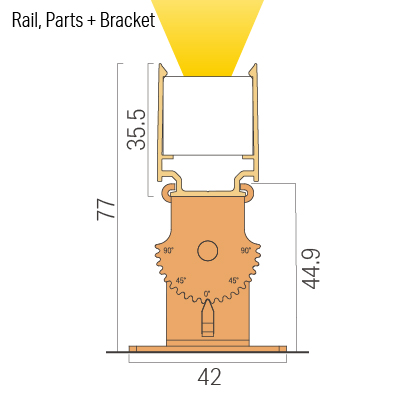

  Straight installation / Rail, parts + Adjustable brackets / Adjustable

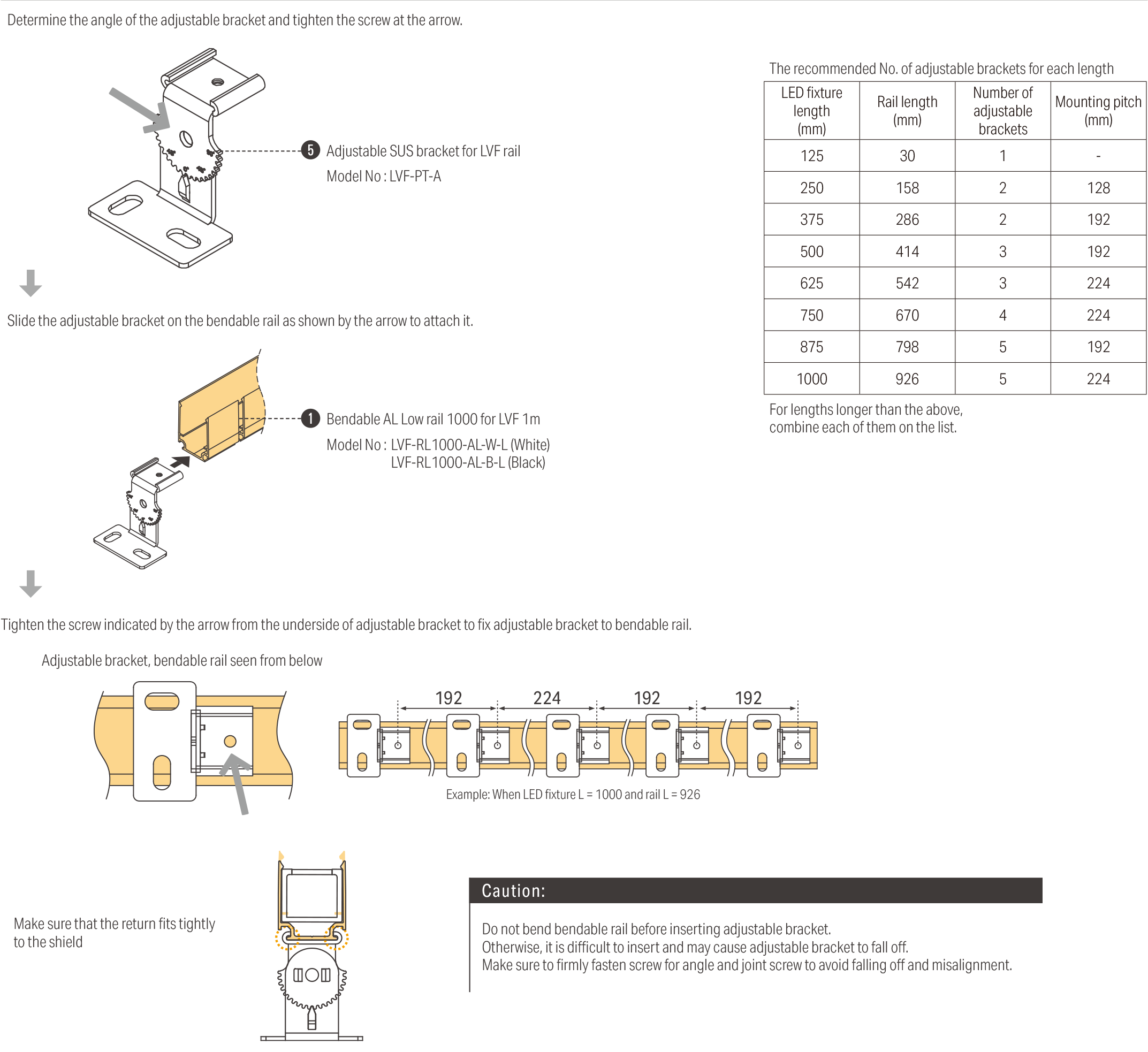

  • View How to Install
  • Download(DXF)

  •

    1Bendable AL Low rail 1000 for LVF

    LVF-RL1000-AL-W-L (White)
    LVF-RL1000-AL-B-L (Black)

    Min. bending range 1000mm
    White : Built to order

  •

    6Adjustable SUS bracket for LVF rail

    LVF-PT-A

    5 pcs/bag

Accessories

•

  7Power supply cable 10M for Vivoxy FLEXRequired

  CAD-V010M-FQNN-O

•

  8Joint cable 1M for Vivoxy FLEX

  CAD-V1000-MQFQ-O
