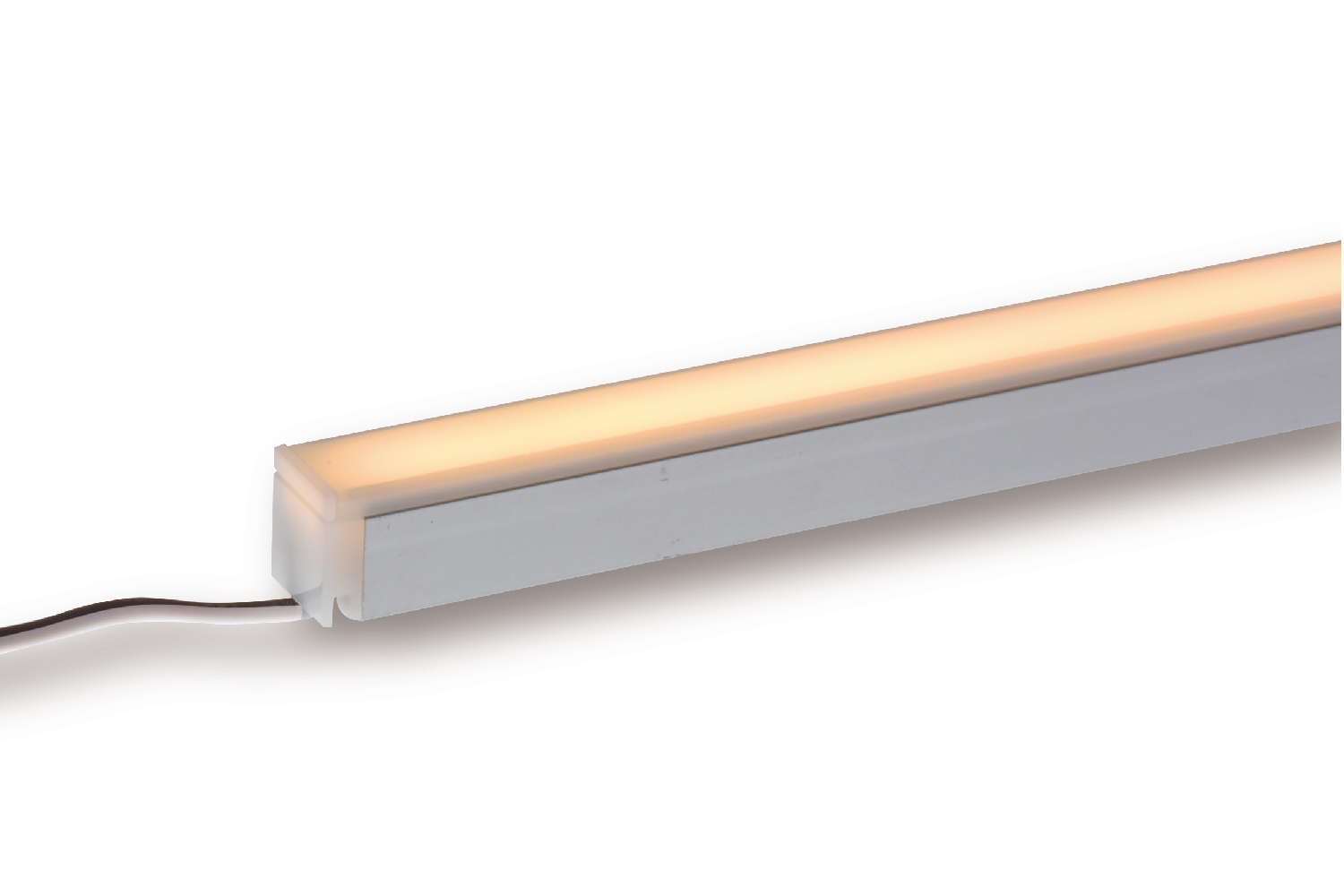

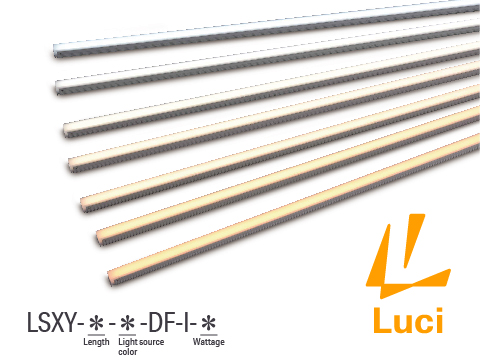

LSXY
NEW
SHIN silux
- Updated with low wattage high lumen LED series
- Available 5 different wattage variations
- Customisable every 50mm increment up to 1.4M
- Homogeneous rigid light with a square shape
- Ideal for shelf/cove light and recessed direct view light on ceiling/wall
LSXY
SHIN silux
Product information
Model No.
LSXY-1010-L27-DF-I-9
Specification
-
Input voltageDC24V
-
WattageW
-
Fitting lengthmm
-
Light source color
-
Max. length per circuit2.1W/m, 4.2W/m, 6.4W/m, 10.8W/m : 6m
15.9W/m : 5m -
DimmableYes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
-
EnvironmentIndoors (no condensation)
-
CertificationCE , PTB FREE
-
MaterialBody : Aluminum, Cover : Polycarbonate
-
AttachmentsMultclip K for silux
3 pcs for 760mm or shorter
5 pcs for 810mm or longer
Mounting options
-
Bottom fixing / Clip
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Bottom fixing / Clip + Magnet
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag -
4Magnet set A
MG-A
5 sets/bag
-
-
Side fixing / Clip
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Standard installation direction / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-
Standard installation direction / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-
Horizontal installation direction / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-
Horizontal installation direction / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-
For downward installation / Clip
-
3Outer Clip for silux
LSX-PT-A
5 pcs/bag
Recommended for downward installation
-
-
Vertical installation / Clip
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Recessed installation / Clip
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag
-
-
Recessed installation / Clip + Magnet
-
1Mounting clip K for silux
LSX-PTM-C
Attached with light fixture
3 pcs for 702mm or shorter
5 pcs for 823mm or longer
For extra order 3 pcs/bag -
4Magnet set A
MG-A
5 sets/bag
-
-
Recessed installation / Clip
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip
-
-
Recessed installation / Clip + Magnet
-
2Lift clip for silux
LSX-PTL
2 pcs/bag
Liftclip is for hiding the connector behind the light fixture
There are two directions of fixing the liftclip -
5Magnet set L
MG-L
10 sets/bag
-
-
Recessed installation / For downward
-
3Outer Clip for silux
LSX-PT-A
5 pcs/bag
Recommended for downward installation
-
Accessories
-
5Power supply cable 3000mm for SL connectorRequired
CAD-3000-MCNN-I
-
6Joint cable 1000mm for SL connector
CAD-1000-MCFC-I
Download
How to Install
Multiclip K installation: bottom fixing
Multiclip K installation: side fixing
Liftclip installation: Standard installation direction
Liftclip installation: Horizontal installation direction
Outerclip installation

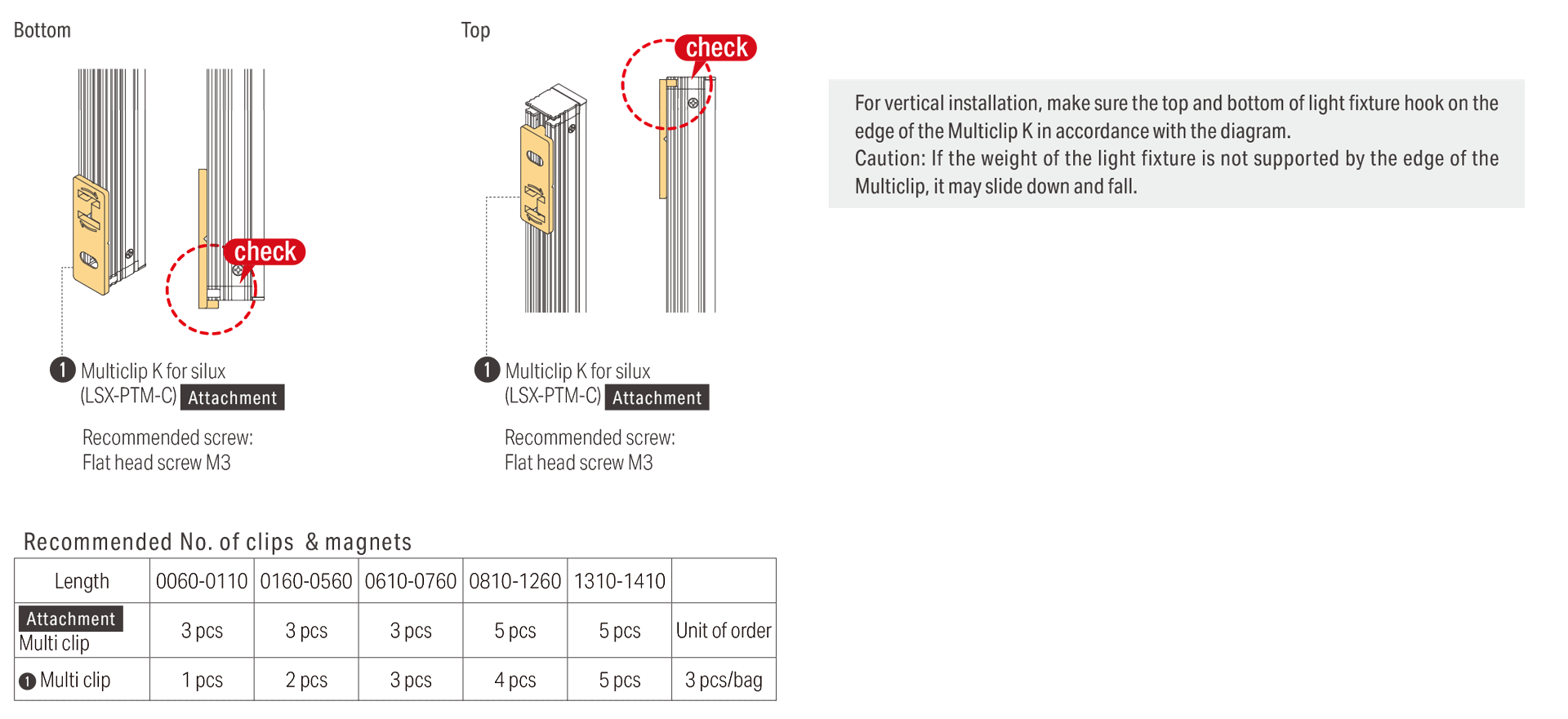

For vertical installation

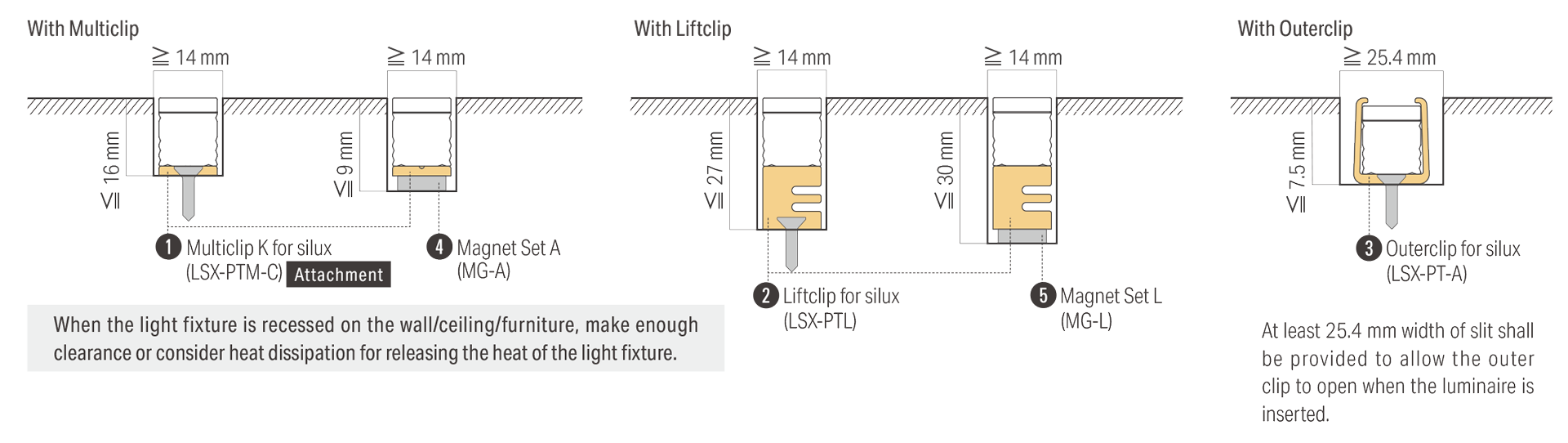

For recessed installation
