Model No.

SpecificationLength1142

• Input voltage
  DC24V
• Wattage
  W
• Fitting length
  mm
• Light source color
• Max. length per circuit
  4.5m
• Dimmable
  Yes (0-10V/1-10V, DMX, DALI, PWM)
• Environment
  Bathroom, semi-outdoor, Moistureproof (IP65)*
  *This product is not allowed to be installed in saunas or bathrooms/shower rooms operating 24 hours a day.
• Certification
  CE, Complied with JIS0920, IP65
• Operating Temperature
  0°C ～ +35°C
• Material
  Polycarbonate, PVC cable, IP65 connector
• Attachments
  Mounting clip
  2pcs for 582mm or shorter
  3pcs for 862mm or longer

•

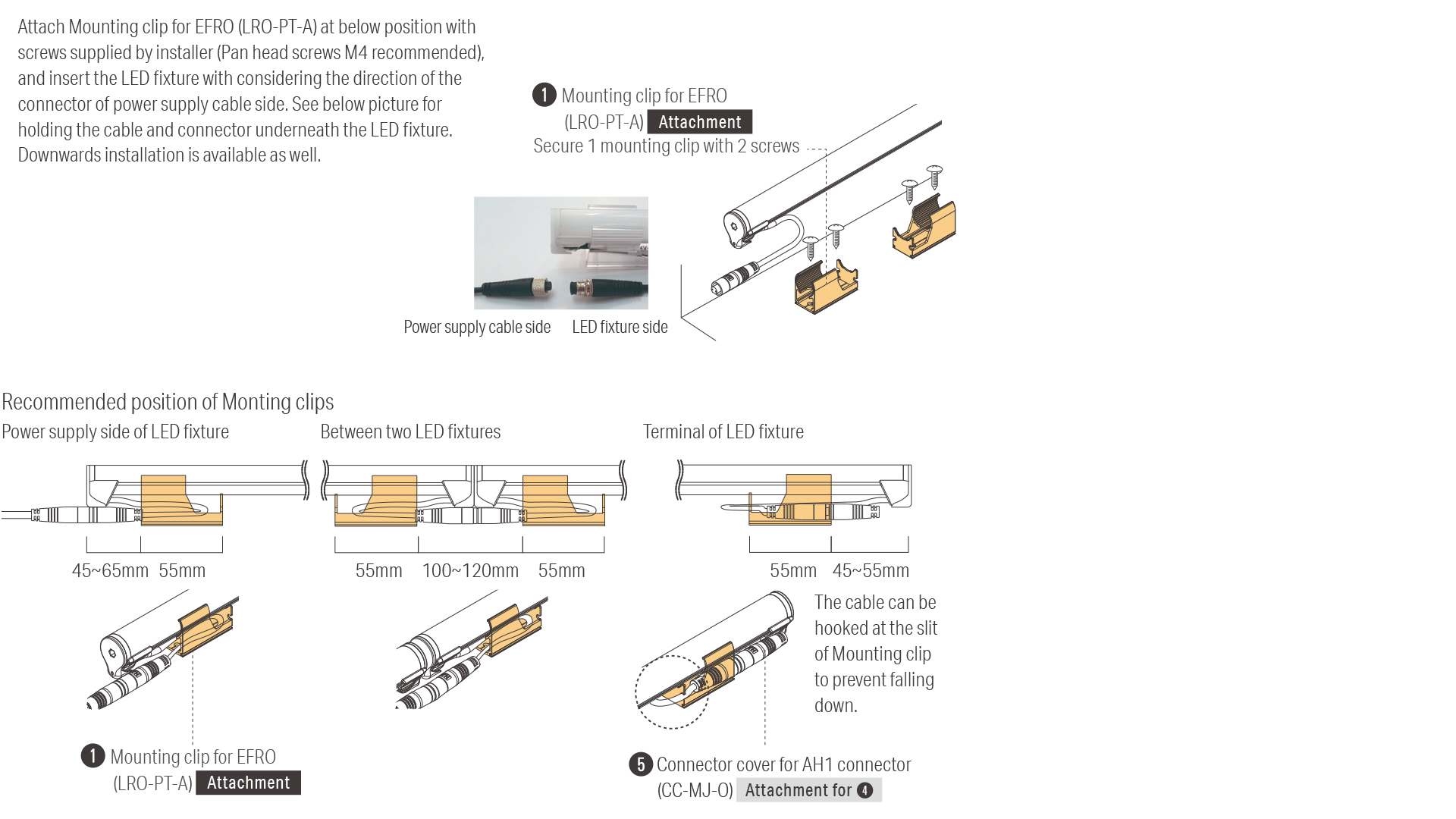

  Straight installation / Clip



  • View How to Install
  • Download(DXF)

  •

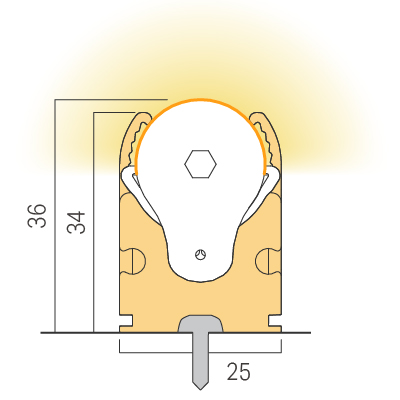

    1Mounting clip for EFRO

    LRO-PT-A

    Attached with light fixture
    2 pcs for 582 mm or shorter
    3 pcs for 862 mm or longer
    5 pcs for 983mm to 1463mm
    Holding light fixture at both ends
    Angle adjustable
    Connectors can be put under the light fixture
    Material: Clear polycarbonate
    For extra order, 3 pcs/bag

•

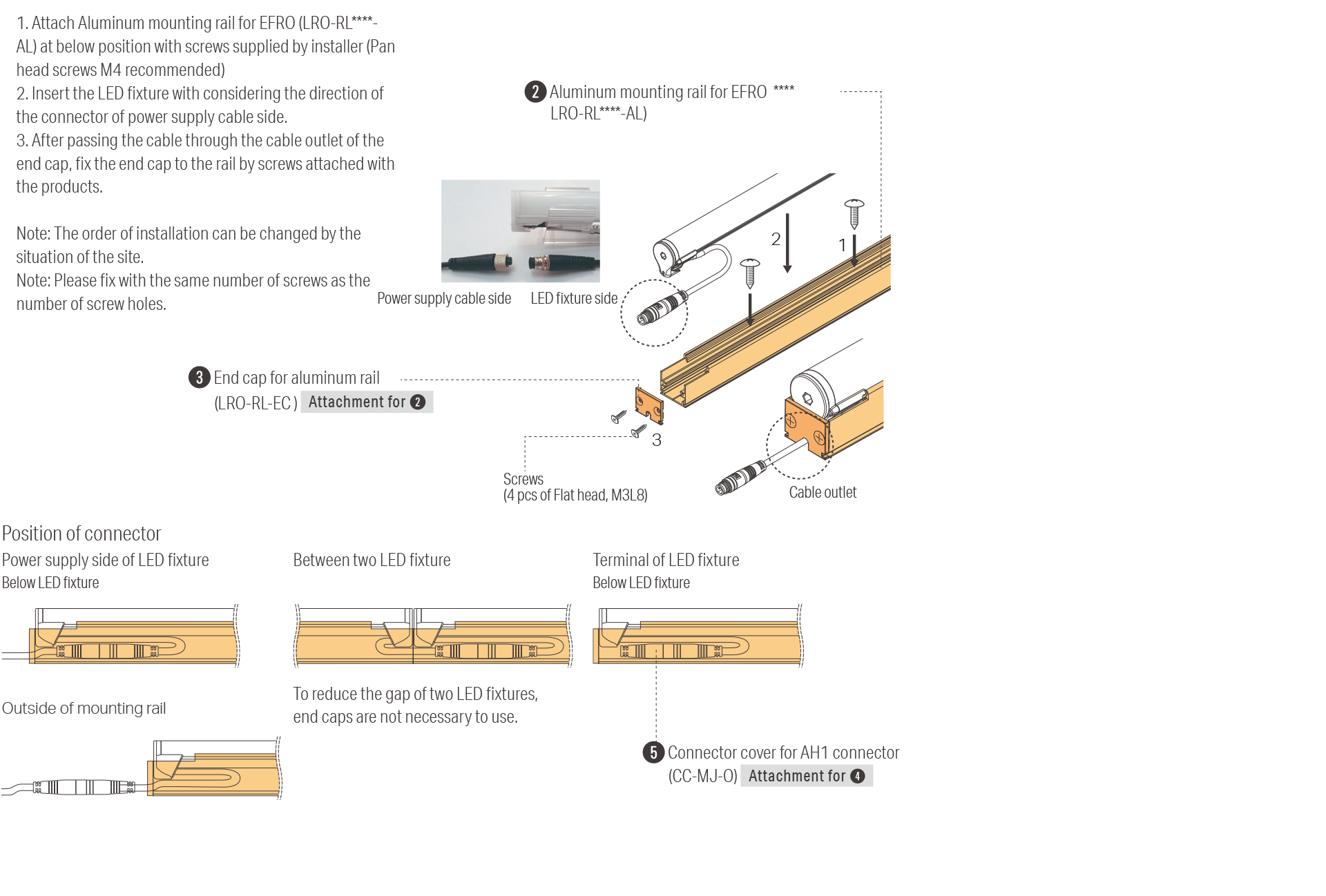

  Straight installation / Rail



  • View How to Install
  • Download(DXF)

  •

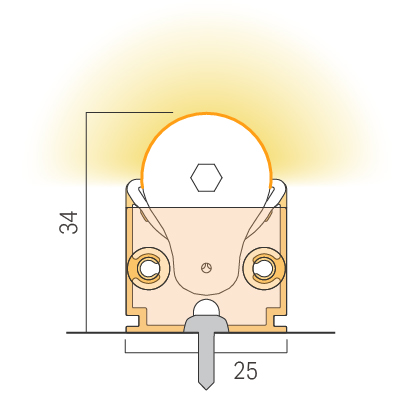

    2Aluminum mounting rail for EFRO

    LRO-RL0164-AL
    LRO-RL0304-AL
    LRO-RL0584-AL
    LRO-RL0864-AL
    LRO-RL1144-AL

    End cap for aluminum rail (2 pcs/bag) is included.
    For easy and quick installation: unnecessary to pre-align the clips
    Connectors can be put under light fixture
    Material
    Rail: Aluminum, End cap: Semi-clear polycarbonate
    Delivered with the same length as the product
    Length variation: 164mm, 304mm, 584mm, 864mm, 1144mm

•

  Vertical installation / Clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip for EFRO

    LRO-PT-A

    Attached with light fixture
    2 pcs for 582 mm or shorter
    3 pcs for 862 mm or longer
    5 pcs for 983mm to 1463mm
    Holding light fixture at both ends
    Angle adjustable
    Connectors can be put under the light fixture
    Material: Clear polycarbonate
    For extra order, 3 pcs/bag

•

  Vertical installation / Rail



  • View How to Install
  • Download(DXF)

  •

    2Aluminum mounting rail for EFRO

    LRO-RL0164-AL
    LRO-RL0304-AL
    LRO-RL0584-AL
    LRO-RL0864-AL
    LRO-RL1144-AL

    End cap for aluminum rail (2 pcs/bag) is included.
    For easy and quick installation: unnecessary to pre-align the clips
    Connectors can be put under light fixture
    Material
    Rail: Aluminum, End cap: Semi-clear polycarbonate
    Delivered with the same length as the product
    Length variation: 164mm, 304mm, 584mm, 864mm, 1144mm

Accessories

•

  3Power supply cable 5M for AH1 connector OD3.5Required

  CAD-VA5000-FJNN-O

•

  5End cap for power supply cable

  CC-MJ-O
