LFUY-O SHINseires

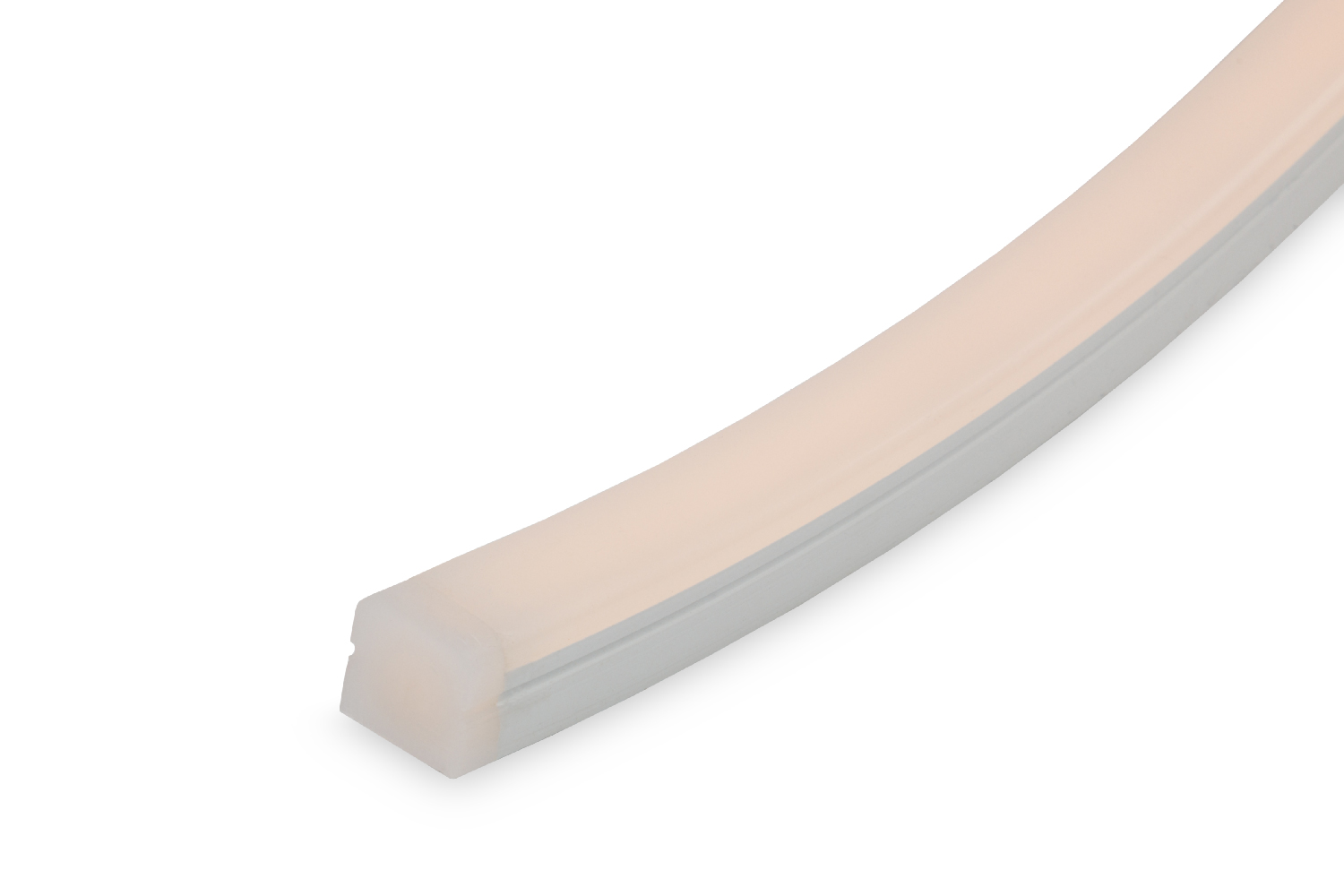

SHIN UQ FLEX IP67

  • Updated with low wattage high lumen LED series
  • Available 4 different wattage variations
  • Top bend dot-free flexible strip
  • IP67, max custom length 2m for outdoor usage, connectable up to 7.5m (19.8W/m), 10m (Others)
  • MacAdam3steps
  • CE
  • IP67
  • Top bend
  • SHIN UQ FLEX IP67

Product information

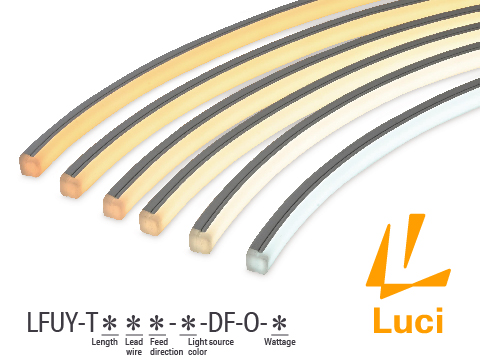

Model No.

LFUY-TB--DF-O-

Detail
Length
Lead wire
Feed direction

HINT

Feed direction

Light source color
Light source color | Delivered CCT
Wattage

Specification

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    7.5m (19.8W/m), 10m (Others)
  • Dimmable
    Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
  • Environment
    Outdoor (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Silicone

Mounting options

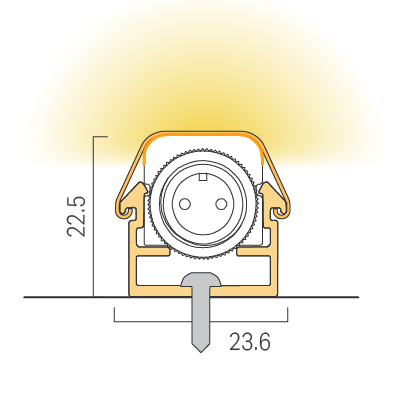

  • Straight installation / Rail

    Straight installation / Rail

    • 1Aluminum mounting rail 950 set for UQ FLEX

      LFU-RL0950-AL-C

      The set include Mounting rail (1pc) , SUS Hold clip (5 pcs/bag) and Joint plate (1pc)

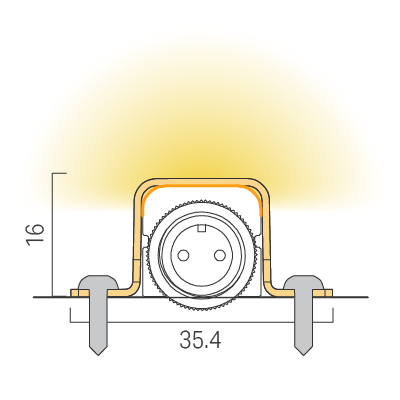

  • Straight installation / Clip

    Straight installation / Clip

    • 3SUS Mounting clip for UQ FLEX

      LFU-RC-B

      For curved or straight installation

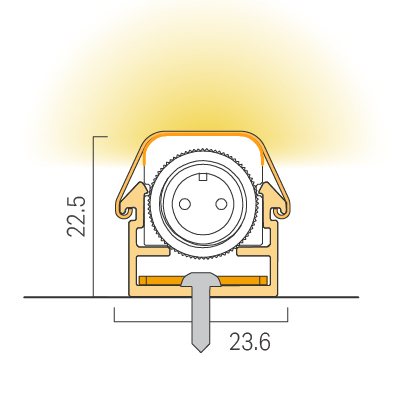

  • Curved installation / Parts

    Curved installation / Parts

    • 2Aluminum mounting parts set for UQ FLEX

      LFU-RL0018-AL-C

      The set include Mounting parts (5 pcs/bag) and SUS Hold clip (5 pcs/bag)
      Recommended each 5 pcs/m

  • Curved installation / Clip

    Curved installation / Clip

    • 3SUS Mounting clip for UQ FLEX

      LFU-RC-B

      For curved or straight installation

Accessories

  • 4Power supply cable 10M for UQ FLEXRequired

    CAD-V010M-FPNN-O

  • 5Joint cable 1M for UQ FLEX

    CAD-1000-MPFP-O

Download

Clicking the link in the text will open a preview (PDF or JPG) to allow overview before downloading.

How to Install

Installation with Mounting rail

Installation with Mounting rail

Installation with Mounting clip

Installation with Mounting clip

Installation with Mounting parts

Installation with Mounting parts
