LFUMAY-O SHINseires

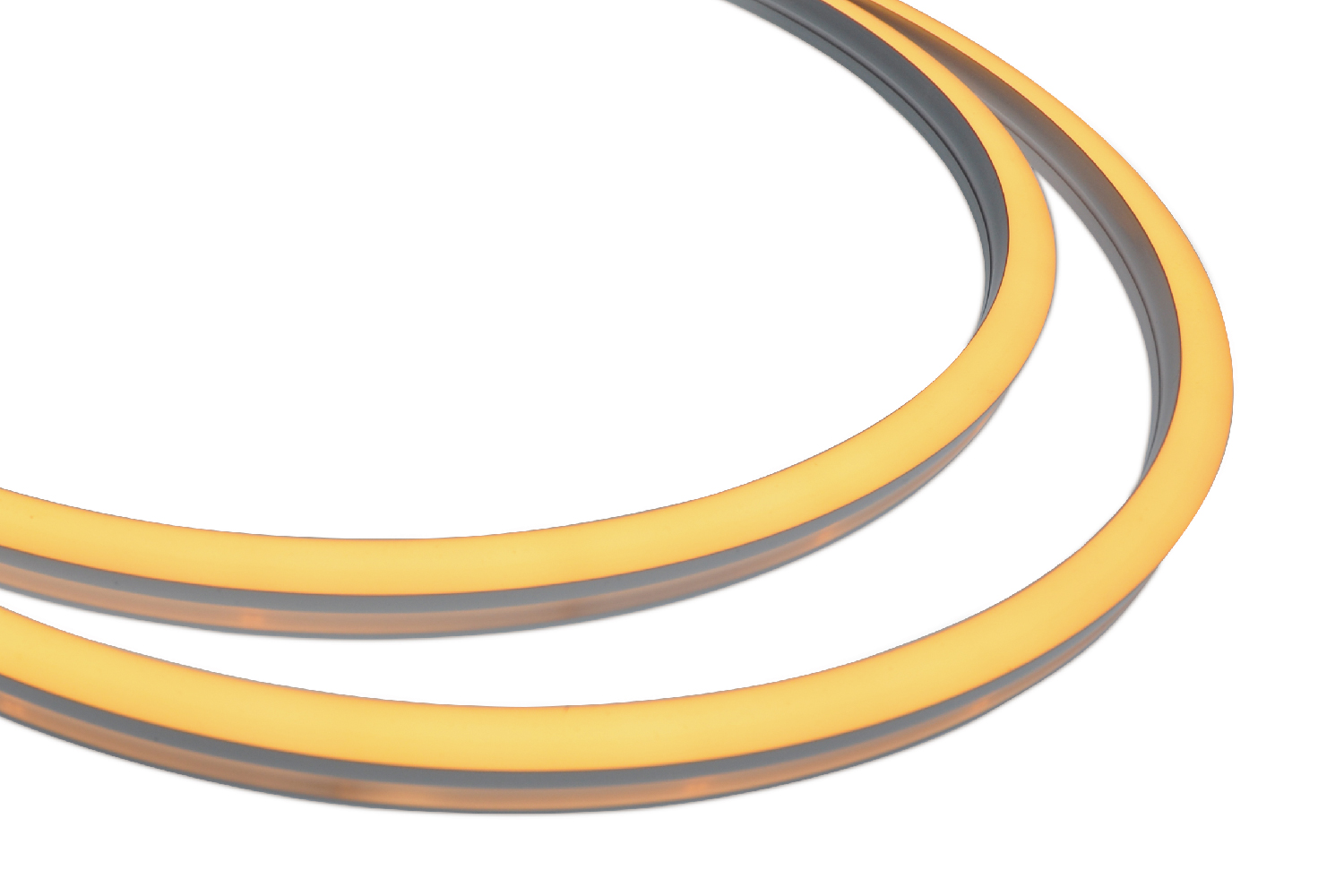

SHIN UQ FLEX α mini IP67

  • Thanks to the design of constant current driver which maximize the distance from power supply to the fixture to 162m without wattage flutuation for 2W/m products and provides possibility for big scale projects.
  • Suitable for landscape, canopy area, toilet area
  • Customizable up to 2m, connectable 10m in series
  • MacAdam3steps
  • CE
  • Side bend

Product information

Model No.

LFUMAY-T1000WB-L27-DF-O-6

Detail
Length
Lead wire

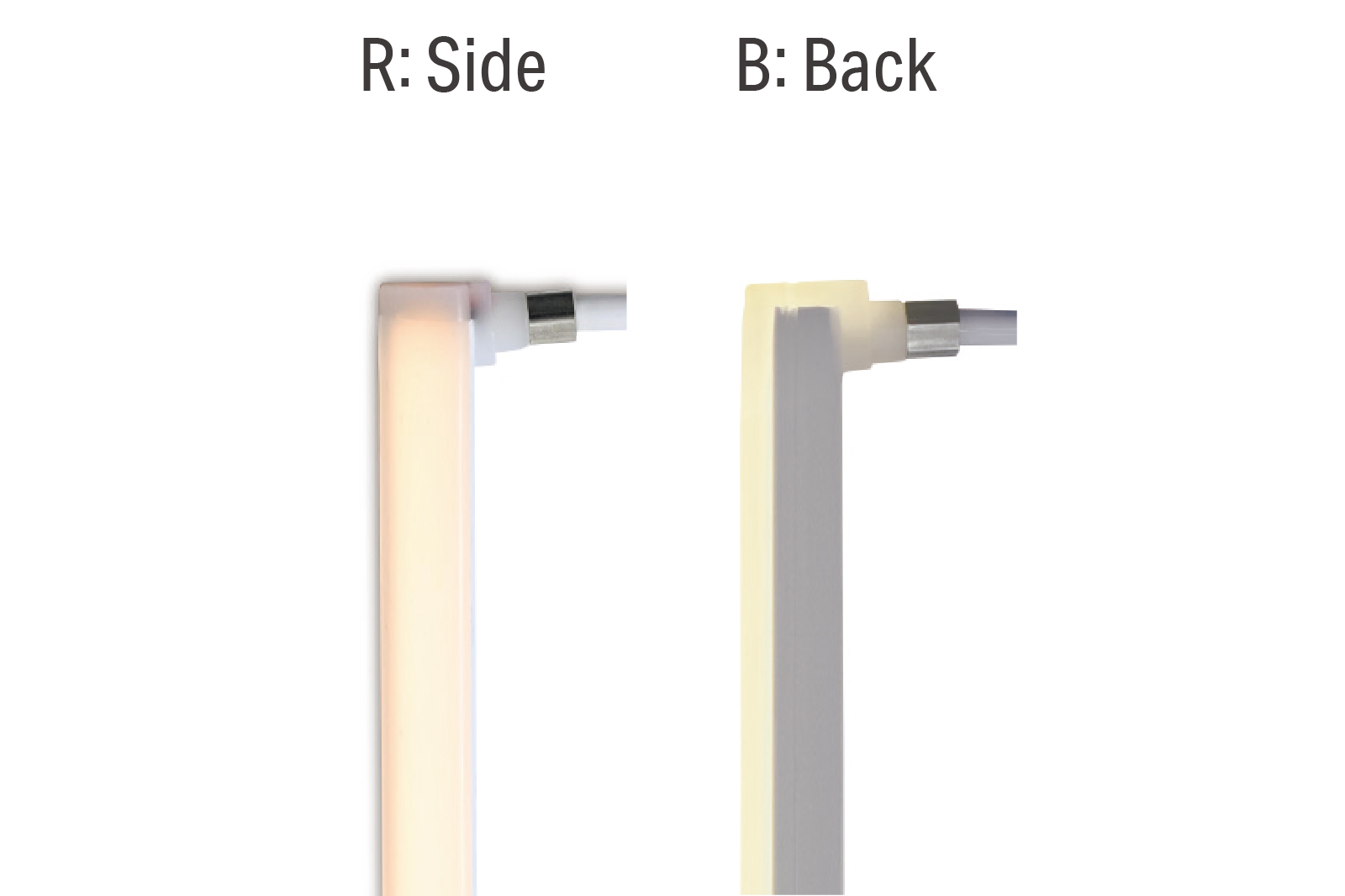

Feed direction

HINT

Feed direction

Light source color
Light source color | Delivered CCT
Wattage

Specification

  • Input voltage
    DC24V
  • Wattage
    W
  • Fitting length
    mm
  • Light source color | Delivered CCT
  • Max. length per circuit
    10 m
  • Dimmable
    Yes (0-10V/1-10V, DMX, DALI, PWM)
  • Environment
    Outdoors (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Silicone

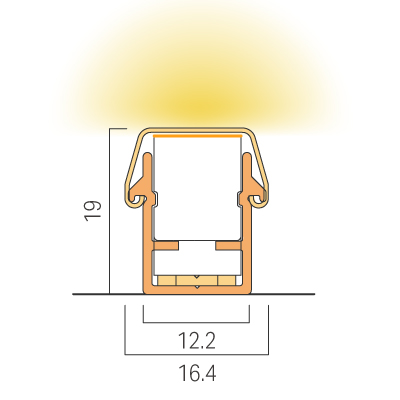

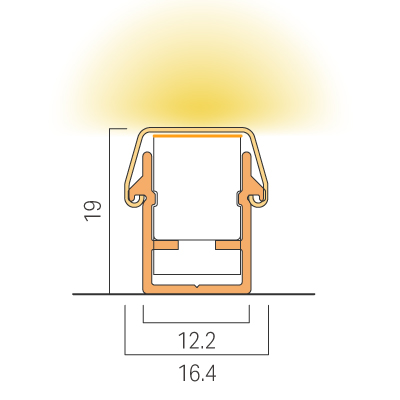

Mounting options

  • Straight installation / Downwards and vertical / Rail

    Straight installation / Downwards and vertical / Rail

    Straight installation / Downwards and vertical / Rail

    • Aluminium mounting rail High 950 set for UQ FLEX mini

      1Aluminium mounting rail High 950 set for UQ FLEX mini

      LFUMY-RL0950-AL-H

      The set include Mounting rail (1pc) and Hold clip (5 pcs/bag) and Joint plate(1pc)
      For downwards and vertical installation.

  • Straight installation / Upwards / Rail

    Straight installation / Upwards / Rail

    Straight installation / Upwards / Rail

    • Aluminium mounting rail Low 950 for UQ FLEX mini

      3Aluminium mounting rail Low 950 for UQ FLEX mini

      LFUMY-RL0950-AL-L

      For upwards installation.

  • Curved installation / Back feed / Clip

    Curved installation / Back feed / Clip

    Curved installation / Back feed / Clip

    • Aluminium mounting parts High 950 set for UQ FLEX mini

      2Aluminium mounting parts High 950 set for UQ FLEX mini

      LFUMY-RL0018-AL-H

      The set include Mounting parts (5 pcs/bag) and Hold clip (5 pcs/bag)
      Recommended each 5 pcs/m
      For curved installation (Back feed)

  • Curved installation / Side feed / Clip

    Curved installation / Side feed / Clip

    Curved installation / Side feed / Clip

    • Aluminium mounting parts Low 18 for UQ FLEX mini

      4Aluminium mounting parts Low 18 for UQ FLEX mini

      LFUMY-RL0018-AL-L

      5pcs/bag
      For curved installation (Side feed)

Accessories

  • Power supply cable 5M for UQ FLEX mini IP67

    5CAD-V5000-FGNN-O

    Power supply cable 5M for UQ FLEX mini IP67

  • Power supply cable 10M for UQ FLEX mini IP67

    5CAD-V010M-FGNN-O

    Power supply cable 10M for UQ FLEX mini IP67

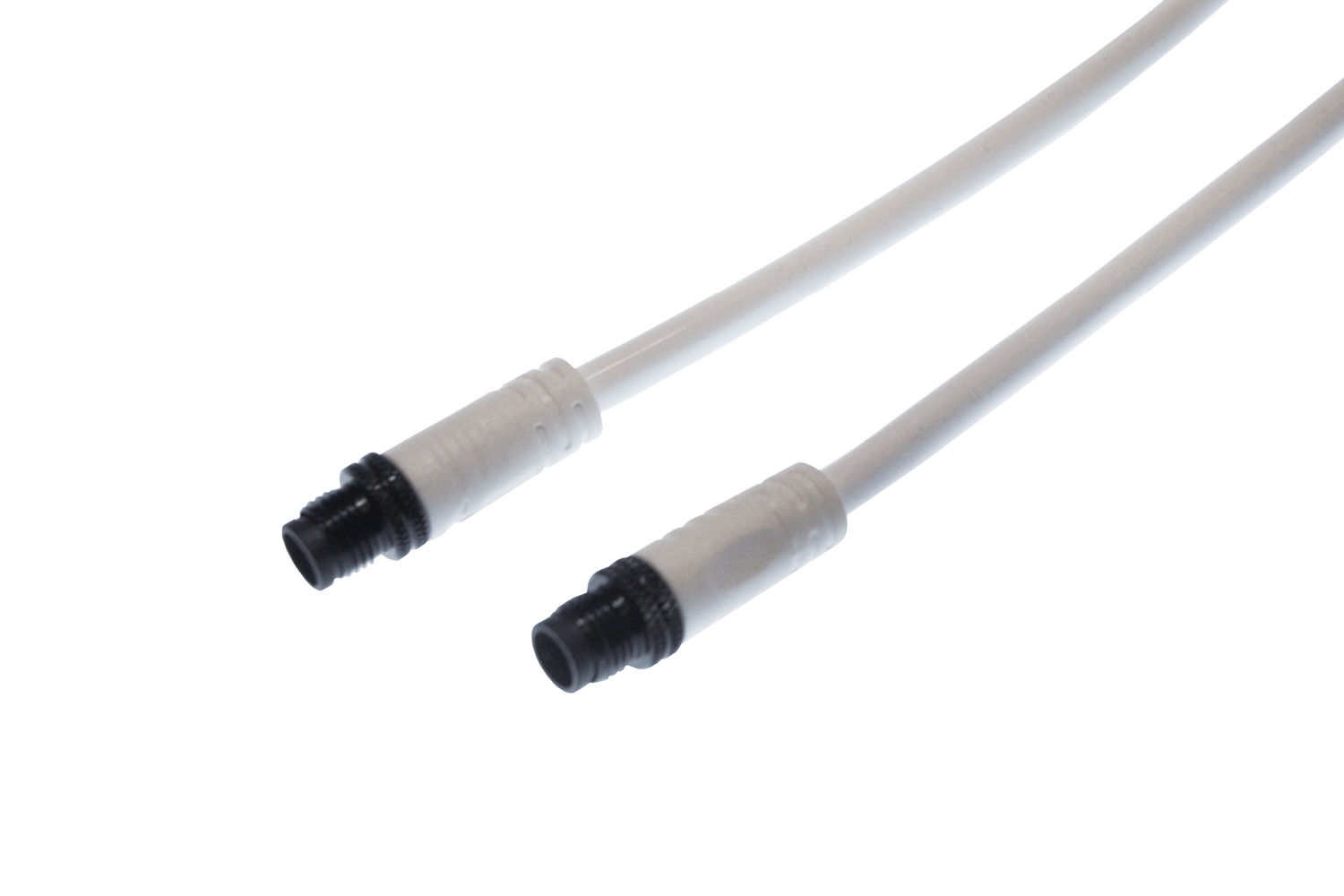

  • Joint cable 1M for UQ FLEX mini IP67

    6CAD-1000-MGFG-O

    Joint cable 1M for UQ FLEX mini IP67

Download

DownloadDownload

How to Install

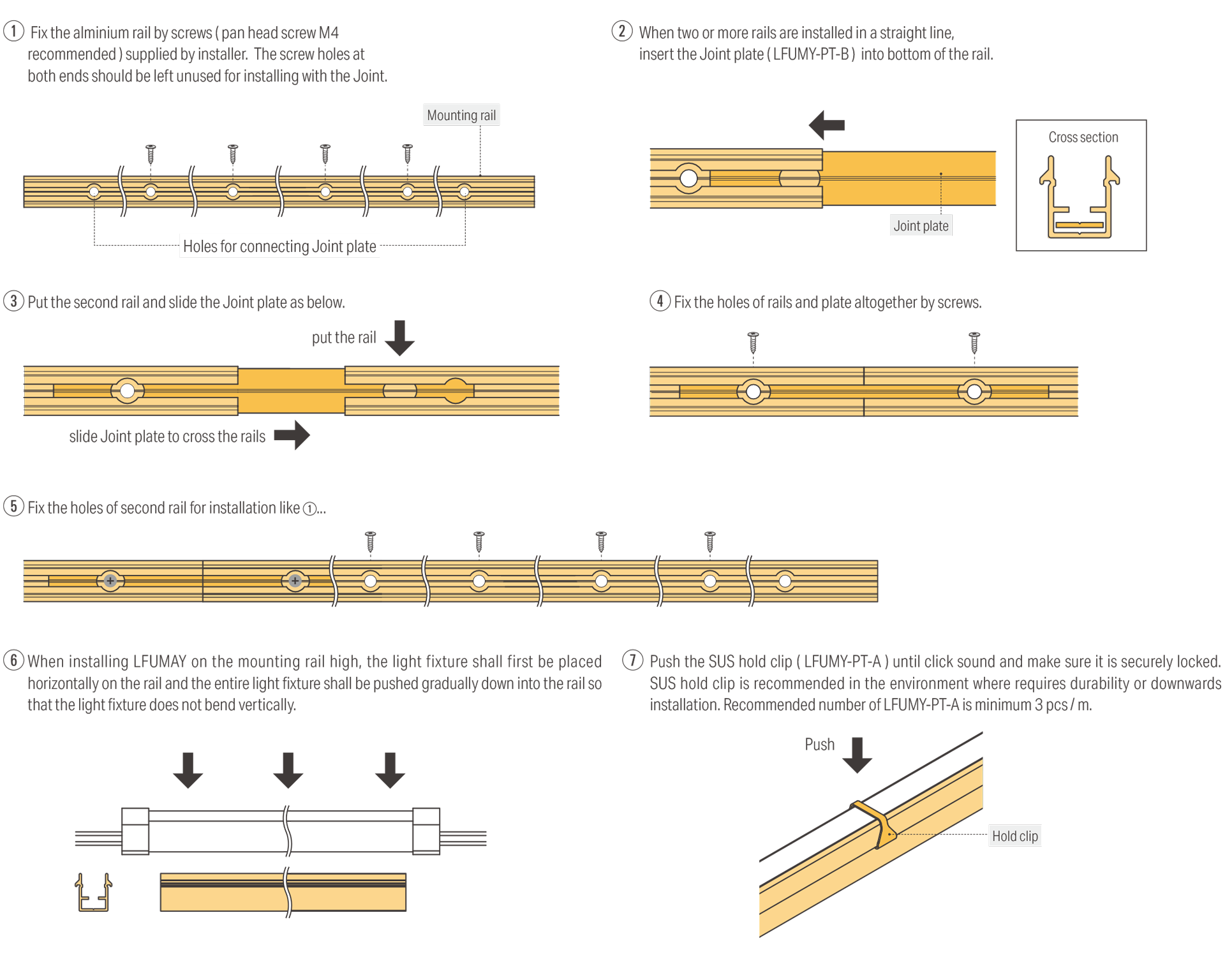

Straight Installation with Rail High

Straight Installation with Rail High

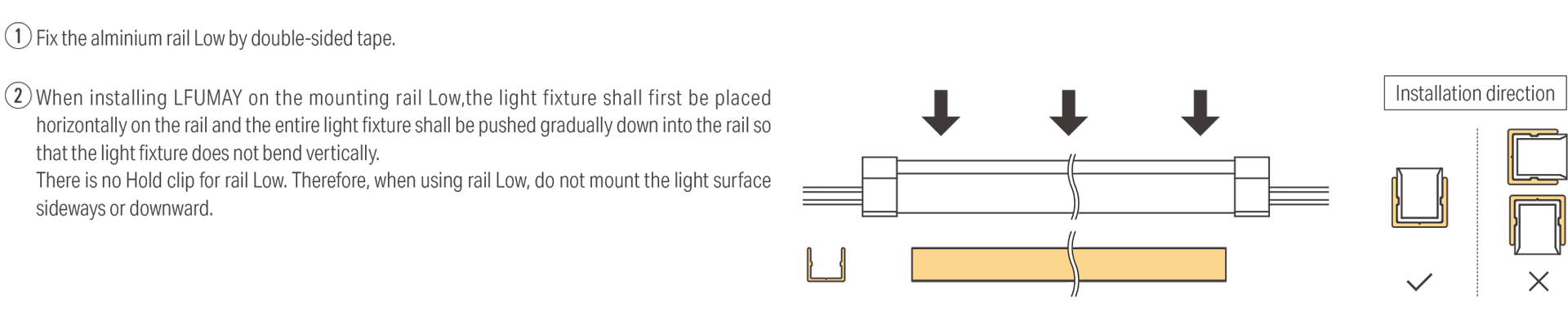

Straight Installation with Rail Low

Straight Installation with Rail Low

Curved Installation with Parts High

Curved Installation with Parts High

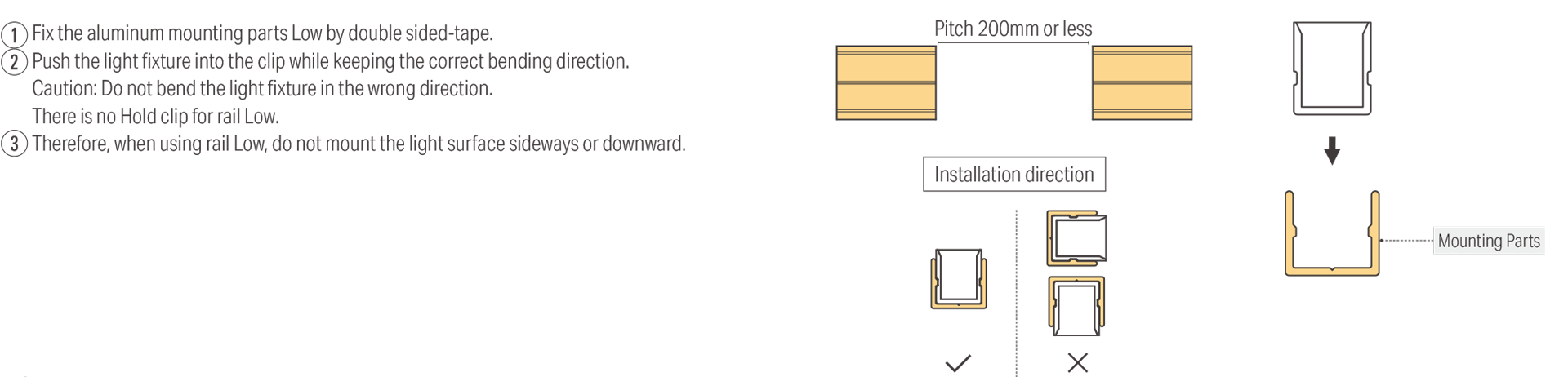

Curved Installation with Parts Low

Curved Installation with Parts Low
