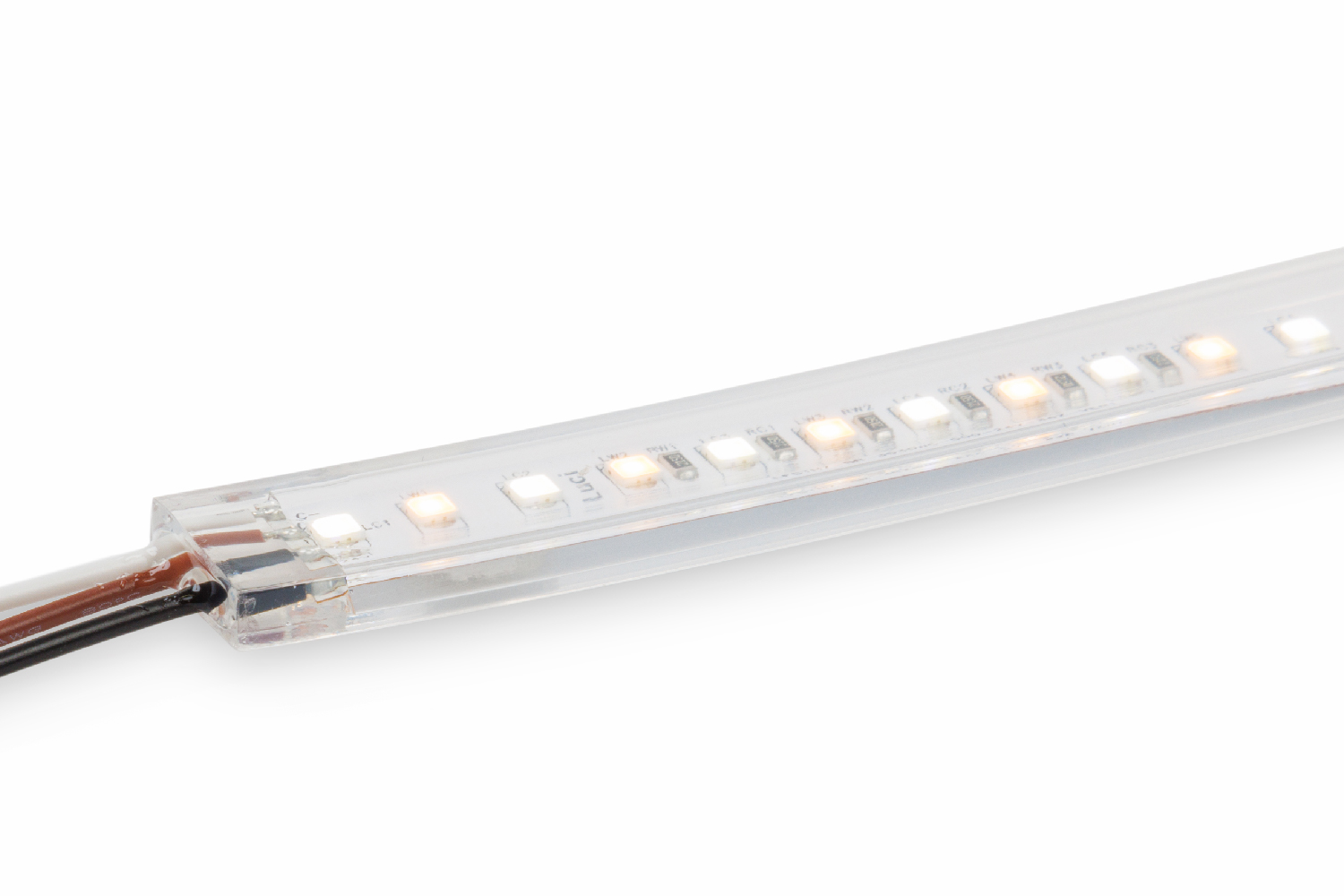

LFTHY SHINseires NEW

SHIN FLEX THOF

  • Customisable up to 5M now
  • For tunable white or Dim-to-Warm application
  • Arranging 2 colors of LED package alternately
  • Free to select 2 CCTs from 9 CCTs
  • MacAdam3steps
  • CE
  • Top bend

Product information

Model No.

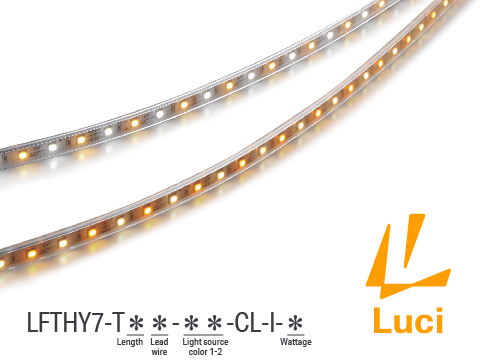

LFTHY7-T1000W-NL27-CL-I-10

Detail
Length
Lead wire
Light source color
Light source color1
Light source color2
Wattage

SpecificationLength: 1000Wattage: 10 : 10.8 W/m

  • Input voltage
    DC24V
  • Wattage
    10.8 W
  • Fitting length
    1011 mm
  • Light source color
    Luminaire flux ※Light source color1・Light source color2:100%
    Light source color2
    N W WW L30 L27 L25 L22 L20 L18
    Light
    source
    color
    1
    D 1599 lm 1584 lm 1577 lm 1556 lm 1513 lm 1329 lm 1293 lm 1250 lm 1236 lm
    N 1577 lm 1570 lm 1549 lm 1506 lm 1322 lm 1286 lm 1243 lm 1229 lm
    W 1556 lm 1535 lm 1492 lm 1307 lm 1272 lm 1229 lm 1215 lm
    WW 1528 lm 1485 lm 1300 lm 1265 lm 1222 lm 1208 lm
    L30 1464 lm 1279 lm 1243 lm 1201 lm 1187 lm
    L27 1236 lm 1201 lm 1158 lm 1144 lm
    L25 1016 lm 973 lm 959 lm
    L22 938 lm 924 lm
    L20 881 lm
  • Color rendering index ※Light source color1・Light source color2:100%
    Light source color2
    N W WW L30 L27 L25 L22 L20 L18
    Light
    source
    color
    1
    D Ra 93 Ra 95 Ra 95 Ra 96 Ra 96 Ra 96 Ra 96 Ra 95 Ra 95
    N Ra 93 Ra 93 Ra 94 Ra 95 Ra 95 Ra 96 Ra 97 Ra 97
    W Ra 95 Ra 95 Ra 96 Ra 96 Ra 97 Ra 96 Ra 95
    WW Ra 95 Ra 95 Ra 96 Ra 96 Ra 95 Ra 95
    L30 Ra 94 Ra 94 Ra 94 Ra 95 Ra 95
    L27 Ra 94 Ra 94 Ra 94 Ra 94
    L25 Ra 94 Ra 94 Ra 94
    L22 Ra 93 Ra 93
    L20 Ra 92
  • Luminaire efficacy ※Light source color1・Light source color2:100%
    Light source color2
    N W WW L30 L27 L25 L22 L20 L18
    Light
    source
    color
    1
    D 147.5lm/w 146.2lm/w 145.6lm/w 143.6lm/w 140lm/w 122.6lm/w 119.3lm/w 115.4lm/w 114.1lm/w
    N 145.6lm/w 144.9lm/w 142.9lm/w 139lm/w 122lm/w 118.7lm/w 114.7lm/w 113.4lm/w
    W 143.6lm/w 141.6lm/w 138lm/w 120.6lm/w 117.4lm/w 113.4lm/w 112.1lm/w
    WW 141lm/w 137lm/w 120lm/w 116.7lm/w 112.8lm/w 111.5lm/w
    L30 135lm/w 118lm/w 114.7lm/w 110.8lm/w 109.5lm/w
    L27 114.1lm/w 110.8lm/w 106.9lm/w 105.6lm/w
    L25 93.8lm/w 89.8lm/w 88.5lm/w
    L22 86.6lm/w 85.2lm/w
    L20 81.3lm/w
  • Max. length per circuit
    5 m
  • Dimmable
    Yes (Dynamic white driver is required)
  • Environment
    Indoors (no condensation)
  • Certification
    CE , PTB FREE
  • Material
    Soft acrylic
  • Attachments
    End cap 2pcs

Mounting options

  • Straight installation / Rail

    Straight installation / Rail

    • 1Mounting rail 1000 for Power FLEX

      LFP-RL1000

      Mounting clip for rail (5pcs) is included.

  • Straight installation / Aluminum rail

    Straight installation / Aluminum rail

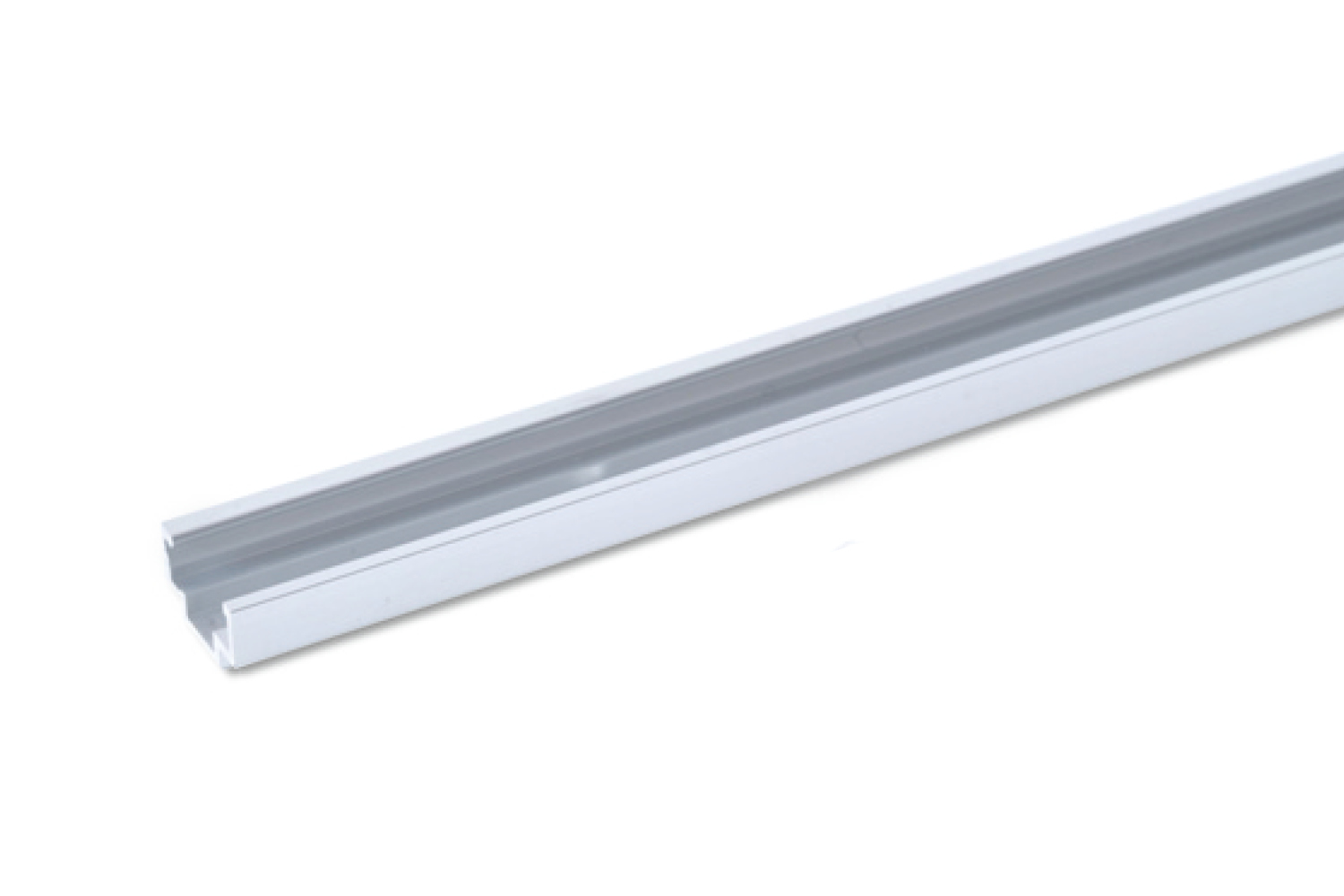

    • 3Aluminum mounting rail 1000 for Power FLEX

      LFP-RL1000-AL

  • Straight installation / Magnet + Rail

    Straight installation / Magnet + Rail

    • 1Mounting rail 1000 for Power FLEX

      LFP-RL1000

      Mounting clip for rail (5pcs) is included.

    • 7Magnet set for rail

      MG-R

      4 pcs/bag
      Used for installing light fixture with mounting rail on metal plate
      Metal plate is required by installer

  • Straight installation / Magnet + Aluminum rail

    Straight installation / Magnet + Aluminum rail

    • 3Aluminum mounting rail 1000 for Power FLEX

      LFP-RL1000-AL

    • 7Magnet set for rail

      MG-R

      4 pcs/bag
      Used for installing light fixture with mounting rail on metal plate
      Metal plate is required by installer

  • Straight installation / 45° rail

    Straight installation / 45° rail

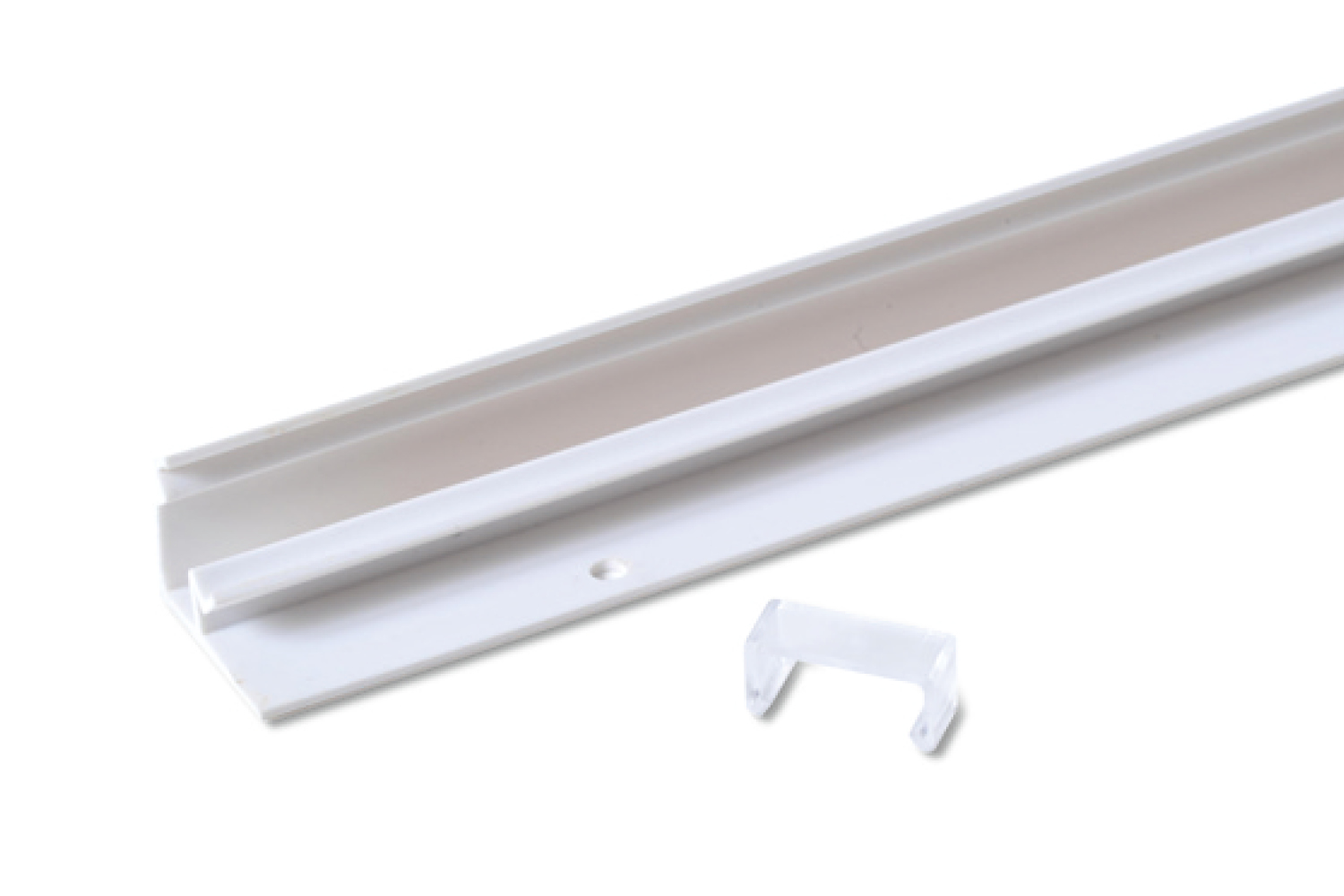

    • 245°Mounting rail 1000 for Power FLEX

      LFP-45RL1000

      Mounting clip for rail (5pcs) is included.

  • Curved installation / Clip

    Curved installation / Clip

    • 4Mounting clip for Power FLEX

      LFP-RC

      5 pcs / bag
      For curved installation

Accessories

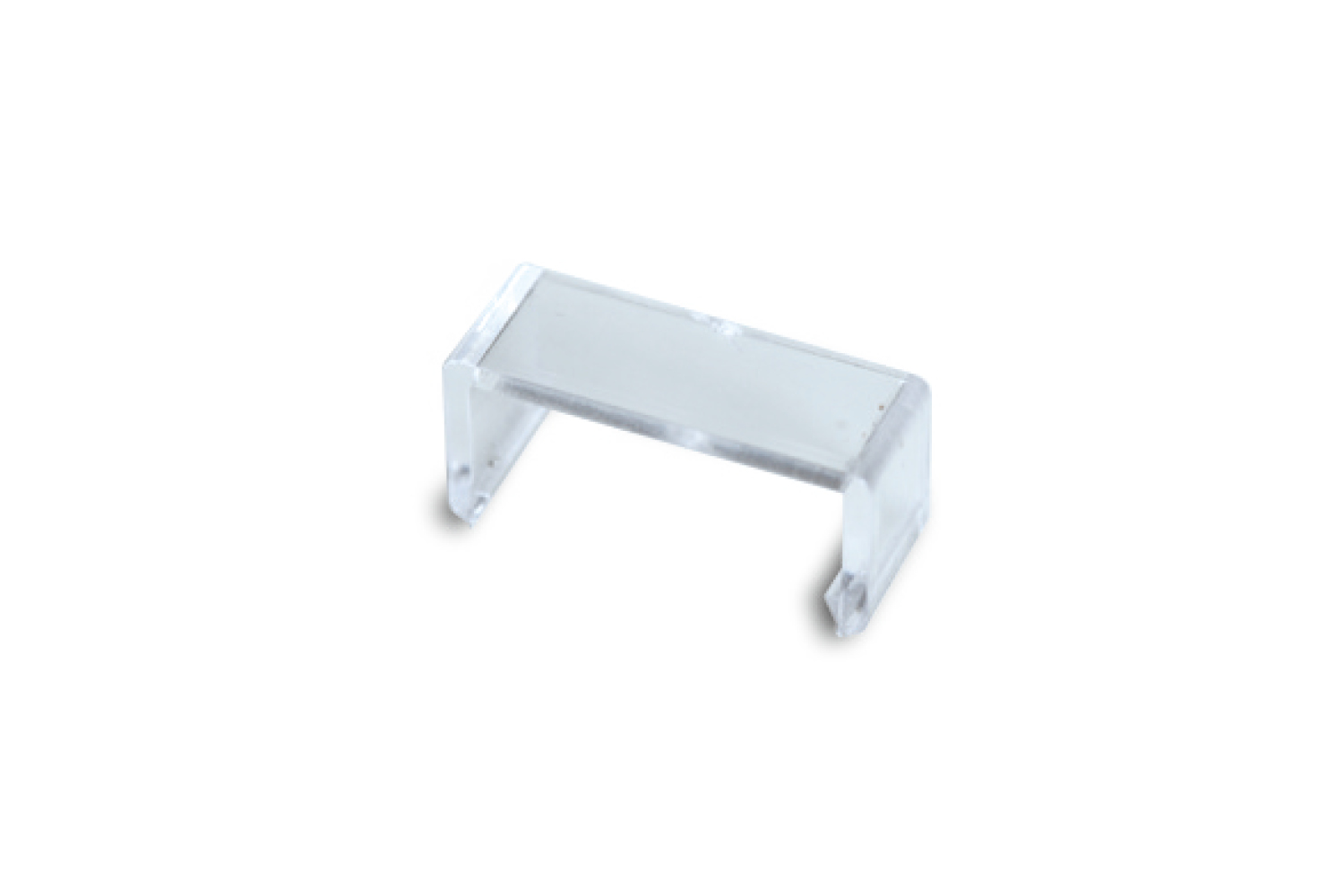

  • 5Mounting clip for rail

    LFP-PT

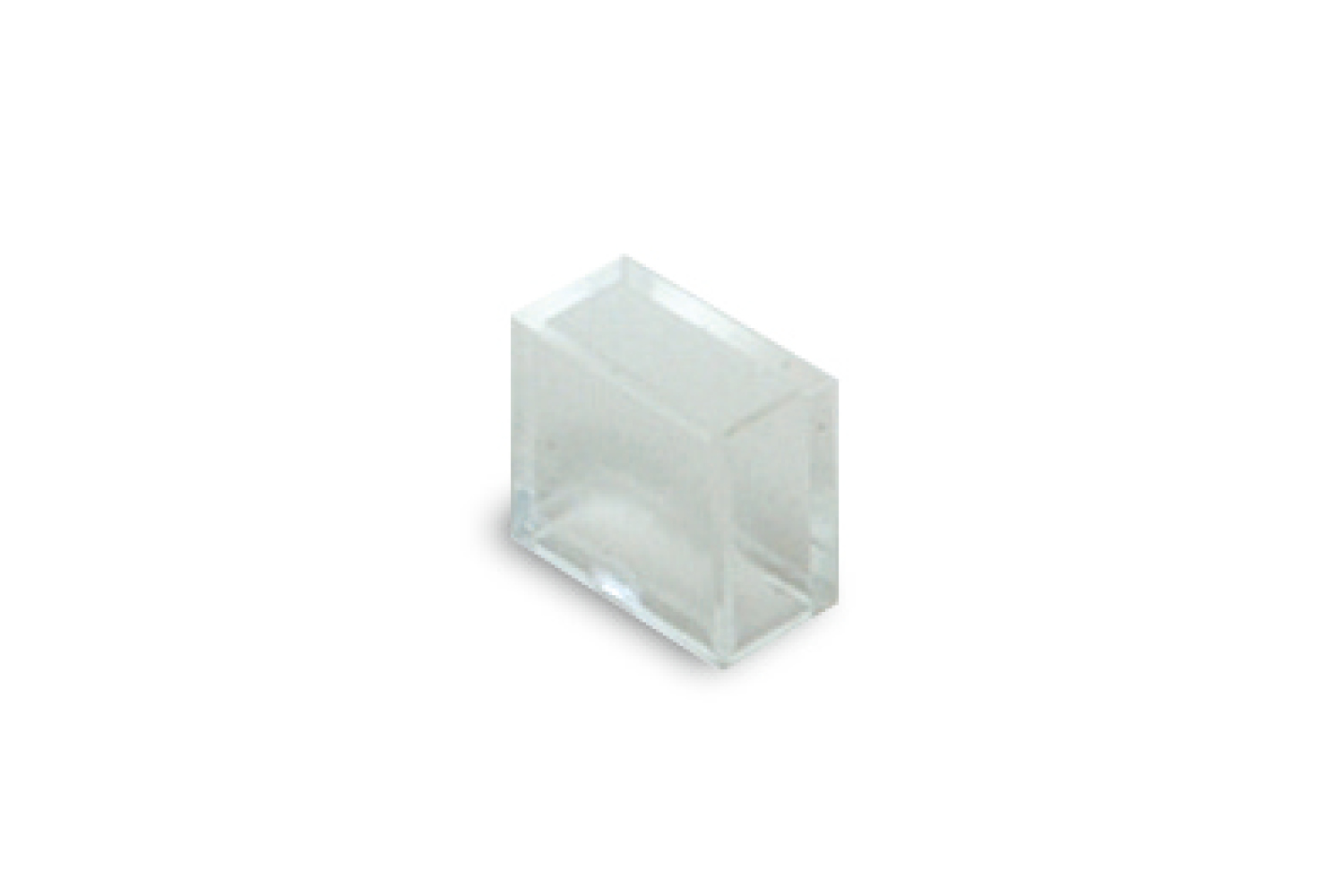

  • 6End cap for Power FLEX

    LFP-EC

Download

How to Install

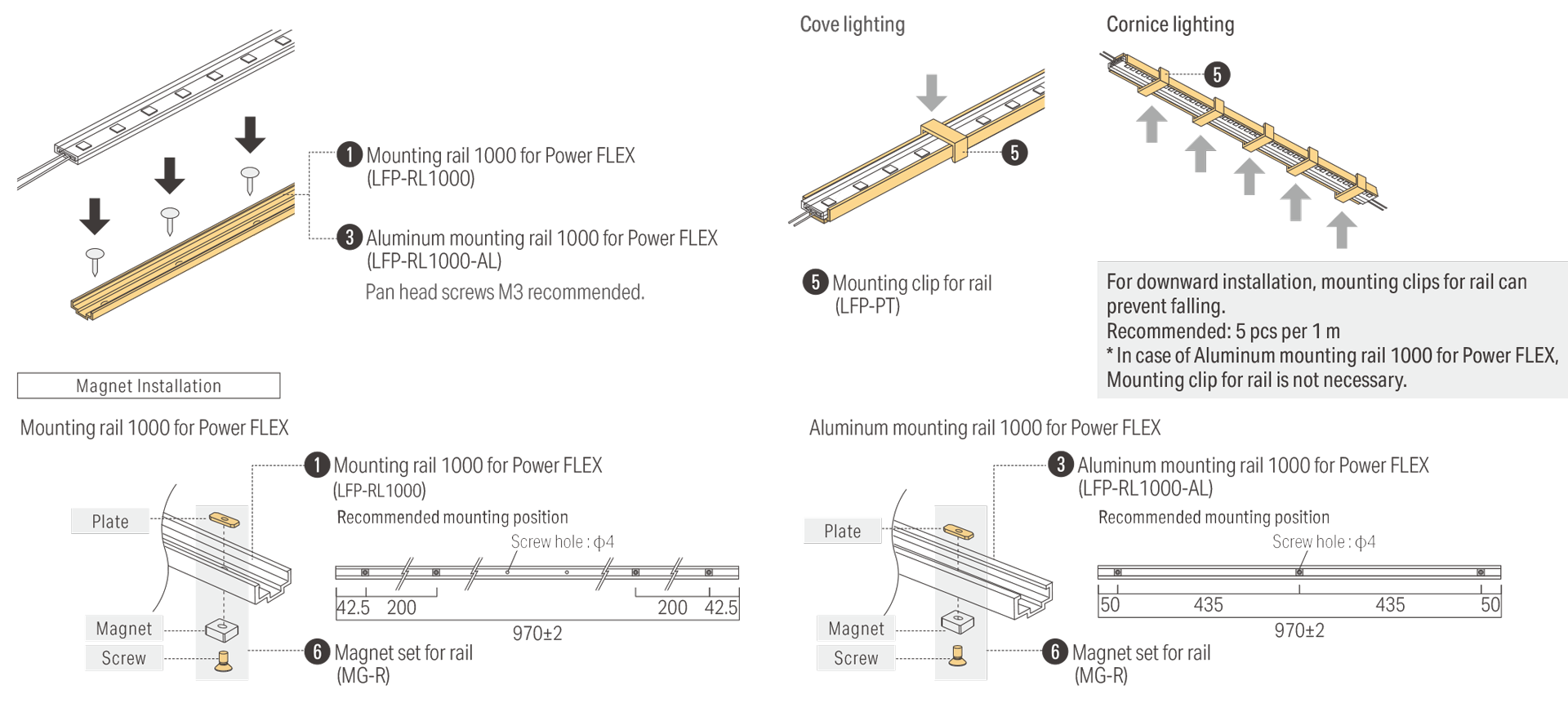

Straight installation

Straight installation

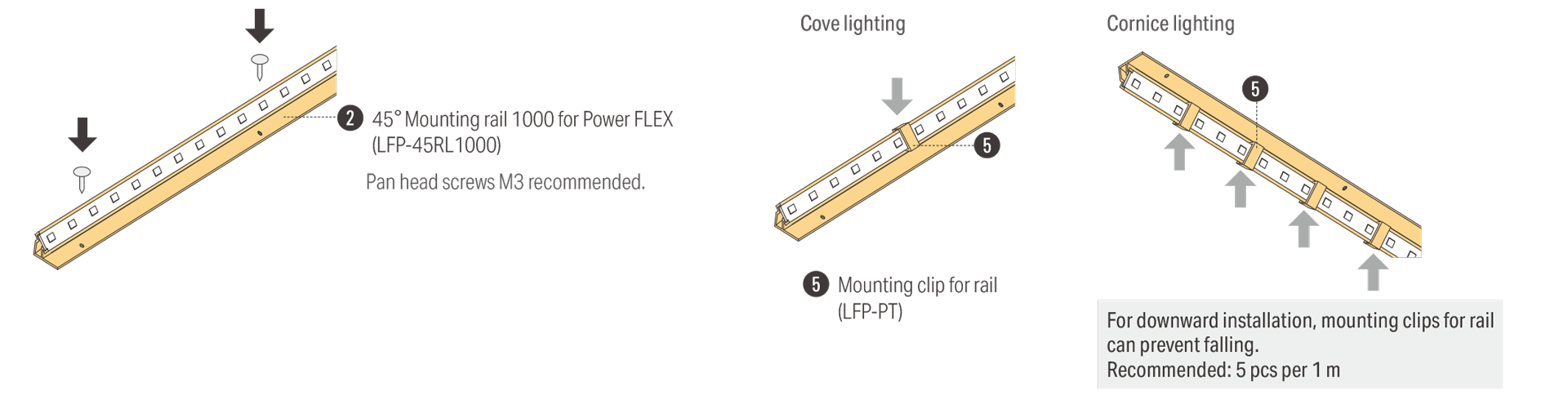

Straight installation by 45 degree rail

Straight installation by 45 degree rail

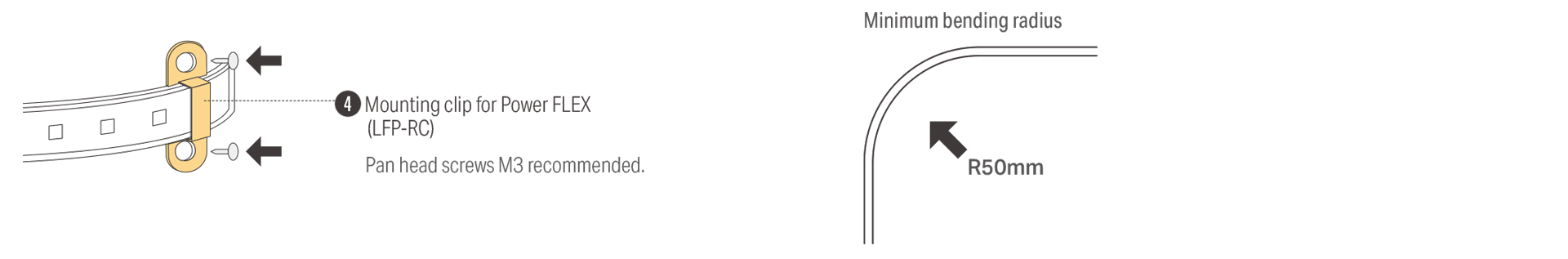

Curved installation

Curved installation
