Model No.

SpecificationSize1000

• Input voltage
  DC24V
• Wattage
  W
• Fitting length
  mm
• Light source color
  Luminaire flux ※Light source color1・Light source color2：100%

  		Light source color2
  		W	WW	L30	L27	L24	L21	L19	B
  Light source color 1	N	-	-	-	-	-	-	-	-
  	W		-	-	-	-	-	-	-
  	WW			-	-	-	-	-	-
  	L30				-	-	-	-	-
  	L27					-	-	-	-
  	L24						-	-	-
  	L21							-	-
  	L19								-

• Color rendering index ※Light source color1・Light source color2：100%

  		Light source color2
  		W	WW	L30	L27	L24	L21	L19	B
  Light source color 1	N	Ra 90	Ra 90	Ra 90	Ra 90	Ra 92	Ra 85	Ra -	Ra 58
  	W		Ra 89	Ra 89	Ra 89	Ra 89	Ra 83	Ra -	Ra 58
  	WW			Ra 88	Ra 88	Ra 88	Ra 81	Ra -	Ra 51
  	L30				Ra 88	Ra 86	Ra 79	Ra 80	Ra 46
  	L27					Ra 86	Ra 77	Ra -	Ra 40
  	L24						Ra 77	Ra -	Ra 29
  	L19							Ra -	Ra 35
  	B								Ra -

• Luminaire efficacy ※Light source color1・Light source color2：100%

  		Light source color2
  		W	WW	L30	L27	L24	L21	L19	B
  Light source color 1	N	- lm/W	- lm/W	- lm/W	- lm/W	76.4 lm/W	- lm/W	- lm/W	- lm/W
  	W		- lm/W	- lm/W	- lm/W	- lm/W	- lm/W	- lm/W	- lm/W
  	WW			- lm/W	- lm/W	- lm/W	- lm/W	- lm/W	- lm/W
  	L30				- lm/W	- lm/W	- lm/W	- lm/W	- lm/W
  	L27					- lm/W	- lm/W	- lm/W	- lm/W
  	L24						- lm/W	- lm/W	- lm/W
  	L19							- lm/W	- lm/W
  	B								- lm/W

• Max. length per circuit
  5m
• Dimmable
  Yes (Tunable white driver is required)
• Environment
  Indoors (no condensation)
• Material
  Soft acrylic
• Attachments
  End cap 2pcs

•

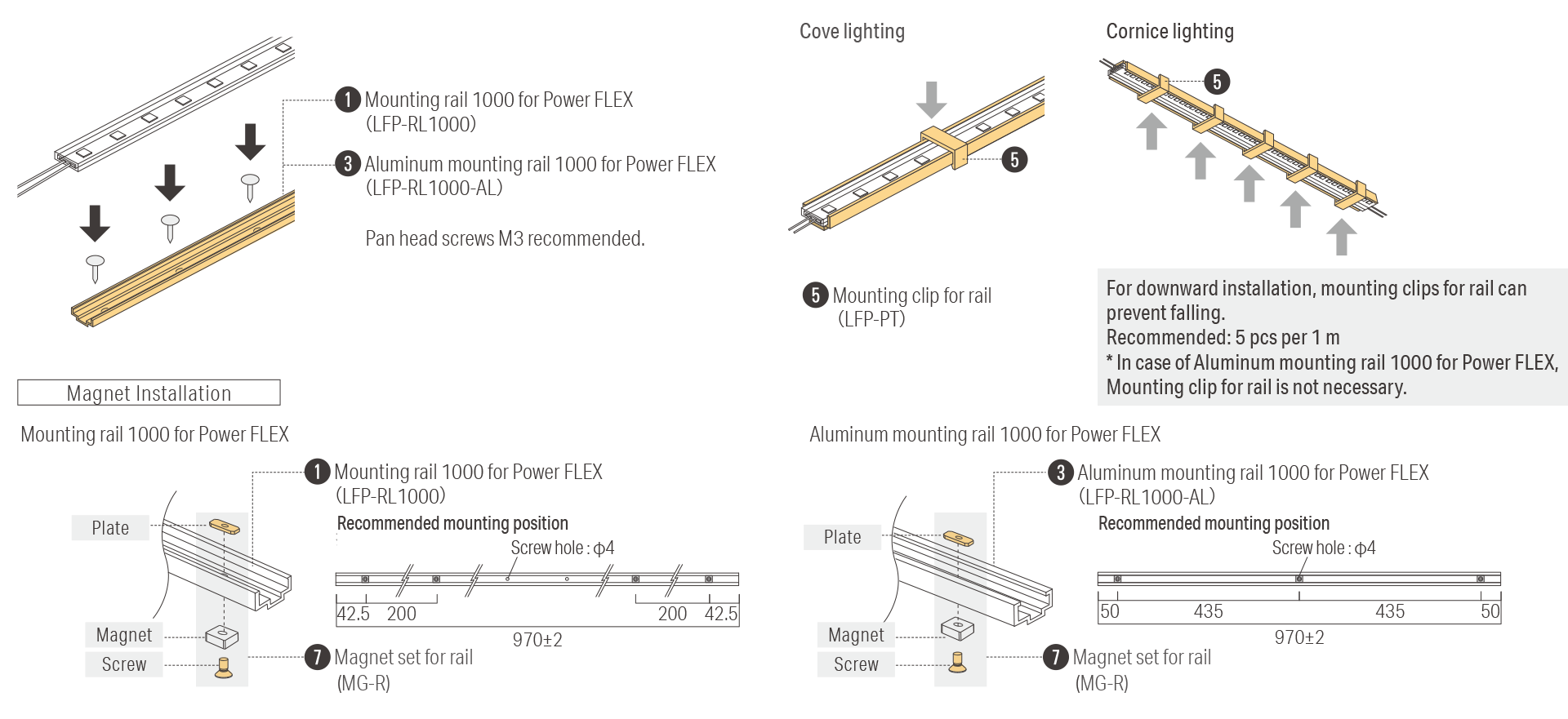

  Straight installation / Rail



  • View How to Install
  • Download(DXF)

  •

    1Mounting rail 1000 for Power FLEX

    LFP-RL1000

    Mounting clip for rail (5pcs) is included.

•

  Straight installation / Aluminum rail



  • View How to Install
  • Download(DXF)

  •

    3Aluminum mounting rail 1000 for Power FLEX

    LFP-RL1000-AL

•

  Straight installation / Magnet + Rail



  • View How to Install
  • Download(DXF)

  •

    1Mounting rail 1000 for Power FLEX

    LFP-RL1000

    Mounting clip for rail (5pcs) is included.

  •

    7Magnet set for rail

    MG-R

    4 pcs/bag
    Used for installing light fixture with mounting rail on metal plate
    Metal plate is required by installer

•

  Straight installation / Magnet + Aluminum rail



  • View How to Install
  • Download(DXF)

  •

    3Aluminum mounting rail 1000 for Power FLEX

    LFP-RL1000-AL

  •

    7Magnet set for rail

    MG-R

    4 pcs/bag
    Used for installing light fixture with mounting rail on metal plate
    Metal plate is required by installer

•

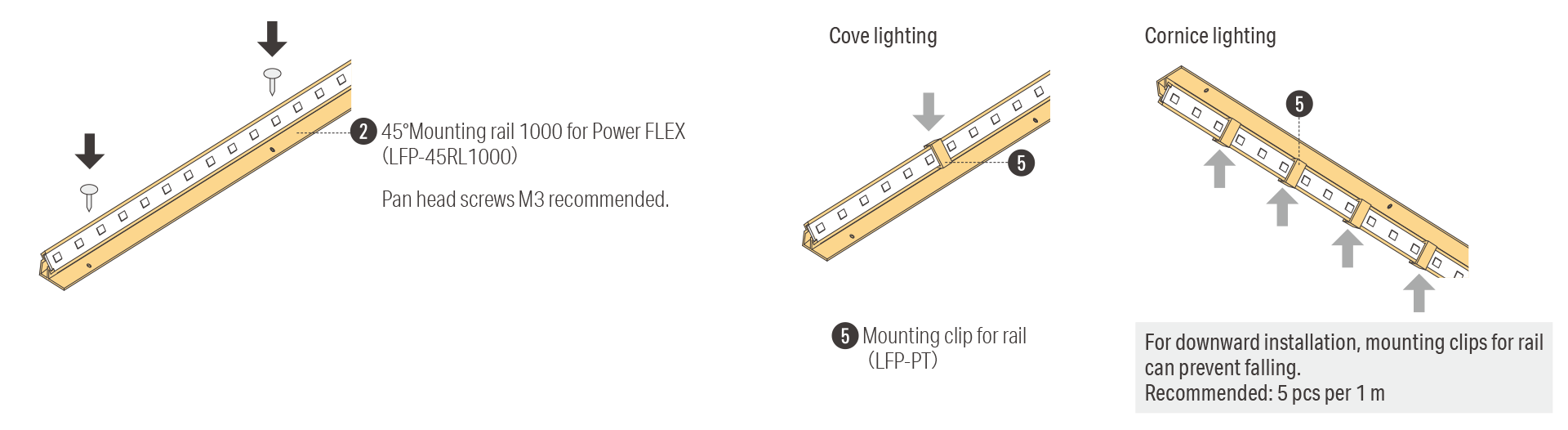

  Straight installation / 45° rail



  • View How to Install
  • Download(DXF)

  •

    245°Mounting rail 1000 for Power FLEX

    LFP-45RL1000

    Mounting clip for rail (5pcs) is included.

•

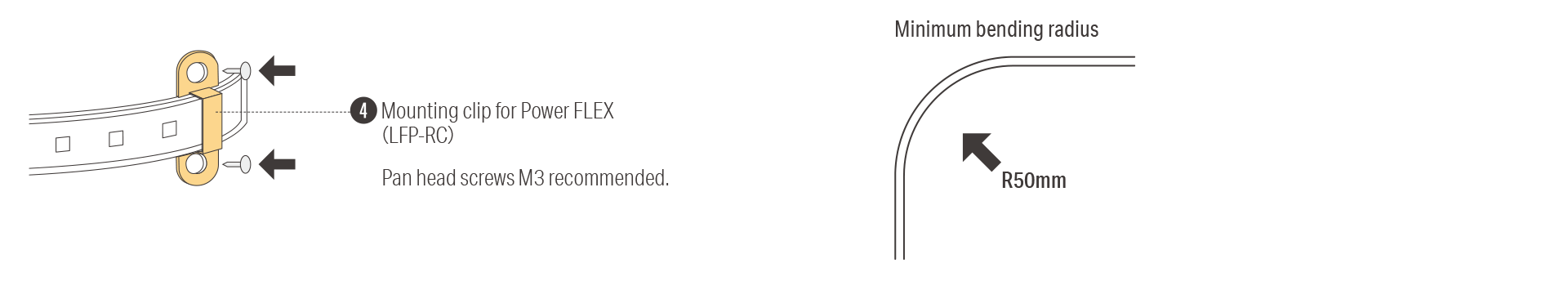

  Curved installation / Clip



  • View How to Install
  • Download(DXF)

  •

    4Mounting clip for Power FLEX

    LFP-RC

    5 pcs / bag
    For curved installation

Accessories

•

  5Mounting clip for rail

  LFP-PT

•

  6End cap for Power FLEX

  LFP-EC
