Model No.

Specification

• Input voltage
  DC24V
• Wattage
  W
• Fitting length
  mm
• Light source color
• Max. length per circuit
  5m
• Dimmable
  Yes(0-10V, 1-10V, DMX, DALI, PWM, Casambi)
• Environment
  Indoors (no condensation)
• Certification
  CE , PTB FREE
• Material
  Body : Aluminum, Cover : Polycarbonate
• Attachments
  Mounting clip
  1pc - Length 0110, 0210
  2pcs - Length 0310, 0410, 0510, 0610, 0710
  3pcs - Length 0810, 0910, 1010, 1110
  4pcs - Length 1210, 1310, 1410

•

  Behind fixing / Clip



  • View How to Install
  • Download(DXF)

  •

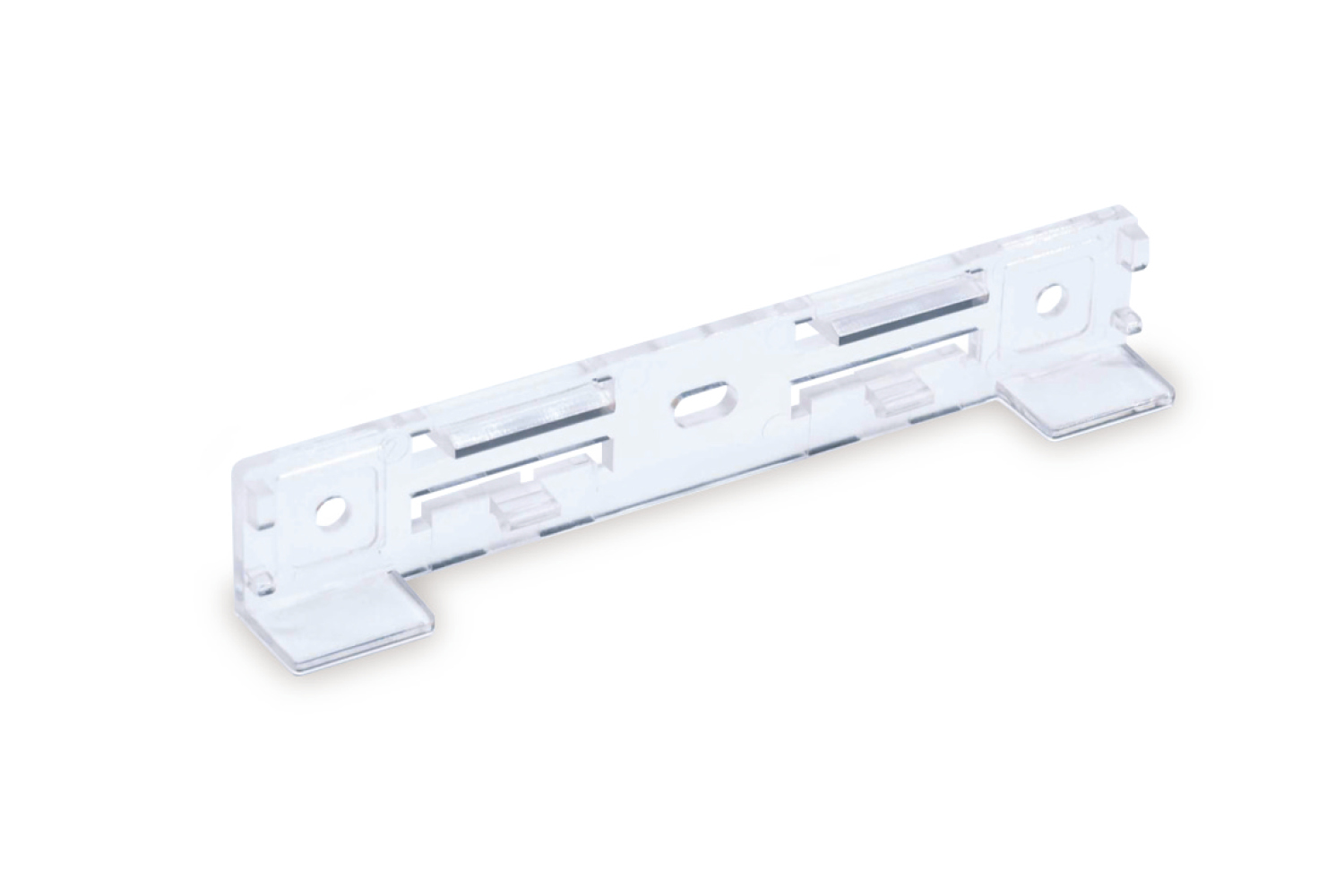

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

•

  Behind fixing / Clip + Magnet



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

  •

    3Magnet Set L

    MG-L

    10 sets/bag

•

  Behind fixing / Downwards



  • View How to Install
  • Download(DXF)

  •

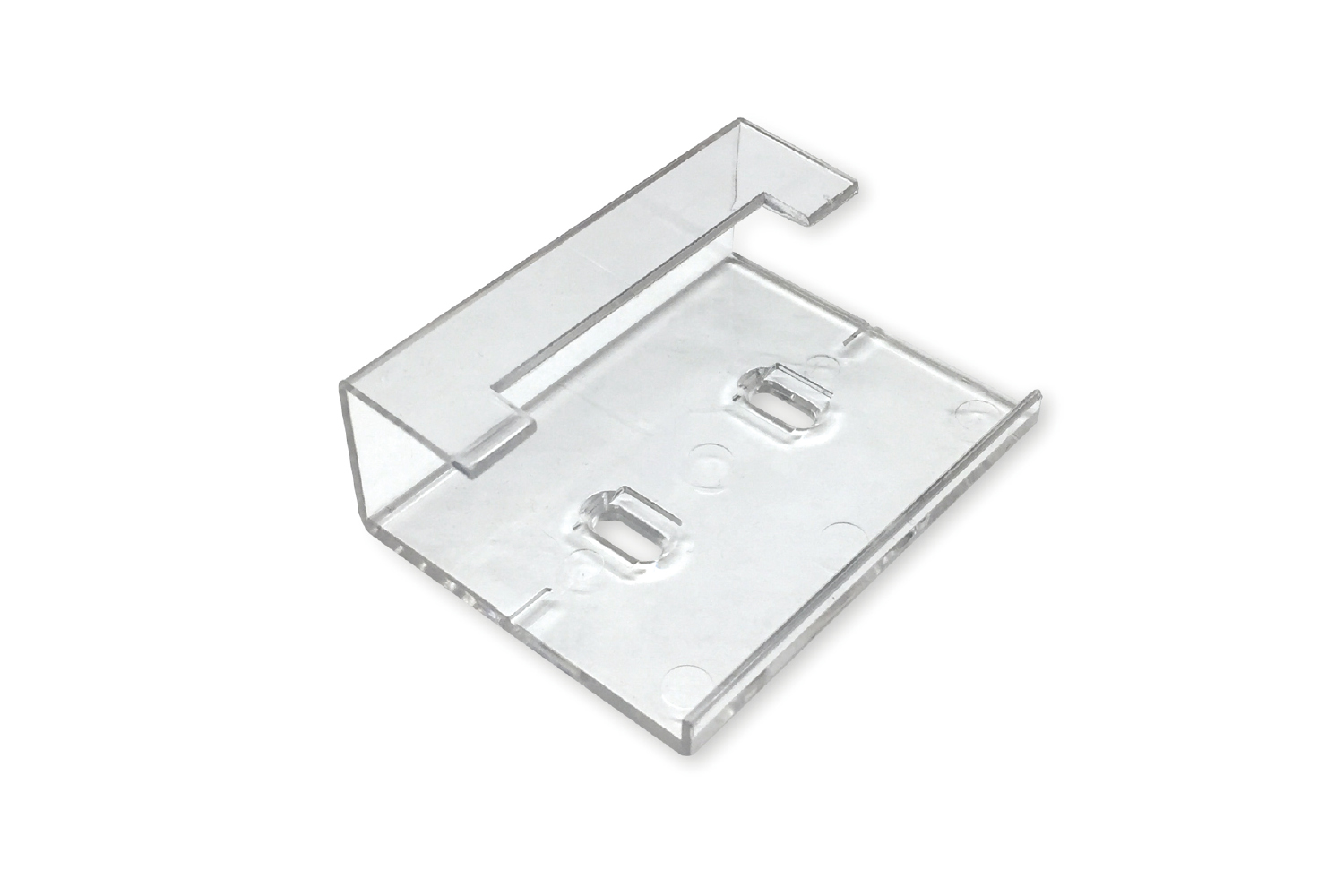

    2Outer clip for Creide

    LCE-PT-B

    2 pcs/bag
    Recommended number
    -1 pc for 150 mm
    -2 pcs for 300 mm
    -3 pcs for 510 mm
    -4 pcs for 880 mm and 1170 mm
    -5 pcs for 1460 mm
    For magnet installation, please refer to the required number of clips in the product catalog.

•

  Behind fixing / Downwards + Magnet



  • View How to Install
  • Download(DXF)

  •

    2Outer clip for Creide

    LCE-PT-B

    2 pcs/bag
    Recommended number
    -1 pc for 150 mm
    -2 pcs for 300 mm
    -3 pcs for 510 mm
    -4 pcs for 880 mm and 1170 mm
    -5 pcs for 1460 mm
    For magnet installation, please refer to the required number of clips in the product catalog.

  •

    4Magnet Set A

    MG-A

    5 sets/bag

•

  Vertical installation / clip



  • View How to Install
  • Download(DXF)

  •

    1Mounting clip A for Creide

    LCE-PT-A

    Attached with light fixture
    -1 pc for 150mm
    -2 pcs for 300mm and 510mm
    -3 pcs for 880mm and 1170mm
    -4 pcs for 1460
    For extra order, 2 pcs/bag
    For magnet installation, please refer to the required number of clips in the product catalog.

Accessories

•

  5Power supply cable 3000mm for SL connector

  CAD-3000-MCNN-I

•

  6Joint cable 1000mm for SL connector

  CAD-1000-MCFC-I
