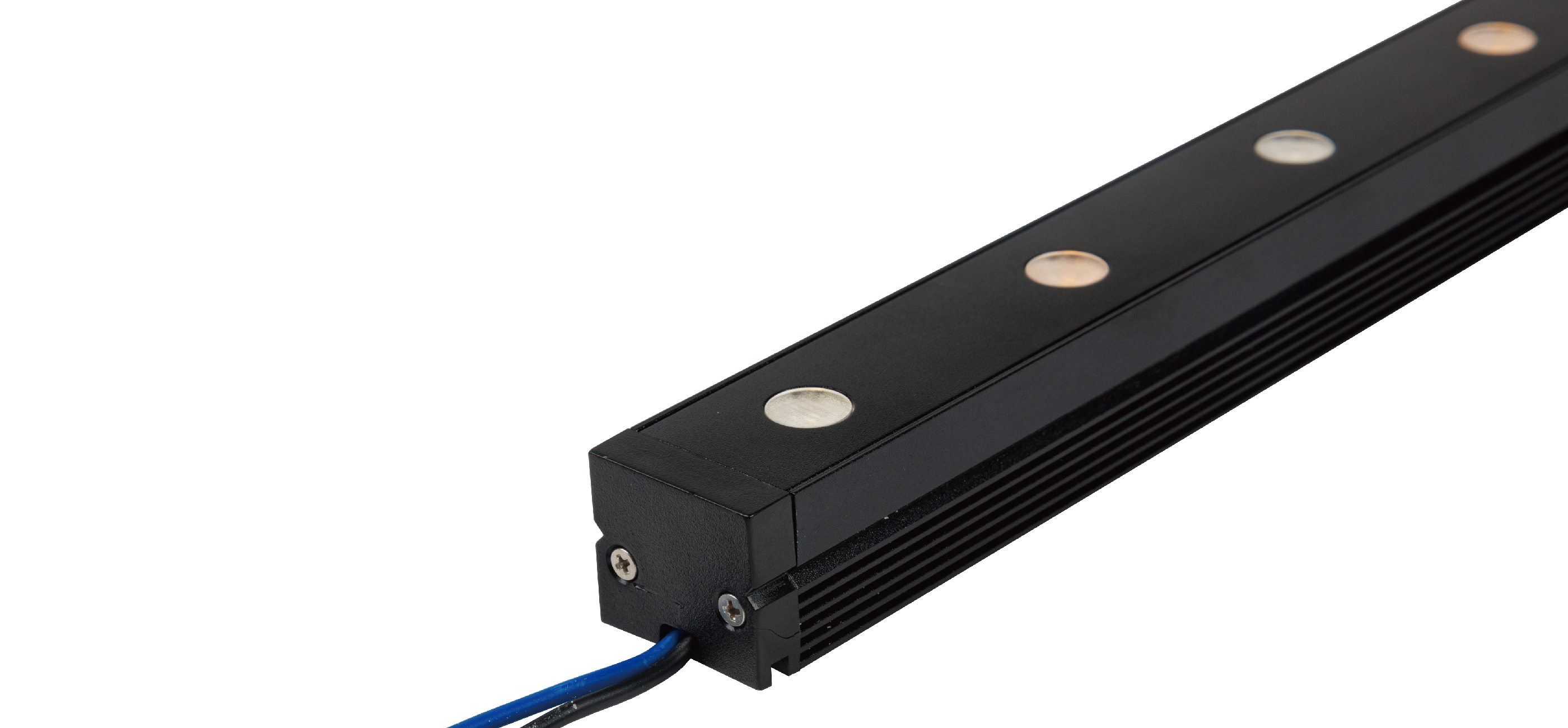

Luci Vivoxy Graze THOF
LVVTH

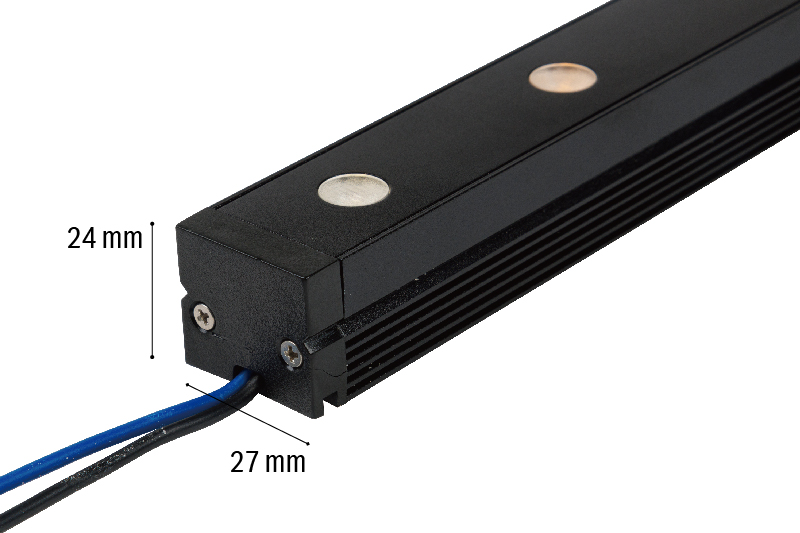

Tunable white wall grazing light with a small cross-section and a selectable combination of two CCTs
APPLICATION

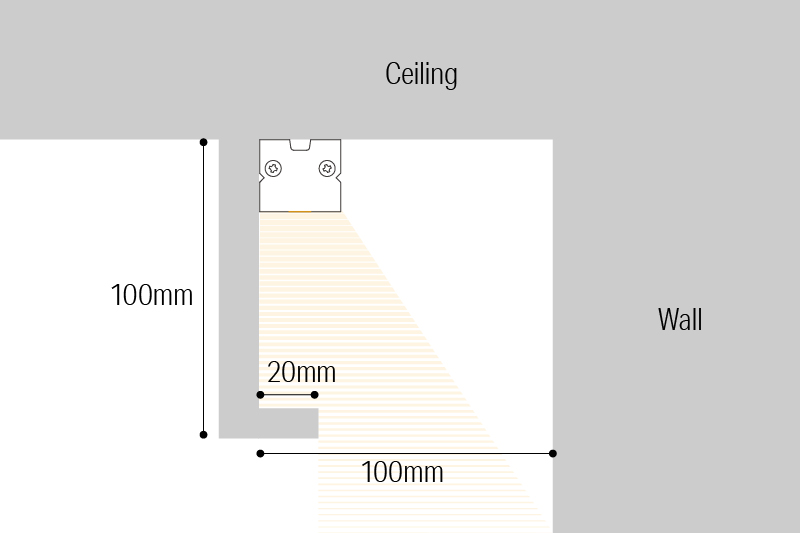

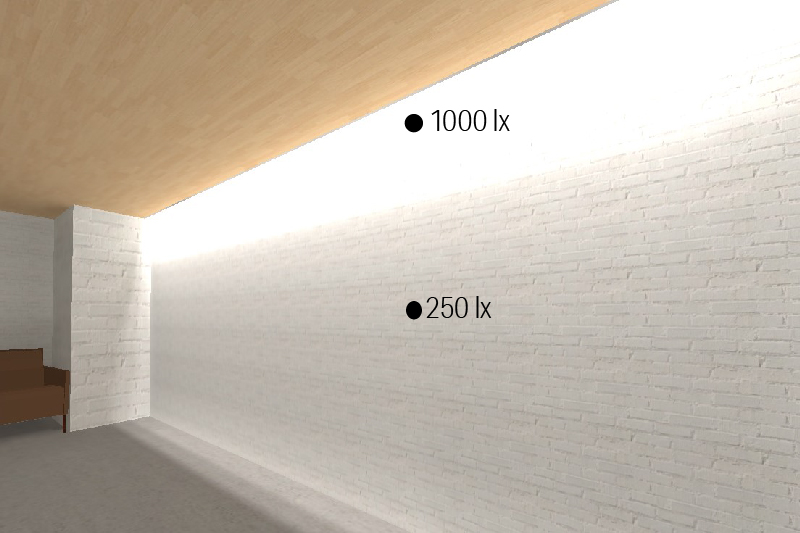

Wall graze
It is designed for indoor wall grazing, providing powerful, uniform illumination that enhances architectural textures and vertical surfaces. Enhanced to 2 Colors dimming enable to make circadian lighting effect for wall grazing application. It is suitable for the places to be used long hours such as hotes all day dining and office and hospital, and the ball rooms like need to be staged for various purposes.it adds depth and sophistication to indoor spaces. Its high-output LEDs and precision optics ensure a smooth, dynamic effect while minimizing hotspots and scalloping.
DESIGN & INSTALLATION TIPS

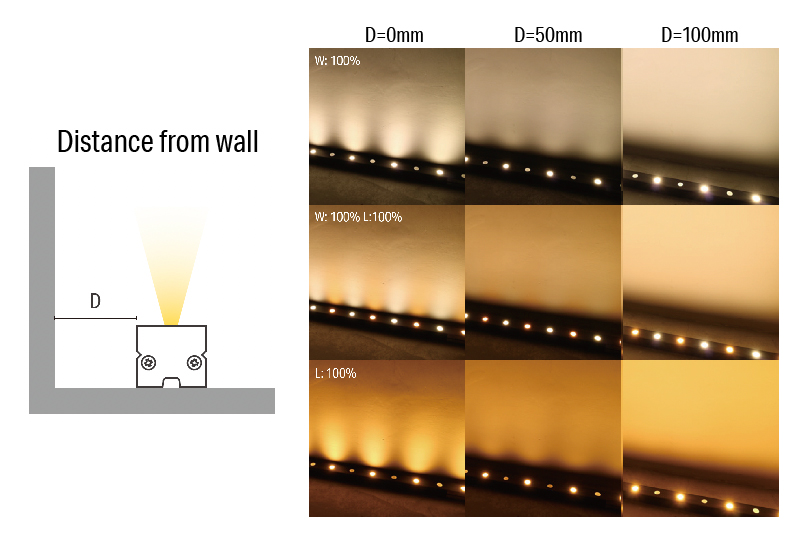

Impact of offset distance in Wall Grazing
The offset distance from the wall plays a crucial role in determining the lighting effect and uniformity. A closer offset creates a more defined, dramatic grazing effect, emphasizing textures and surface details, while a greater distance results in a softer, more diffused illumination, reducing shadow contrast.
For optimal lighting performance, a recommended offset of 100mm from the wall ensures 100% ideal illumination, delivering a balanced and even wall grazing effect with minimal hotspots or uneven brightness.

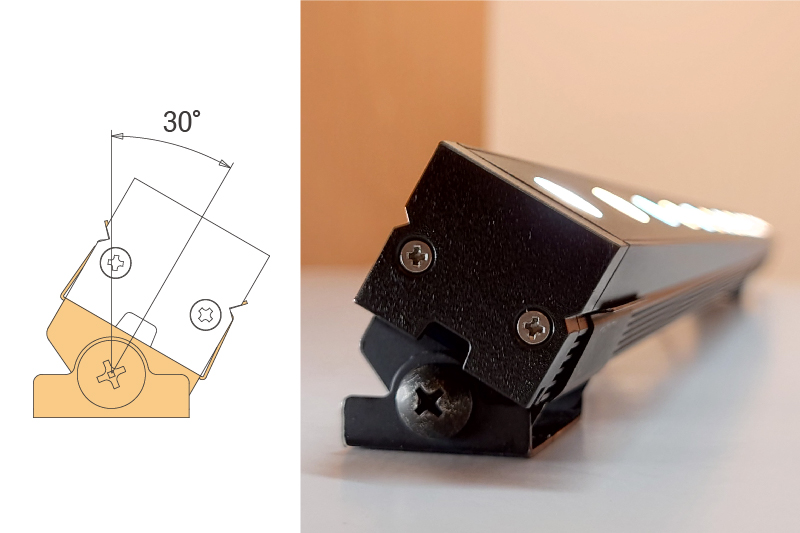

How louvers improve lighting quality and focus
Louvers are optional accessories designed to control glare, improve light direction, and enhance visual comfort in the installations. They help reduce unwanted spill light, ensuring a more focused and refined illumination while maintaining the intended wall grazing or accent lighting effect.
FEATURE
-
Color Temperature
The color temperature offers flexibility by allowing two colors to be combined, providing a customized lighting effect based on project requirements. However, this customization is not always necessary, as pre-selected color temperature options like NL27 (Natural White to Warm White) already provide a smooth transition from neutral to warm tones, covering most ambient and architectural lighting needs.
-
Brightness
It now offers a Tunable White option with exceptional brightness, making it the brightest wall grazing solution in its category. This feature allows users to adjust the color temperature seamlessly, ensuring dynamic lighting control for different environments and design needs.
-
Wattage List
The [Wattage List] for Vivoxy Graze THOF (LVVTH) offers multiple power options, allowing users to select the most suitable wattage based on brightness needs, energy efficiency, and application requirements. With varied wattage options, the luminaire provides flexibility in light intensity, ensuring the right balance between illumination and power consumption.
-
Color Temperature
The color temperature offers flexibility by allowing two colors to be combined, providing a customized lighting effect based on project requirements. However, this customization is not always necessary, as pre-selected color temperature options like NL27 (Natural White to Warm White) already provide a smooth transition from neutral to warm tones, covering most ambient and architectural lighting needs.
-
Brightness
It now offers a Tunable White option with exceptional brightness, making it the brightest wall grazing solution in its category. This feature allows users to adjust the color temperature seamlessly, ensuring dynamic lighting control for different environments and design needs.
-
Wattage List
The [Wattage List] for Vivoxy Graze THOF (LVVTH) offers multiple power options, allowing users to select the most suitable wattage based on brightness needs, energy efficiency, and application requirements. With varied wattage options, the luminaire provides flexibility in light intensity, ensuring the right balance between illumination and power consumption.
SPECIFICATION OVERVIEW
Product length: 4 variations, 300mm, 600mm, 900mm, 1200mm
Cable feed: Both ends feed cable
Input current: 350mA, 500mA, 700mA
Max. length per run: 350mA 12m, 500mA 8.4m, 700mA 5.7m
Power Consumption: @900mm 2ch max, 350mA 17 W (1ch max: 9 W), 500mA 25 W (1ch max: 13 W), 700mA 35W (1ch max: 18 W)
Lumen: 2700K - 5000K
350mA 995 lm/m @5000K, 1773 lm/m @3500K, 800 lm/m @2700K,
500mA 1422 lm/m @5000K, 2533 lm/m @3500K, 1143 lm/m @2700K,
700mA 1861 lm/m @5000K, 3290 lm/m @3500K, 1489 lm/m @2700K,

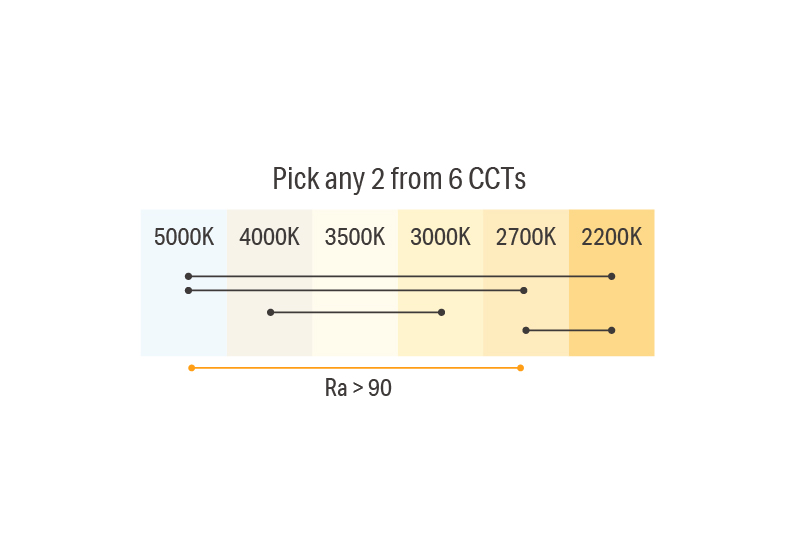

Color Temperature (delivered CCT): Free to select 2 CCTs from 6 CCTs, 5000K, 4000K, 3500K, 3000K, 2700K, 2200K
LED beam angle : 15°×32.5°
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
