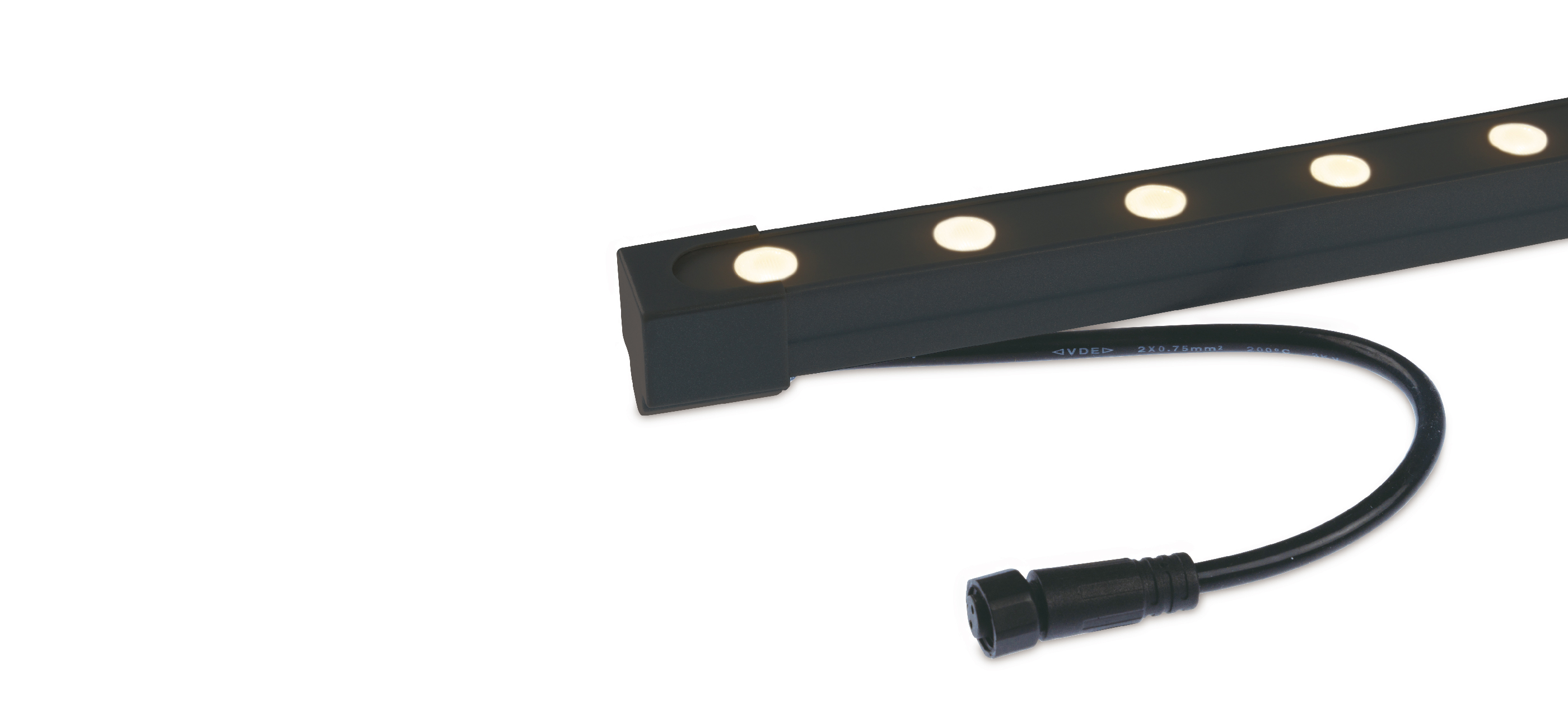

Luci Vivoxy FLEX K IP67
LVFK
Flexible wall grazing light for curved facade
APPLICATION

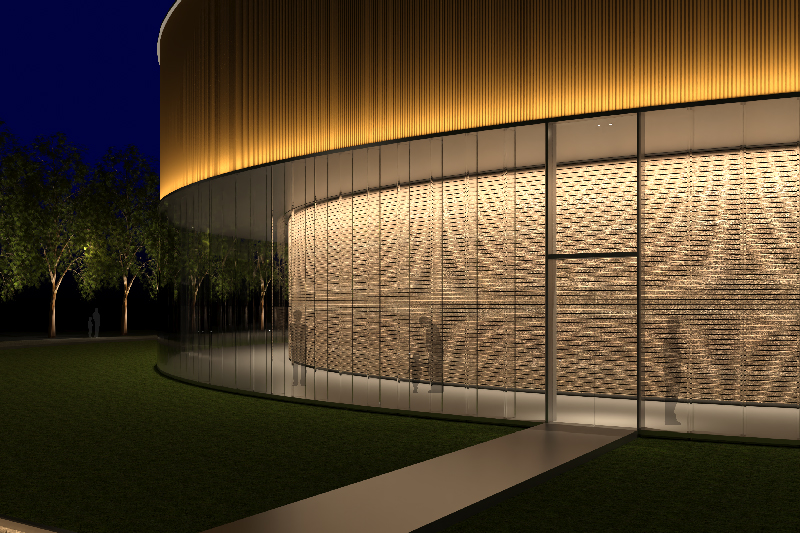

Wall graze Outdoor
It ideal for outdoor wall grazing applications, providing a smooth, gradual illumination that enhances architectural textures and curved surfaces. With a 22° x 35° beam angle, it effectively accentuates curved walls, creating a dynamic interplay of light and shadow while maintaining even brightness and depth. This makes it perfect for highlighting building facades, textured surfaces, and artistic wall features, delivering a refined and visually striking outdoor lighting effect.

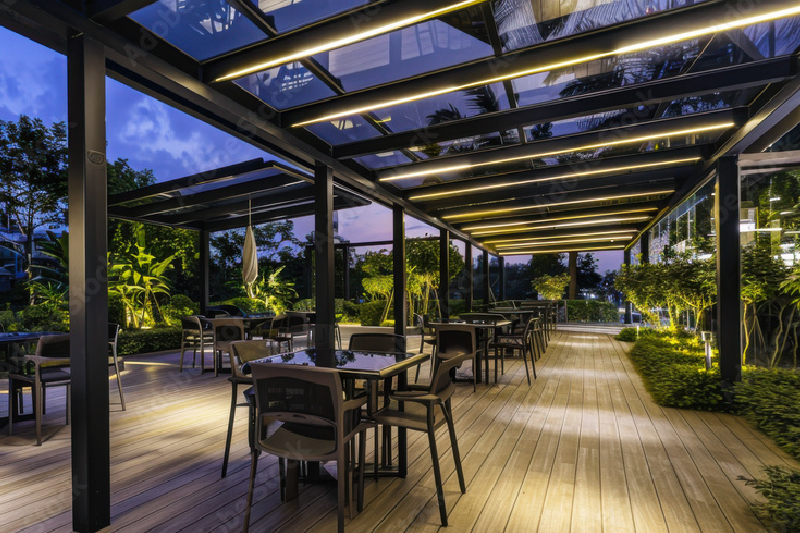

Canopy
A 35° beam angle is ideal for general canopy lighting, providing balanced illumination that ensures uniform brightness and minimal glare. This beam spread effectively covers the area beneath the canopy, enhancing visibility, safety, and ambiance in both commercial and public spaces
DESIGN & INSTALLATION TIPS

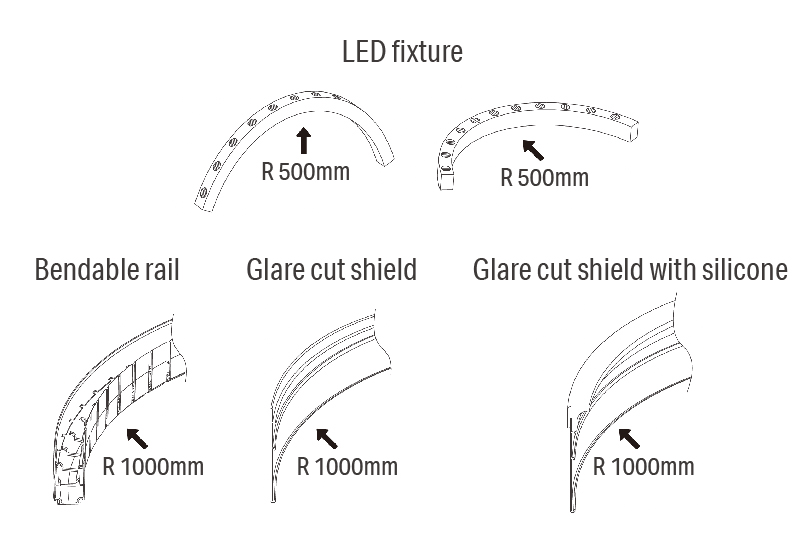

Minimum Bending radius up to accerosies
The minimum luminaire bending radius varies based on the mounting method. When using mounting clips, the luminaire can be bent to a minimum radius of 500mm, allowing for more flexibility in curved installations. However, when mounted using rails or louvres, the minimum bending radius increases to 1000mm, ensuring structural stability and uniform light distribution. This distinction helps optimize installation for architectural lighting, façade illumination, and curved surface applications, balancing design flexibility with performance integrity.

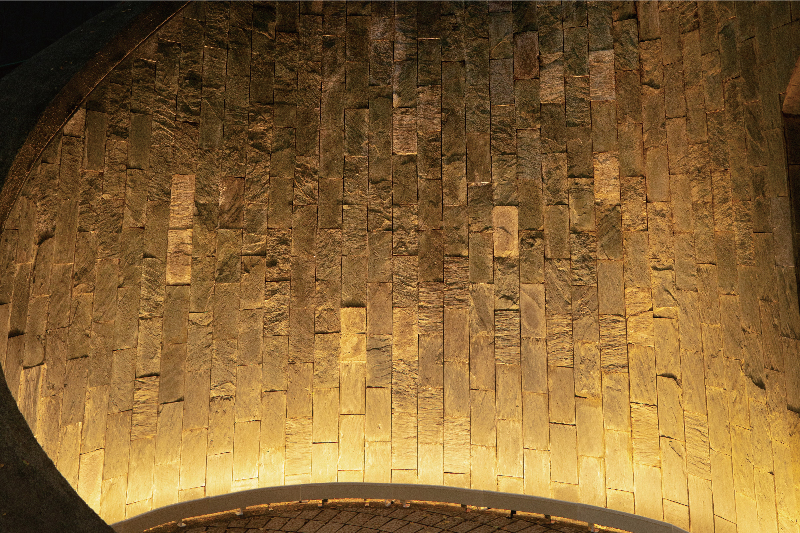

The brightness in the outdoor or indoor
In dark outdoor environments, the light beam can reach up to 6 meters, while in indoor settings, it extends approximately 2 to 3 meters, depending on the ambient brightness. The actual beam distance may vary based on surrounding light conditions, ensuring adaptable illumination for both indoor and outdoor applications.

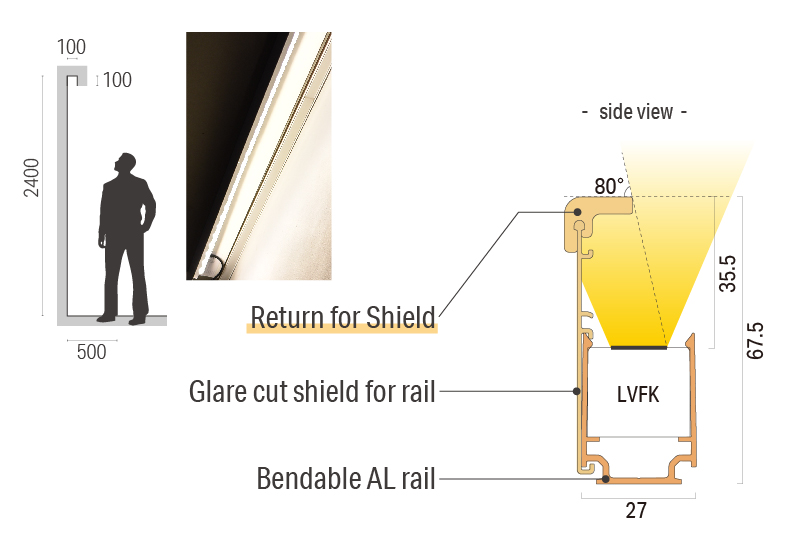

Shield and Return is great at reducing glare.
For downward or upward installation, if the light source is easily visible from the diagonal perspective of pedestrians in a walkway, etc., glare can be minimized using not only glare cut shield but also silicone return. This newly added Return is removable and adhesive-installable at site.

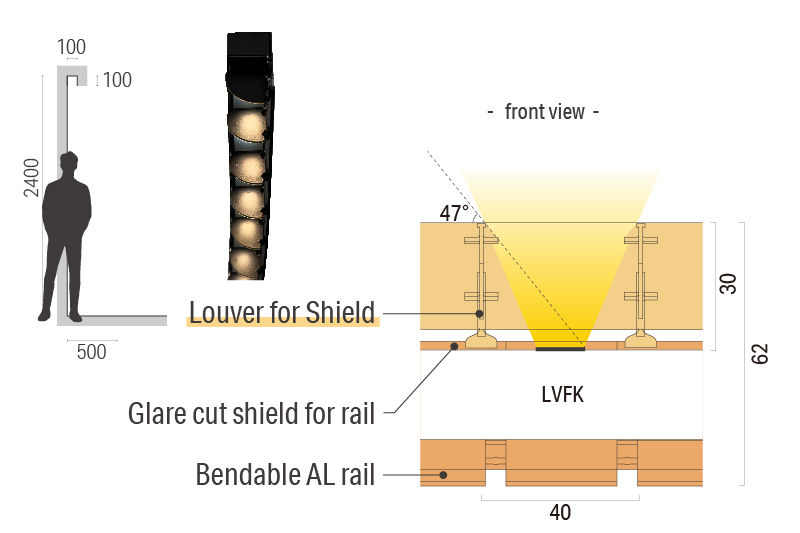

Louvers for glare cuts from the side
The newly added individual louvers can hide the light source from view when viewing from the side and diagonally, such as in the hallway or lobby hall area, without compromising the brightness of each light.

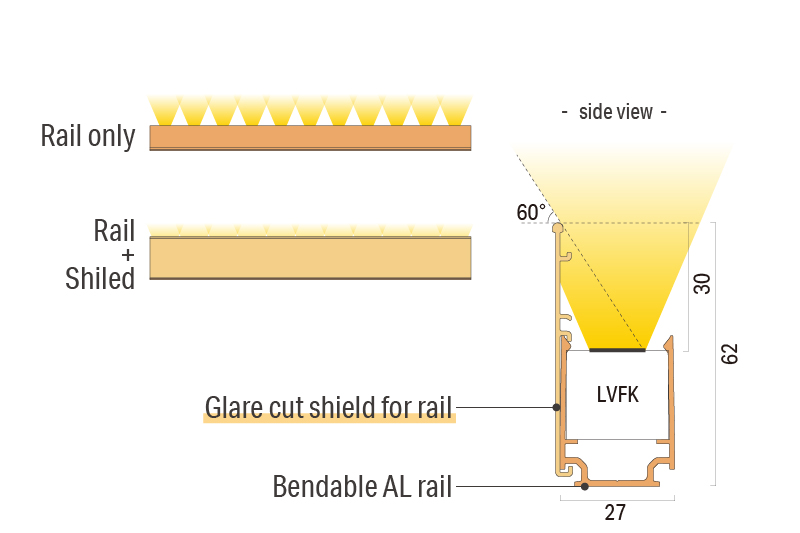

Shield for frontal glare cuts
The shield can hide scallops and hot spots on the lens when viewed from the front, creating a smoother gradation.
FEATURE
-

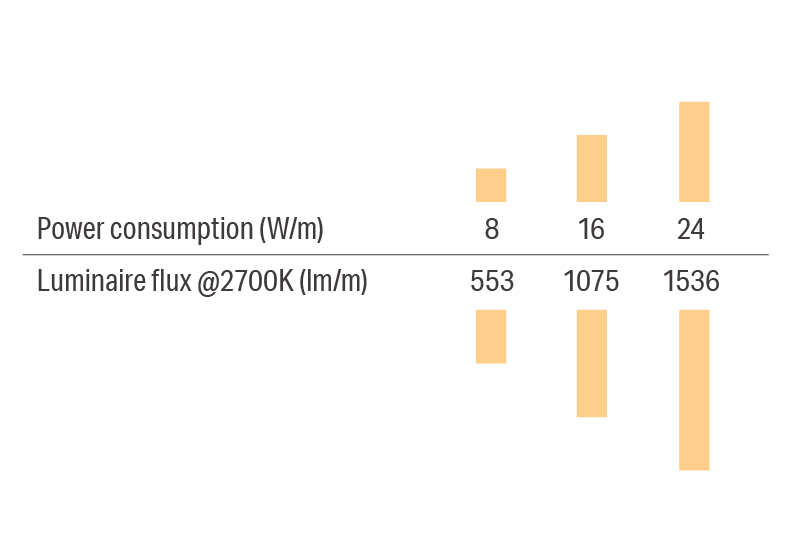

Wattage List
The [Wattage Lst] for Luci Vivoxy FLEX K IP67 (LVFK-O) offers two power options: 8W/m, 16W/m and 24W/m, each designed for different outdoor lighting applications.
24W/m is ideal for powerful wall grazing, providing intense, high-output illumination that enhances architectural textures, facades, and curved surfaces with strong light penetration.
16W/m is suited for outdoor indirect lighting, delivering a softer, more diffused glow for ambient illumination in spaces like canopies, pathways, and accent lighting while maintaining energy efficiency.
8W/m is suitable for Green Building certifiate projects which require lighitng power budget.
These wattage options allow for flexible lighting design, balancing brightness, energy consumption, and application needs. -

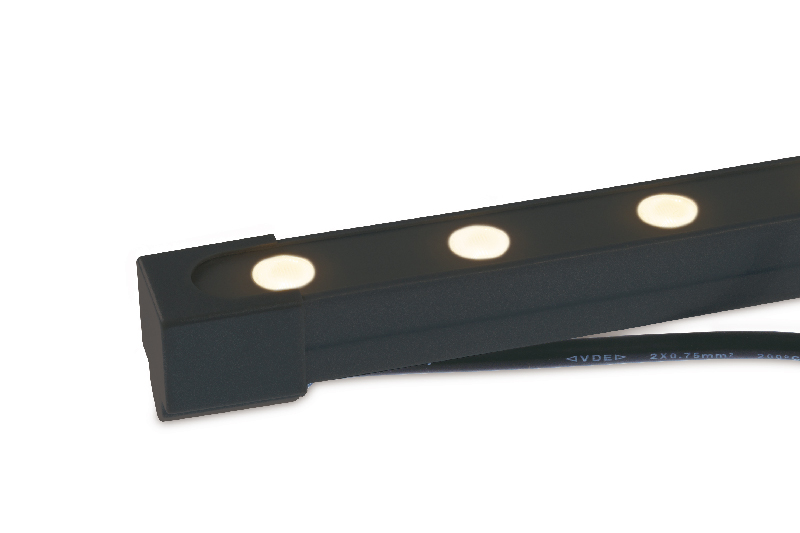

Material
High quality silicone durable for harsh outdoor enviroments and UV protection
-

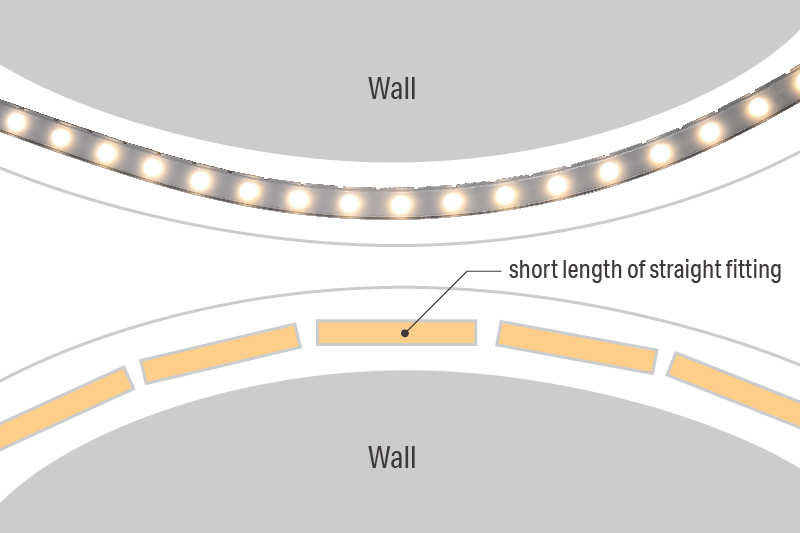

Flexible fixutre for grazing
It's easir to install to flexible bendable fittings than to connect short length of straight fitting
-

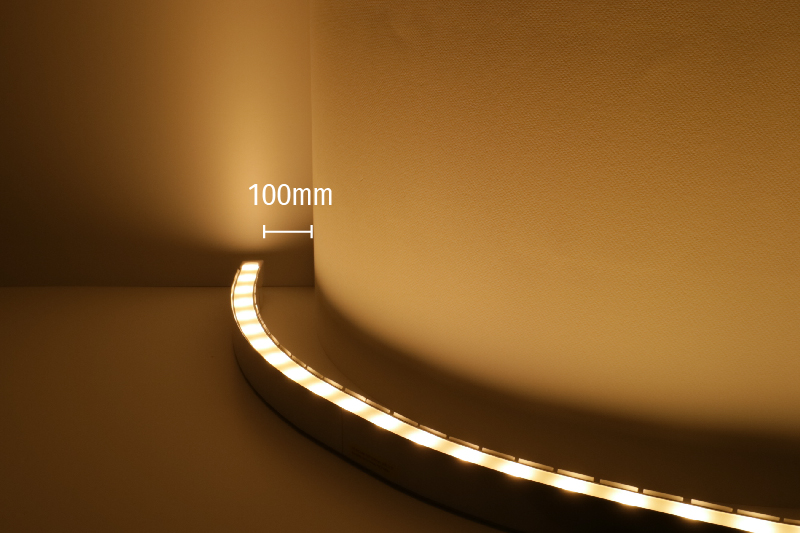

Recommed distance from wall
No scallop light on the wall, even with a small offset, thanks to diffused silicone
-

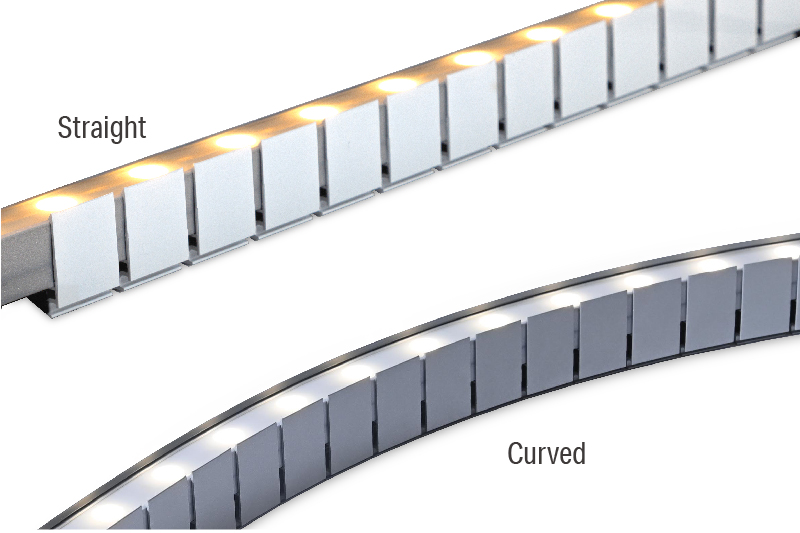

Suitable for straight and curved installation
Custmisable straight rails for curved installation.
-
Length variation
The distance between the LEDs is almost the same when 2 fixtures are connected side by side. There won't be any dark spots when using them for long distances.
-

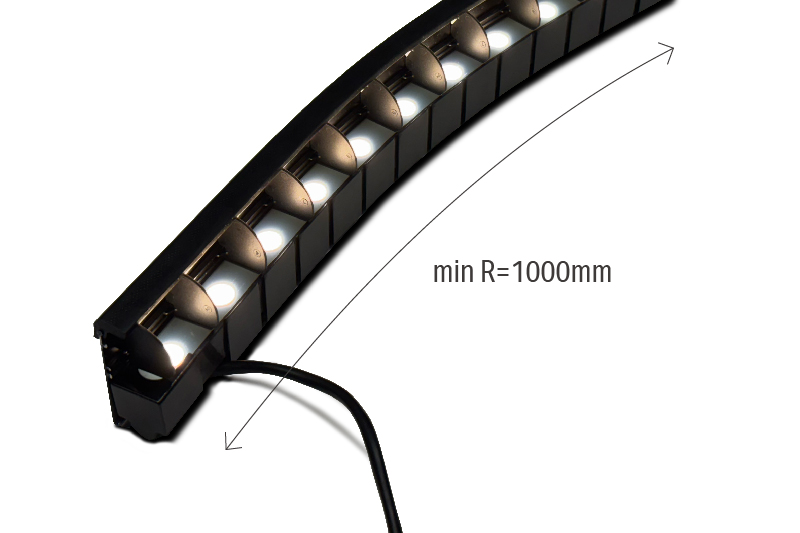

Accesorries - Louver
The newly added louvers can be installed for each LED, so glare can be cut even when the lighting fixture is bent.
-

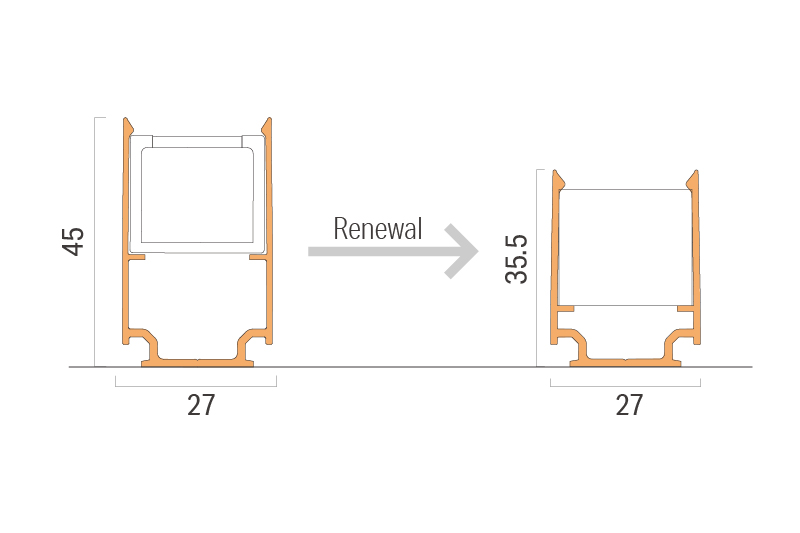

Accesorries - Rail, Parts
The rails and parts have been completely redesigned! The height has been reduced by approximately 10mm compared to previous models, allowing for a more minimalist fit.
-

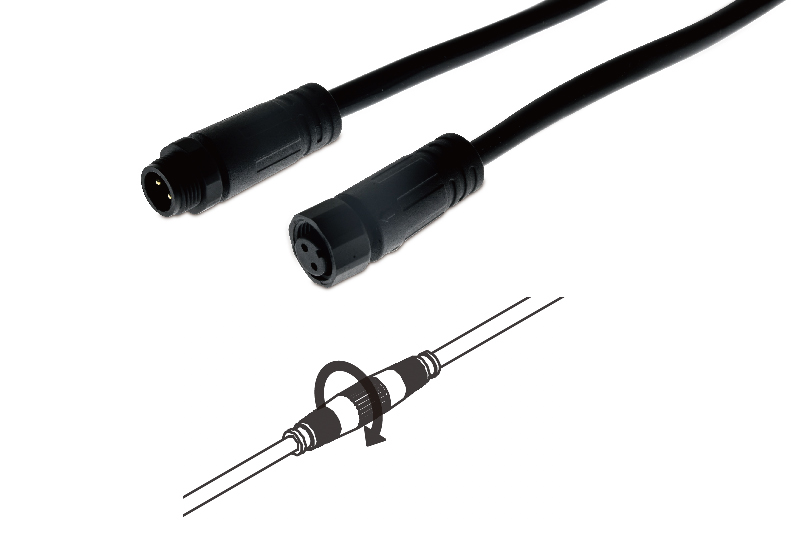

Accesorries - Connector cover
Ensure the waterproofing by fixing the turned connector.
-

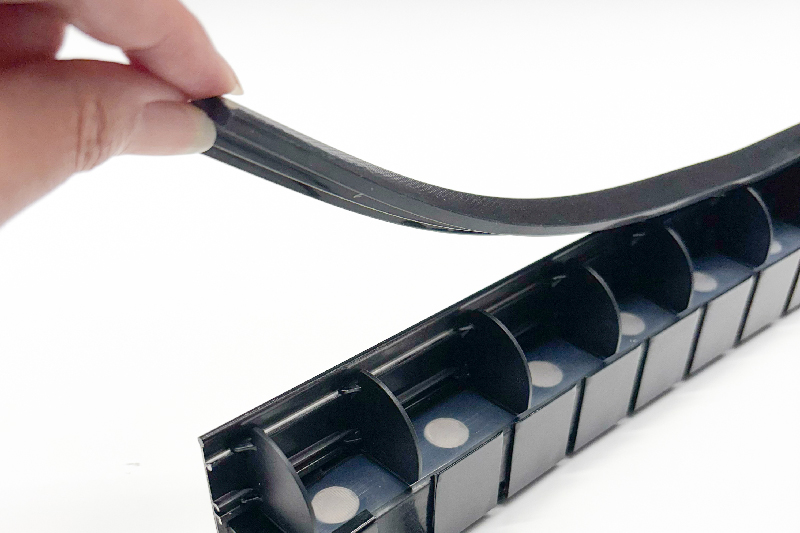

Accesorries - Bendable rail, Shield, Return
New return can be aken out when it's not necessory at the site.
-

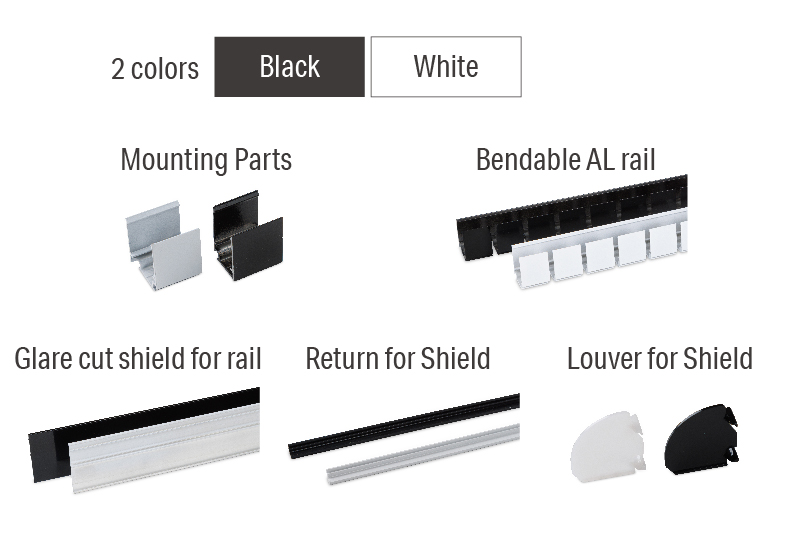

Black and White accesorries
Options of color variation for products as well as accersories, White is BTO
SPECIFICATION OVERVIEW
Product length: up to 2 m at every 125 mm length
Cable feed: Both ends or one end feed cable
Max. length per run: 5m
Bending: Top/Side-bendable
Min. bending radius: Mounting rail + Glare cut shield/ Horizontal R1000mm, Mounting parts / Horizontal,vertical R500mm
Power Consumption: 3 variations, 8 W/m, 16 W/m, 24 W/m
Lumen: 553 to 1536 lm/m @2700K
Color Temperature (delivered CCT): 6500K, 5000K, 3500K, 3000K, 2700K, 2200K
LED beam angle : 22°×35°, 35°, 50°
IP Rating: IP67
Materials: Durable and flexible Silicone
LED Type: High efficiency, long lifespan LEDs, >50,000h
