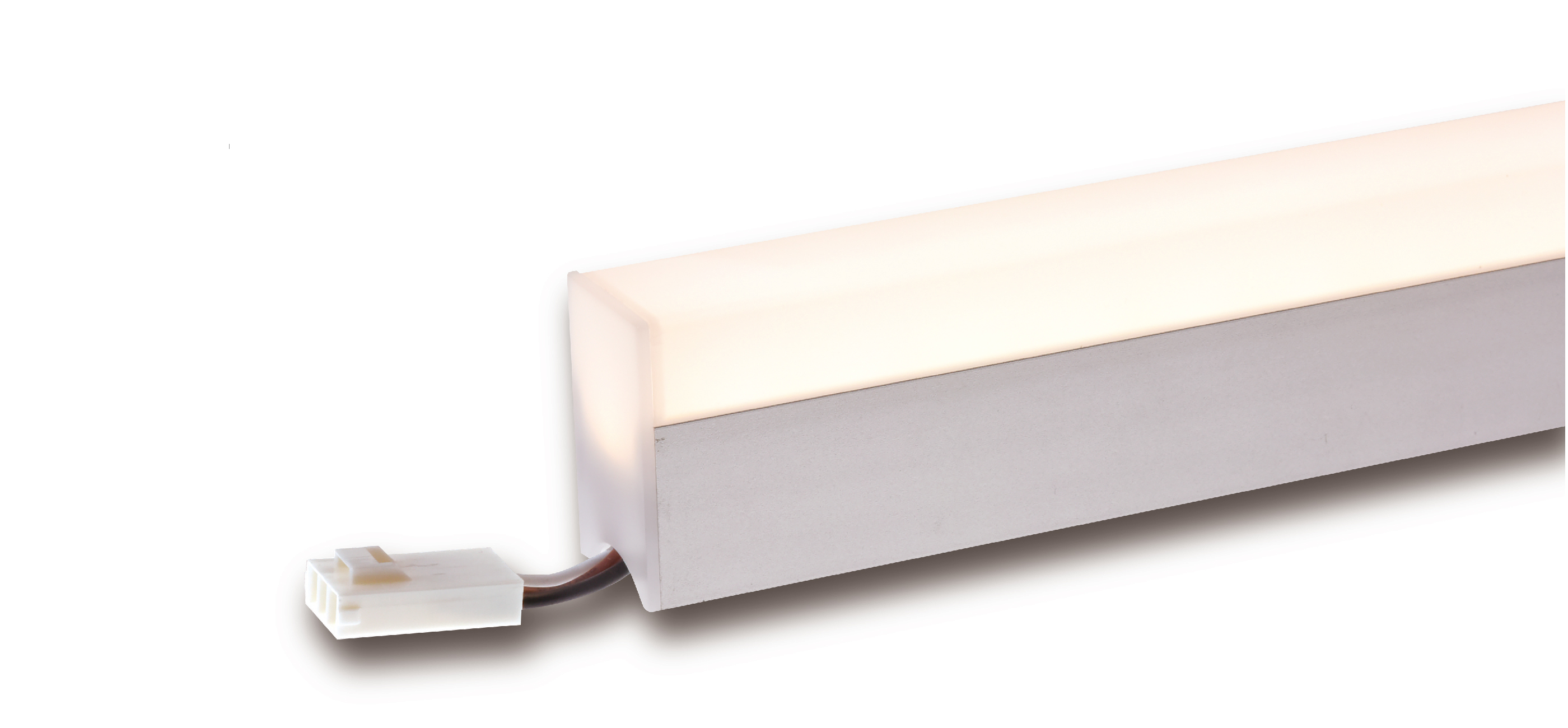

Luci SHIN THOF
LTHY
High efficacy LED series. Square-shaped tunable white homogeneous rigid light with a selectable combination of two CCTs

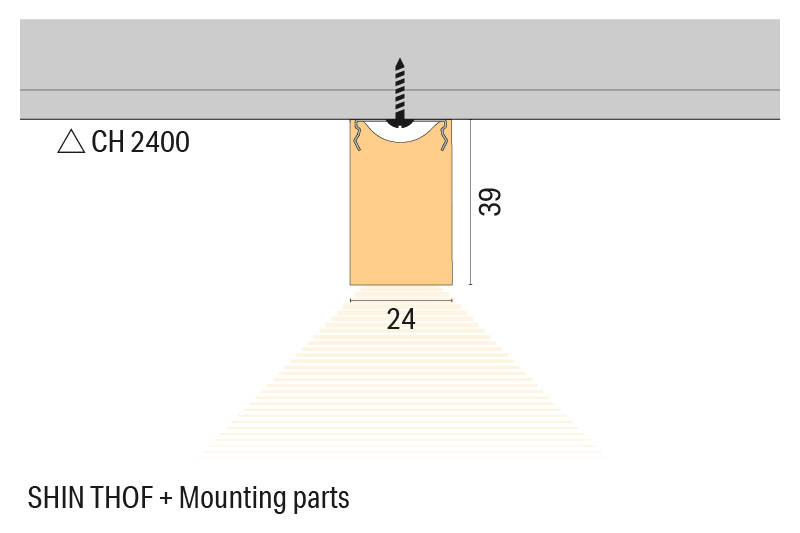

APPLICATION

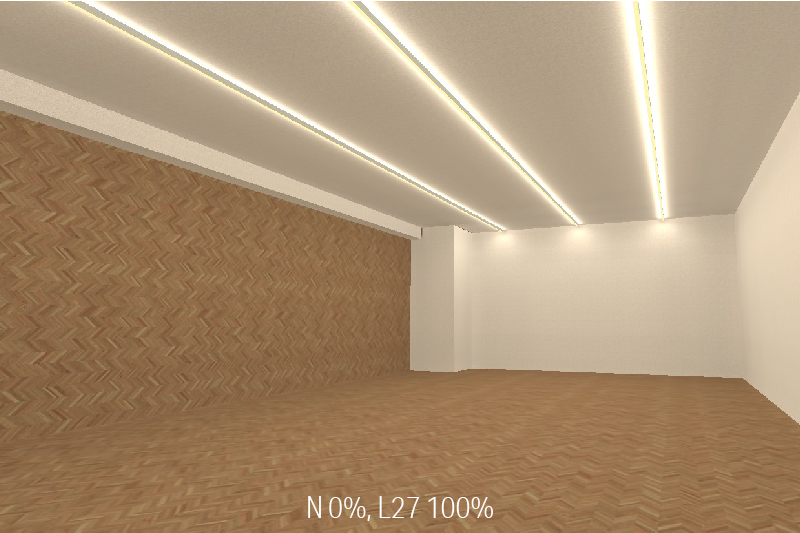

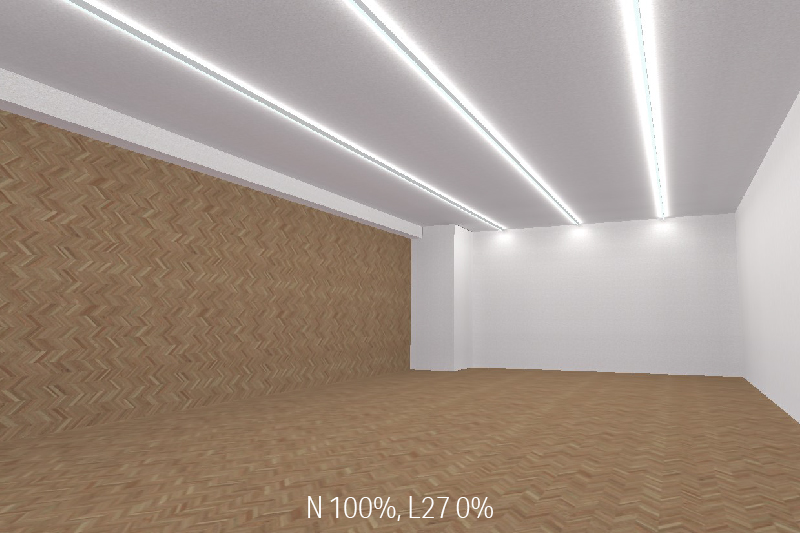

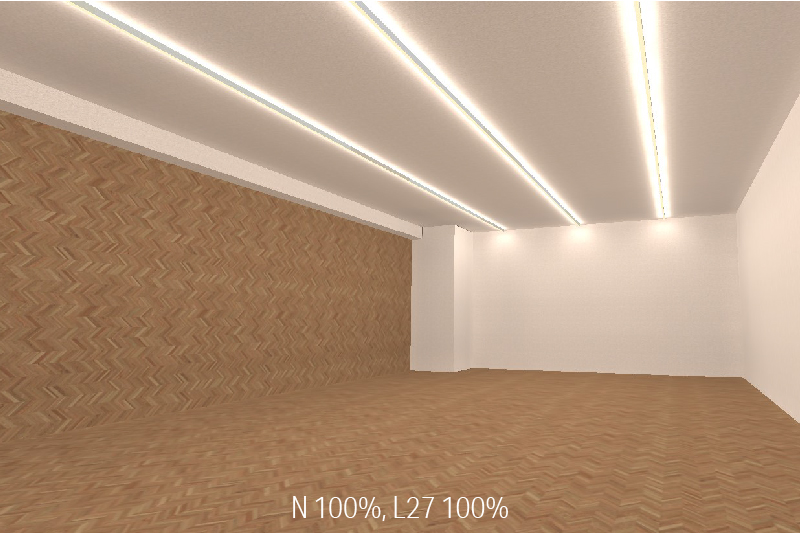

Ceiling surface mounted
It is a tunable surface-mounted ceiling luminaire designed for clean, uniform illumination with a 24*39mm sleek, modern design. 3 surface emitting provides wide, even light distribution, making it ideal for general lighting applications in both residential and commercial spaces. Best suited for offices, retail stores, hospitality settings, and residential interiors, it ensures functional yet stylish illumination for task lighting, ambient lighting, and general lighting, while maintaining a minimalist and professional aesthetic with concealing mounting clips and cable.

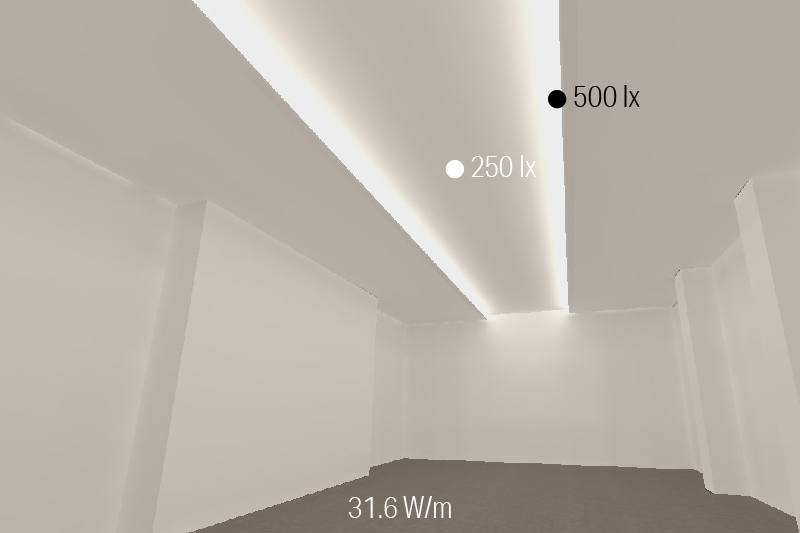

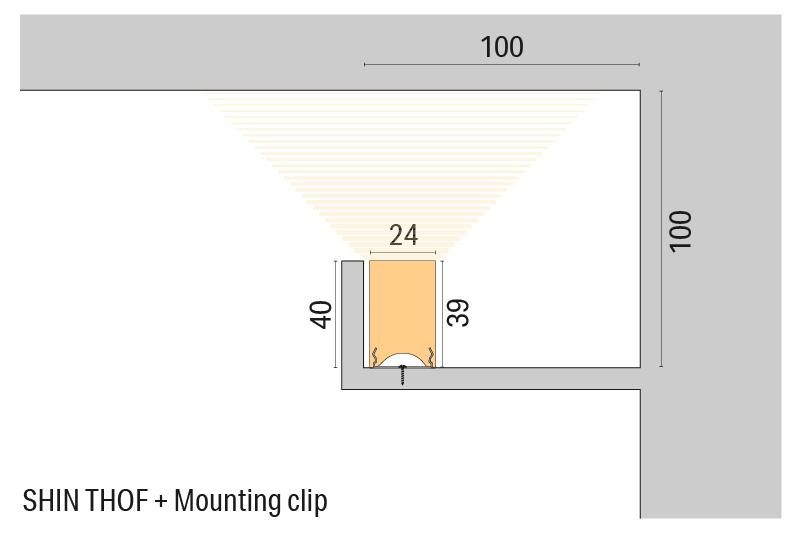

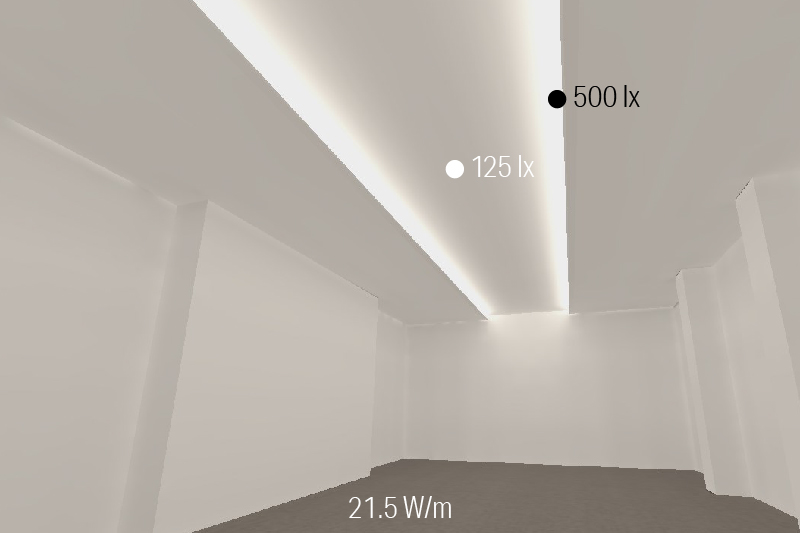

Ceiling cove
It is designed for tunable ceiling cove lighting, delivering soft, uniform indirect illumination that enhances architectural aesthetics. Its 29mm * 24mm sleek design and efficient light distribution create a clean, glare-free ambiance, ideal for accent and ambient lighting. Best suited for luxury residences, hotels, lobbies, retail spaces, and theaters, 3 surface emitting provides refined, seamless illumination that enhances depth and ambiance while maintaining a modern, sophisticated appearance.
DESIGN & INSTALLATION TIPS

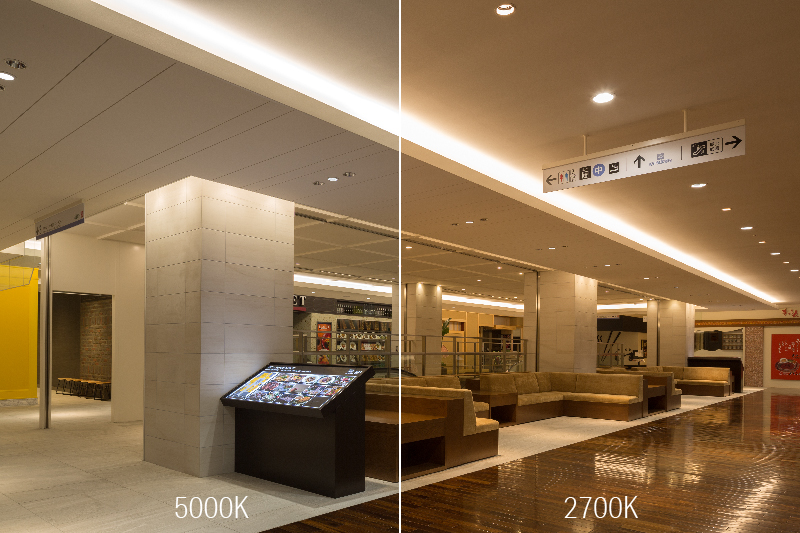

Tunable fixture need 2 channel driver
Tunable fixture supports dual-channel drivers and controlers, allowing for precise dimming effects and customizable lighting patterns when used with compatible drivers and dimmers. This setup enables smooth brightness transitions, tunable white adjustments, and dynamic lighting effects, making it ideal for architectural, hospitality, hospitals, and commercial applications where flexible ambiance control is needed.
FEATURE
-

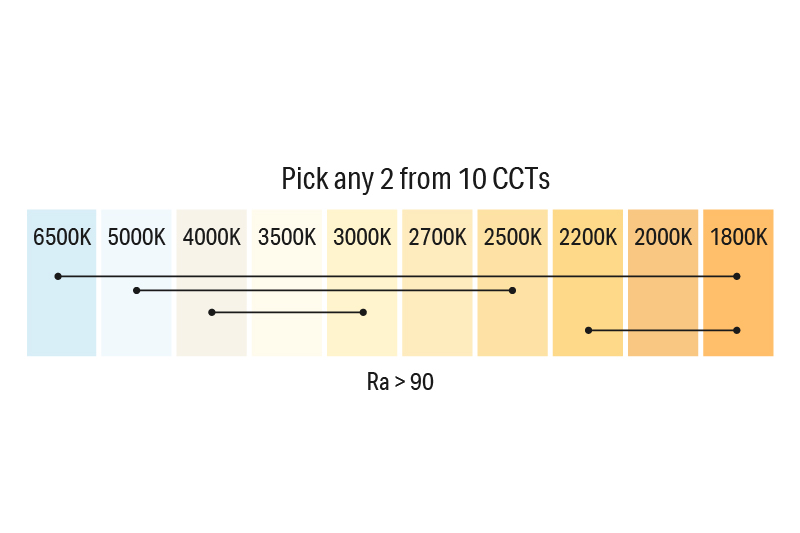

Color Temperature
It feature allows users to select any two CCTs from nine available options and even customize color combinations for a tailored lighting effect. The tunable option for SHIN THOF enables smooth color temperature transitions, making it ideal for dynamic lighting control in architectural, hospitality, and commercial spaces where adaptable ambiance is needed.
-

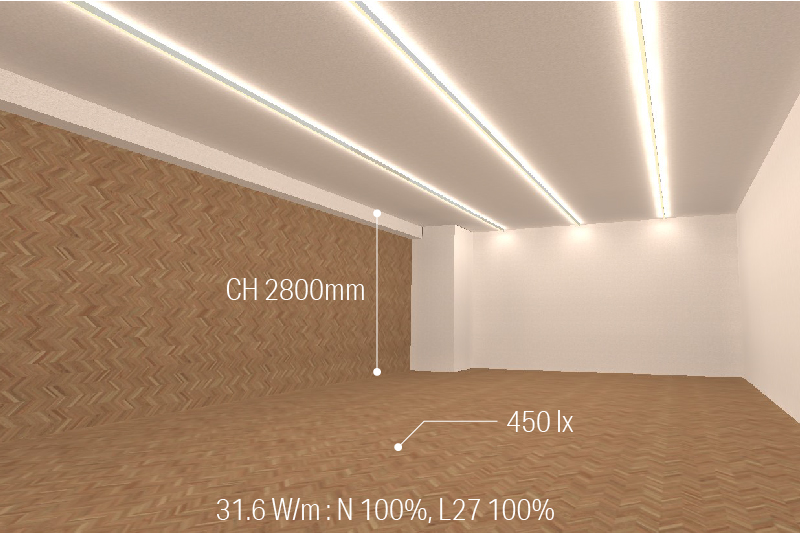

Brightness
It feature ensures sufficient floor illumination without the need for traditional downlights. With its wide light distribution, the luminaire provides even, ambient lighting, making it ideal for general illumination in residential, commercial, and hospitality spaces while maintaining a clean ceiling design.
-

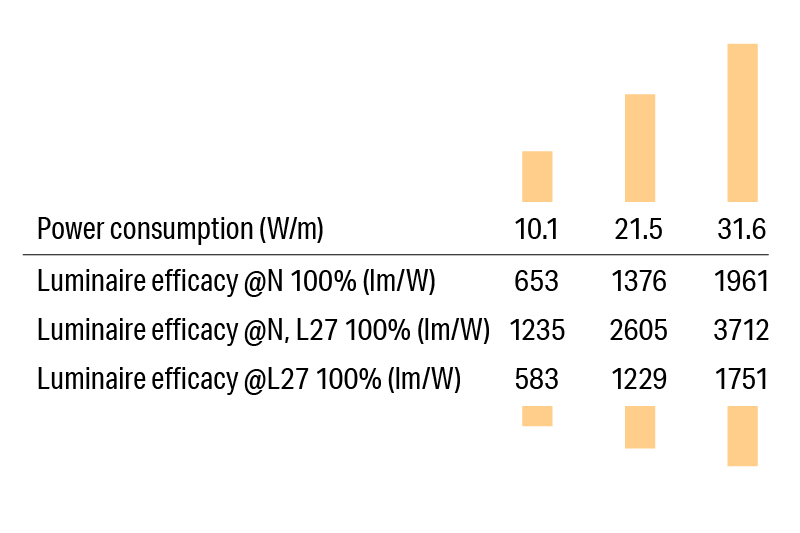

Wattage Variation
It offers three options—10W, 21W, and 31W—allowing users to select from three brightness levels based on their lighting needs. Lower wattages provide softer ambient lighting, while higher wattages deliver brighter, more intense illumination, making it suitable for various applications in residential, commercial, and hospitality settings.
-

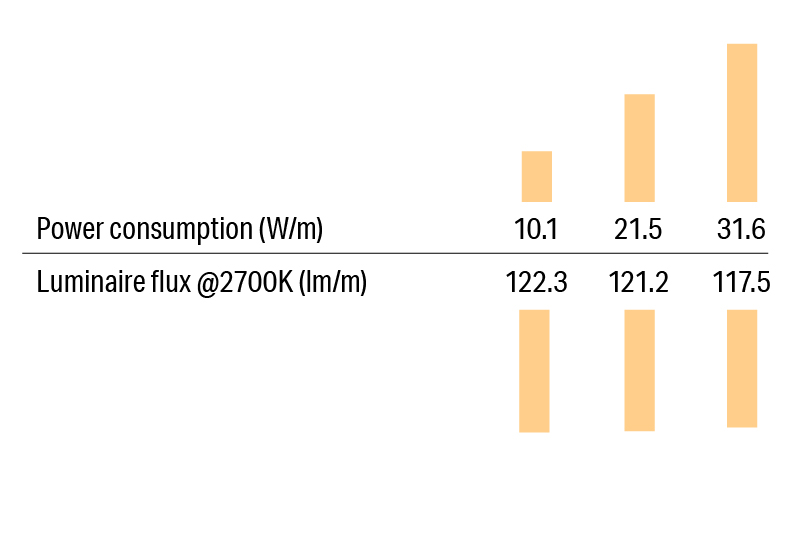

High-efficienvy
With high-efficiency LED technology, comparing old and new efficiency is unnecessary, as the updated version already offers improved performance, lower energy consumption, and higher brightness. This ensures better lumen output per watt, making it a more advanced and energy-efficient lighting solution.
-

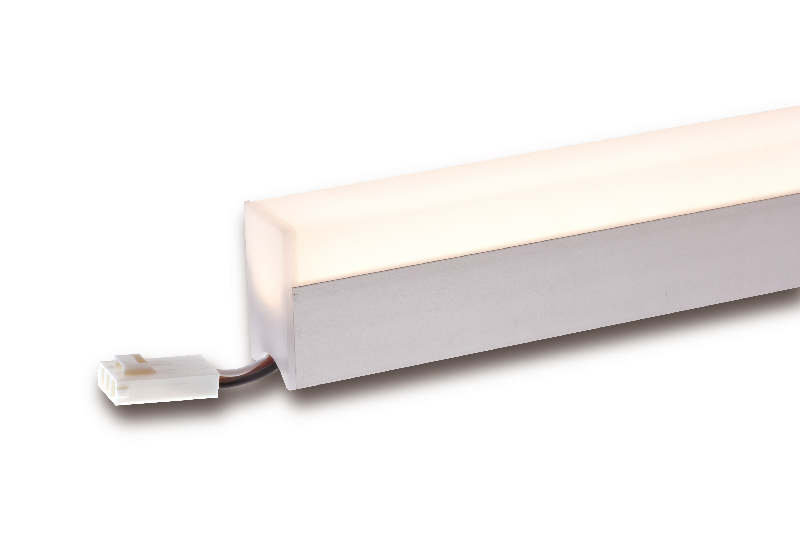

Luminaire Shape and Light
It features a sleek, modern design that is not only functional but also aesthetically pleasing. Its clean lines and refined finish make it a beautifully visible lighting element, enhancing the overall architectural and interior design while providing high-quality illumination.
-

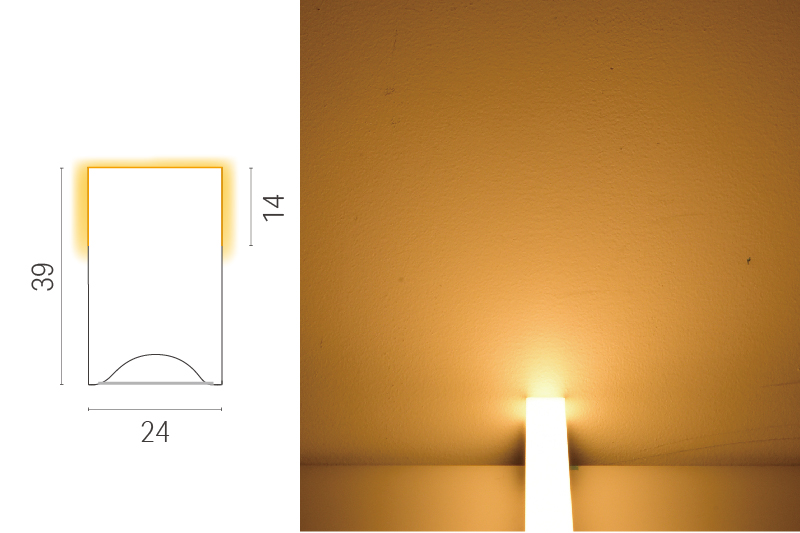

3 sided emitting
It features a 3-sided emitting design, ensuring wide, uniform light distribution for enhanced coverage and brightness. Its square-shaped profile provides consistent and homogeneous illumination, making it ideal for general lighting, architectural accents, and cove applications while maintaining a modern, sleek appearance.
-

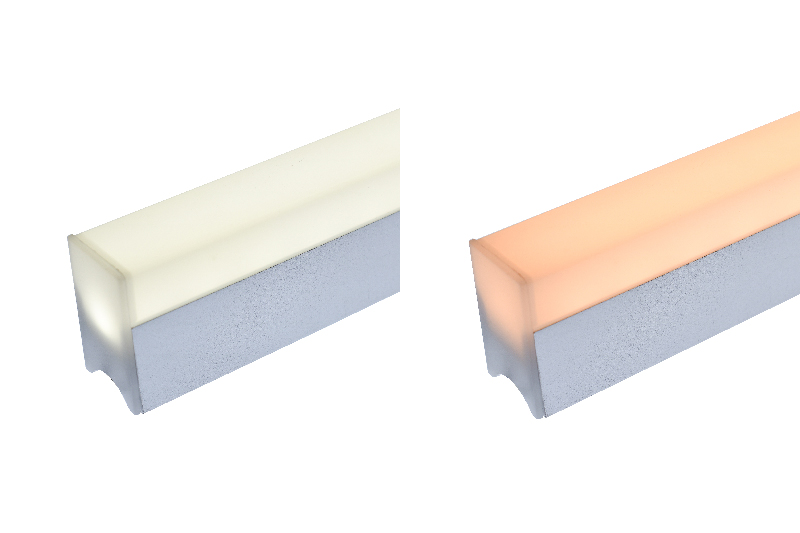

Dot-free light emitting surface
Its maintains a clean and uniform appearance even when illuminated in a single color out of 2 colors, ensuring consistent brightness and smooth light distribution without any dot. This enhances the aesthetic appeal of the fixture, making it ideal for architectural and ambient lighting applications where a refined and seamless lighting effect is desired.
-

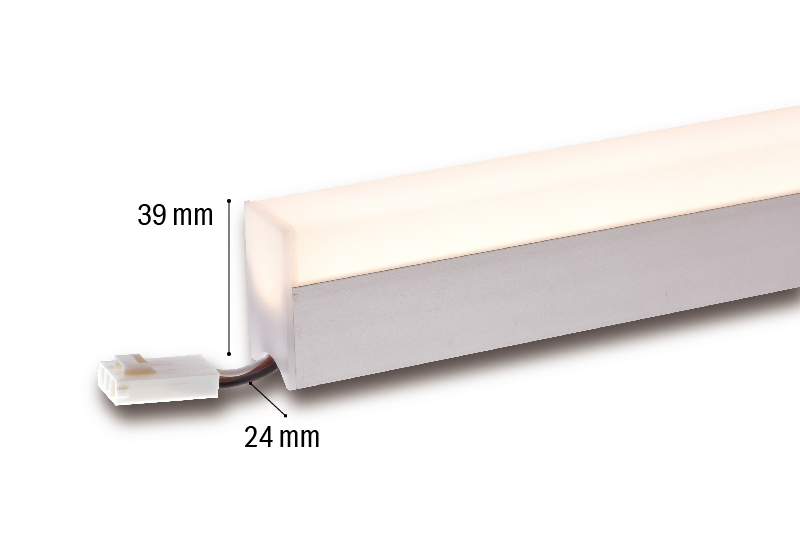

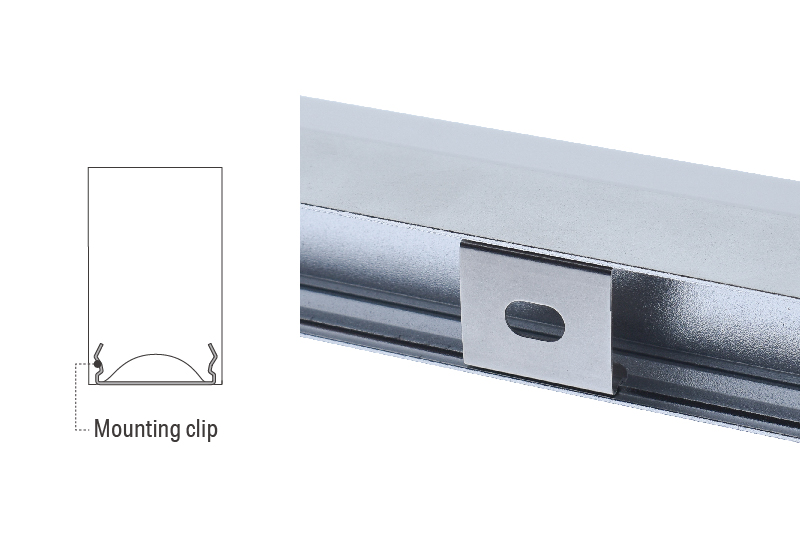

Accesorries - Clip
It features a 24mm*39mm leek design with hidden mounting parts, ensuring a clean and seamless appearance. By concealing brackets and hardware behind the fixture, it maintains a modern, unobtrusive look, making it ideal for architectural and decorative lighting applications.
SPECIFICATION OVERVIEW
Product length: up to 1.5 m at every 100 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 3 variations, 10.1 W/m, 21.5 W/m, 31.6 W/m
Lumen: 2700K - 5000K
10.8 W/m 653 lm/m @5000K, 1235 lm/m @3500K, 583 lm/m @2700K,
21.5 W/m 1376 lm/m @5000K, 2605 lm/m @3500K, 1229 lm/m @2700K,
31.6 W/m 1961 lm/m @5000K, 3712 lm/m @3500K, 1751 lm/m @2700K
Color Temperature : Free to select 2 CCTs from 9 CCTs, 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
