Luci SHIN silux
LSXY

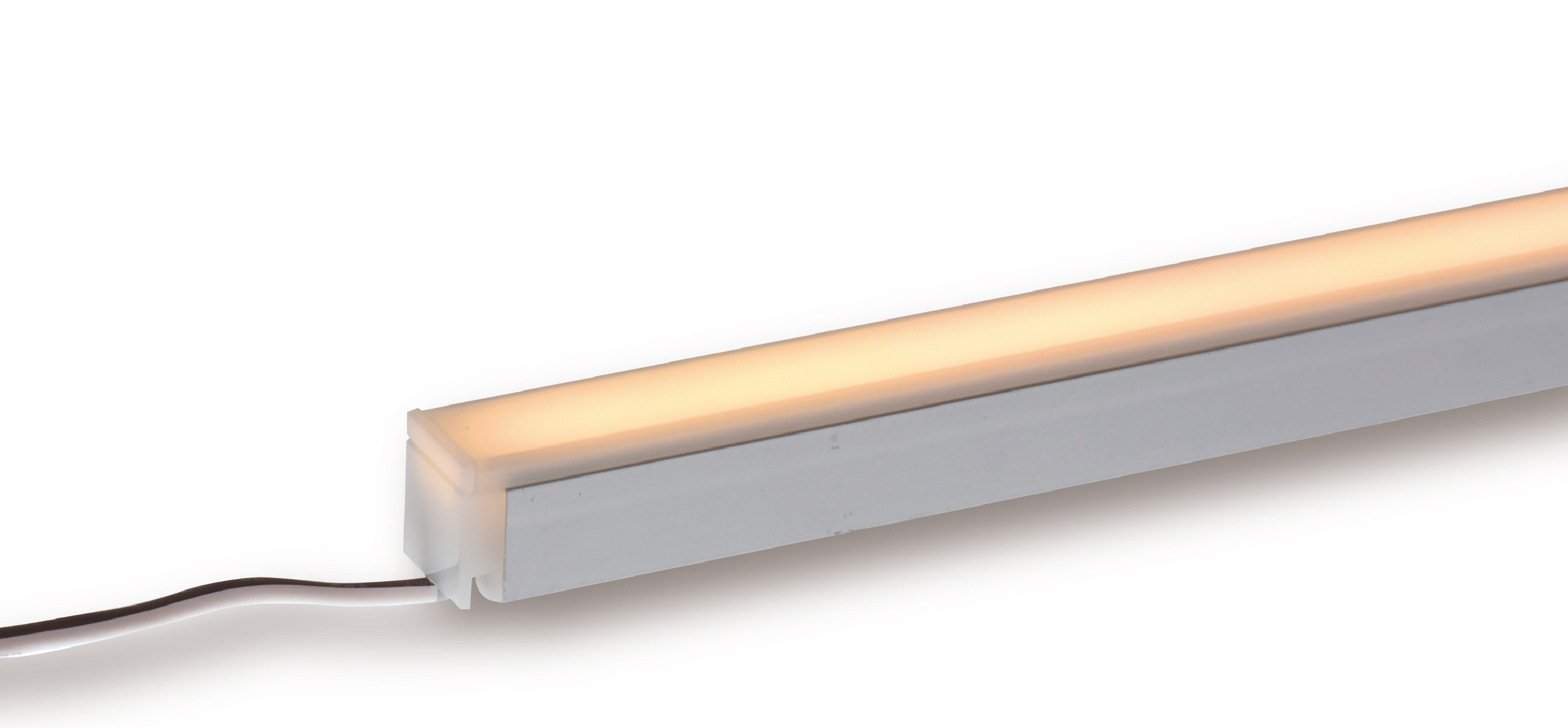

High efficacy LED series. Square-shaped small cross-section dot-free light for shelf
APPLICATION

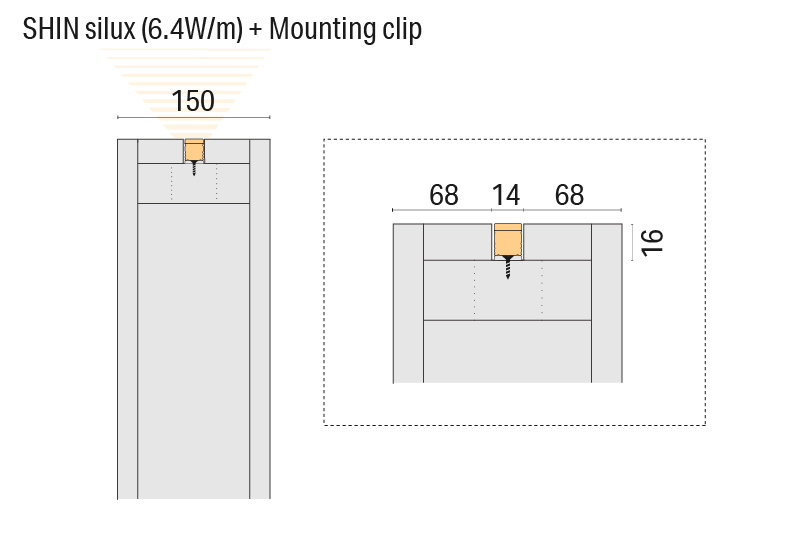

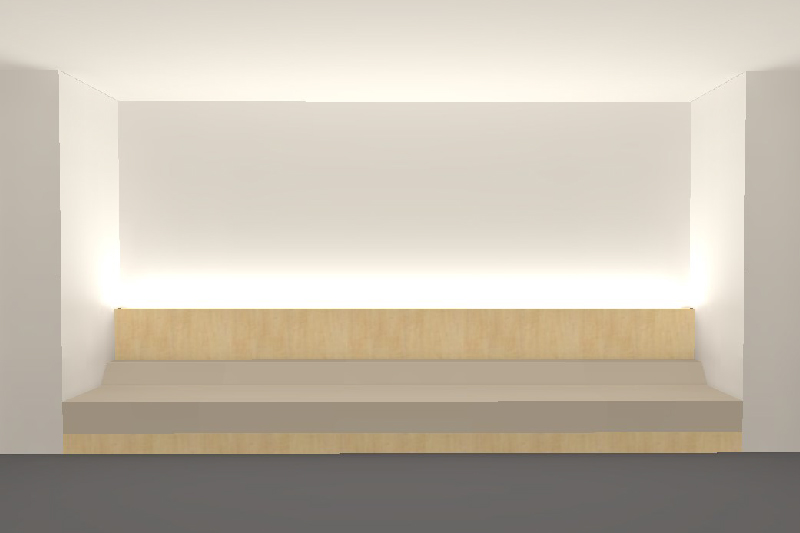

Back rest
It is designed for backrest lighting, providing soft, indirect illumination that enhances comfort and ambiance. Its 12mm * 14mm sleek and discreet design ensures seamless integration while delivering a gentle, glare-free glow for a relaxing atmosphere. Best suited for luxury lounges, hospitality settings and high-end residential spaces, it creates a warm, inviting ambiance, perfect for accent lighting in seating areas. There are variety of choise of mounting clips depending on the design oriented or easy intallation oriented

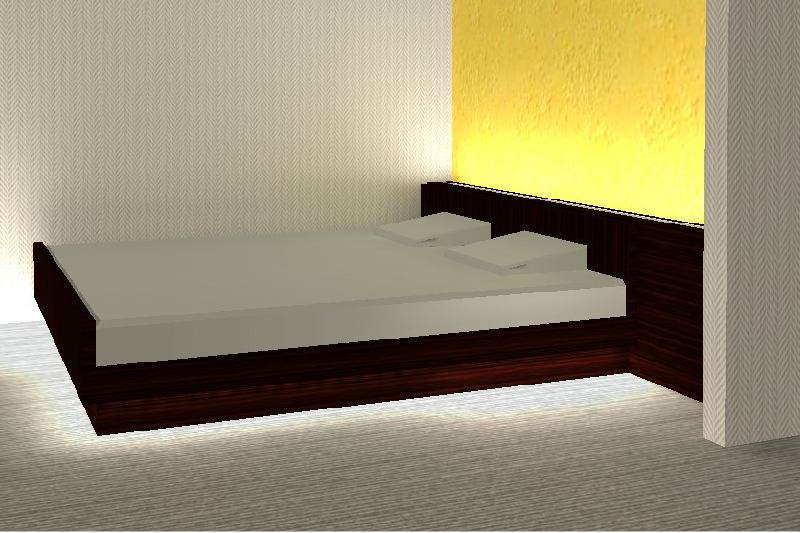

Headboard
It is designed for headboad lighting, offering soft, indirect illumination that enhances comfort and ambiance. Its 12mm * 14mm sleek, low-profile design ensures seamless integration while providing a gentle, glare-free glow, ideal for relaxation. Smaller size than profile with acrylic cover which save space for the hotel room and residential bed room. Best suited for luxury hotels, and high-end residential spaces, it creates a cozy and inviting atmosphere, perfect for accent lighting in resting areas.

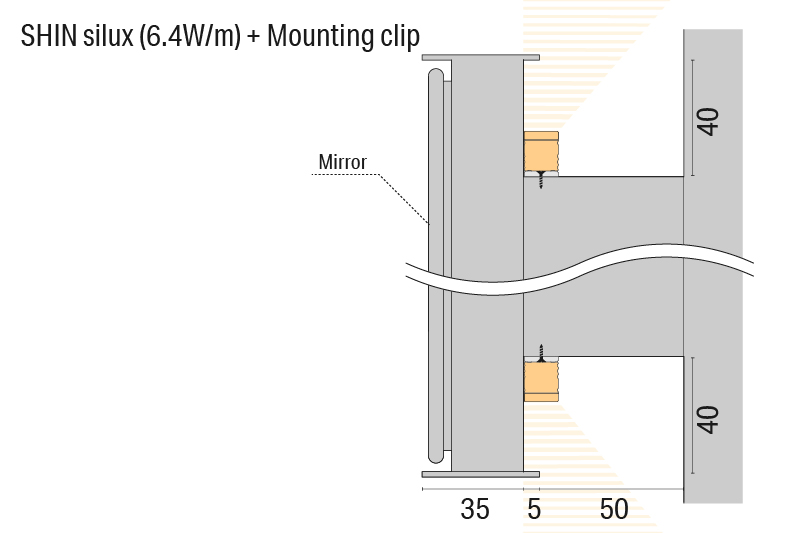

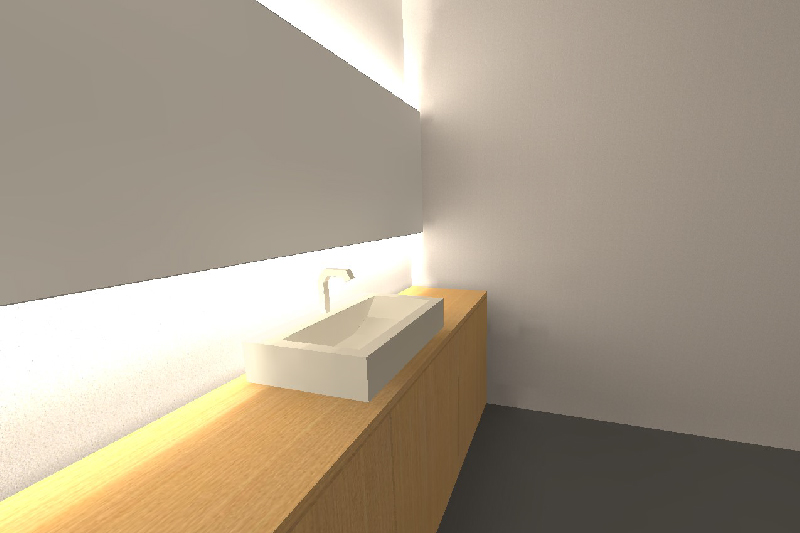

Mirror
It is designed for mirror lighting, providing soft, uniform illumination that enhances visibility and aesthetics. Its sleek, low-profile design ensures seamless integration, reducing glare while delivering a clear, natural light for reflection. Best suited for bathrooms, hotel suites, dressing rooms, and luxury retail spaces, Just nice brightness with 4W/m 320lm or 6W/m 490lm/m type, it creates an elegant and functional lighting solution, perfect for makeup, grooming, and accent lighting around mirrors.

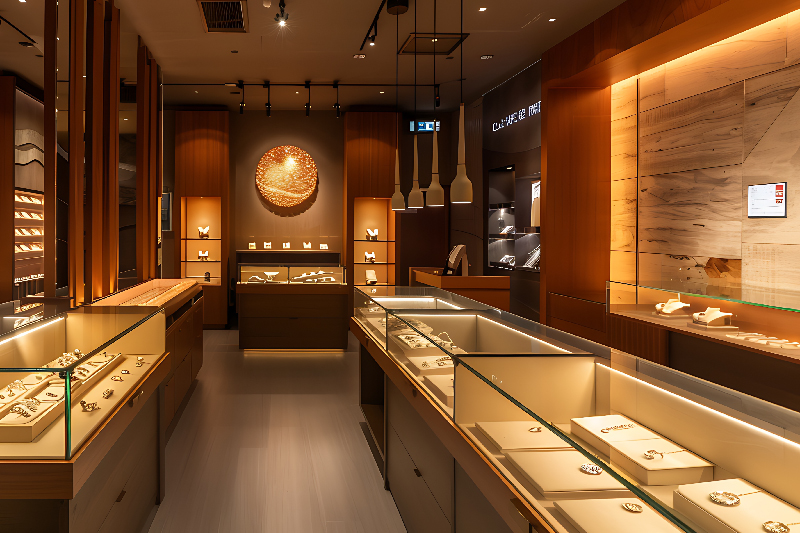

Showcase
It is designed for showcase lighting, providing precise, uniform illumination that enhances product visibility and presentation. Its 12mm*14mm sleek, low-profile design allows for seamless integration, delivering glare-free, high-quality lighting to highlight displayed items. Best suited for retail displays, museums, galleries, and luxury boutiques, it ensures clarity and depth, making it perfect for accentuating fine details in showcase areas while maintaining a sophisticated and modern aesthetic. Available variety of mounting clips depending on your needs which design oriented or easy installation including magnetic option.

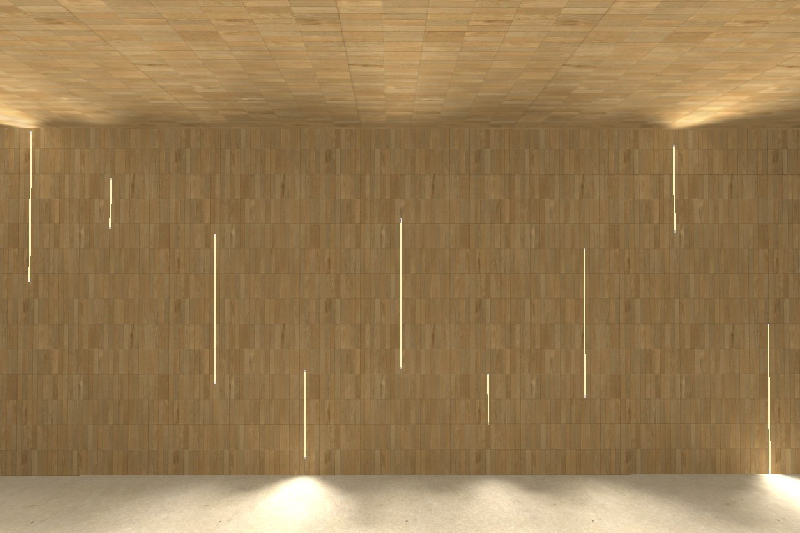

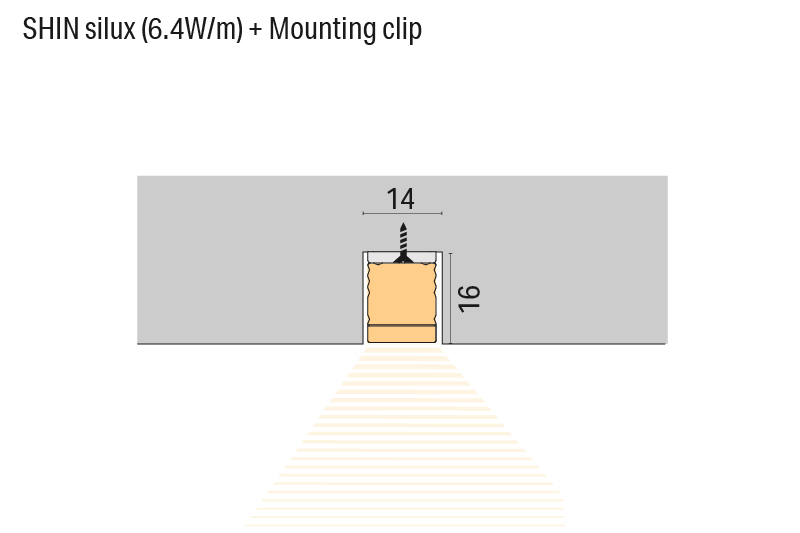

Wall recessed
It is ideal for wall recessed lighting, providing subtle, uniform illumination that enhances architectural depth and ambiance. Its sleek, low-profile design allows for seamless integration, creating a clean and modern aesthetic while minimizing glare. Best suited for hallways, hotel lobbies, residential interiors, and commercial spaces with 2W/m 150lm/m or 4W/m 320lm/m @3000K, it adds a soft accent glow which is not to harsh when be seen directly, perfect for enhancing textures, guiding pathways, and creating atmospheric lighting effects.

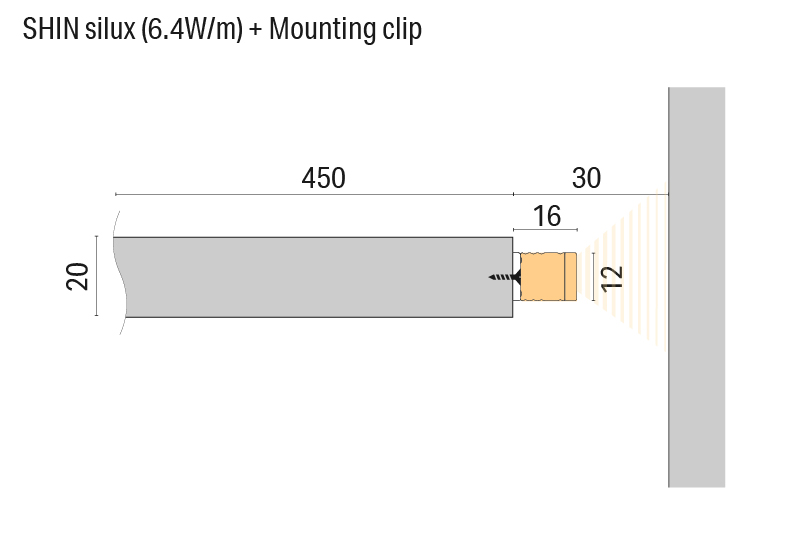

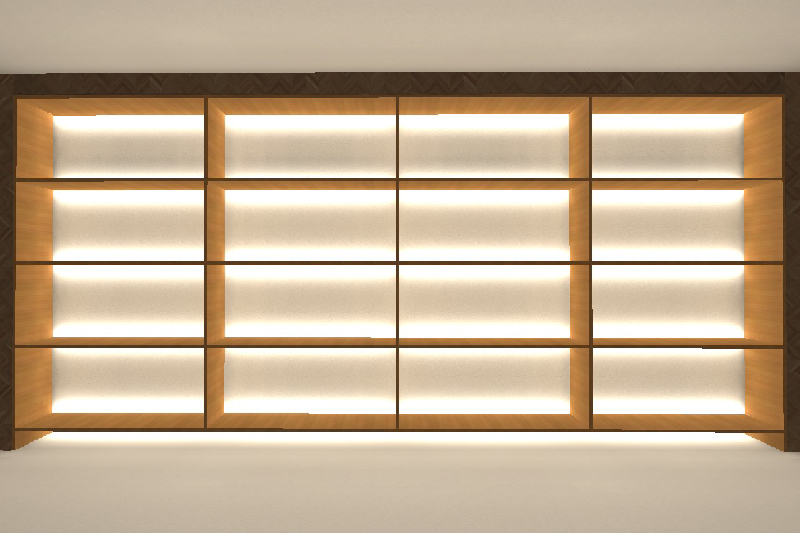

Shelf back
It is designed for shelf back lighting, providing soft, uniform illumination that enhances depth and visibility while creating a modern, ambient effect. Its 12mm*14mm slim, discreet design allows for seamless integration, ensuring a clean and sophisticated look without glare. Best suited for retail displays, luxury boutiques, libraries, and residential shelving, it highlights outline of products, books, or decorative items, adding depth and elegance to any shelving space.
In Shelf grazing
It is ideal for shelf grazing lighting, providing soft, directional illumination that enhances textures and materials on shelving surfaces. Its slim, discreet design allows for seamless integration, creating a sophisticated and modern look while minimizing glare. Best suited for retail displays, museums, high-end boutiques, and residential shelving, it highlights outline of products, artifacts, or decorative elements, adding depth and visual appeal to shelving spaces.
DESIGN & INSTALLATION TIPS

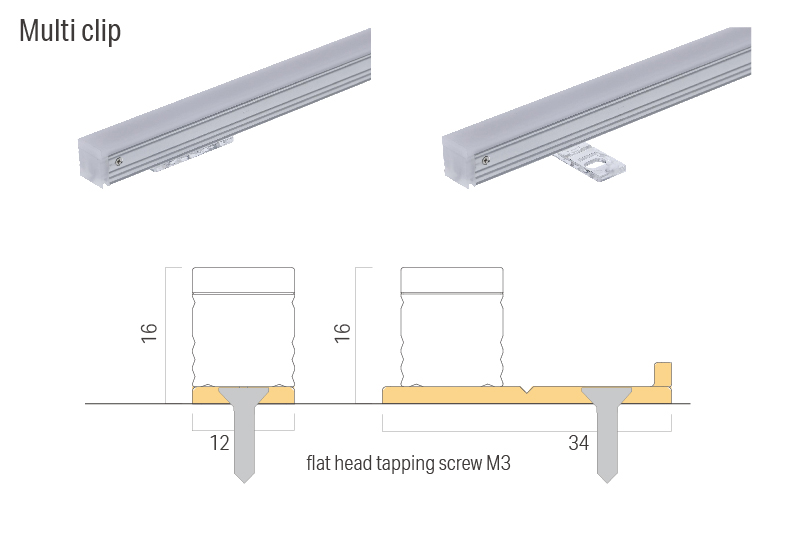

Mounting Accessories
A wide range of mounting accessories is available, providing flexibility and ease of installation for various applications.
A. Multiclip - smallest mounting clip, only 2mm heights, invisible clip multiple way of installation 1. screw side of the fixture 2. behind the fixure 3. Vertical installation
B. Outer clip - easy installation clip
Holding fixture securely

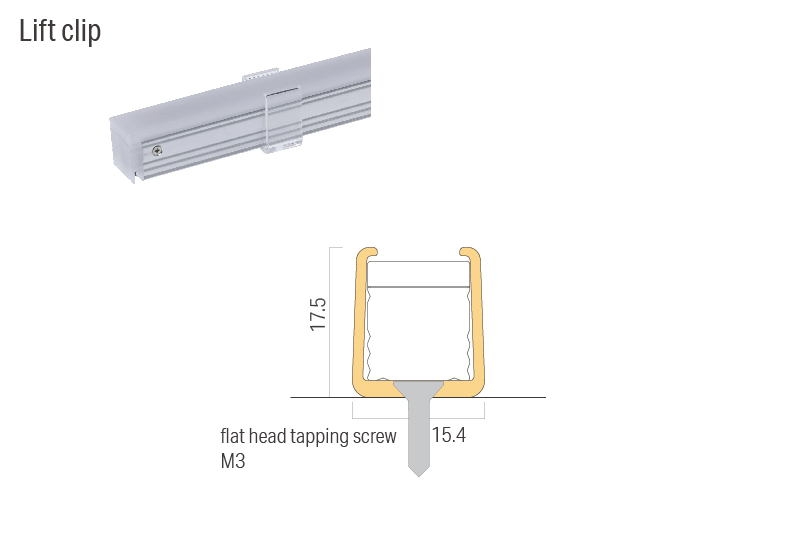

C. Lift clip - able to conceal the connectors
lift up the fitting to make a space to conceal connectors, suitable for the installation not to show the connectors
These options ensure secure and seamless integration into different surfaces, allowing for customized positioning and optimal lighting effects in architectural, retail, and residential settings.

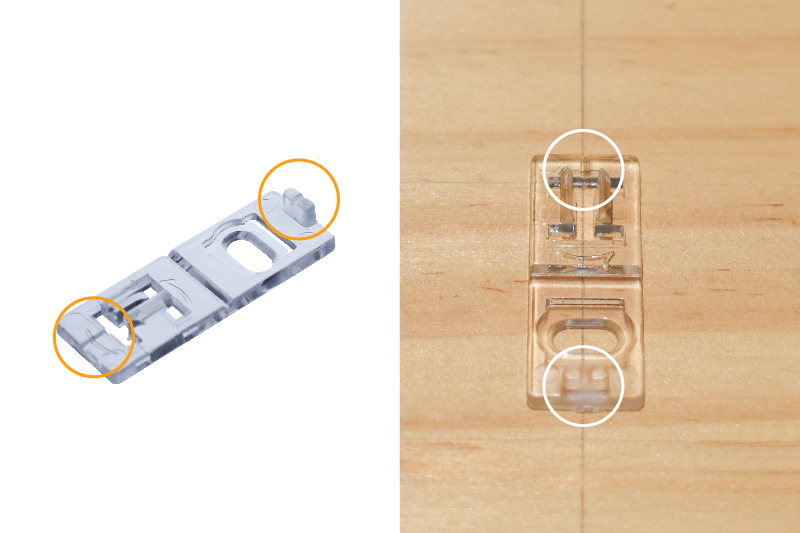

Center Mark
The multi-clip allows for easy installation as there is a center mark to align the chalk line. This simplifies the mounting process, ensuring a secure and seamless setup while maintaining a clean and professional appearance in architectural and interior lighting applications.
FEATURE
-

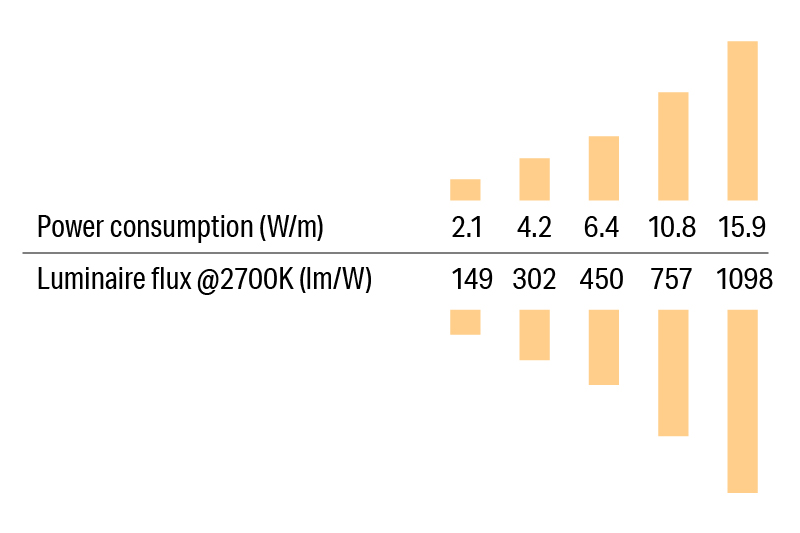

Wattage Variation
It now includes five different wattage variations, offering more flexibility in brightness and energy consumption. This expanded range allows users to compare different wattages and select the ideal option based on illumination needs, making it suitable for various architectural, commercial, and residential applications.
-

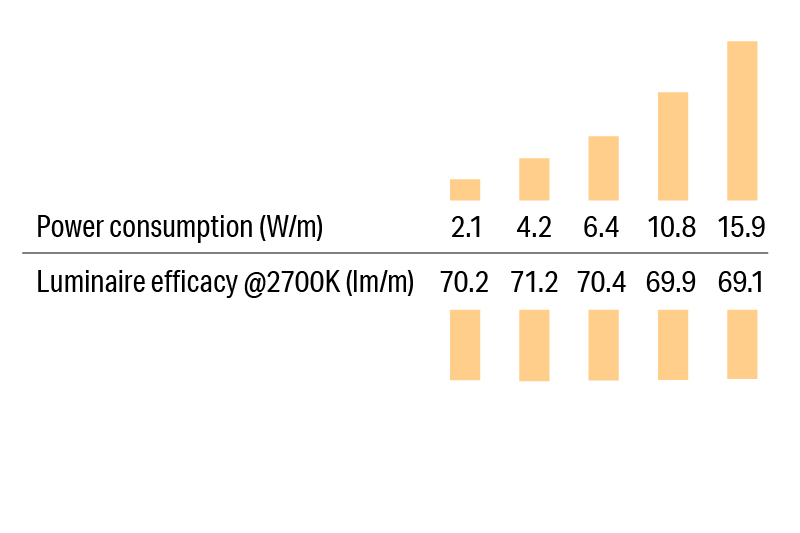

Luminous Efficacy by Power Level
With the high-efficiency upgrade in LSXY, as the latest version offers improved performance, better energy savings, and higher brightness. The enhanced design ensures optimal lumen output per watt, making it a more advanced and efficient lighting solution for various applications.
-

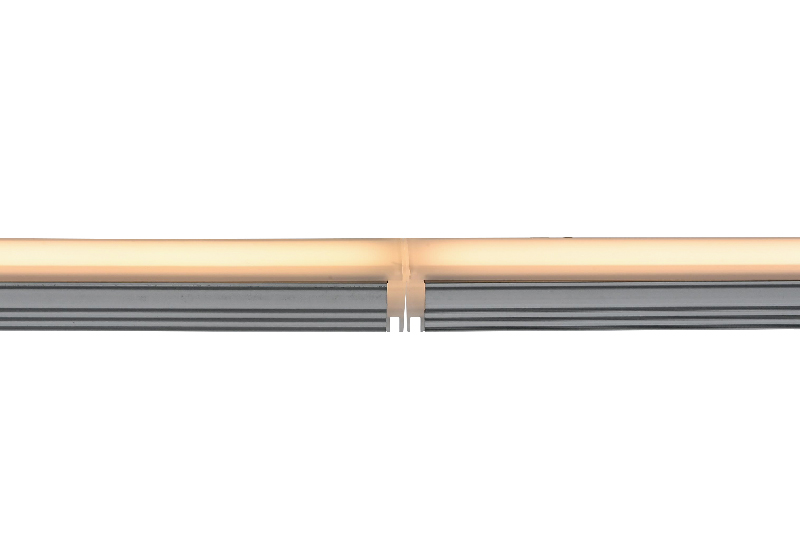

Luminaire Shape and Light
It feature ensures minimal dark spots by using transparent end caps, allowing for a seamless and continuous lighting effect. Unlike commercial profiles with opaque end caps that create visible gaps in illumination, this design provides a smooth, evenly lit joint, enhancing the overall aesthetic and uniformity in architectural and commercial lighting applications.
-

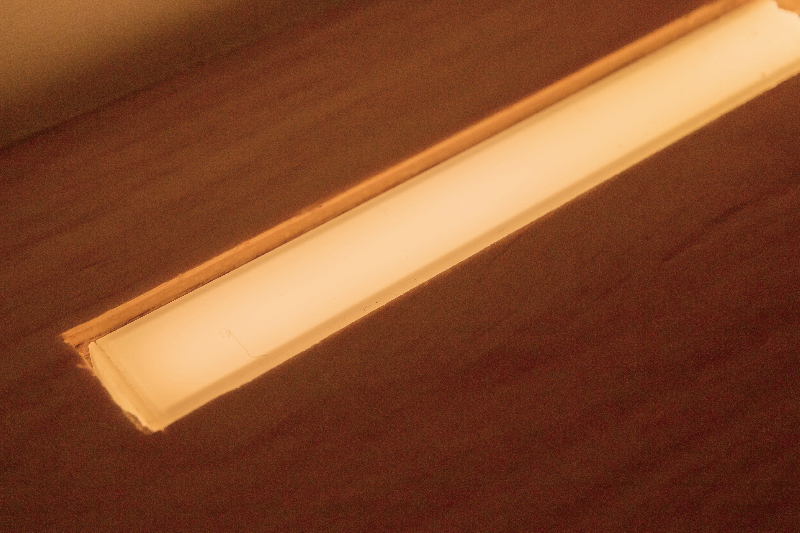

Lighting that suits your lighting application
It features a square-shaped design, making it easy to embed into fixtures for a seamless and professional installation. This shape ensures stable mounting and allows for clean integration into architectural, retail, and commercial lighting applications, providing uniform and aesthetically pleasing illumination.
-

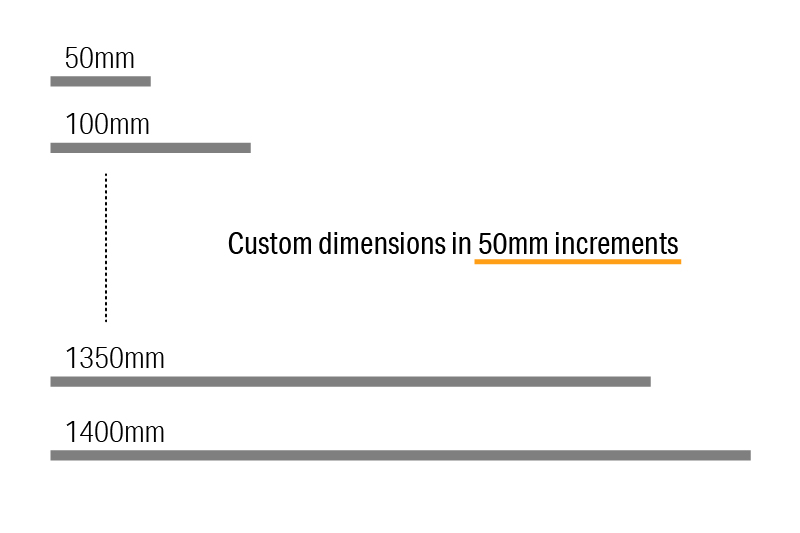

Length variation
It feature offers custom dimensions in 50mm increments, up to 1.4m, allowing for precise length customization. This makes it easy to calculate and fit the luminaire into various installations, ensuring seamless integration in architectural, retail, and commercial lighting applications.
-
Compact Size
It feature highlights the luminaire’s small dimensions of W12 x H14mm, making it ideal for discreet installations. Its slim profile allows for seamless integration into architectural, retail, and residential applications, providing efficient lighting without compromising aesthetics.
-

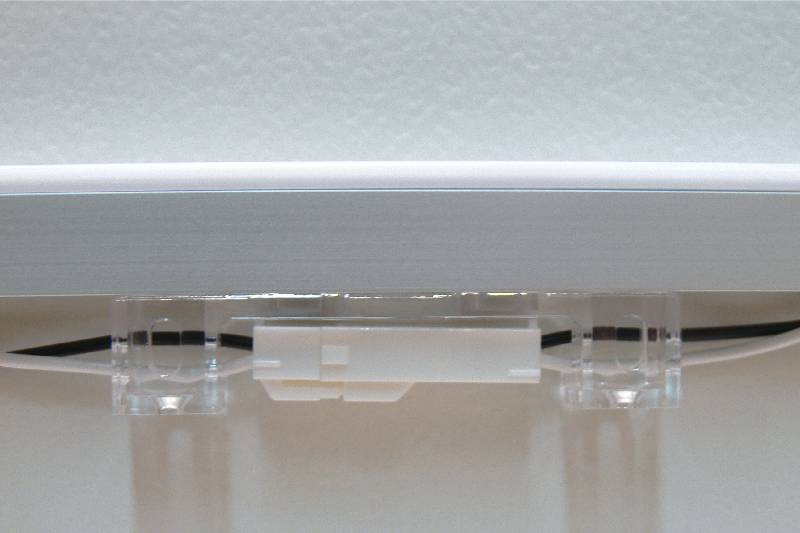

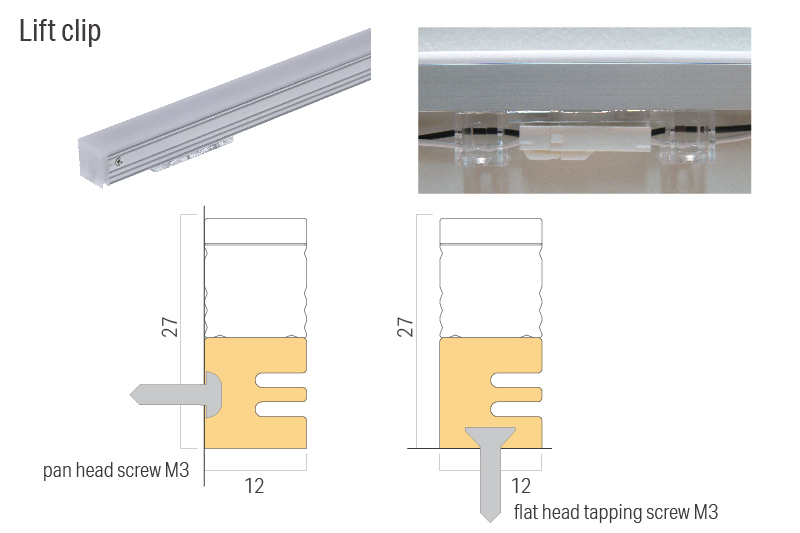

Accesorries - Lift clip
Lift clip is for recessed or side mounting, ensuring secure and easy installation. The connectors fit inside the clip, maintaining a clean look while allowing for easy attachment and adjustment, making it ideal for architectural and commercial lighting applications.
-

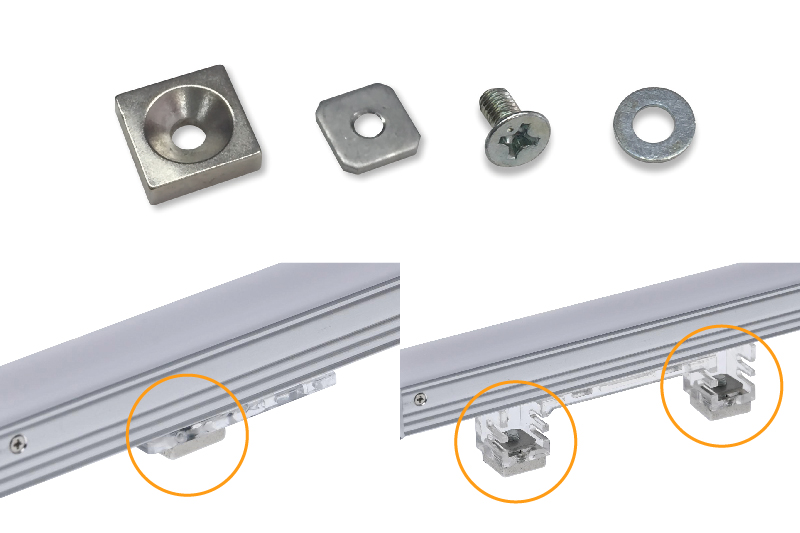

Accesorries - Magnet set
Magnetic mounting option allows for easy attachment and detachment. This feature simplifies installation and maintenance, making it ideal for recessed or surface-mounted applications in architectural and commercial lighting.
-

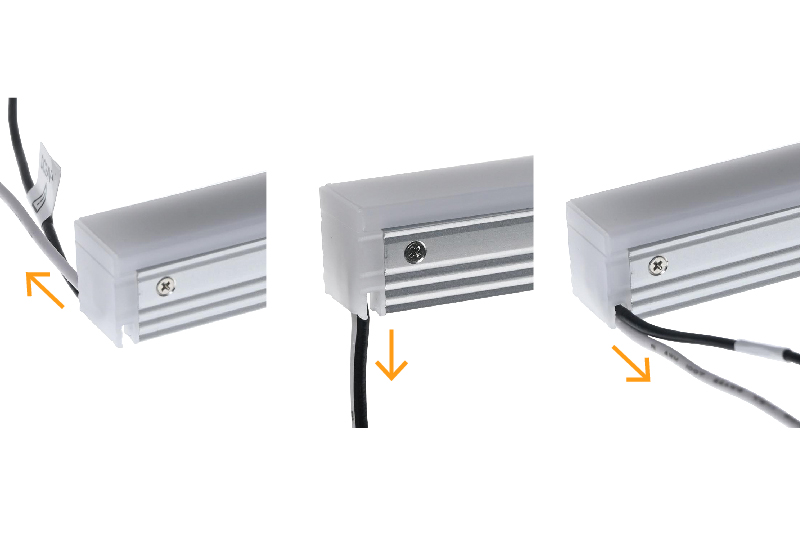

Cable feed
It design allows for three-directional cable exit, making cable management easier and more flexible. This enables placement behind or to the side of the fixture, ensuring a clean and organized installation in architectural and commercial lighting applications.
SPECIFICATION OVERVIEW
Product length: up to 1.4 m at every 50 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 5 variations, 2.1 W/m, 4.2 W/m, 6.4 W/m, 10.8 W/m, 15.9 W/m
Lumen: 149 to 1098 lm/m @2700K
Color Temperature : 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
