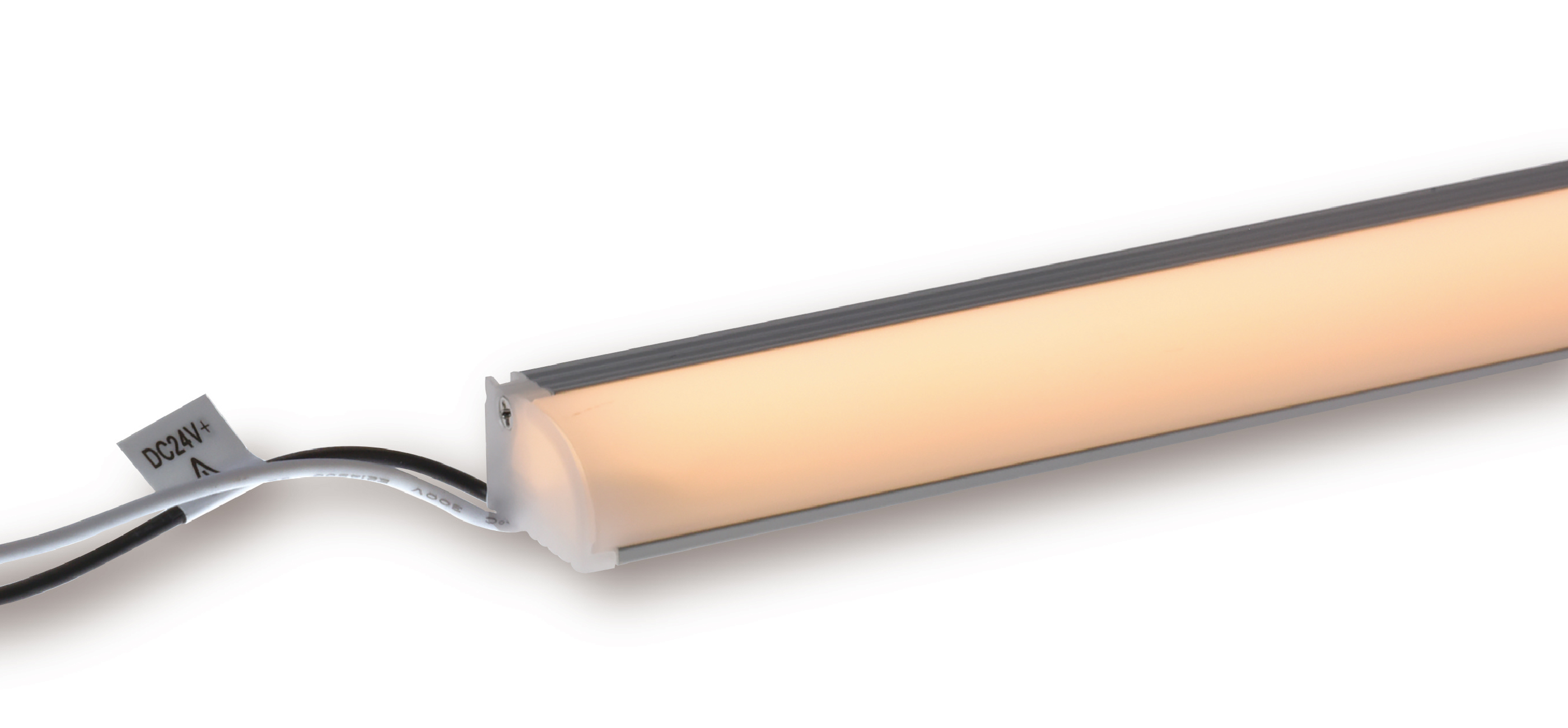

Luci SHIN silux wide
LSXWY
High efficacy LED series. Quarter-circular-shaped light with wide beam spread for shelf or cove light
APPLICATION

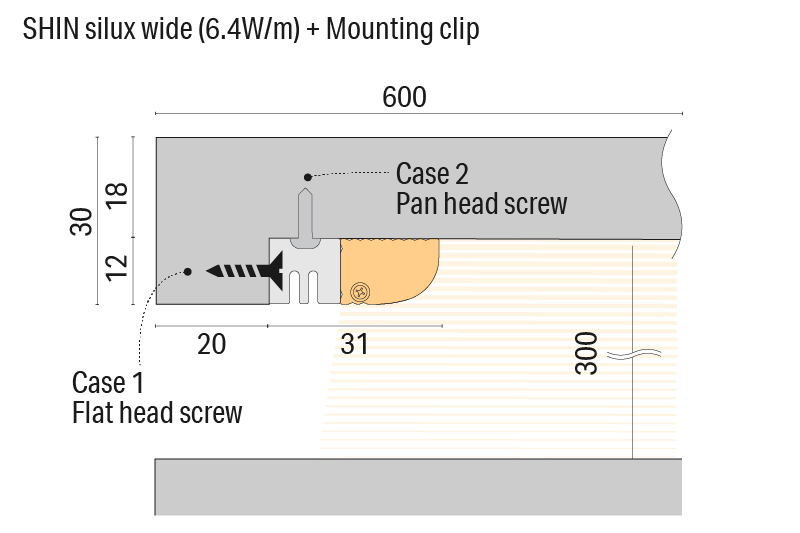

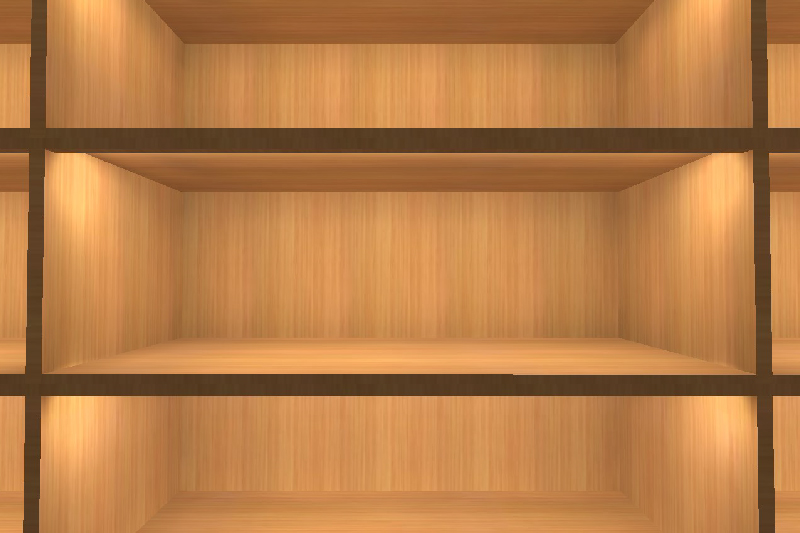

Shelf
It is designed for shelf lighting, providing wide, uniform illumination that enhances product visibility and display aesthetics. Its sleek, low-profile design ensures seamless integration, delivering soft, glare-free lighting for an elegant presentation.
When using lift clip, it allows to have 2 ways of screwing to fix.
Best suited for retail displays, luxury boutiques, museums, and residential shelving, it highlights merchandise, decorative items, or books, creating a sophisticated and visually appealing display.

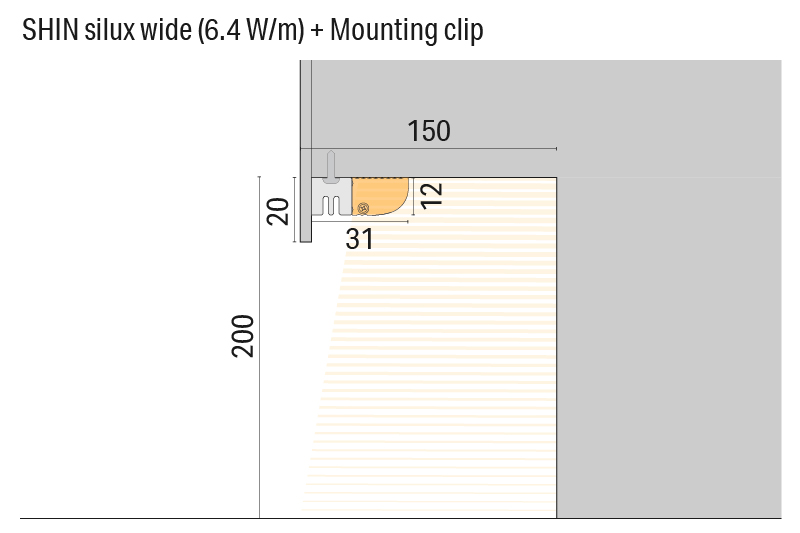

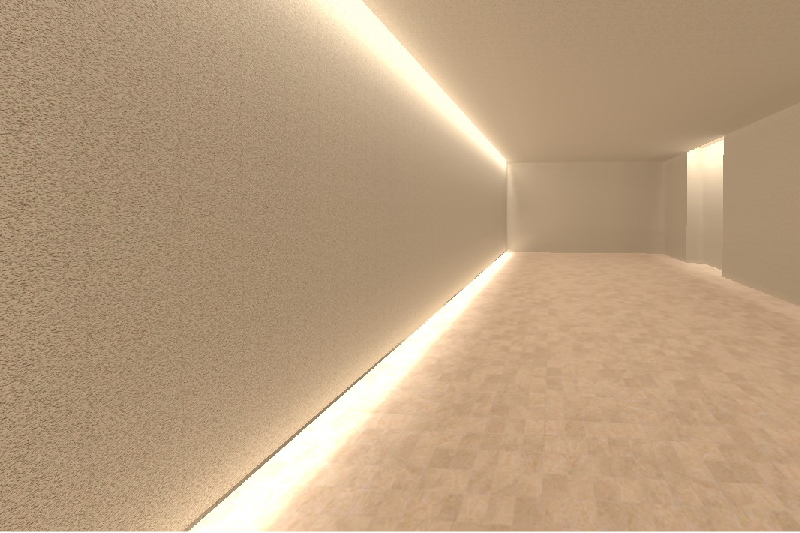

Skirting / Foot light
It is ideal for skirting and foot lighting, providing soft, low-level illumination for enhanced safety and ambiance. Its wide light distribution ensures even coverage, reducing glare while maintaining a sleek and discreet appearance.
Best suited for hallways, staircases, hotel lobbies, cinemas, and residential interiors, it enhances wayfinding, architectural aesthetics, and ambient lighting, creating a refined and modern atmosphere.

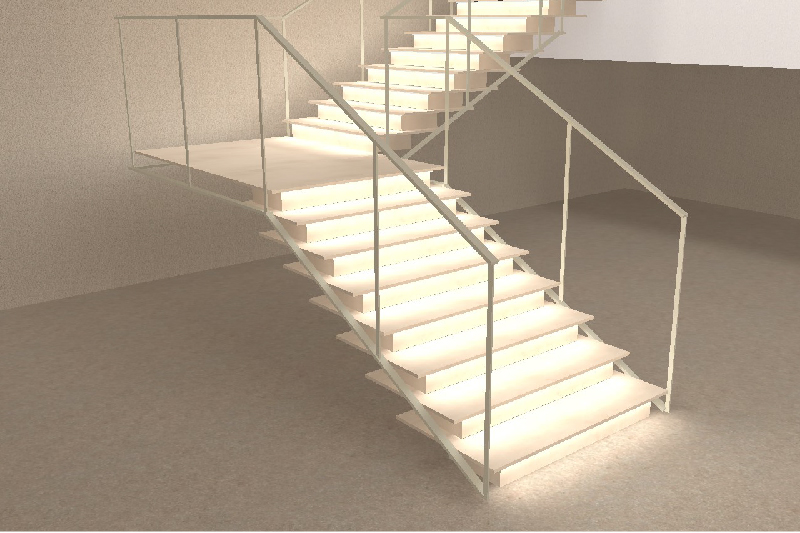

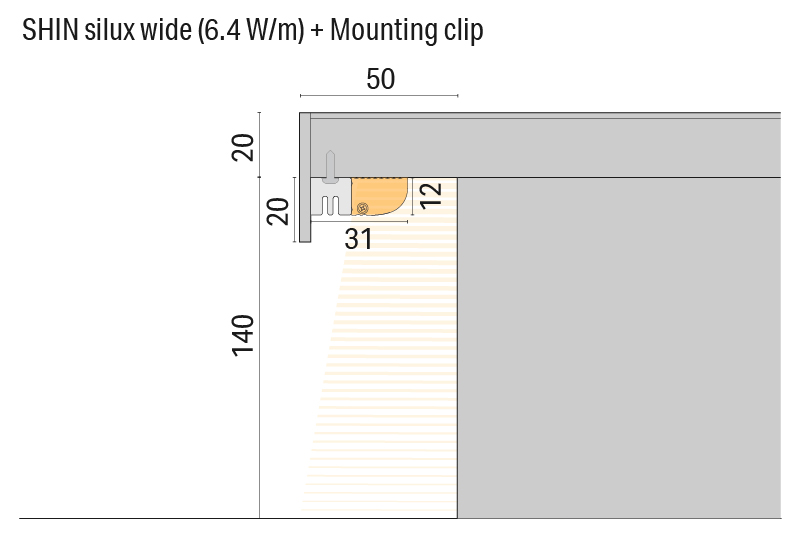

Step light
It is designed for step lighting, providing soft, uniform illumination to enhance safety and aesthetics. Its wide light distribution ensures even coverage while maintaining a low-profile, modern design.
Best suited for staircases in hotels, theaters, residential spaces, and commercial buildings, it improves visibility, prevents glare, and adds a refined architectural touch to any setting.

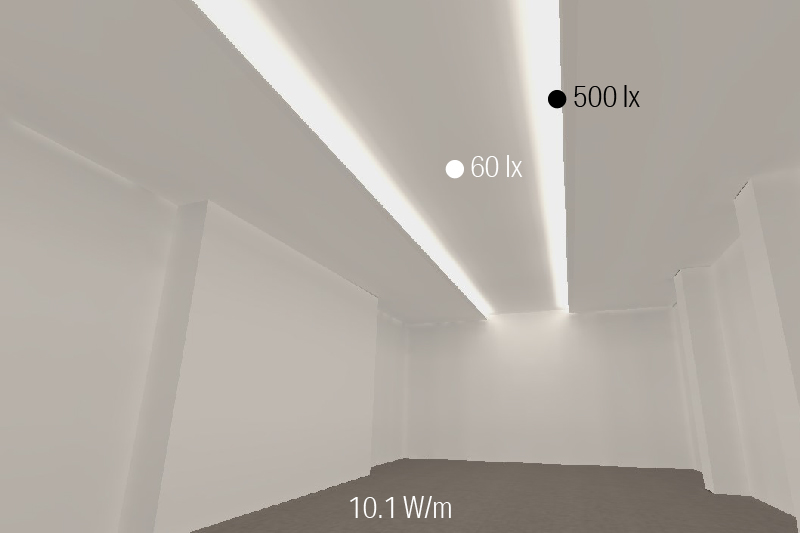

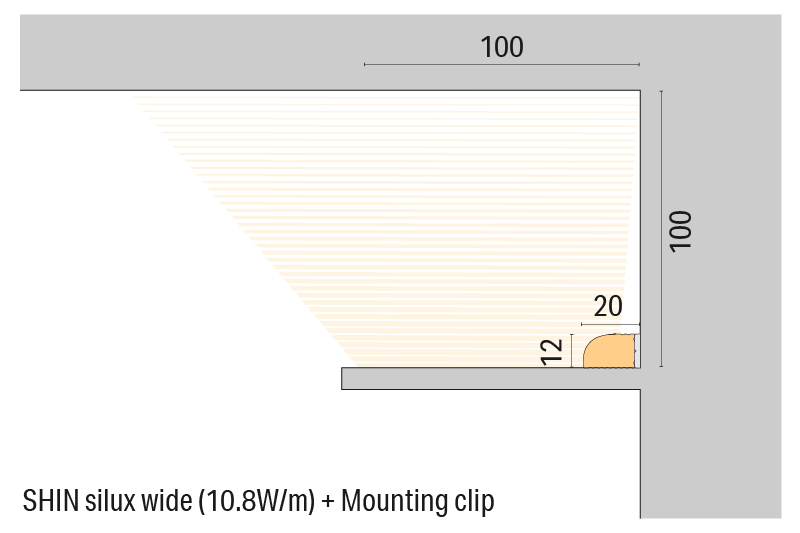

Ceiling cove
It is designed for ceiling cove lighting, providing soft, uniform indirect illumination that enhances architectural depth and ambiance. Its wide light distribution ensures smooth, glare-free lighting, creating a refined and modern aesthetic.Best suited for luxury residences, hotels, lobbies, theaters, and retail spaces especially for grossy materials to avoid refrection of light fixture, it adds depth and warmth, making it ideal for accent and ambient lighting in elegant interiors.
DESIGN & INSTALLATION TIPS

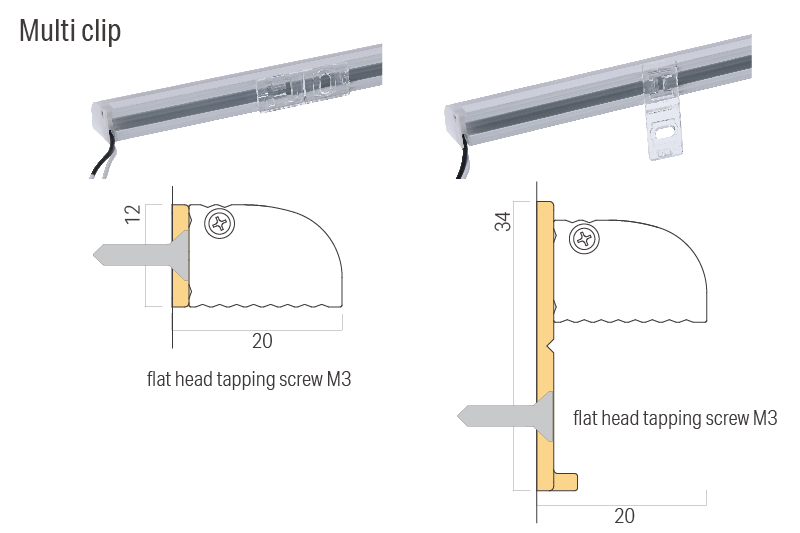

Mounting Options
Various accessories are available to accommodate different screw directions, ensuring flexible and secure installation.
A. Multi clip
1.Screw back of the fixture and conceal the connector
2. Screw back-behind the fixture and conceal the connector

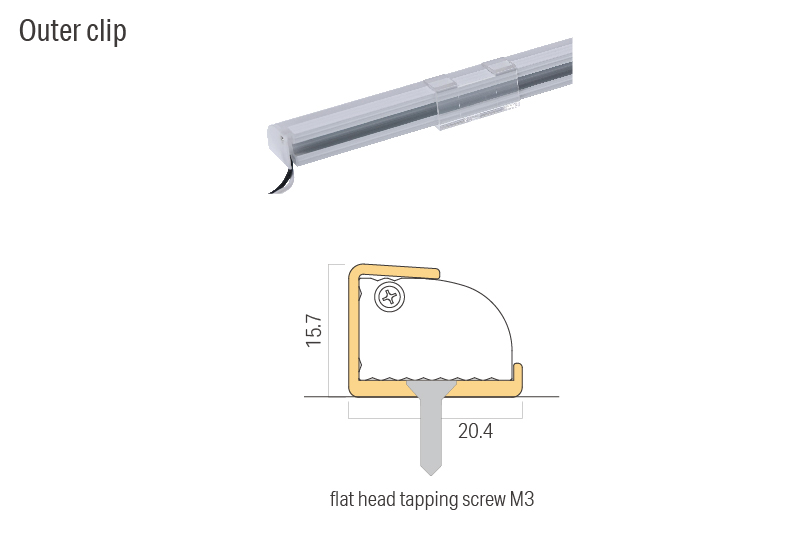

B. Outer clip
The screw secured behind the fixture with visible clip with the connector visible from the outside

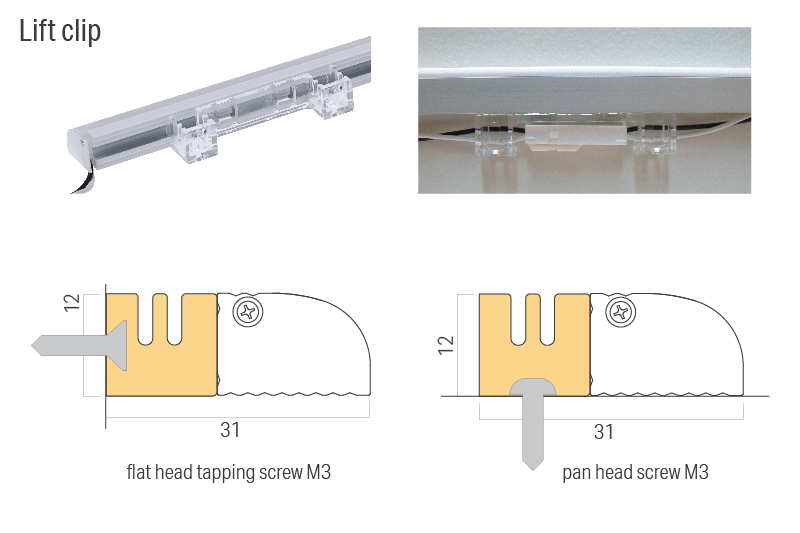

C. Lift clip
1. Screw back of the fixture, connectors need to be hide
2. Attach multi-clip on the fitting and rotate 90 degree and screw on the wall suitable for cove lighting
This allows for customized mounting options, making it easier to adapt to various surfaces and installation requirements in architectural and commercial lighting applications.

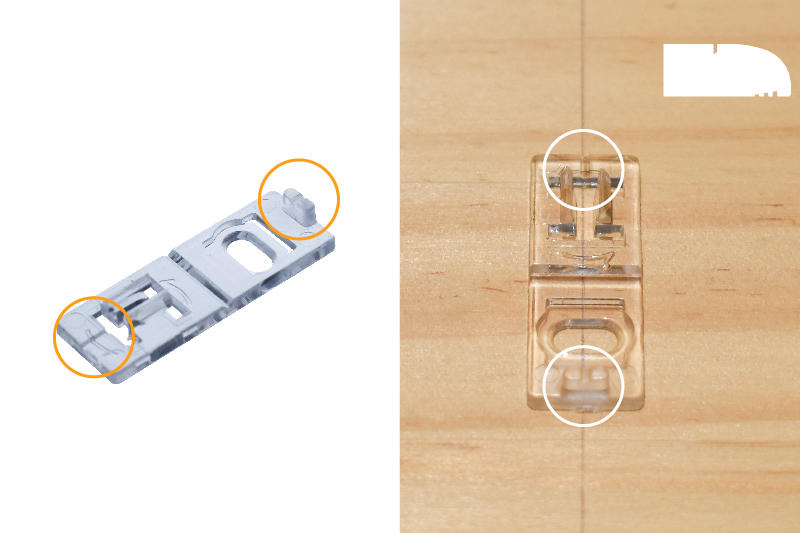

Center Mark
The multi-clip allows for easy installation as there is a center mark to align the chalk line. This simplifies the mounting process, ensuring a secure and seamless setup while maintaining a clean and professional appearance in architectural and interior lighting applications.
FEATURE
-

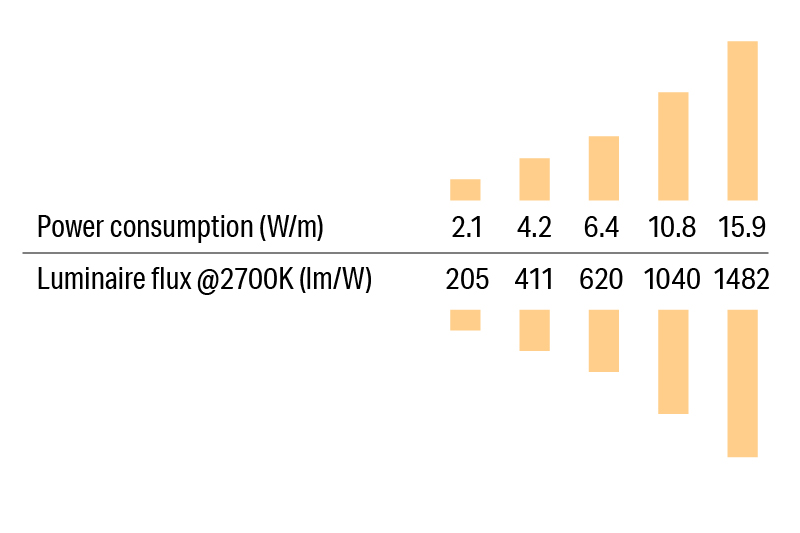

Wattage list
It offers five different wattage variations, providing flexibility in brightness and energy consumption. This allows users to choose the optimal wattage based on their lighting needs. A comparison with other wattage options helps in selecting the most efficient and suitable illumination for architectural, commercial, and residential applications.
-

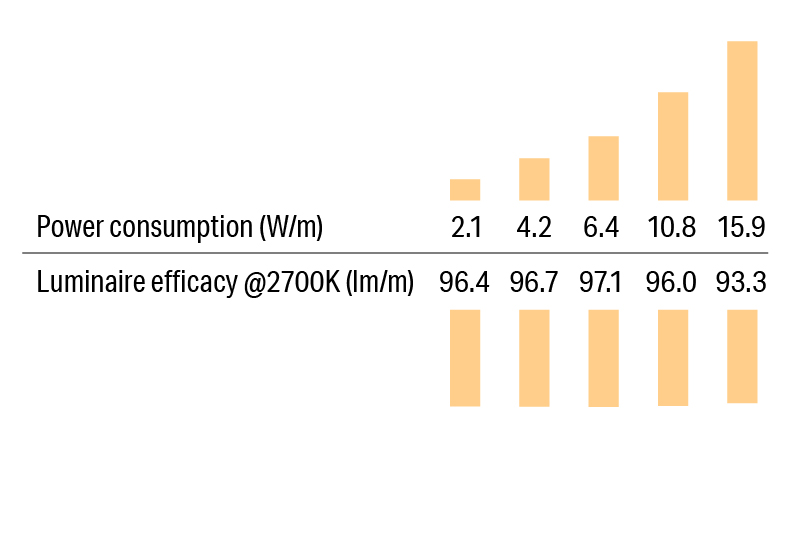

Luminous Efficacy by Power Level
It update features a low wattage, high lumen LED series, providing greater brightness with reduced energy consumption. This enhancement improves efficiency and performance, making it ideal for sustainable and cost-effective lighting solutions in architectural, commercial, and residential applications.
-
Lamp Shape and Light
It features a crescent shape, making it ideal for shelf display lighting. This design allows light to spread both downward and backward, providing wide, even illumination that enhances product visibility and aesthetics in retail, museum, and showcase applications.
-
The crescent shape makes light go in diagonals
It features a quarter-circle cross-section, making it ideal for cove and shelf lighting. Its half-moon shape affects light distribution by tilting the illumination, allowing for wide and efficient coverage when shining on a wall. This design enhances ambient lighting while ensuring smooth, uniform brightness in architectural and display applications.
-

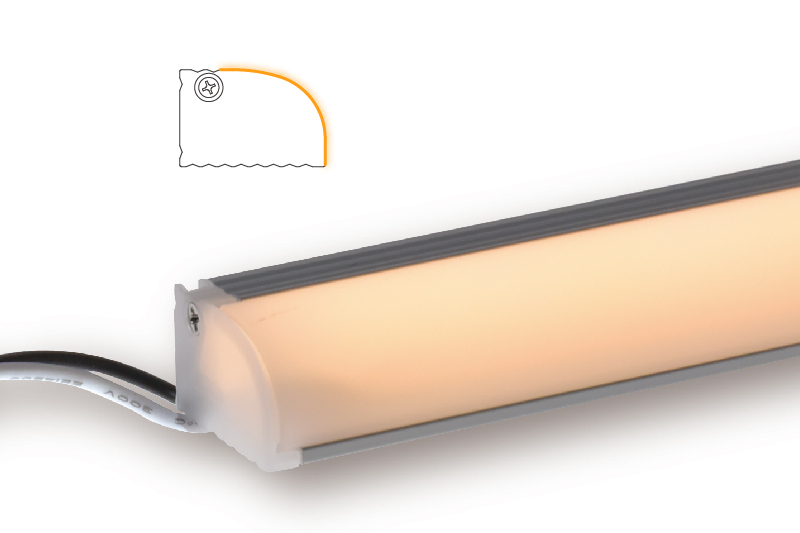

Luminaire Shape and Light
It features a half-moon shape that provides smooth, uniform illumination with no visible LED dots. Its compact design makes it discreet and easy to integrate, with fewer competing products offering similar aesthetics and performance. This makes it ideal for cove lighting, shelf displays, and architectural applications requiring seamless, dot-free lighting.
-

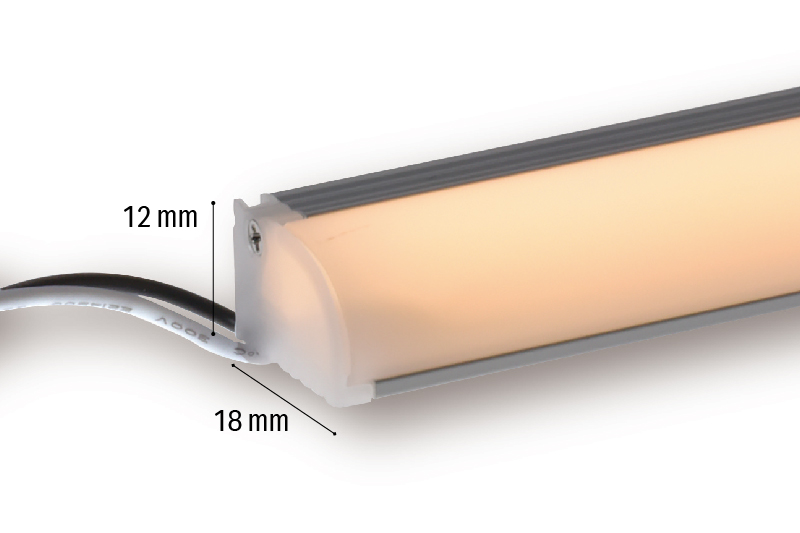

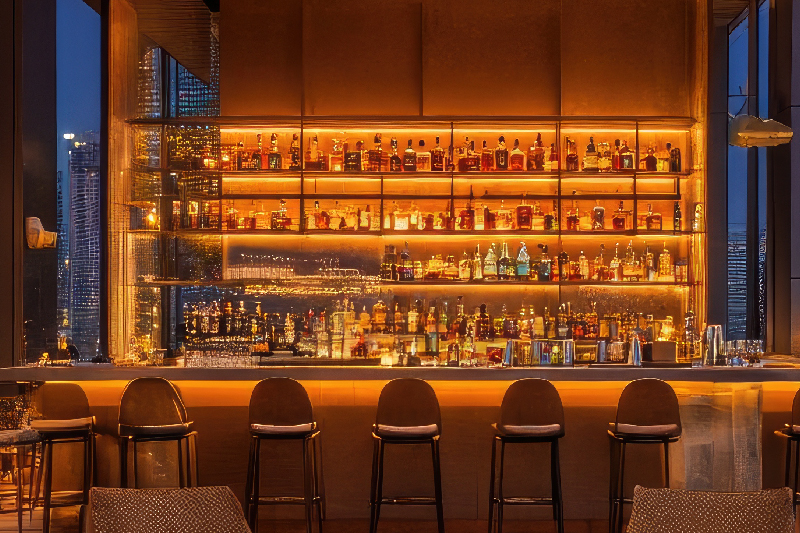

Compact Size
It feature highlights its slim dimensions of W18 x H12mm, making it easy to integrate into tight spaces. Its small form factor allows for discreet installation while maintaining efficient and uniform illumination, making it ideal for cove lighting, shelving, and architectural applications.
SPECIFICATION OVERVIEW
Product length: up to 1.4 m at every 50 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 5 variations, 2.1 W/m, 4.2 W/m, 6.4 W/m, 10.8 W/m, 15.9 W/m
Lumen: 205 to 1482 lm/m @2700K
Color Temperature : 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
