Luci SHIN RECTA
LREY

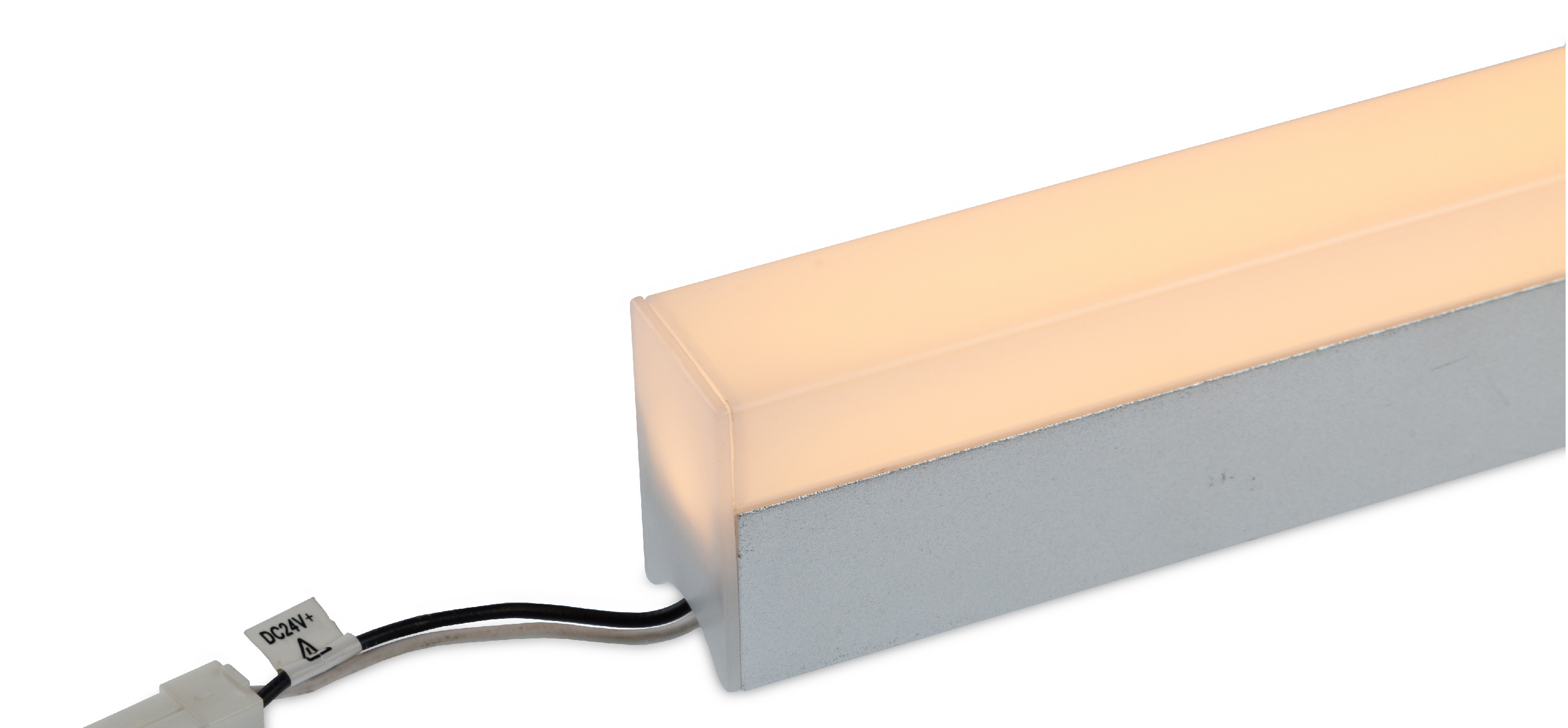

High efficacy LED series. Square-shaped of three surface emission with high brightness, dotfree

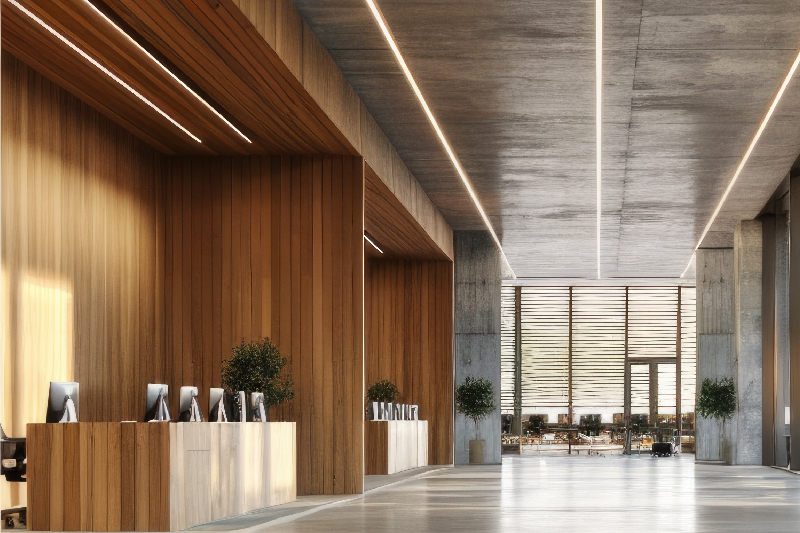

APPLICATION
Ceiling surface mounted
It is a ceiling surface-mounted luminaire designed for clean, uniform illumination with a sleek and modern design which mouting clips and cables are concealed. Its high-efficiency output and precise light distribution make it ideal for direct ceiling lighting in various applications. Best suited for commercial offices, retail stores, hospitality spaces, and residential interiors, it provides functional yet stylish illumination for general lighting, accent lighting, and task lighting while maintaining a minimalist aesthetic.
Ceiling cove
It is designed for ceiling cove lighting, delivering smooth, indirect illumination that enhances architectural aesthetics. Its high-efficiency 10W-30W/m output and wide light distribution create a soft, put power ambient glow up to 1100 - 3500lm/m, eliminating harsh shadows and glare. Best suited for luxury residences, hotels, commercial spaces, lobbies, and retail environments, it provides elegant and uniform cove lighting, enhancing ambiance while maintaining a clean, modern aesthetic.
DESIGN & INSTALLATION TIPS
Slim and sleek, with an elegant glow
The simulation of general lighting demonstrates how different wattage variations impact brightness and light distribution. With three wattage options available, users can choose the most suitable output based on space size, lighting intensity needs, and energy efficiency.
Higher wattages provide brighter illumination for large areas, while lower wattages offer softer, more ambient lighting, making this luminaire adaptable for various general lighting applications in residential, commercial, and hospitality settings.
FEATURE
-
Brightness
It feature highlights that this luminaire provides sufficient floor illumination without the need for traditional downlights. Its wide, uniform light distribution ensures effective ambient lighting, making it ideal for general illumination in residential, commercial, and hospitality spaces while maintaining a clean, modern ceiling design.
-

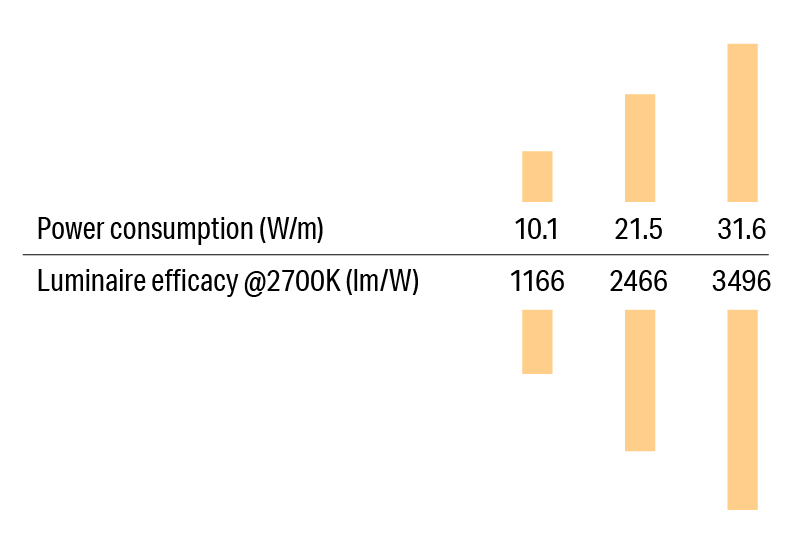

Wattage Variation
It offers three options—15W, 21W, and 31W—allowing users to select from three brightness levels based on their lighting needs. Lower wattages provide softer, ambient illumination, while higher wattages deliver brighter, more intense lighting, making it suitable for various applications in residential, commercial, and hospitality settings as general and indirect lighting.
-

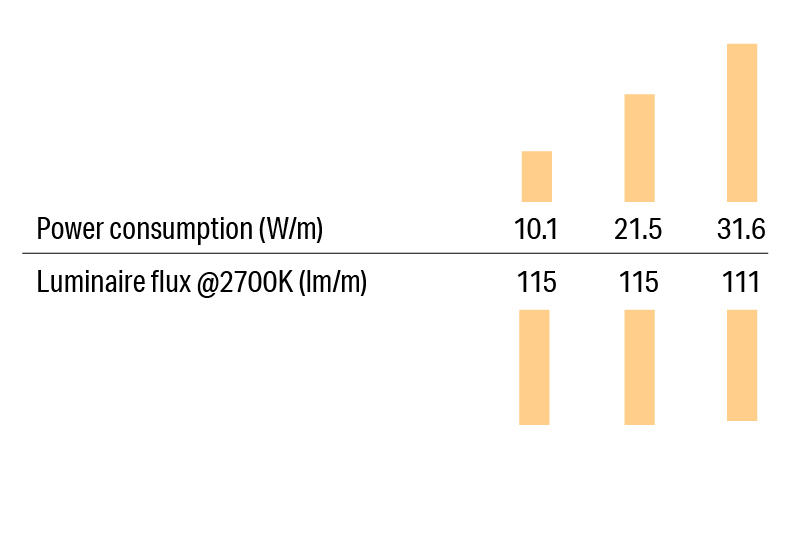

High Efficiengy
With a 160% increase in efficiency, comparing old and new performance becomes unnecessary, as the upgraded version offers significantly improved brightness with lower energy consumption. This enhancement ensures higher lumen output per watt, making it a more efficient and cost-effective lighting solution for various applications.
-

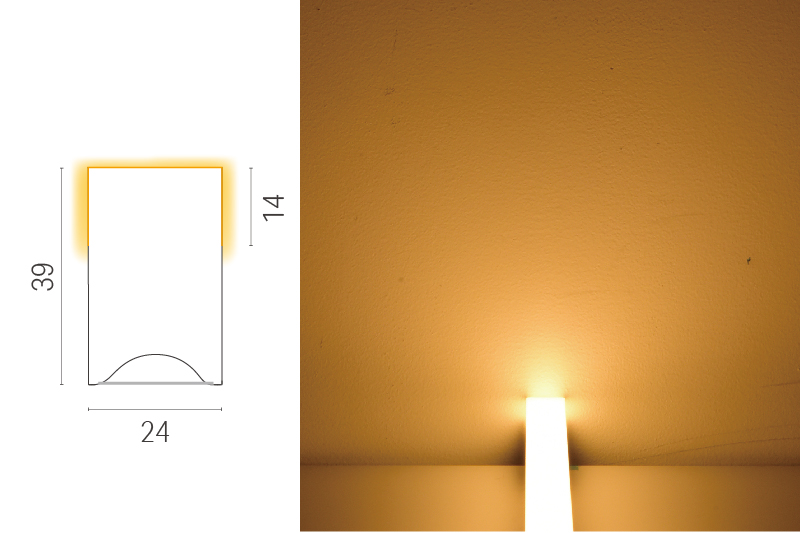

3 sided emitting
It features a 3-sided emitting design, ensuring wide, uniform light distribution for enhanced coverage and brightness. Its square-shaped profile provides consistent and homogeneous illumination, making it ideal for general lighting, architectural accents, and cove applications while maintaining a modern, sleek appearance.
-

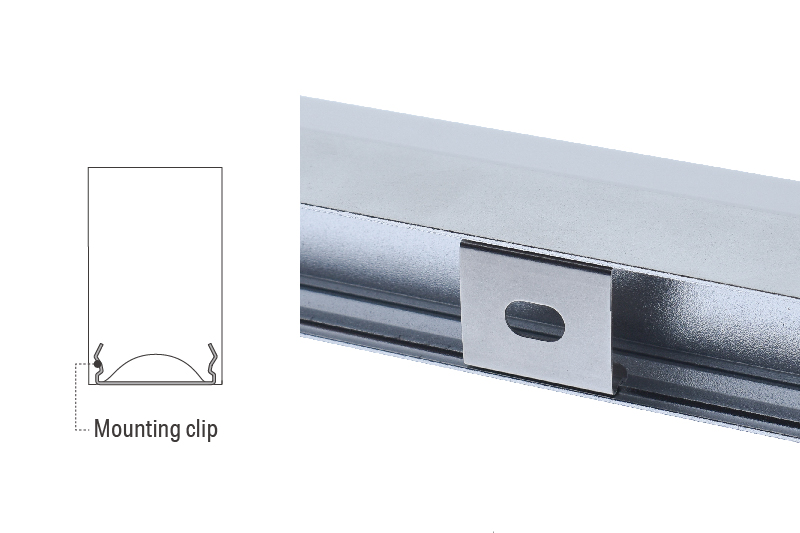

Accesorries - Clip

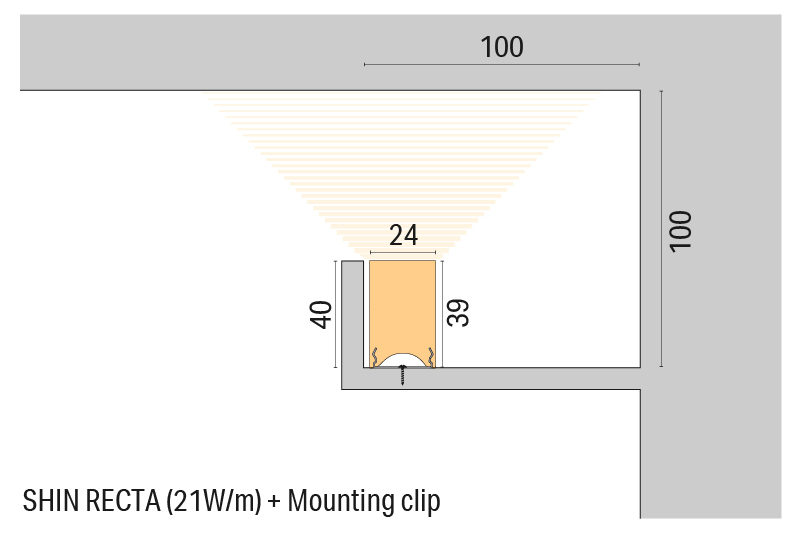

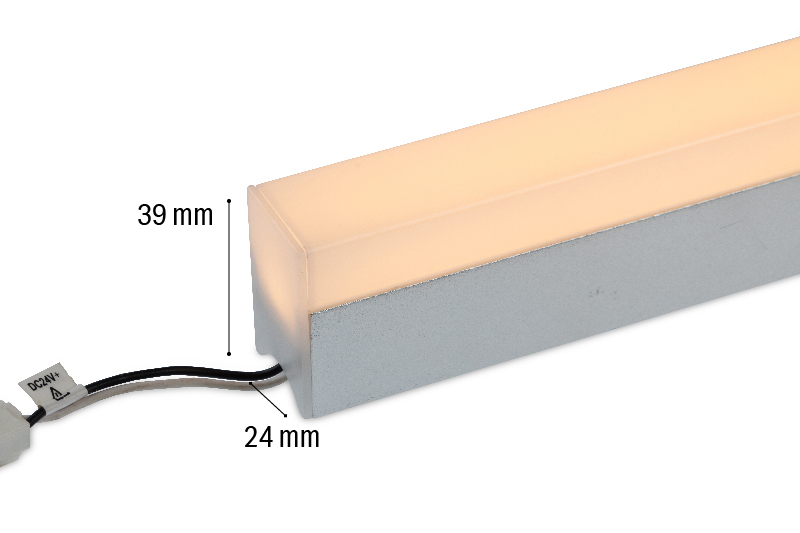

It features a 24mm*39mm sleek design with hidden mounting parts, ensuring a clean and seamless appearance. By concealing brackets and hardware behind the fixture, it maintains a modern, unobtrusive look, making it ideal for architectural and decorative lighting applications.
SPECIFICATION OVERVIEW
Product length: up to 1.5 m at every 100 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 3 variations, 10.1 W/m, 21.5 W/m, 31.6 W/m
Lumen: 1166 to 3496 lm/m @2700K
Color Temperature : 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
