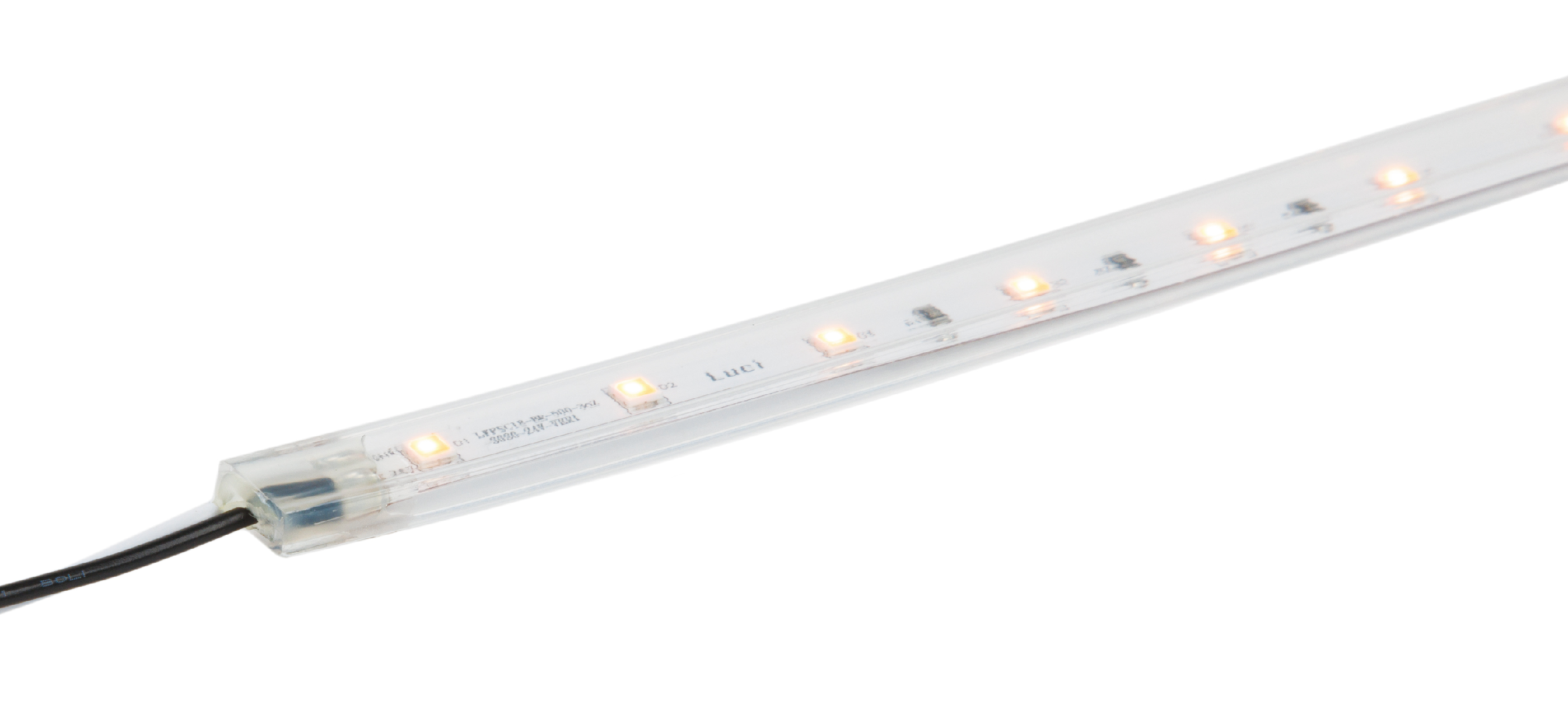

Luci SHIN FLEX Indoor
LFY-I
High efficacy LED series. Flexible strip light with high CRI for indoor
APPLICATION

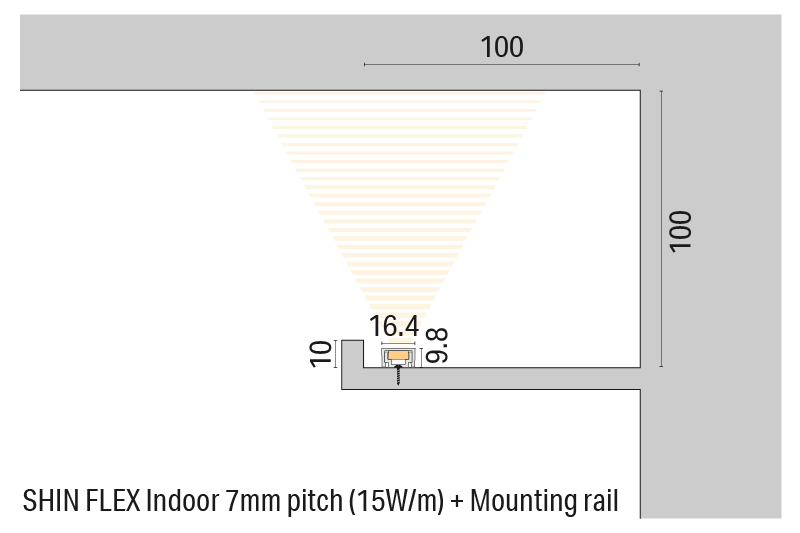

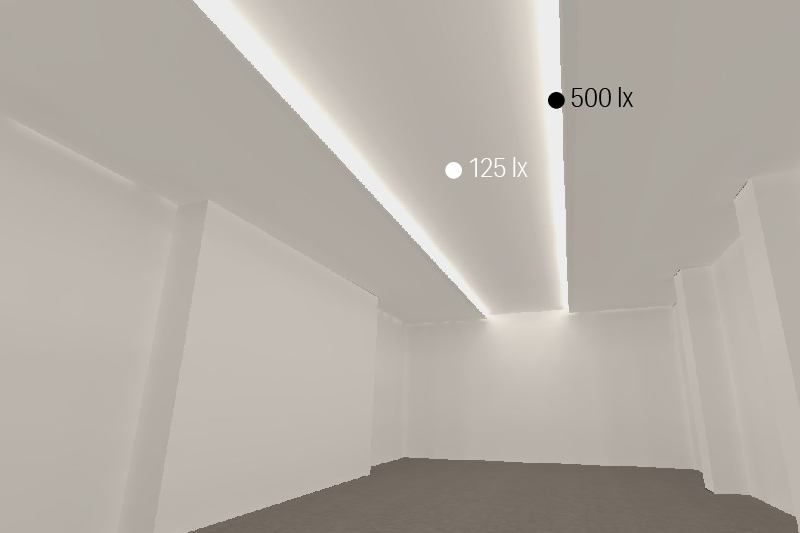

Ceiling cove (Straight)
It is an ideal solution for straight ceiling cove lighting, offering sleek, efficient, and uniform illumination with high quality Japanese LED package that enhances both aesthetics and functionality. Its high brightness of up to 20W/m and 2000 lumens delivers energy-efficient performance. Perfect for green building commercial spaces like offices and lobbies or hospitality venues such as hotels and restaurants, the LFY-I highlights architectural lines with precision. Customizable and cuttable, it adapts seamlessly to cove dimensions, hiding inside the cove creates an inviting atmosphere.

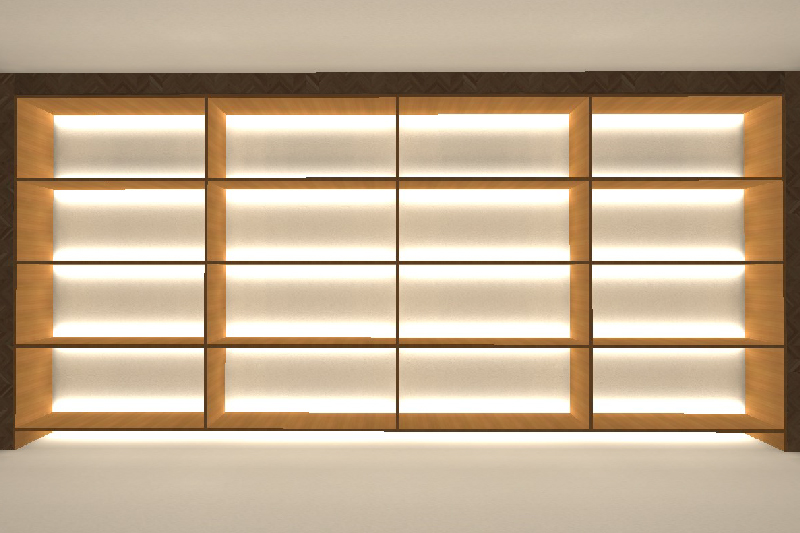

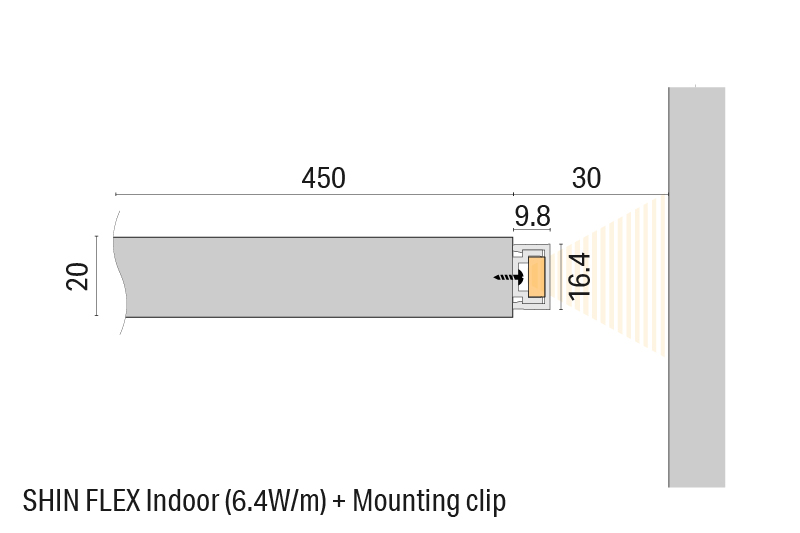

Shelf back light
It is ideal for shelf backlighting, offering sleek design, high brightness, and uniform color for enhanced functionality and aesthetics. With the choice of 2W to 15W/m (300 to 2000 lm/m), it delivers bright, energy-efficient lighting creates comfortable mood while minimizing power consumption. Its slim, discreet design integrates seamlessly into back of shelves, and its cuttable lengths allow precise customization for various configurations.It offers versatile color temperatures (2000K to 6500K) to suit retail displays, home shelving, or office setups. It adds sophistication and functionality to any setting, enhancing comforts and appeal.
DESIGN & INSTALLATION TIPS

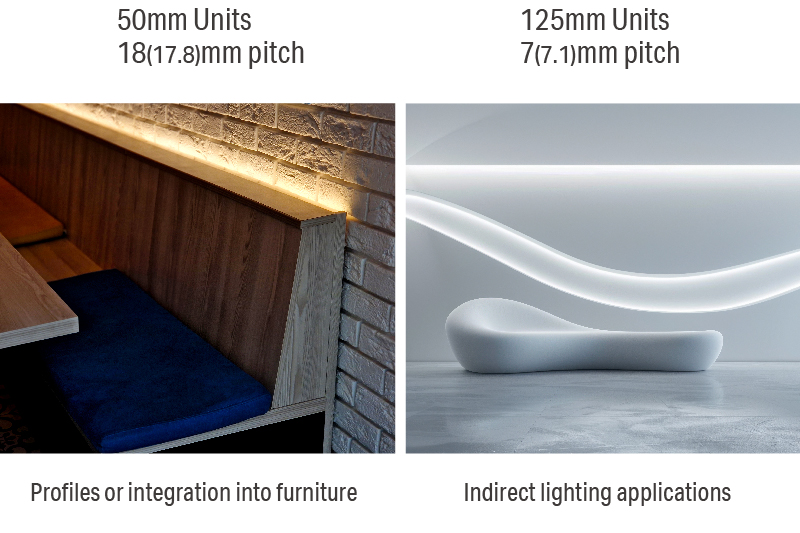

Customizable Cutting Units
Choose between 50mm and 125mm cutting units to suit your specific needs:
50mm Units: With a slim 7mm profile, these are ideal for installation in profiles or integration into furniture for precise, space-saving lighting solutions.
125mm Units: Perfectly suited for indirect lighting applications, offering the right balance of coverage and brightness.
These cutting options are cost-effective, especially when compared to the older Power FLEX EX models, providing both flexibility and value.

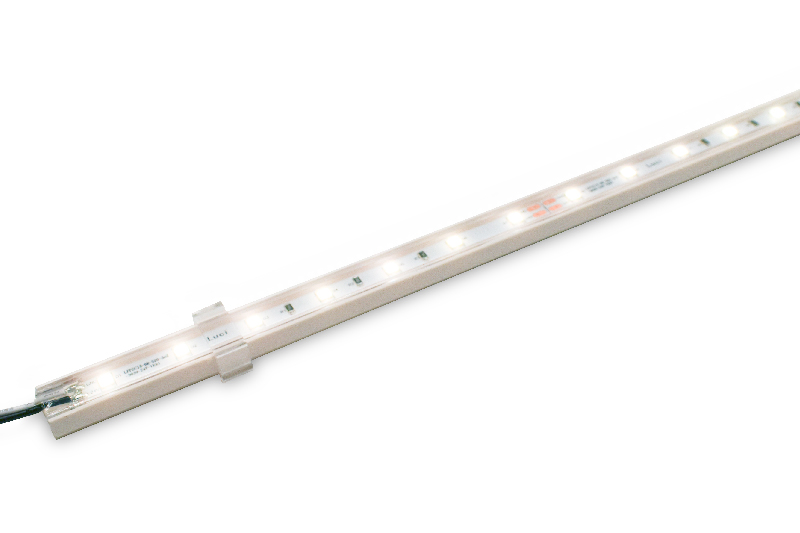

More beautiful straight lines
Ensures a smooth and seamless installation with no undulation when mounted on rails.

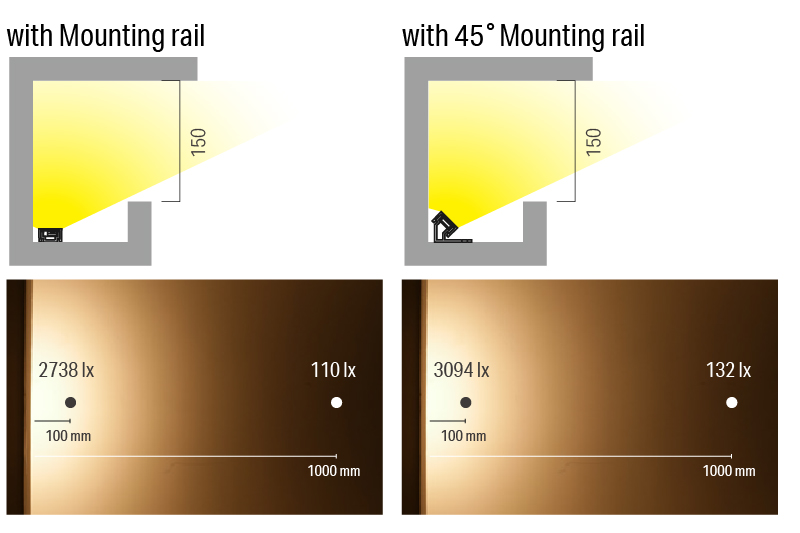

Comparison: 45° Rail (TIPS) vs. Regular Rail
45° Rail (TIPS)
Designed to provide precise angular positioning, ideal for directional lighting or highlighting specific features.
Offers enhanced flexibility for creative lighting designs.
Regular Rail
Standard option for straightforward, linear installations.
Best suited for general lighting applications without the need for angled adjustments.
Key Difference: The 45° rail enables more dynamic and focused lighting setups, while the regular rail is optimal for simple, uniform lighting installations.

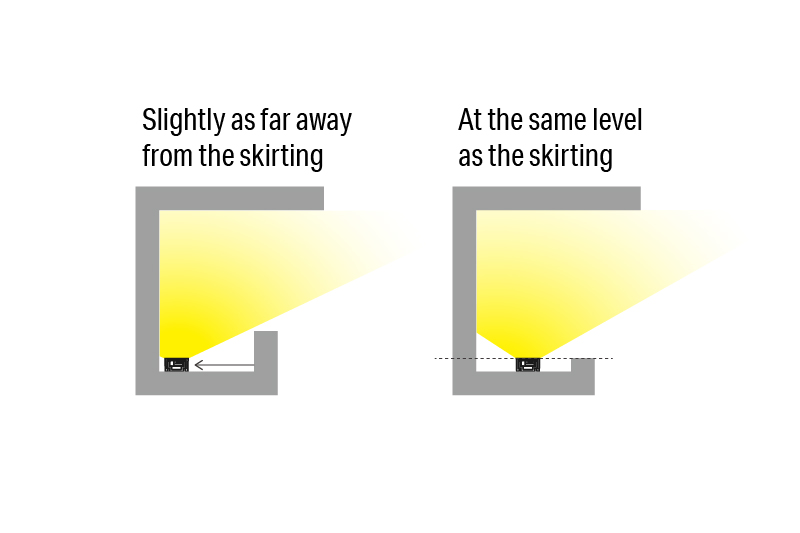

Tips to avoid unwanted shadows
Tips to Avoid unwanted shadows
Placing the light fixture too close to the skirting can cause unwanted line shadows due to the beam being partially obstructed.
Recommended: Install the luminaire slightly as far away from the skirting or at the same level as the skirting to ensure a smooth and even light distribution without shadow lines.
This positioning allows the light to spread cleanly and enhances the visual effect of indirect lighting, especially in ceiling coves.

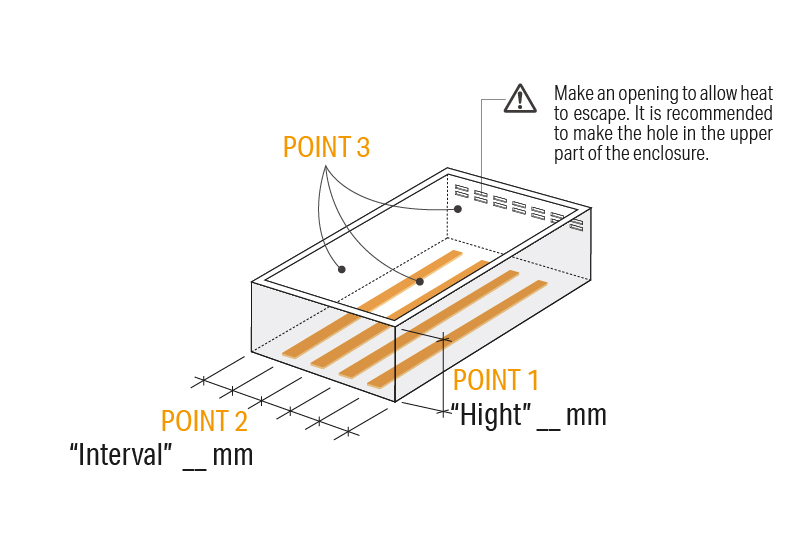

Guidance to make light box
Point 1:
Using white finishes (e.g., paint) inside the installation space enhances light reflection, resulting in brighter and more uniform illumination.
Point 2:
Ensure the spacing between luminaires is shorter than the installation height to avoid uneven lighting and dark spots.
Point 3:
Include ventilation openings to allow heat dissipation. It’s recommended to position these openings at the side top of the enclosure, where heat naturally rises.
FEATURE
-

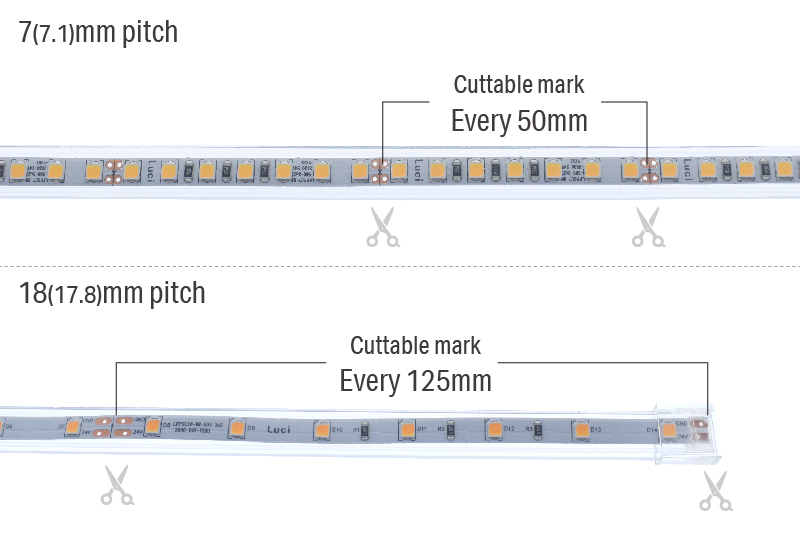

Cuttable fixure at site
SHN FLEX Indoor is customizable and can be cut on-site at 50mm intervals for 7mm pitch and 125mm for 18mm pitch, allowing for precise adjustments to meet specific project requirements.
In the event of a failure in a luminaire with a dual-side feed cable, the left and right sides can function independently. This allows the luminaire to operate as if it were a single-side feed, ensuring continued functionality and minimizing disruption. -

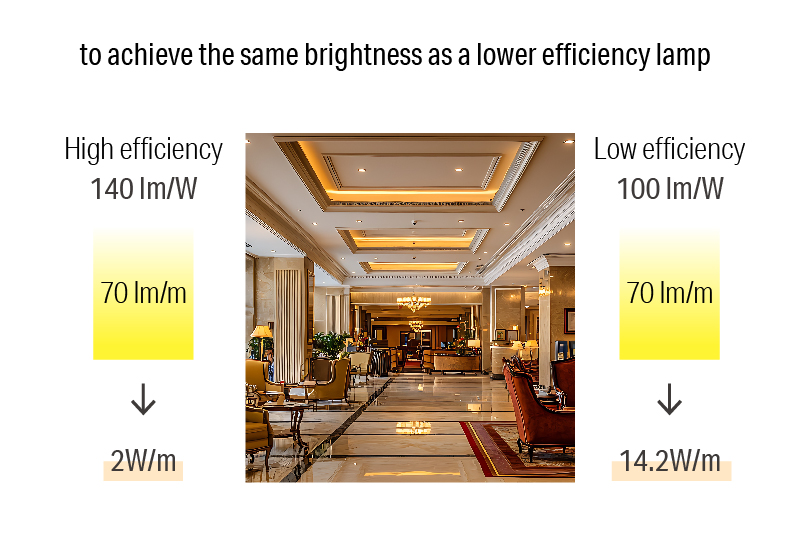

Lighting Comparison
Competitive Performance
100 lm/W vs. 140 lm/W efficiency.
Key Insights
For the same wattage over a 10m indirect lighting setup, the higher efficiency lamp (140 lm/W) delivers significantly greater brightness.
Alternatively, to achieve the same brightness as a lower efficiency lamp, you can reduce the wattage of the 140 lm/W light, offering energy savings without compromising on illumination. -

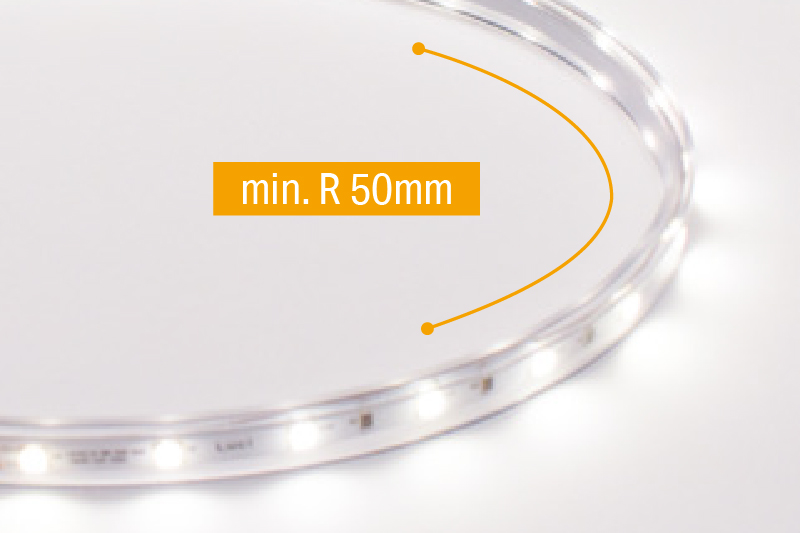

Minimum Bending Radius
The minimum bending radius is R50mm in the top (vertical) bending direction. This ensures the material remains flexible enough for various installation needs while retaining its strength and performance.
-

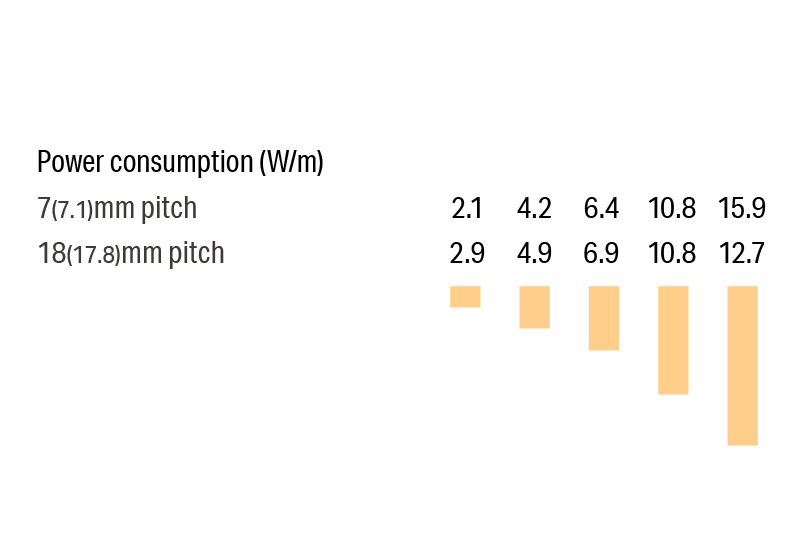

Wattage Variations
There are five wattage variations available, ranging from 2W/m to 15W/m, designed within the same LED package to maintain consistency with the CCT.
-

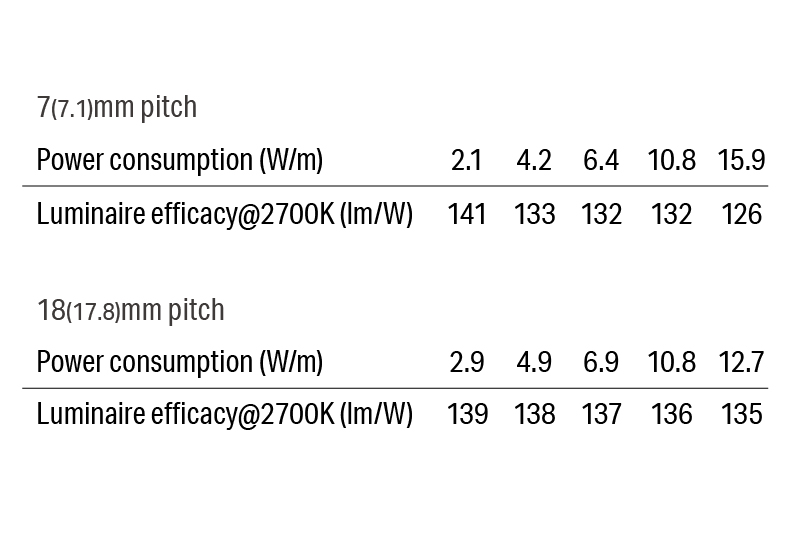

High Efficiency
Helps lower power costs
Delivers high lumens per watt (lm/W)
Offers high efficiency in LPD measurements, providing excellent brightness even at lower wattage
This advanced LED package achieves efficiency levels of up to 185 lm/W. -
High Color Rendering (High CRI)
Delivers high efficiency without compromising CRI.
Provides excellent color rendering even at lower color temperatures, making it an ideal choice for bars and restaurants. -

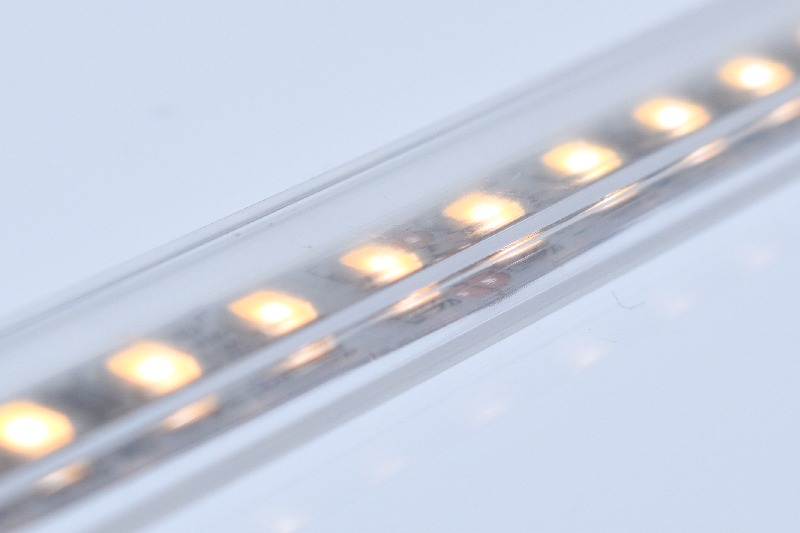

Material
Encased in soft acrylic, offering superior protection, durability, high transparency, and excellent weather resistance.
-
Is Japanese Resin Required for Luci's Product?
Japanese resin is not mandatory but offers notable benefits in durability, performance, and quality. Its superior resistance to UV exposure, moisture, and temperature variations enhances product longevity, while its high transparency ensures smooth and uniform illumination with minimal light loss. Additionally, Japanese resin resists yellowing over time, preserving the lighting's aesthetic appeal. Though alternatives may be suitable for some applications, Japanese resin is ideal for demanding environments or high-quality designs, reflecting a commitment to excellence and reliability.
-

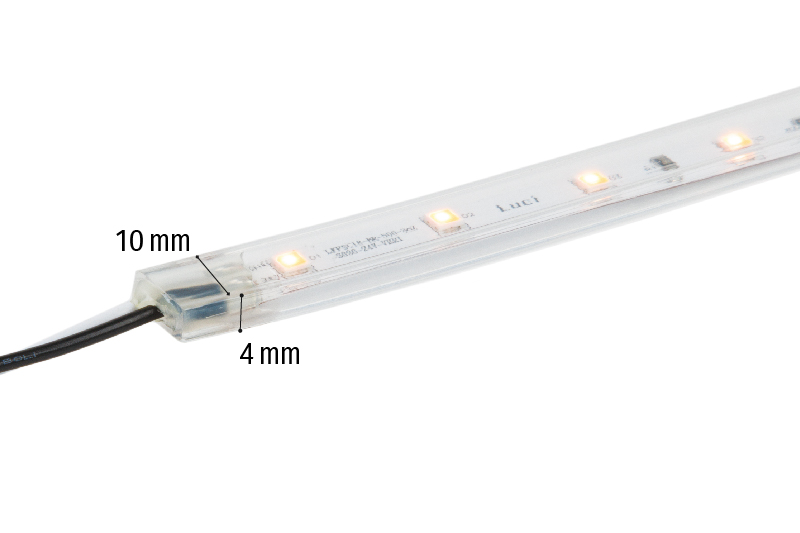

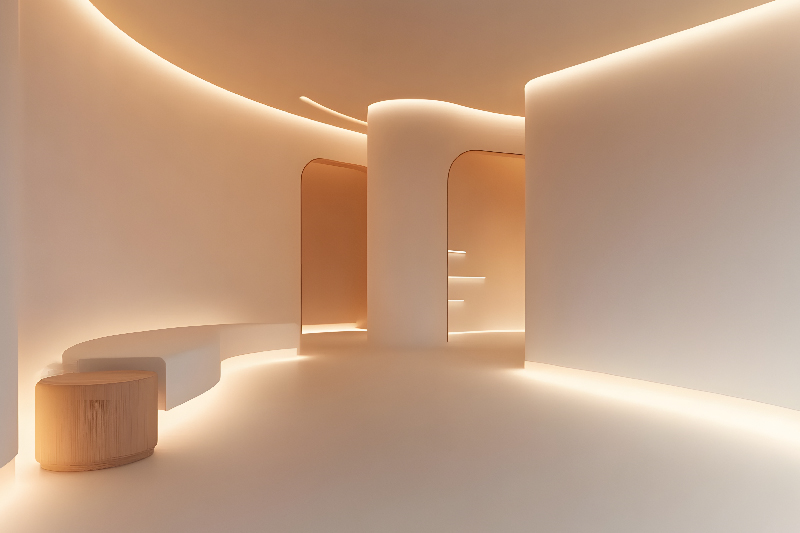

Compact Size
The luminaire features a smaller, more streamlined design, offering a space-saving solution without compromising on performance. Its compact size allows for easy integration into various settings, making it ideal for installations where space is limited or a discreet lighting solution is required.
-

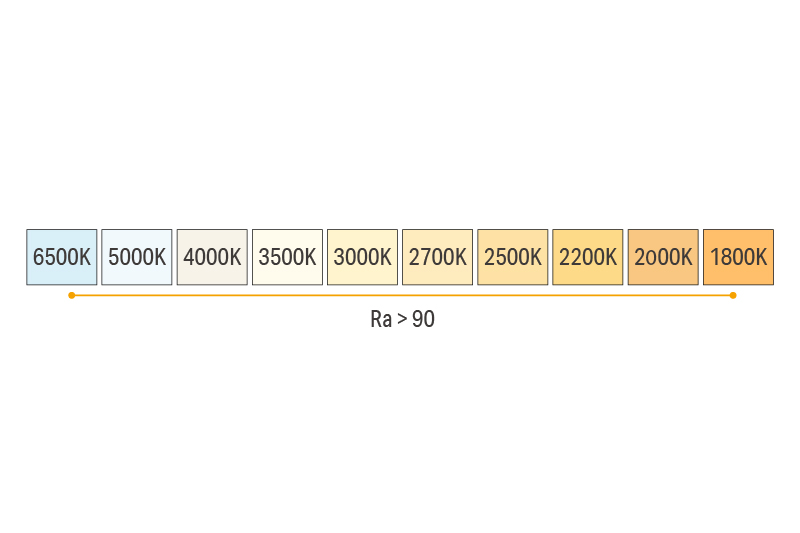

Color Temperature
Offers a wide range of options, from 1800K to 6500K, providing flexibility to create the desired ambiance or lighting effect. With a high color rendering index (Ra > 90), it ensures accurate and vibrant color representation, making it suitable for both functional and aesthetic applications.
-

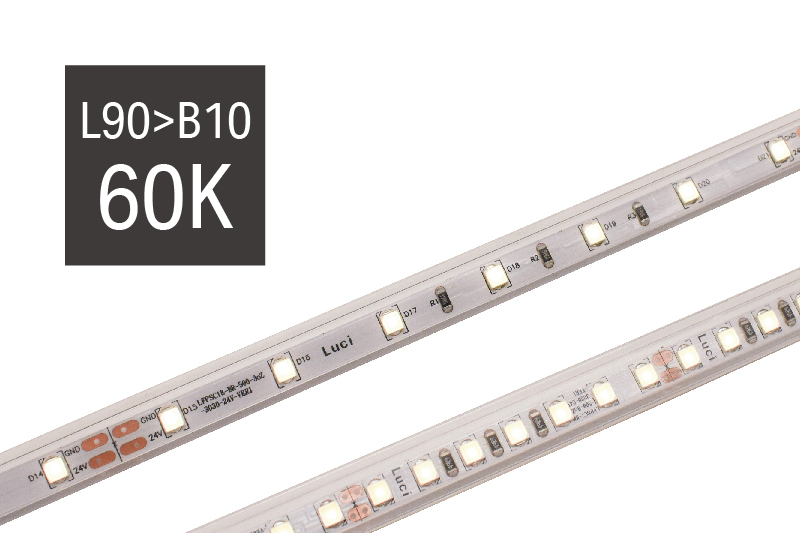

Minimum Color shipt over the time
Using high quality Japanese LED, which have been tested over a long period of time to ensure that brightness remains constant and colour change is minimal, allows users to enjoy high quality light with greater peace of mind, even in adverse environmental conditions such as high temperatures.
SPECIFICATION OVERVIEW
Product length: up to 1.5 m at every 50 mm length
Cable feed: Both ends or one end feed cable
Max. length per run: 5m
Bending: Top-bendable
LED pitch : 7.1 mm, 17.8 mm
Min. bending radius: 50mm
Power Consumption: 5 variations, 7.1 mm 2.1 W/m, 4.2 W/m, 6.4 W/m, 10.8 W/m, 15.9 W/m, 17.8 mm 2.9 W/m, 4.9 W/m, 6.9 W/m, 10.8 W/m, 12.7 W/m
Lumen: 7.1 mm 298 to 2000 lm/m @2700K, 17.8 mm 375 to 1493 lm/m @2700K
Color Temperature (delivered CCT): 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K , 1800K
IP Rating: Indoor
Materials: Durable and flexible Soft acrylic
LED Type: High efficiency, long lifespan LEDs, >50,000h
