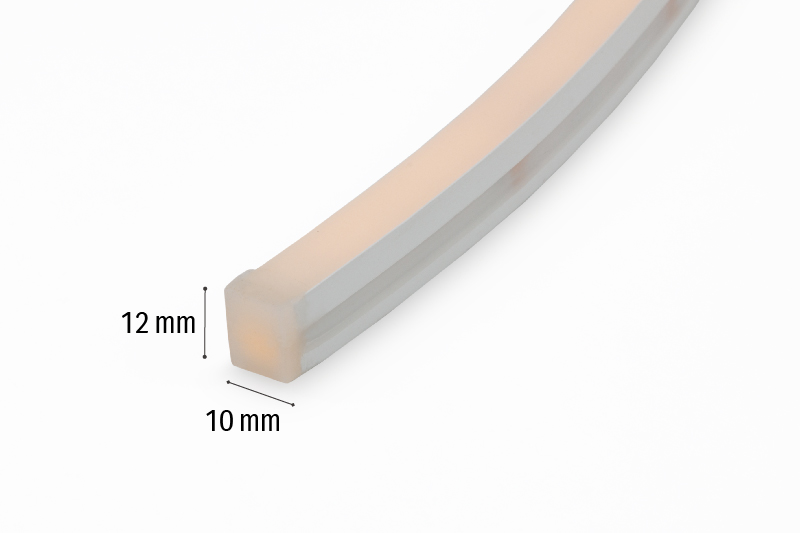

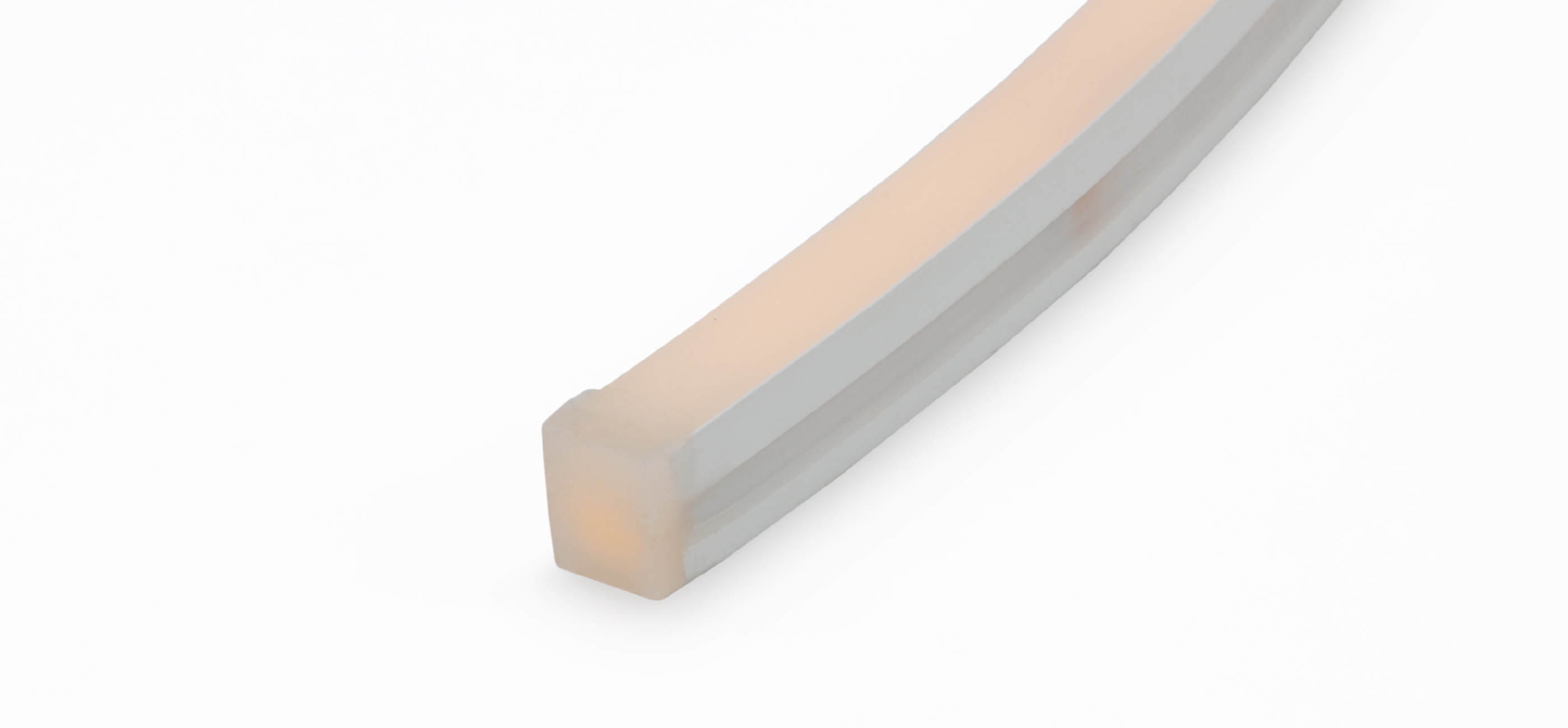

Luci SHIN UQ FLEX α mini IP67

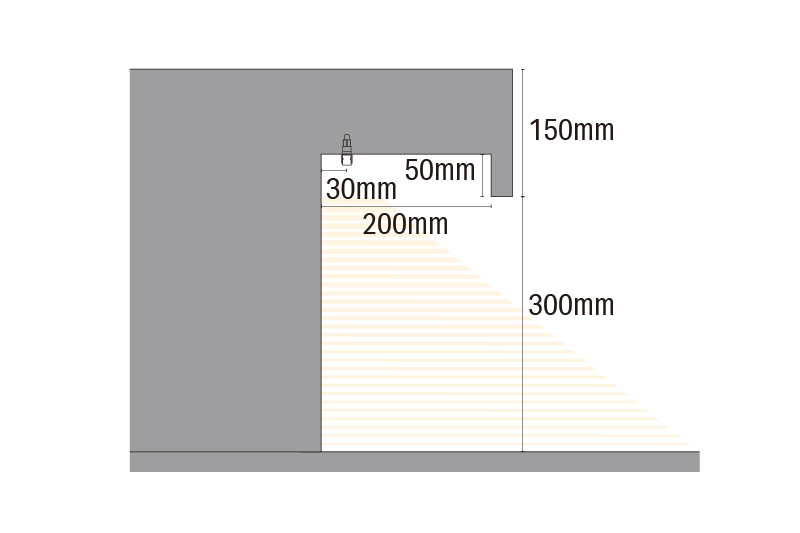

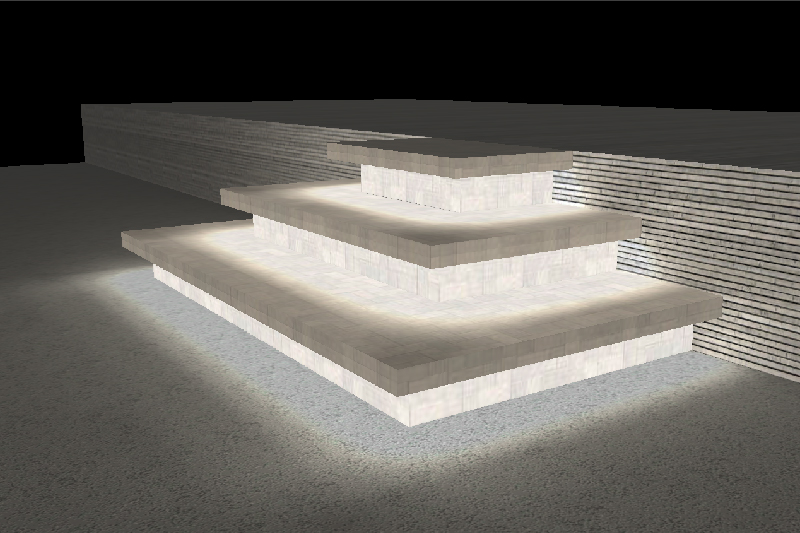

Step light

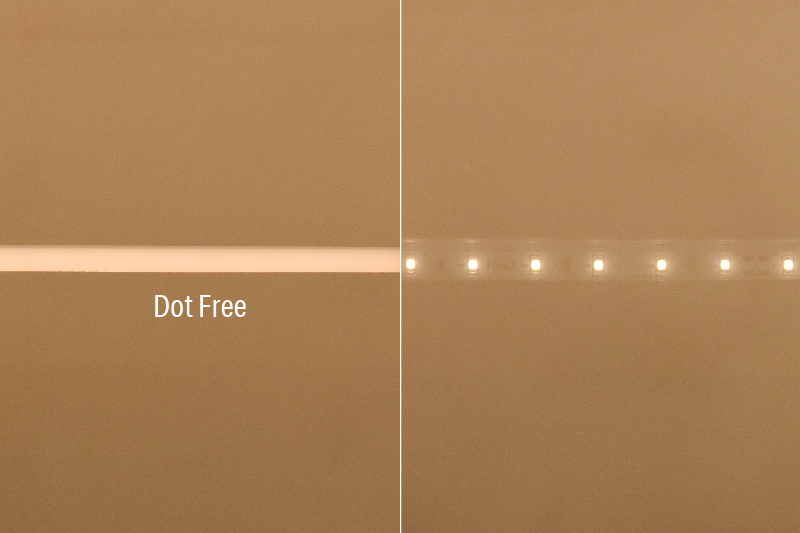

With its small cross-section and dot-less design, it minimizes reflections on the floor. The 2W/m and 100lm/m output provides sufficient illumination without being overly bright, making sure that footpaths are safely lit.

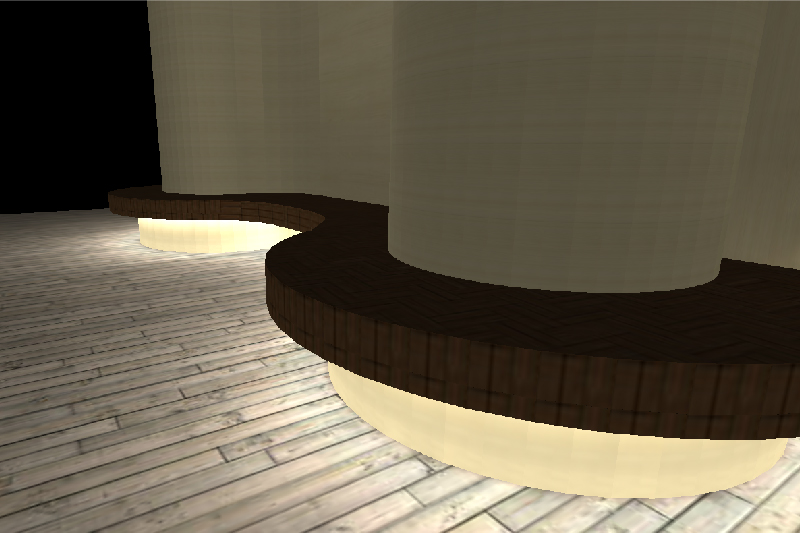

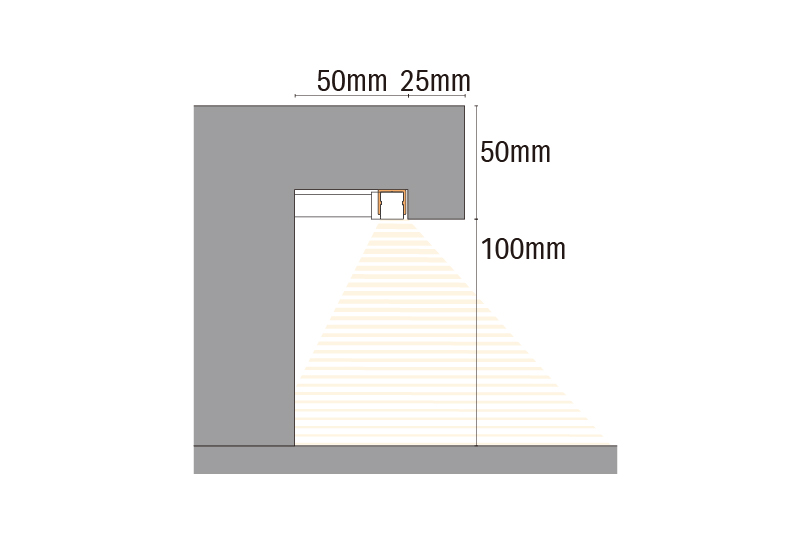

Bench

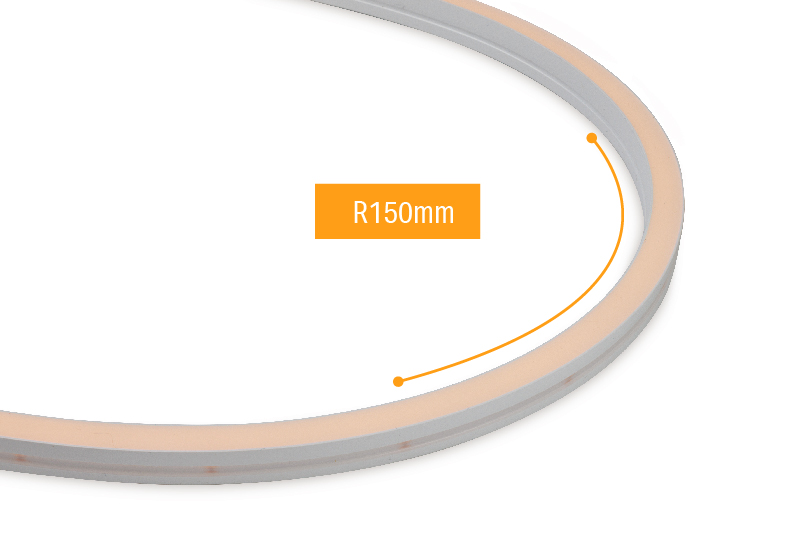

The flexible side-bending feature allows the lighting to contour seamlessly along the shape of the bench. With a power range of 4 to 6W/m, it provides a gentle, ambient glow around the bench, enhancing both functionality and aesthetic appeal in public spaces, parks, or indoor seating areas.

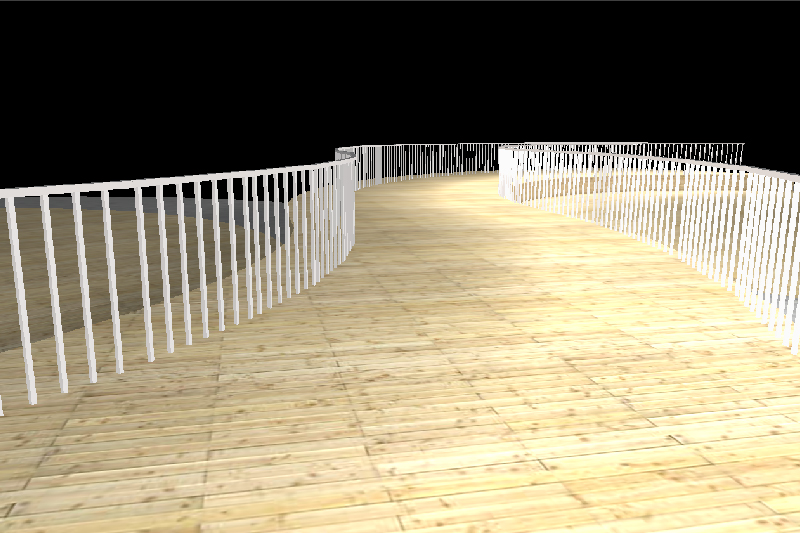

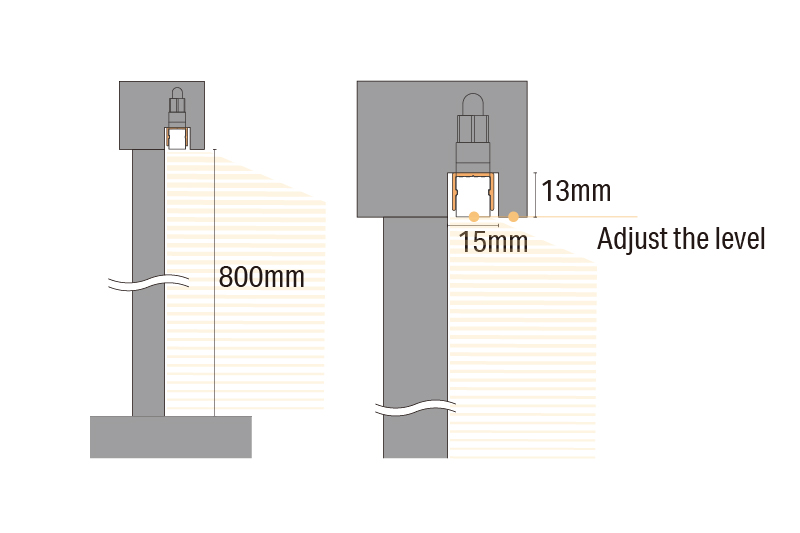

Handrail

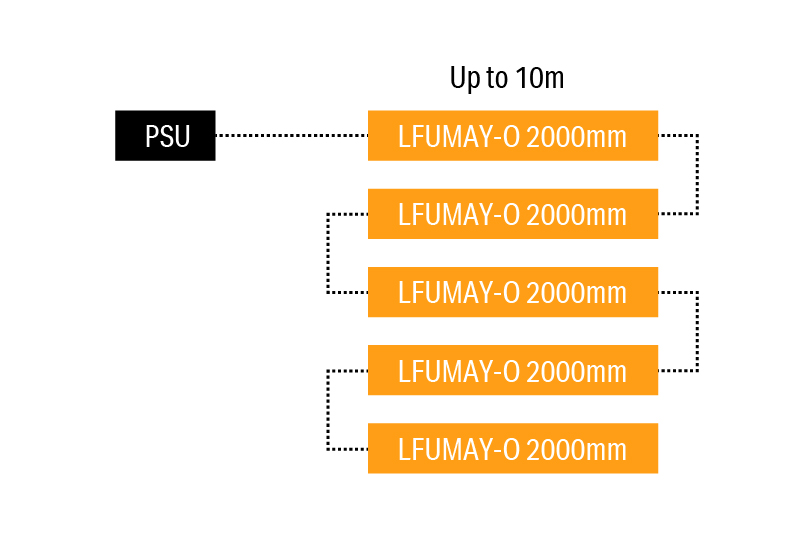

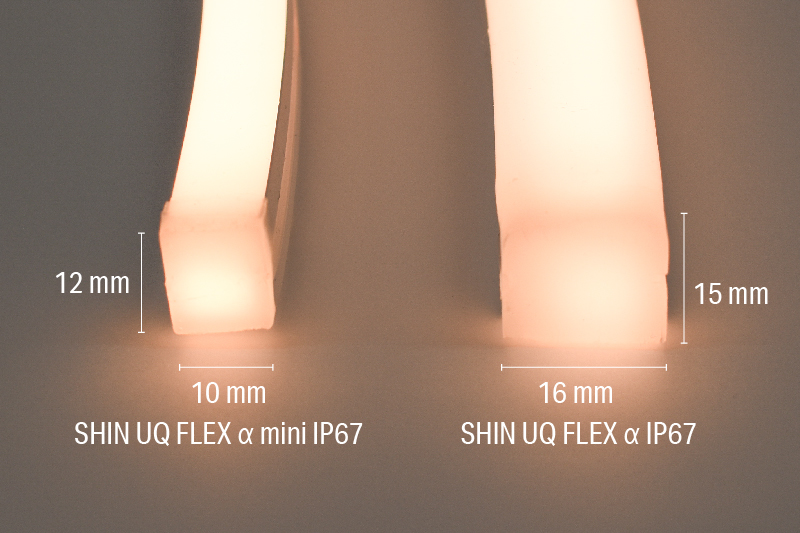

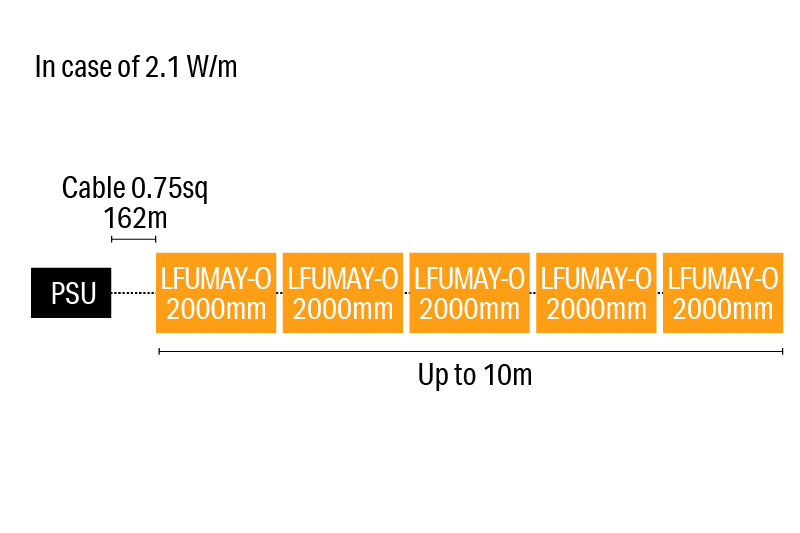

Easy to install under handrails with its compact cross-sectional size. The constant current LED board allows for a maximum distance of 162 meters from the power supply to the fixture. This means fewer power supply points are required, allowing for up to 10 meters in a single series connection, making it highly efficient for long handrail installations.

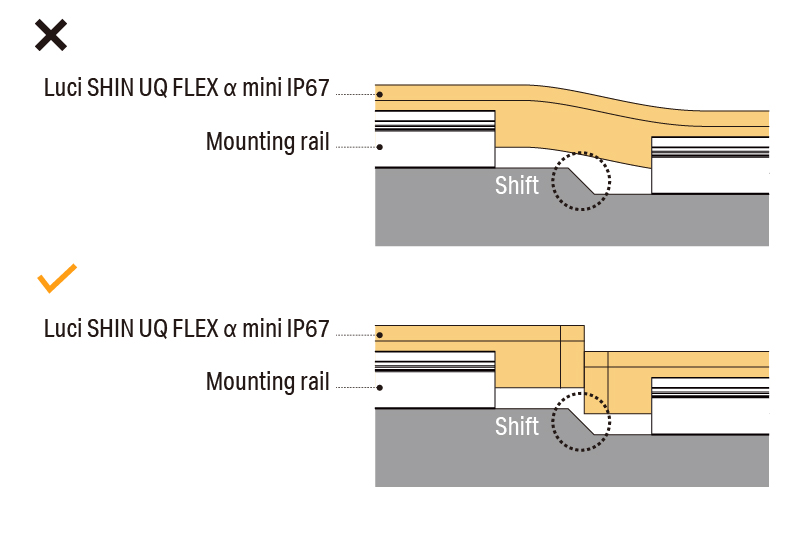

Handling Fixtures at Open Joints

In buildings that may expand or shift, it is advisable to separate the light fixtures at open joints. This helps to minimize potential issues related to movement over time.

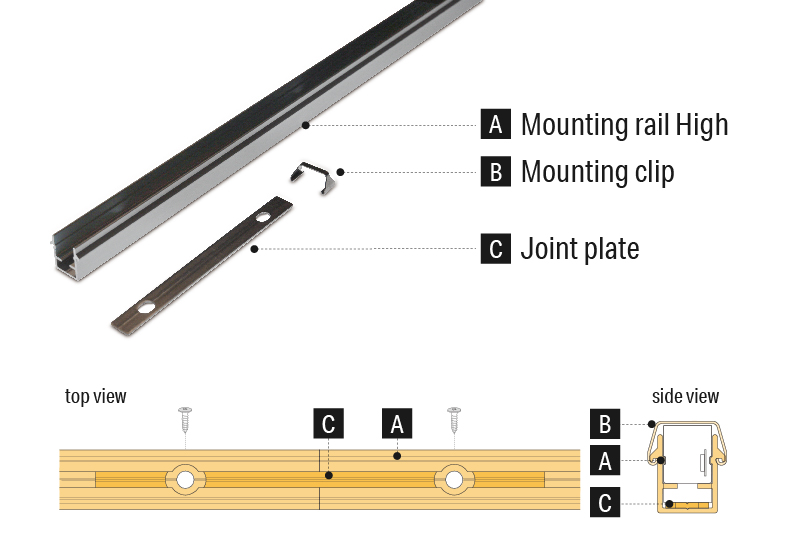

For Straight-Line Installation

The joint plate for rails ensures precise alignment, maintaining a
seamless straight line. It accommodates lengthwise expansion and
contraction, allowing for flexibility in installation. For example, two
1-meter rails can be effortlessly combined to support a 2-meter
luminaire.

Cable Feed Directions and Usage Guidelines

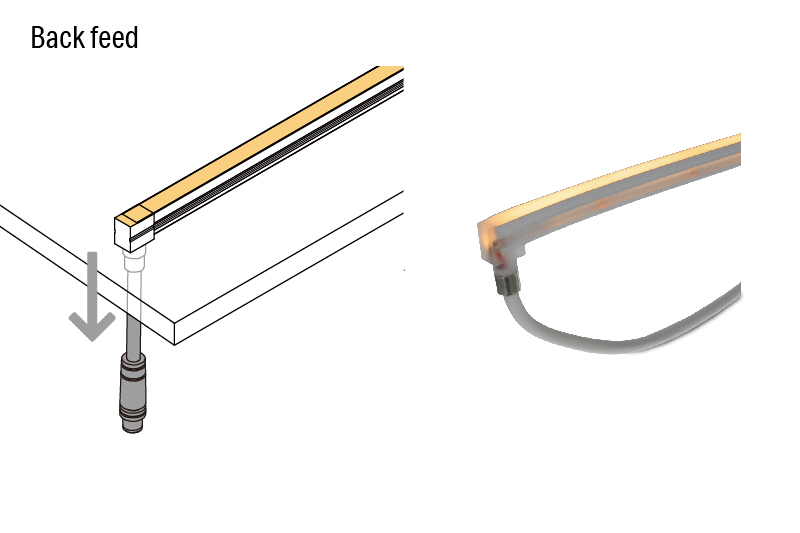

Back Feed

Ideal for cove or recessed lighting installations where there is space in heights.

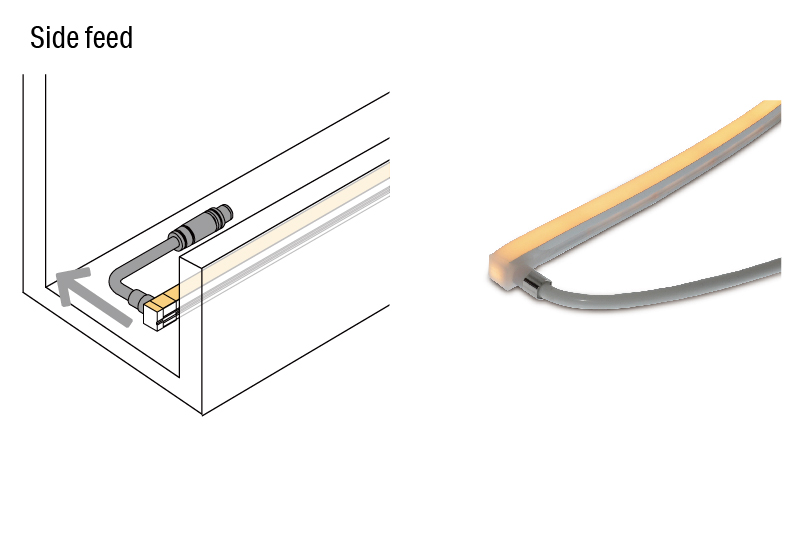

Side (Right) Feed

Perfect for indirect cove lighting applications, ensuring a seamless and clean appearance when there is space in width.

Both options minimize visible dark spots at fixture joints and enable secure, straightforward connections between two fixtures using the attached connectors. These features ensure a professional finish and reliable performance.

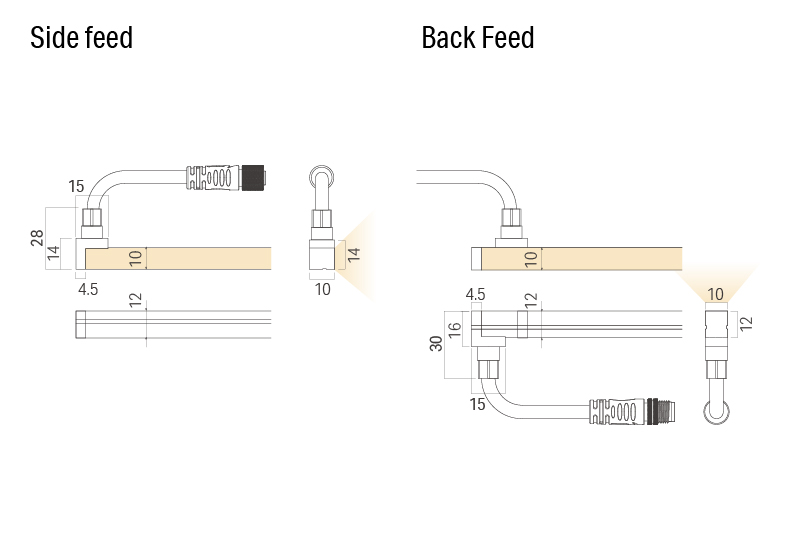

Need space for cable management

Cable relief space

For side feed installations, it’s important to allow at least 10 cm of space for the cable and connector during the design stage. This helps prevent unnecessary strain on the cable and ensures safe, long-term use.

Space for back feed cable

When using a back feed cable, you’ll need to raise the fixture by about 2 cm to allow enough space for the cable to pass through safely.

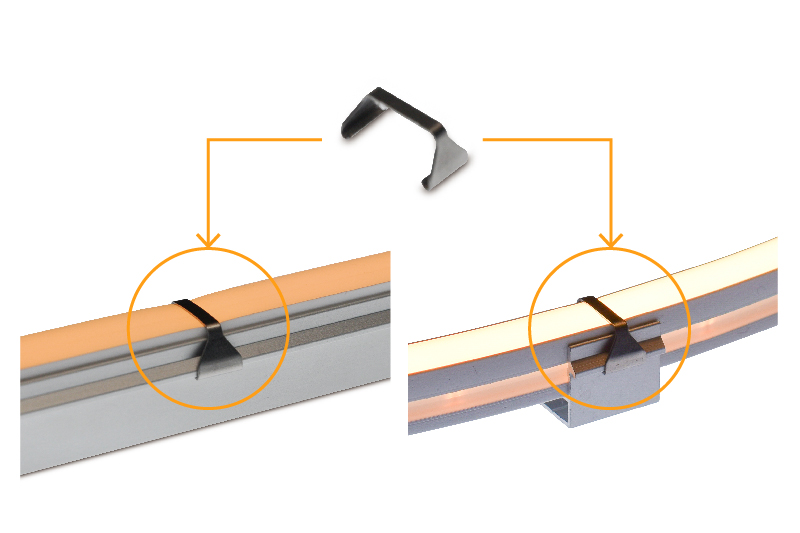

Using SUS Hold Clips

SUS hold clips provide a safe and secure way to mount fixtures, whether facing up or down, without damaging the tube. They also make maintenance safer and easier, and their slim 2.5 mm width helps maintain a smooth, continuous light flow without interruption.

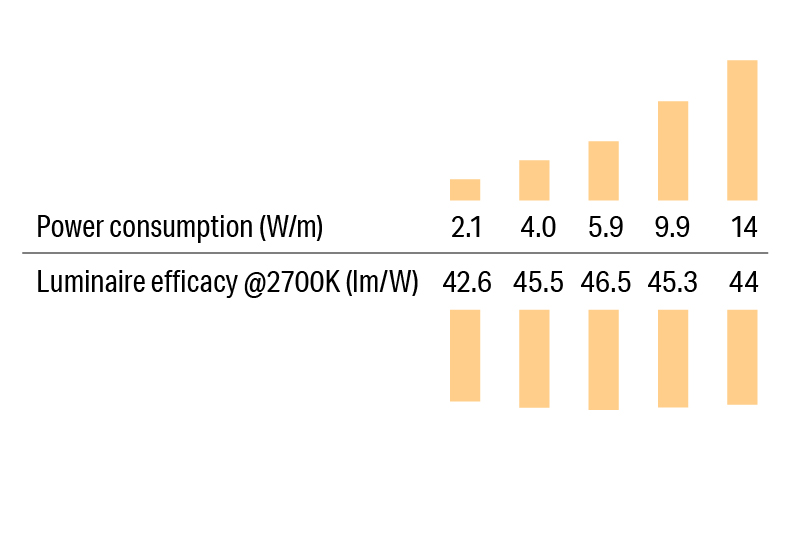

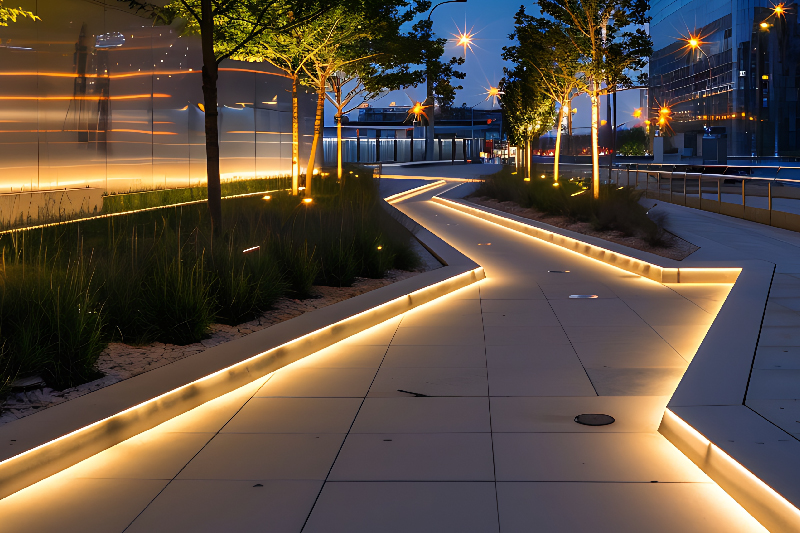

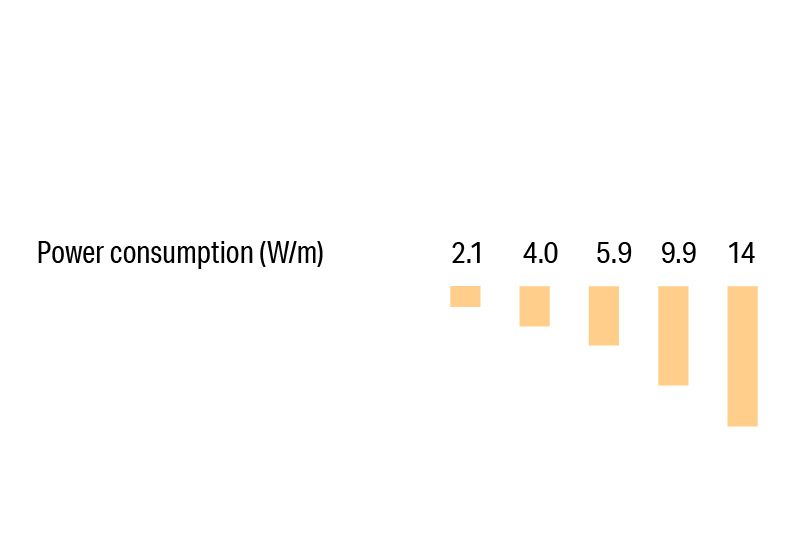

Energy-Efficient Landscape Lighting

If you’re looking for energy-saving options, consider lights that use just 2.1W per meter. They provide a comfortable brightness at 93 lumens per meter (@2700K)— a great balance of efficiency and performance.
