Luci SHIN FLEX THOF
LFTHY
High efficacy LED series. Tunable white tape light with a selectable combination of two CCTs
APPLICATION

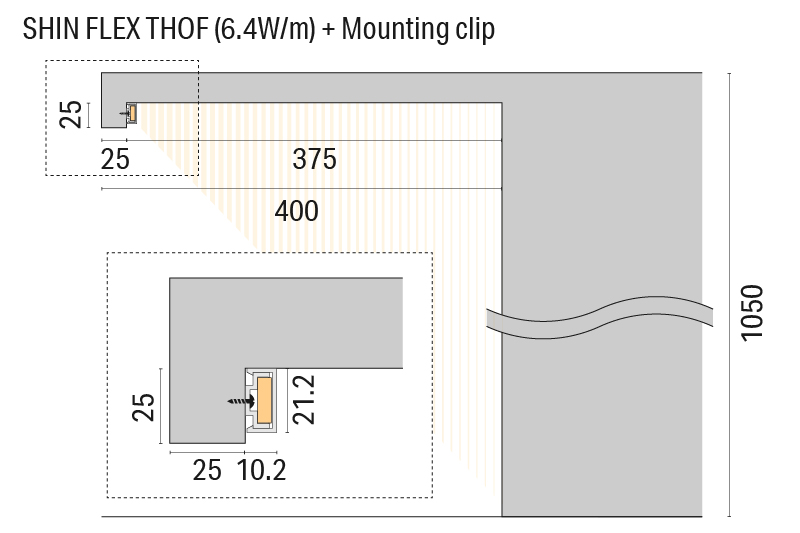

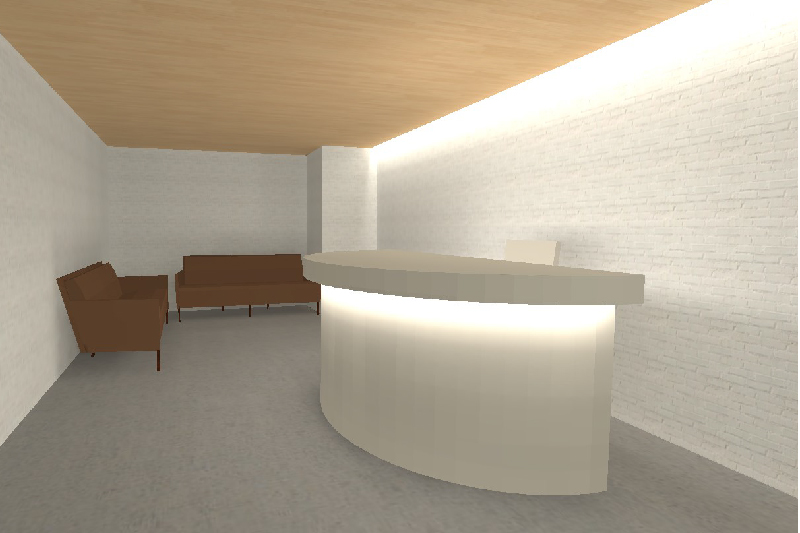

Counter
It is ideal for counter lighting, providing uniform illumination with smooth tunable white and dim-to-warm effects. Its compact and flexible design ensures seamless integration into kitchen counters, retail displays, reception desks, and bar tops, enhancing both functionality and aesthetics. This lighting solution creates a warm, inviting ambiance while offering adjustable brightness for various applications in residential, commercial, and hospitality settings.

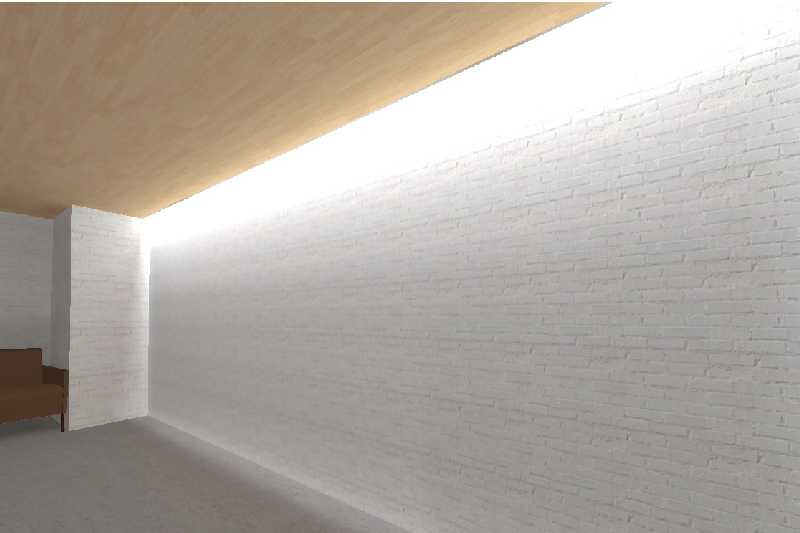

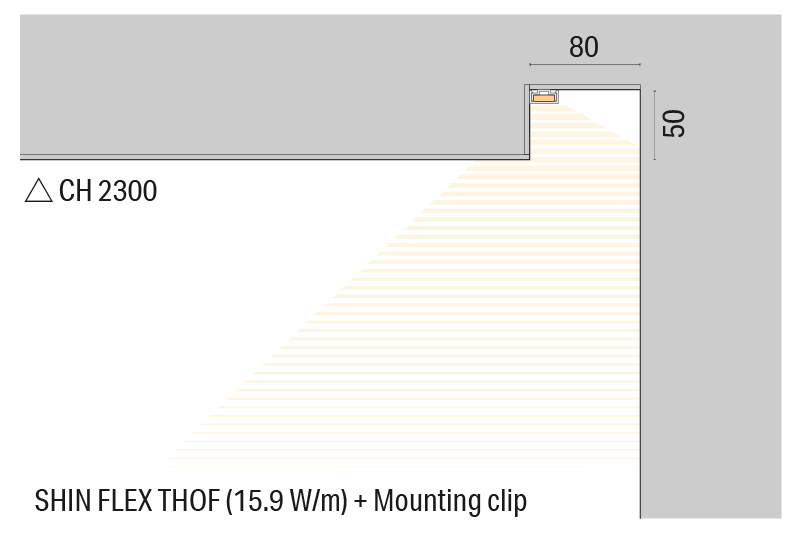

Cornice (Top bend)
It can be also suitable for tunable cornice lighting to create circadian lighting.
DESIGN & INSTALLATION TIPS

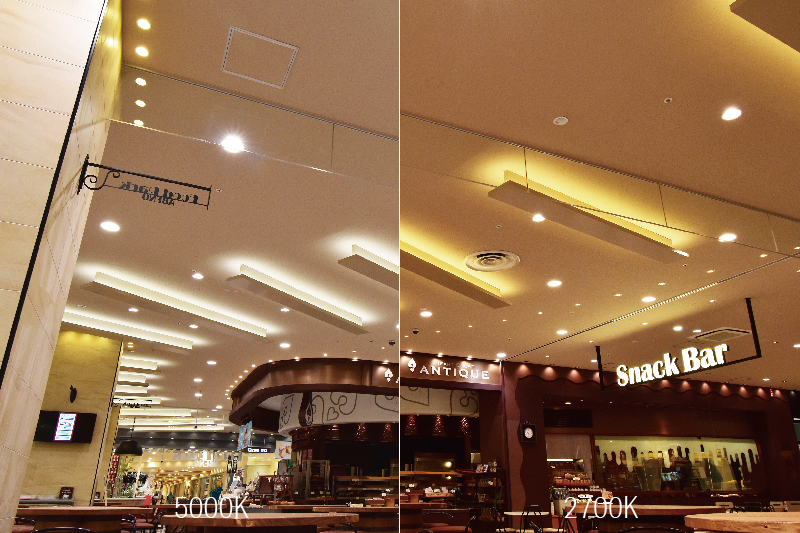

Two-Channel Control for Precision Dimming and Customizable Light Sequences
Requires 2 channels for operation, enabling simple dimming effects and customizable lighting patterns when used with compatible drivers and dimmers. This dual-channel control allows for precise brightness adjustment, creating smooth transitions and dynamic lighting effects tailored to different applications. By utilizing dimmers and drivers, users can achieve gradual dimming, flicker-free adjustments, and customized lighting sequences, enhancing ambiance and energy efficiency. This feature is particularly useful for architectural lighting, hospitality spaces, theaters, and retail displays, where adjustable lighting effects contribute to a sophisticated and adaptable atmosphere.
Compatible with multipule dimming protocol
It is compatible with Casambi and DALI dimming systems, allowing for seamless integration with advanced lighting controls. These systems provide precise dimming effects and customizable lighting patterns when paired with Leibers and dimmers, offering a high level of flexibility and automation.
With Casambi wireless control, users can adjust brightness, create lighting scenes, and manage multiple fixtures remotely via a smartphone or tablet. DALI (Digital Addressable Lighting Interface) enables centralized control for synchronized dimming, making it ideal for smart building management systems. These features are perfect for architectural lighting, commercial spaces, hospitality environments, and high-end residential applications, where smooth dimming transitions and dynamic lighting effects enhance ambiance and efficiency.

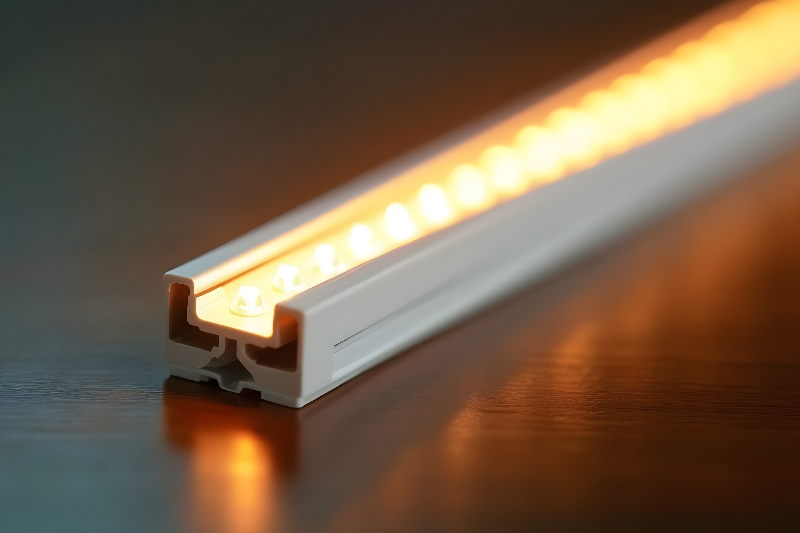

Dual-CCT LED System Optimized for Tunable White and Dim-to-Warm Application
It can be installed within a profile, creating a sleek and refined lighting solution. It is customizable up to 5 meters. Designed for tunable white and dim-to-warm applications, this fixture features an alternating arrangement of two LED color packages, ensuring smooth and natural color transitions. Users can freely select two correlated color temperatures (CCTs) from a range of nine options, allowing for tailored lighting effects that enhance ambiance and adaptability in any space.
FEATURE
-

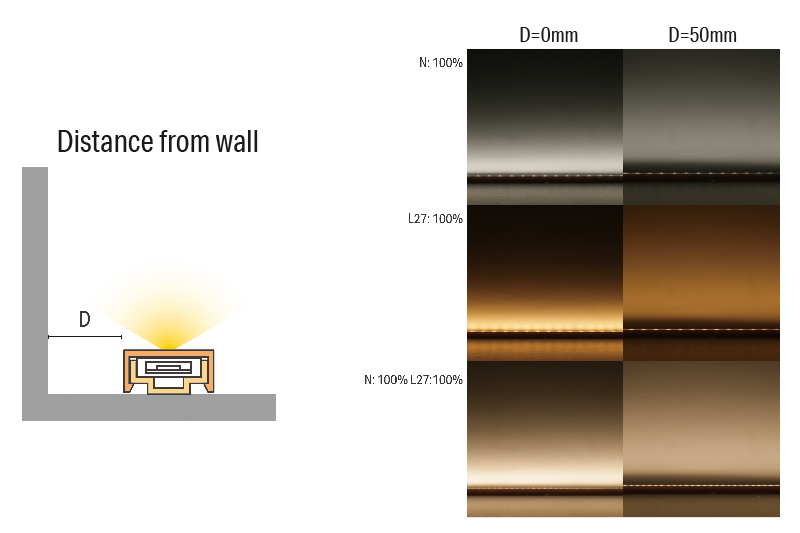

Recommened distance
The distance from the wall is a key factor in ensuring smooth, uniform illumination. Due to its high-density LED arrangement and diffused lighting technology, the dotting effect is minimized, even when installed close to the wall.
For optimal performance, a recommended distance of more than 15mm to achieve 100% uniform illumination within the Neutral to 2700K color temperature range. This ensures a seamless, soft glow without visible hotspots or uneven brightness, making it ideal for architectural lighting, indirect wall illumination, cove lighting, and ambient accent lighting. -

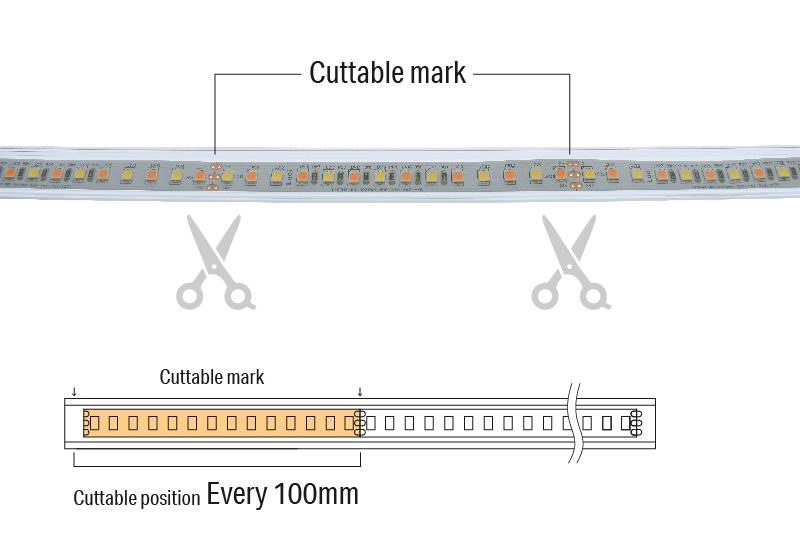

Cuttable fixure at site
It is designed for on-site customization, allowing for easy adjustments with cuttable sections at 100mm intervals (every 14 LEDs) marked with a scissor icon. This feature ensures precise length customization to fit specific installation needs without compromising performance.
-

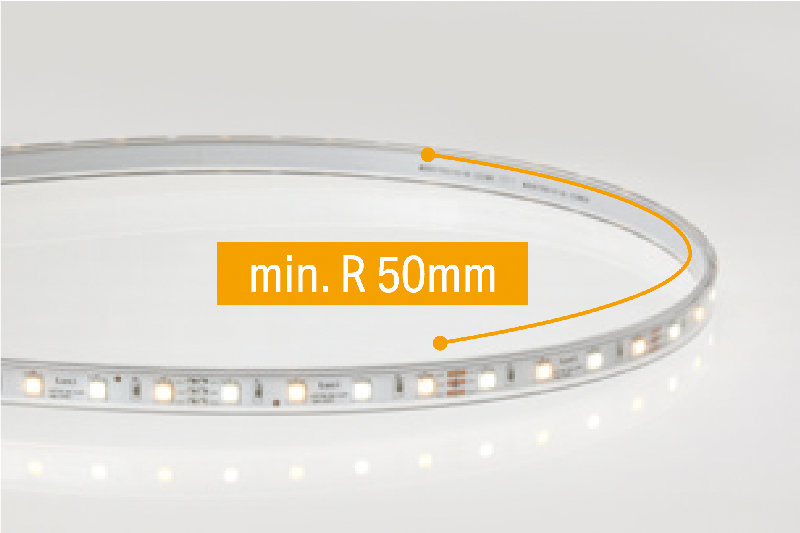

Minimum Bending Radius
A minimum bending radius of 50mm in the top (vertical) bend direction, allowing for smooth and flexible installation while maintaining uniform illumination. This means the luminaire can be bent vertically along its length with a curvature no tighter than 50mm, ensuring structural integrity and consistent lighting performance.
-

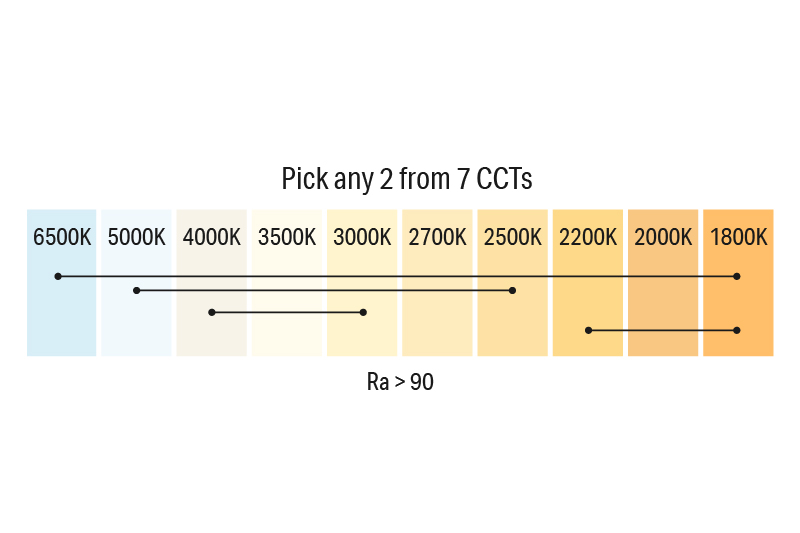

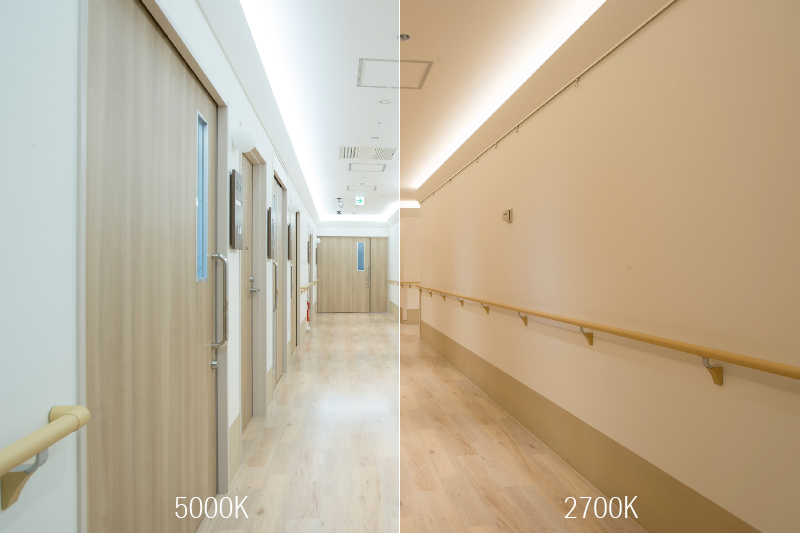

Color Temperature
It offers customizable color temperature options, allowing users to combine any two color temperatures to create a unique and dynamic lighting effect. This flexibility enables precise tunable white and dim-to-warm applications, making it ideal for spaces that require adjustable ambiance and mood control.
By selecting two preferred CCTs from a range of available options, users can achieve smooth transitions between warm, neutral, and cool tones, ensuring optimal lighting for different environments -

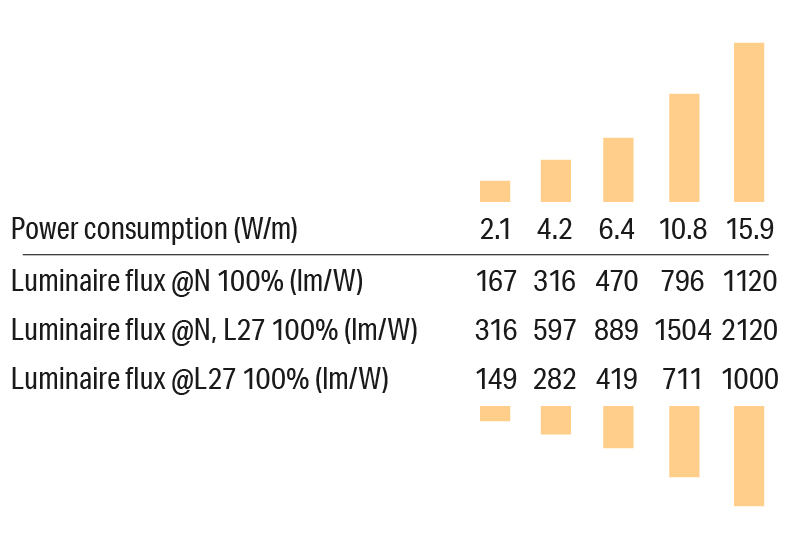

Wattage Variations
It offers a range of power consumption options, allowing users to choose the most suitable wattage based on brightness needs, energy efficiency, and installation requirements. With multiple wattage variations, this luminaire provides flexibility in light output, ensuring the right balance between illumination intensity and power consumption.
This feature is particularly beneficial for architectural lighting, retail spaces, hospitality environments, and residential settings, where different wattages can be selected to match the desired brightness levels, ambiance, and energy efficiency goals. By offering a variety of W numbers, users can achieve customized lighting solutions tailored to specific project needs. -

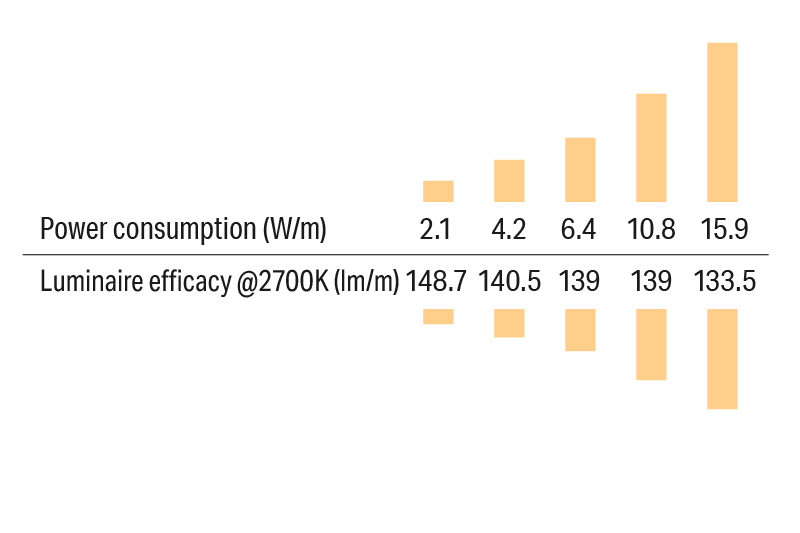

High Efficiency
With high efficiency, comparing old and new efficiency becomes unnecessary, as it already delivers optimized performance with low power consumption and maximum light output. Its advanced LED technology ensures superior energy savings and brightness, making older efficiency metrics irrelevant.
-

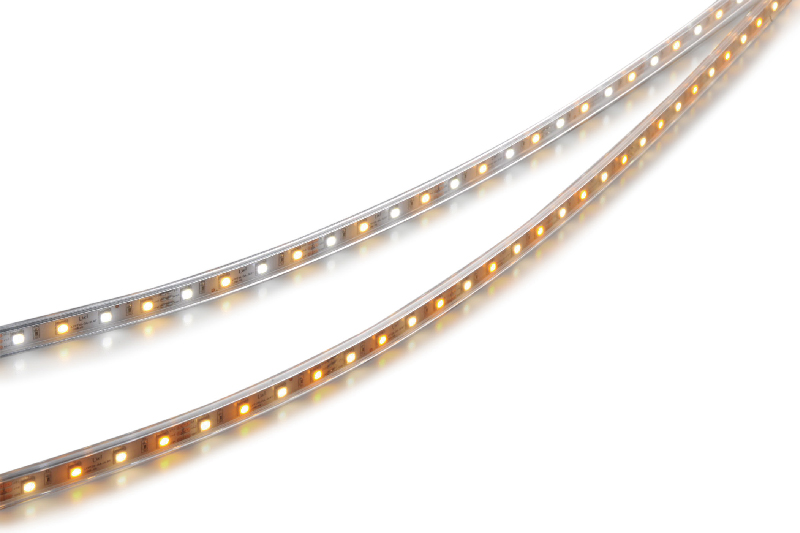

Alterated 2CCT LEDs tape light
It features two-color LEDs arranged in a row with a 7mm pitch, ensuring smooth color blending and uniform illumination. This design enables precise tunable white and dim-to-warm effects, providing seamless transitions between selected color temperatures for consistent and natural lighting.
SPECIFICATION OVERVIEW
Product length: up to 5 m at every 100 mm length
Cable feed: Both ends or one end feed cable
Max. length per run: 5m
Bending: Top-bendable
Min. bending radius: 50mm
Power Consumption: 4 variations, 2.1 W/m, 4.2 W/m, 6.4 W/m, 10.8W/m
Lumen: 2700K - 5000K
2.1W/m 167 lm/m @5000K, 316 lm/m @3500K, 149 lm/m @2700K,
4.2W/m 314 lm/m @5000K, 517 lm/m @3500K, 282 lm/m @2700K,
6.4W/m 470 lm/m @5000K, 889 lm/m @3500K, 419 lm/m @2700K,
10.8W/m 1120 lm/m @5000K, 2120 lm/m @3500K, 1000 lm/m @2700K
Color Temperature (delivered CCT): Free to select 2 CCTs from 9 CCTs, 6500K, 5000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Durable and flexible Soft acrylic
LED Type: High efficiency, long lifespan LEDs, >50,000h
