Luci SHIN Creide
LCEY

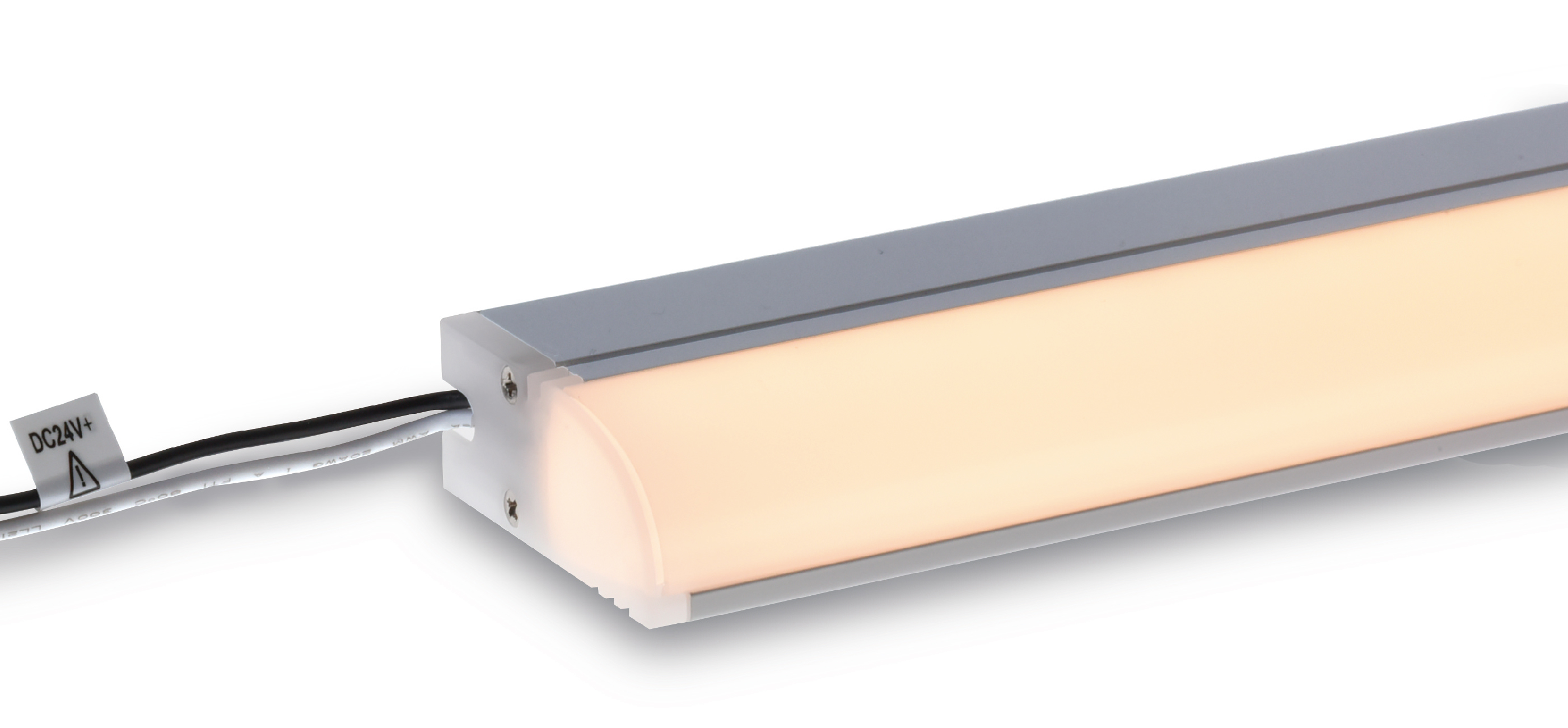

High efficacy LED series. Flat and crescent-shaped light with tilted beam angle, ideal for large ceiling cove

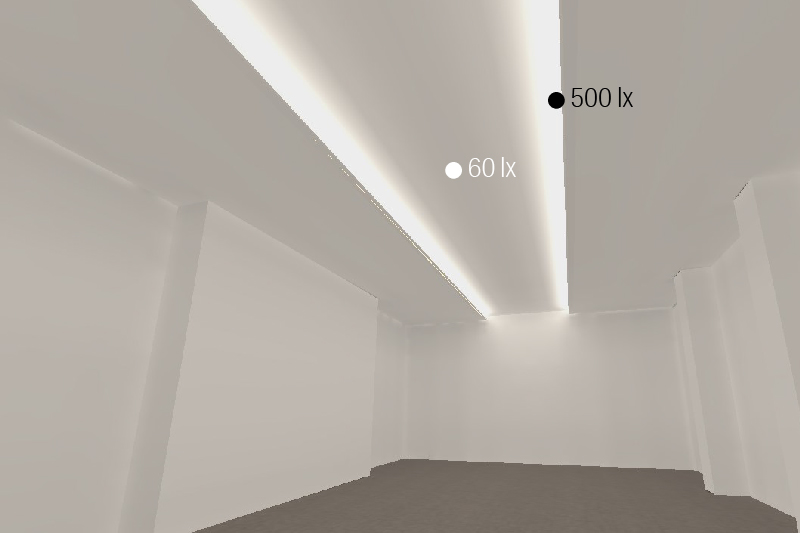

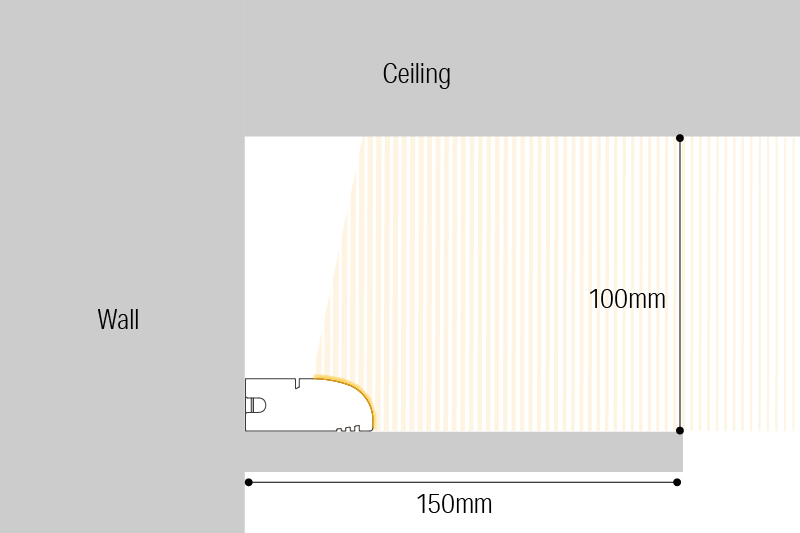

APPLICATION
Ceiling cove
It is designed for ceiling cove lighting, offering soft, uniform illumination that enhances architectural aesthetics. It integrates seamlessly into coves because of shorter heights only 17mm tall, creating a wider light spread by curved shaped emitting face, indirect lighting effect that concealing fitting while adding depth and ambiance. Ideal for luxury residences, hotels, retail spaces, lobbies, and theaters, it provides elegant and welcoming illumination. With high efficiency and flexible installation, the LCEY is a perfect choice for modern, sophisticated cove lighting solutions.
DESIGN & INSTALLATION TIPS

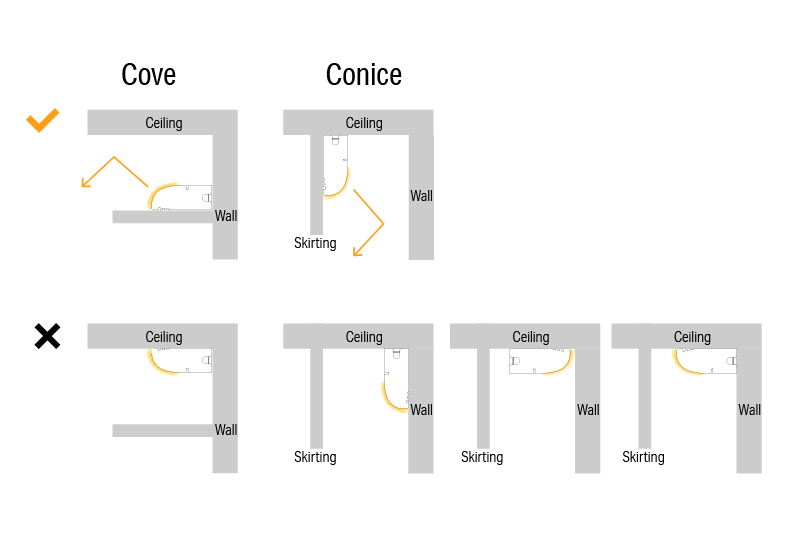

Correct installation
The light is emitted at an angle, so pay attention to the installation method. Ensure the correct fixture orientation."
This means that it emits light at a specific angle, requiring precise positioning during installation to achieve the desired lighting effect. Incorrect orientation may result in uneven illumination, glare, or ineffective coverage.
To ensure optimal performance, installers should carefully follow the recommended fixture alignment, ensuring that the light direction enhances the intended cove, accent, or architectural lighting application.

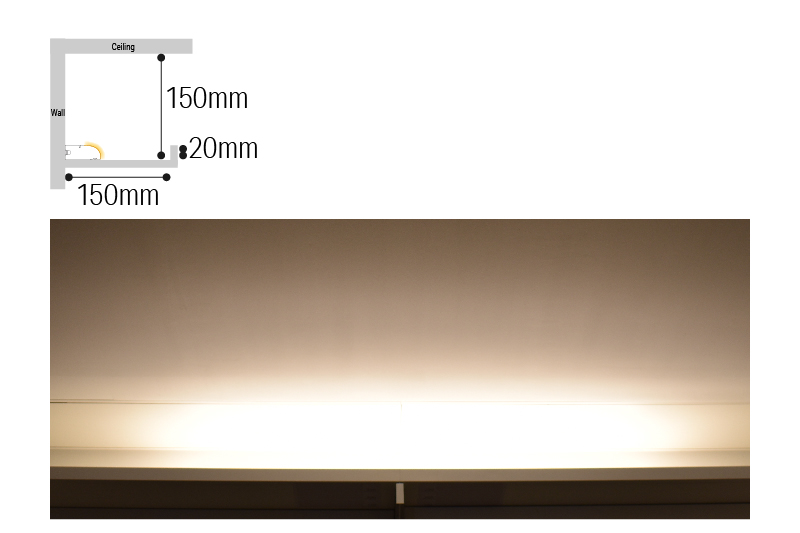

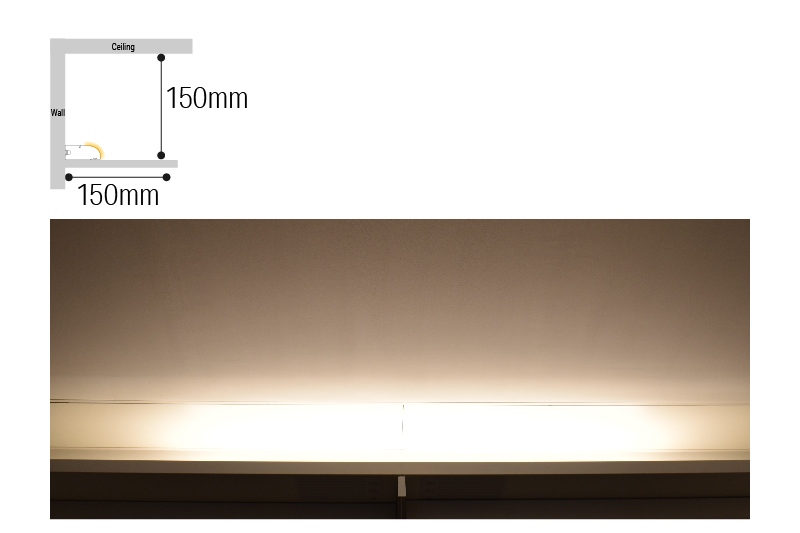

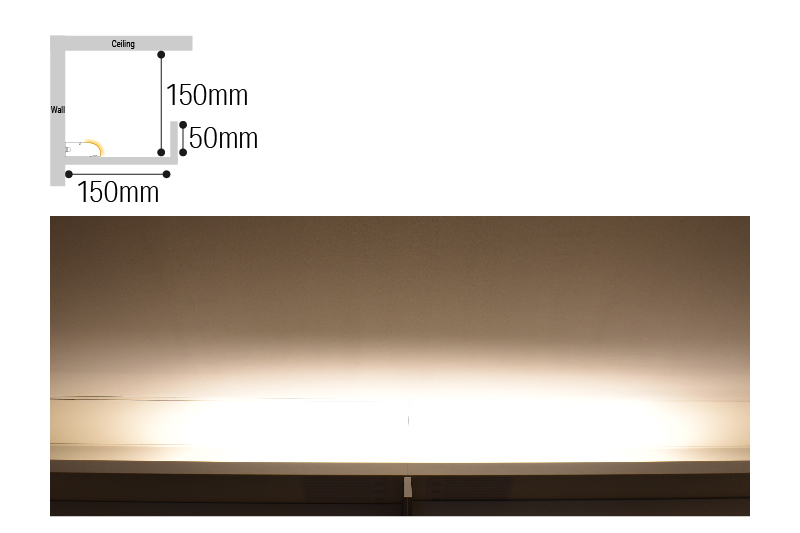

"With Palmet", "Without palme"" affect lighting appearance and glare control
Without a palmet, the light source remains fully visible, resulting in higher brightness but potential glare, making it suitable for direct illumination. With Palmet same height as reduces glare and softens the light for a more controlled and diffused effect. A deeper curtain plate fully conceals the light source, creating smooth, indirect illumination with minimal glare, ideal for cove and accent lighting. The difference in lighting effects can be best illustrated through visual simulations or real-life images, showing how each method impacts light distribution and ambiance.
FEATURE
-

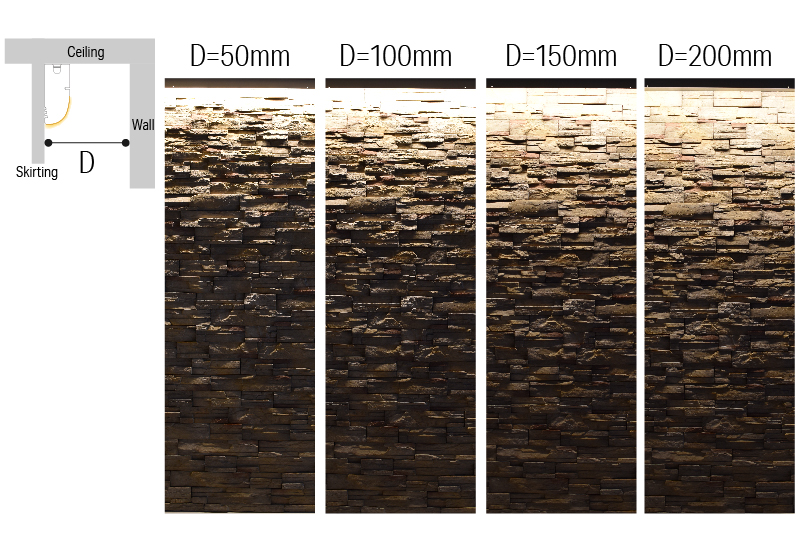

Surface Lighting Variation by Distance from Wal
The distance from the wall significantly affects the lighting effect and visual perception of the illuminated surface. A closer installation creates a sharper, more defined grazing effect, enhancing textures and shadows for a dramatic look. Increasing the distance from the wall results in a softer, more diffused wash of light, reducing contrast and creating a smoother illumination.
-

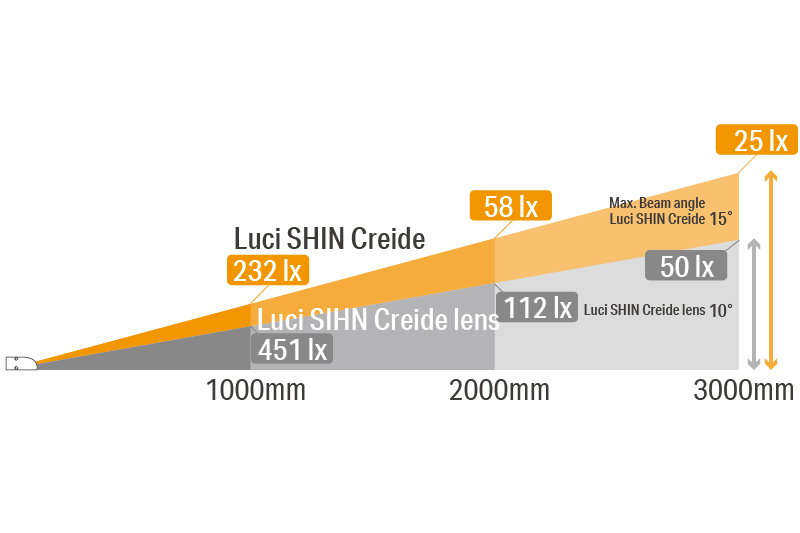

Light Distribution Analysi
SHIN Creide (LCEY) and SHIN Creide lens (LCELY) have the same external dimensions, but differ slightly in the way the light is emitted: LCELY has a lens, which extends the light at an angle of 10° diagonally, while LCEY has no lens, so the light is emitted at a slightly wider angle of 15°. The LCELY is recommended when you want to extend the light a little more for a wall grazing effect, while the LCEY is recommended for large cove lighting where you want an asymmetrical, slightly wider light.
-

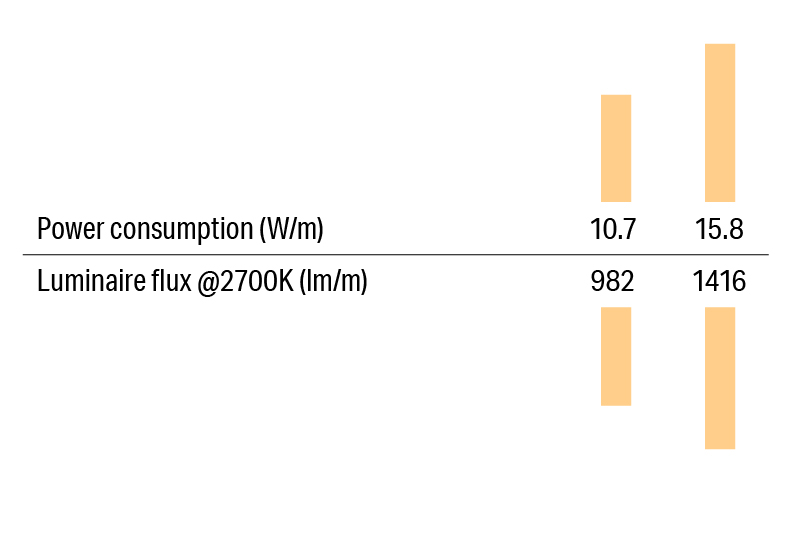

Wattage Variation
The [Wattage List] refers to a comparison of different wattage options, showing how the light output and performance vary across different power levels. By comparing wattages, users can see differences in brightness, efficiency, and application suitability, helping them select the most appropriate option for their needs.
This comparison highlights how higher wattage provides stronger illumination for wall grazing or accent lighting, while lower wattage offers softer, energy-efficient lighting for ambient or indirect applications -

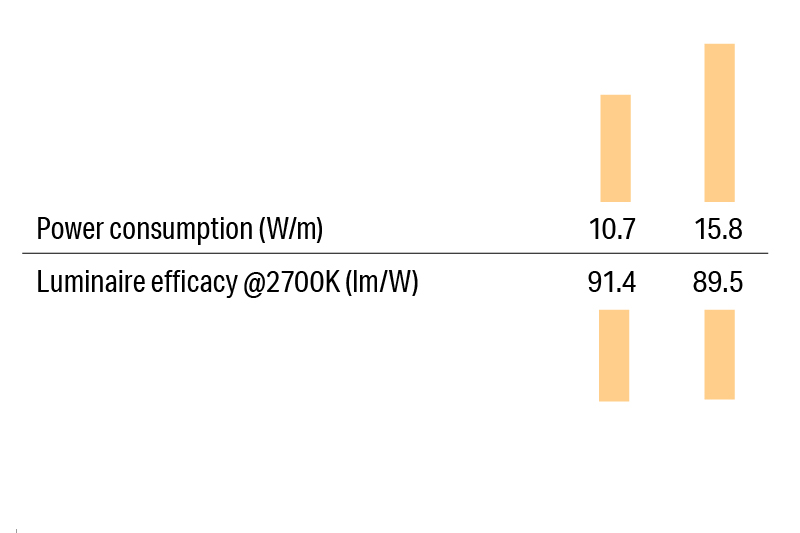

High Efficiency
With the updated high-efficiency LED series and two wattage variations, comparing old and new efficiency, as the latest model already offers improved performance, lower energy consumption, and higher brightness. The upgraded LEDs provide better lumen output per watt, ensuring greater efficiency and enhanced lighting quality.
-

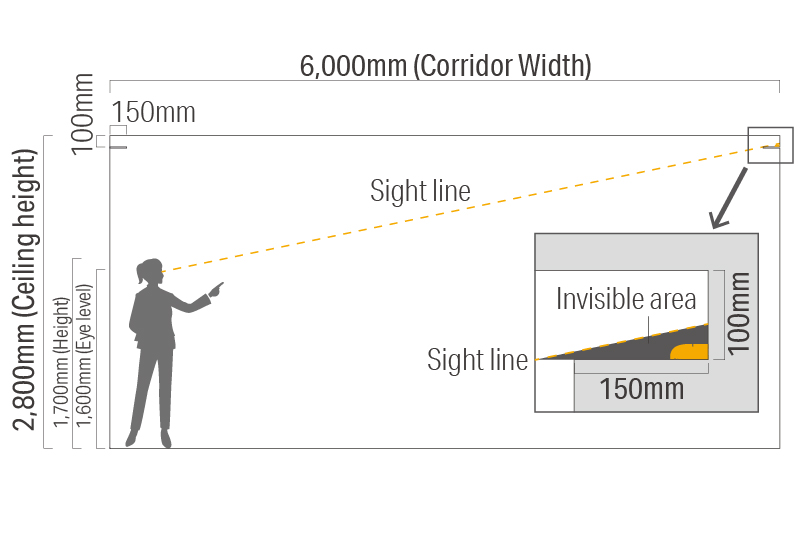

Invisible light without Pelmet

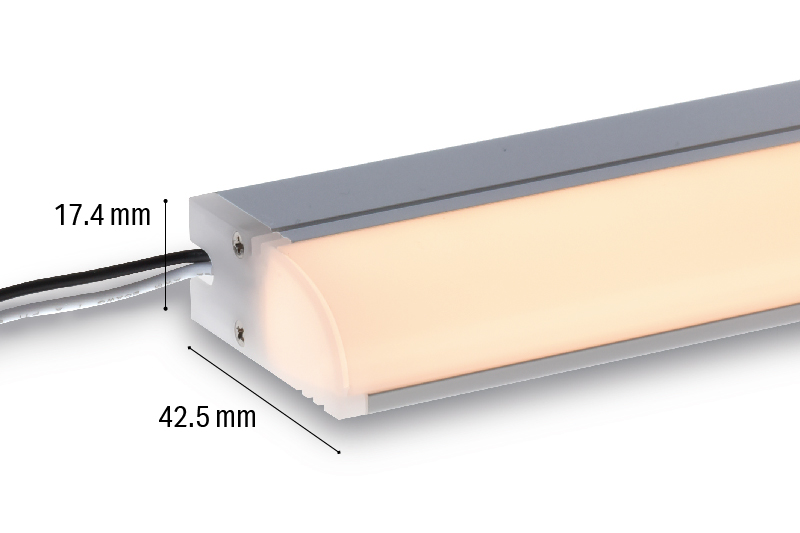

It refers to how the compact design of the fixture affects its light distribution and concealability. With a height of just 17mm, the luminaire is easy to hide within architectural elements, ensuring a clean, seamless installation while still providing effective illumination.
Even when installed in areas with a low bosom (shallow recess or limited mounting depth), the light extends outward efficiently, creating a wide, well-distributed glow. A cross-sectional illustration helps visualize how the luminaire fits discreetly while delivering consistent, glare-free lighting. -

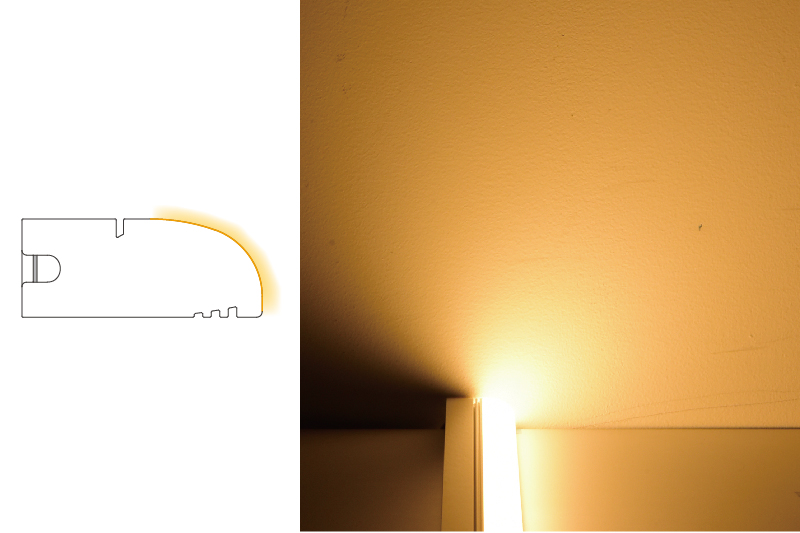

The crescent shape makes light go in diagonals
The [Luminaire Shape and Light] refers to how the crescent-shaped design of the fixture affects its light distribution. This curved shape helps spread light more evenly, creating a soft, diffused glow rather than a harsh, concentrated beam.
By dispersing light smoothly, the crescent shape enhances ambient illumination, making it ideal for cove lighting, indirect lighting, and accent applications where a balanced and glare-free effect is needed.
SPECIFICATION OVERVIEW
Product length: up to 1.4 m at every 100 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 2 variations, 10.7 W/m, 15.8 W/m
Lumen: 982 to 1416 lm/m @2700K
Color Temperature : 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 2000K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
