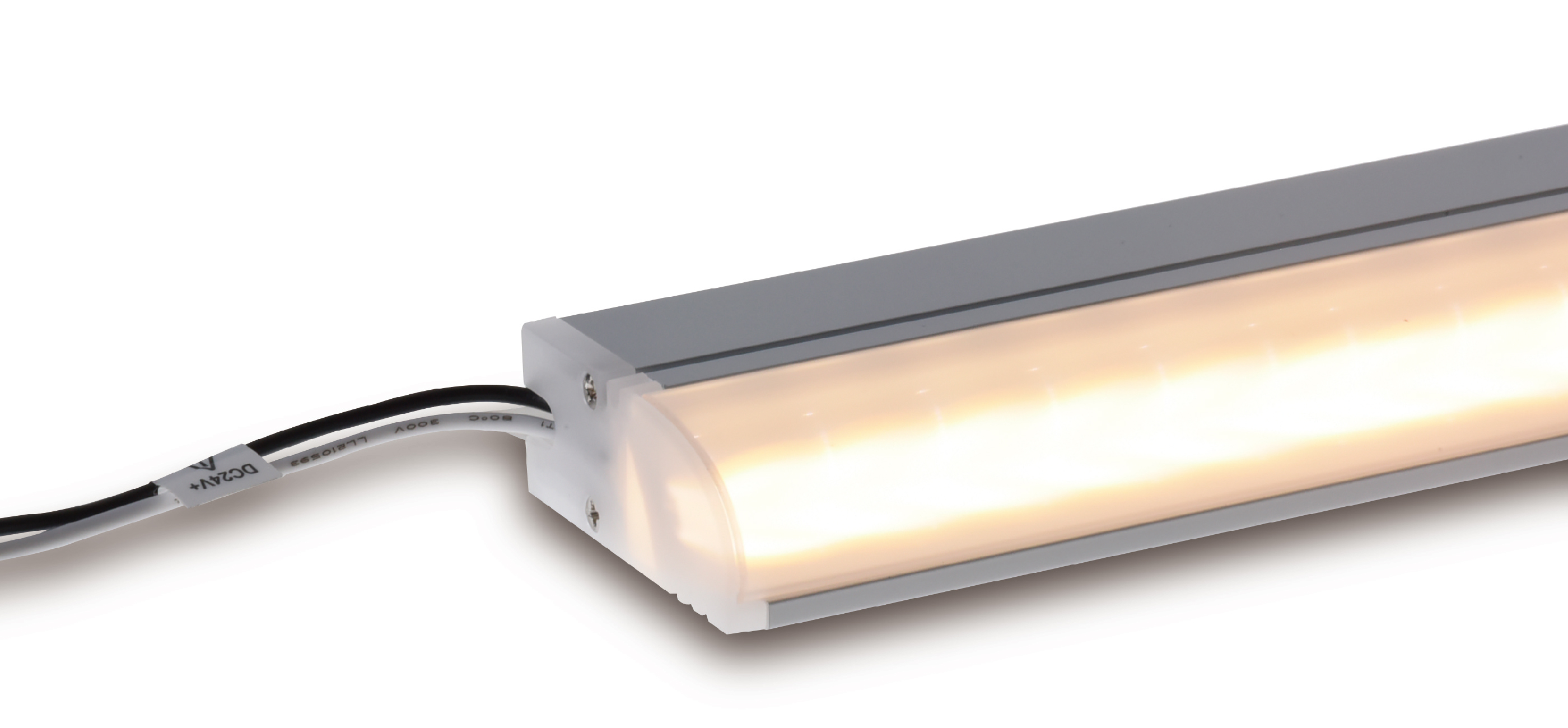

Luci SHIN Creide lens
LCELY
High efficacy LED series. Flat and crescent-shaped light with tilted narrow beam angle, ideal for soft wall grazing
APPLICATION

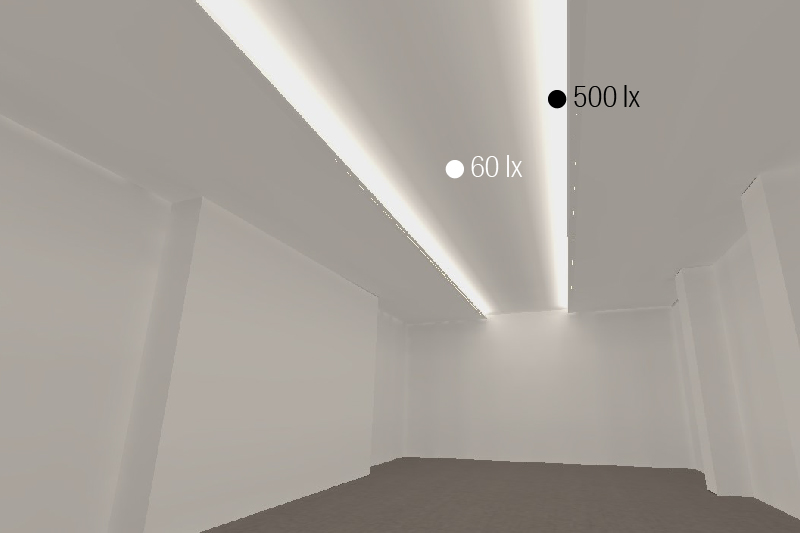

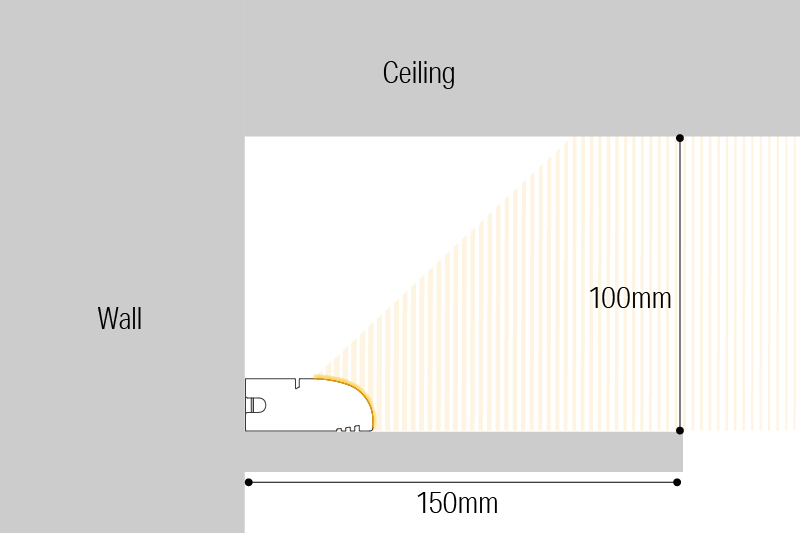

Ceiling cove
It is designed for ceiling cove lighting, providing precise, uniform illumination with enhanced light control and diffusion. Its integrated lens technology ensures smooth, glare-free and asymertric lighting, making it ideal for architectural spaces requiring refined ambient lighting.
Best suited for luxury residences, hotels, retail spaces, lobbies, and theaters, it enhances depth and ambiance while maintaining a clean and modern aesthetic.

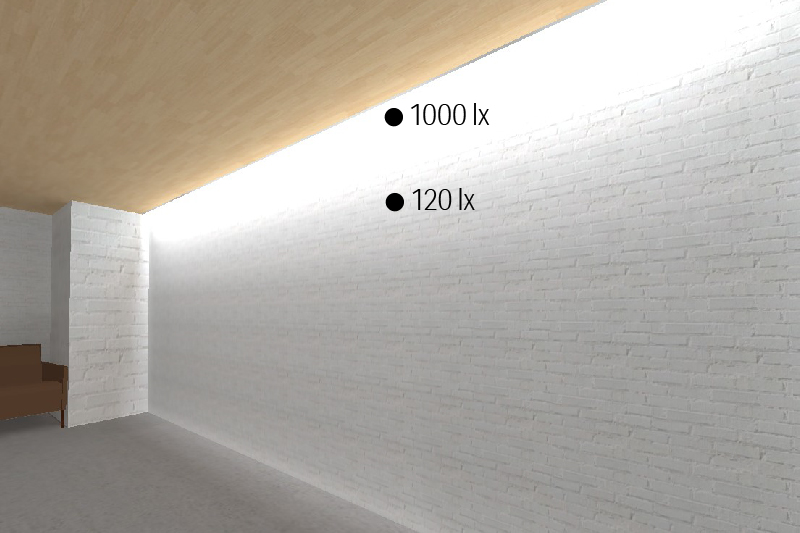

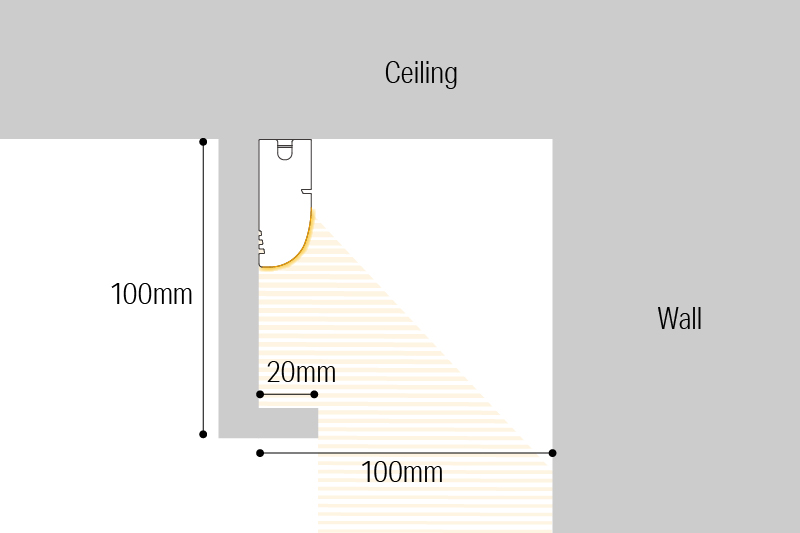

Wall graze
It is ideal for wall grazing applications, providing 15 degree diagonally sharp, uniform illumination that enhances textures and architectural details. Its precision lens design ensures focused light distribution, minimizing glare while creating a dramatic lighting effect.
DESIGN & INSTALLATION TIPS

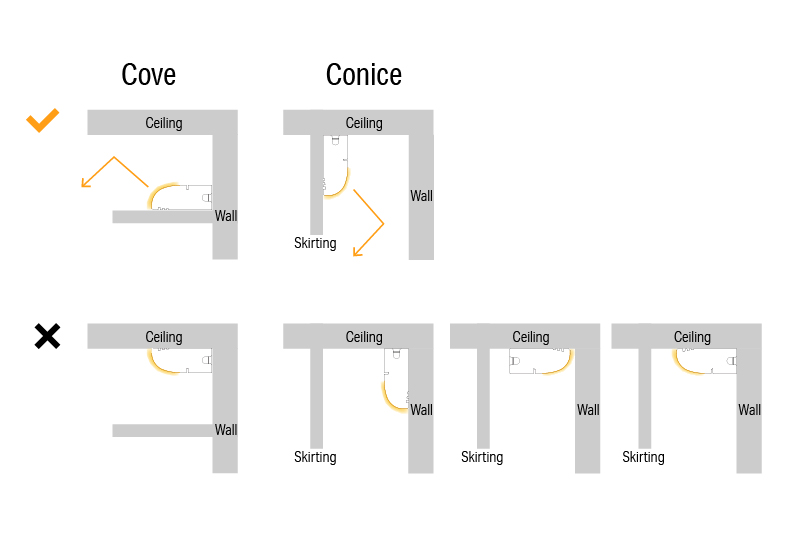

Correct installation
The luminaire emits light at an angle, so proper installation and orientation are crucial to achieving the desired lighting effect. Incorrect positioning may result in uneven illumination, glare, or misplaced light distribution. Ensuring the correct orientation allows for optimal light coverage, making the fixture effective for cove, wall grazing, or indirect lighting applications.

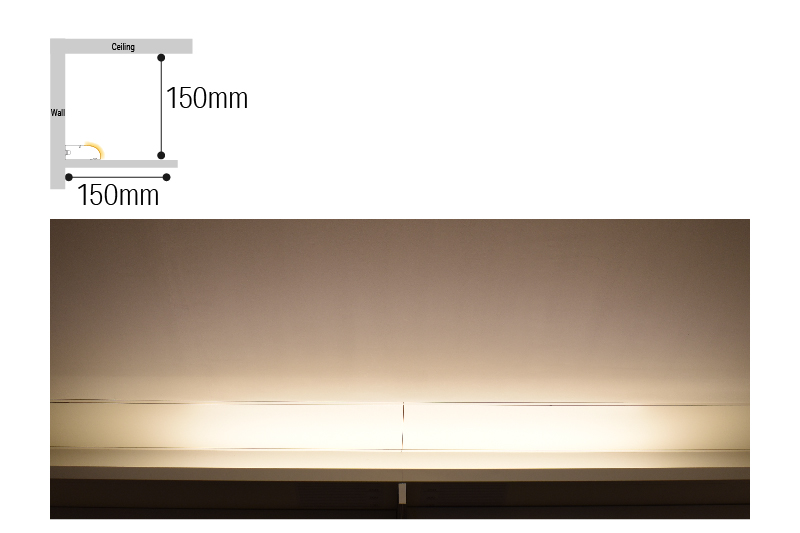

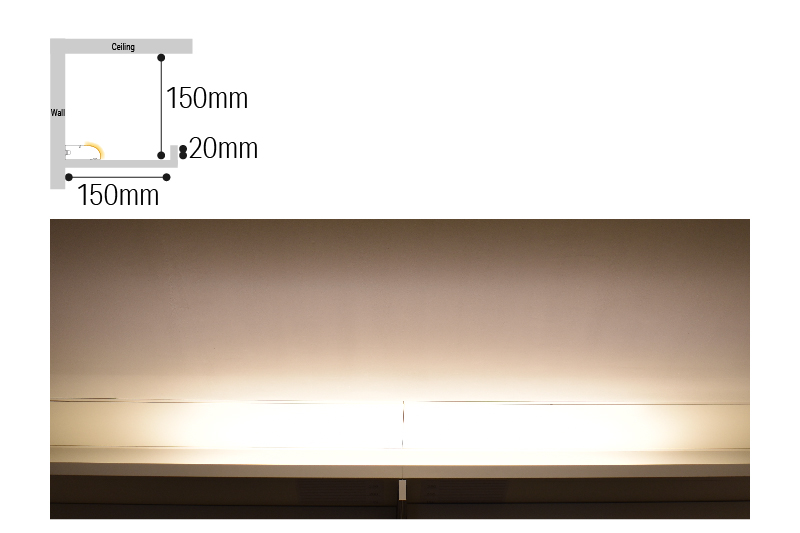

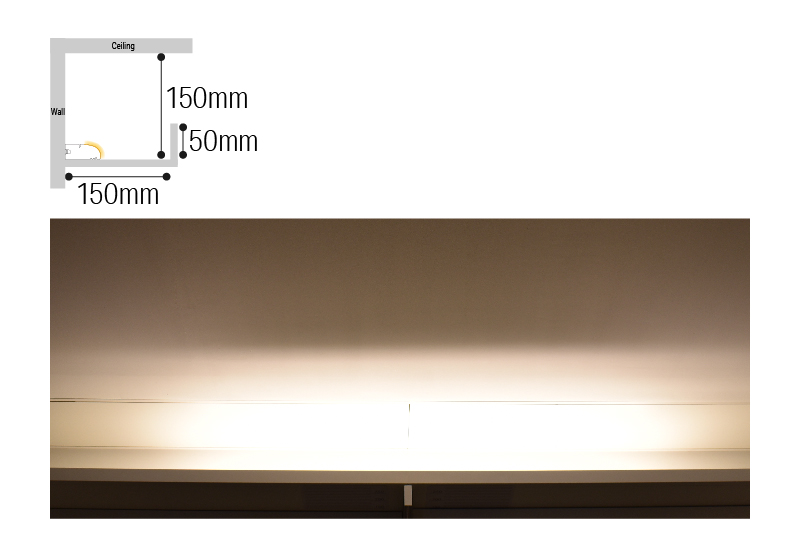

"With Palmet", "Without palmet" affect lighting appearance and glare control
Skirting plate affects lighting parformance and glare control. Without a skirting, the light source remains fully visible, resulting in higher brightness but potential glare, making it suitable for direct illumination. A partial curtain plate reduces glare and softens the light for a more controlled and diffused effect. A deeper skirting plate fully conceals the light source, creating smooth, indirect illumination with no glare, ideal for cove and accent lighting. The difference in lighting effects can be best illustrated through visual simulations or real-life images, showing how each method impacts light distribution and ambiance.
FEATURE
-

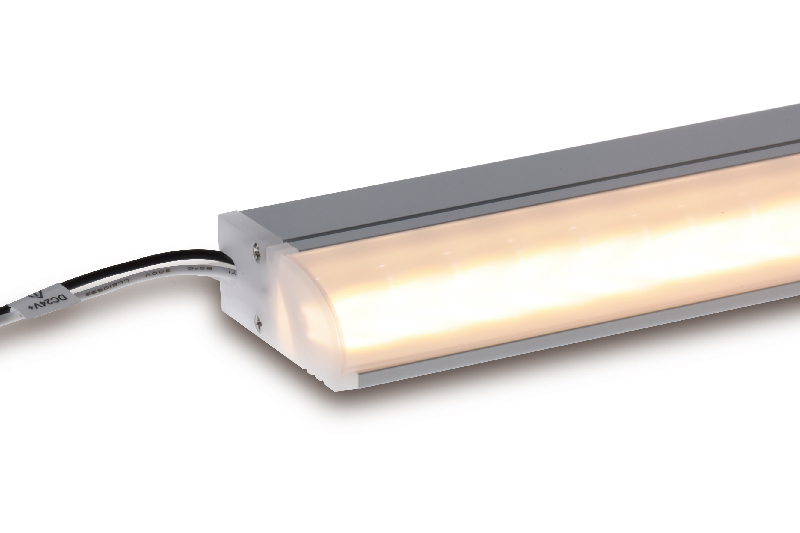

Dots
SHIN Creide lens (LCELY) is designed with lenses to ensure smooth and uniform illumination while making the LED dos less visible. This means that while individual LEDs are present, the light diffusion is carefully optimized, preventing a harsh or uneven lighting effect.
-

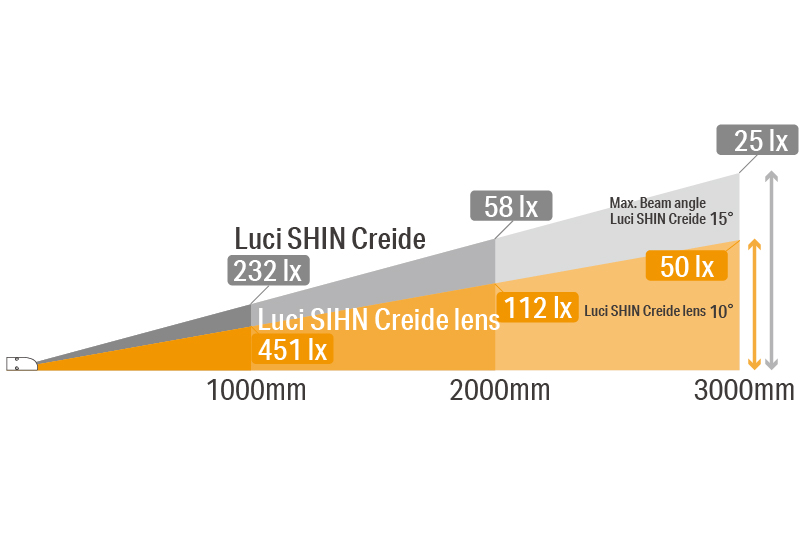

Light Distribution Comparison: SHIN Creide lens vs. SHIN Creide
SHIN Creide lens (LCELY) and SHIN Creide (LCEY) have the same external dimensions, but differ slightly in the way the light is emitted: LCELY has a lens, which extends the light at an angle of 10° diagonally, while LCEY has no lens, so the light is emitted at a slightly wider angle of 15°. The LCELY is recommended when you want to extend the light a little more for a wall grazing effect, while the LCEY is recommended for large cove lighting where you want an asymmetrical, slightly wider light.
-

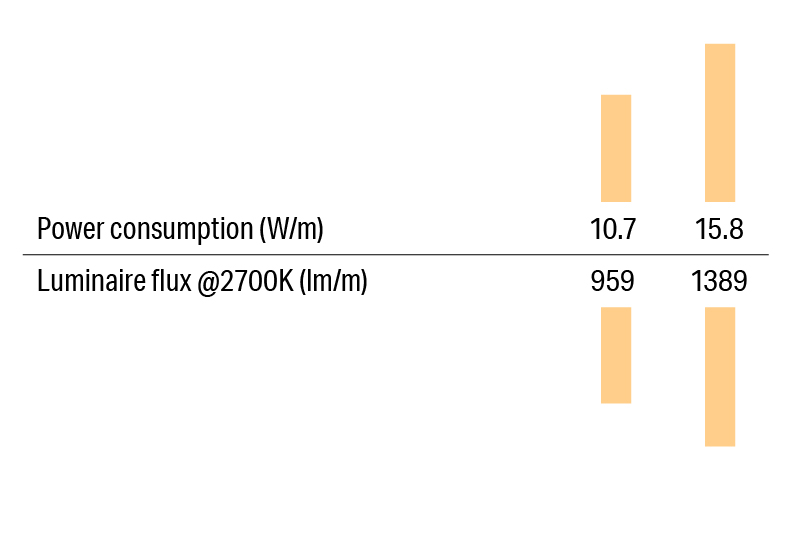

Wattage Variation
It refers to a comparison of different wattage options, showing how the light output and performance vary across different power levels. By comparing wattages, users can see differences in brightness, efficiency, and application suitability, helping them select the most appropriate option for their needs.
This comparison highlights how higher wattage provides stronger illumination for wall grazing or accent lighting, while lower wattage offers softer, energy-efficient lighting for ambient or indirect applications -

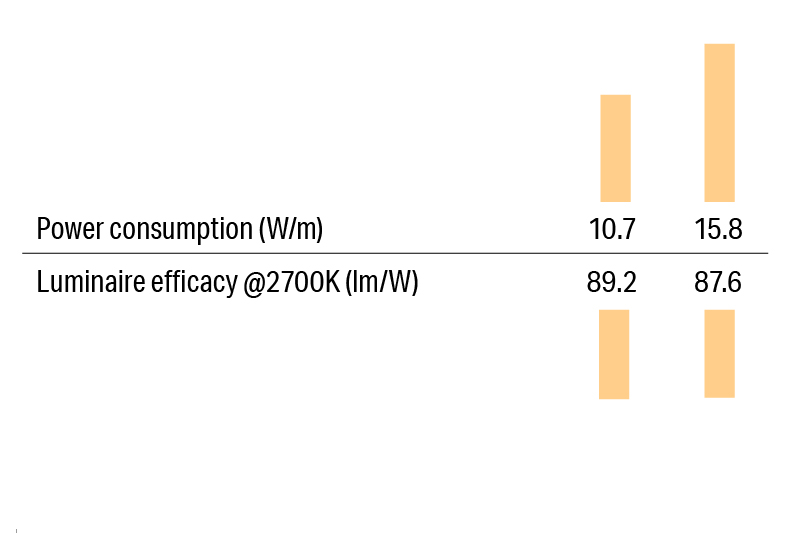

High Efficiency
With the updated high-efficiency LED series and two wattage variations, comparing old and new, as the latest model already offers improved performance, lower energy consumption, and higher brightness. The upgraded LEDs provide better lumen output per watt, ensuring greater efficiency and enhanced lighting quality.
-

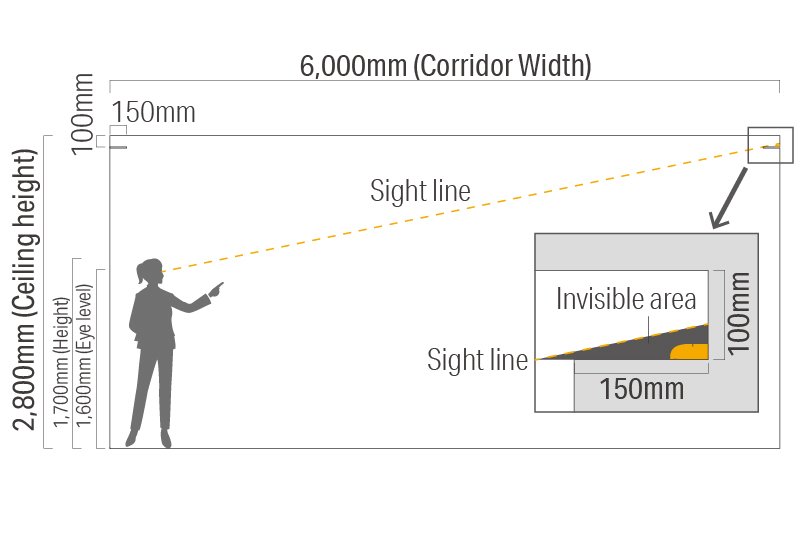

Invisible light without Pelmet

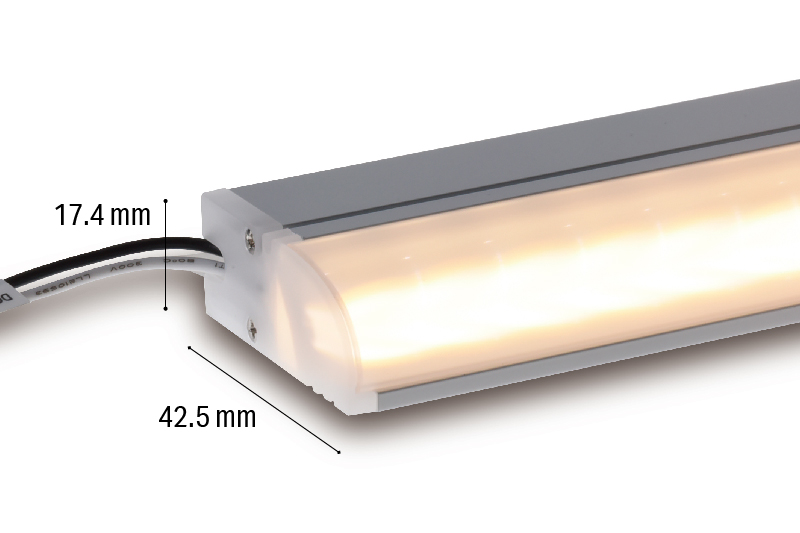

It refers to how the compact design of the fixture affects its light distribution and concealability. With a height of just 17mm, the luminaire is easy to hide within architectural elements, ensuring a clean, seamless installation while still providing effective illumination.
Even when installed in areas with a low bosom (shallow recess or limited mounting depth), the light extends outward efficiently, creating a wide, well-distributed glow. A cross-sectional illustration helps visualize how the luminaire fits discreetly while delivering consistent, glare-free lighting. -

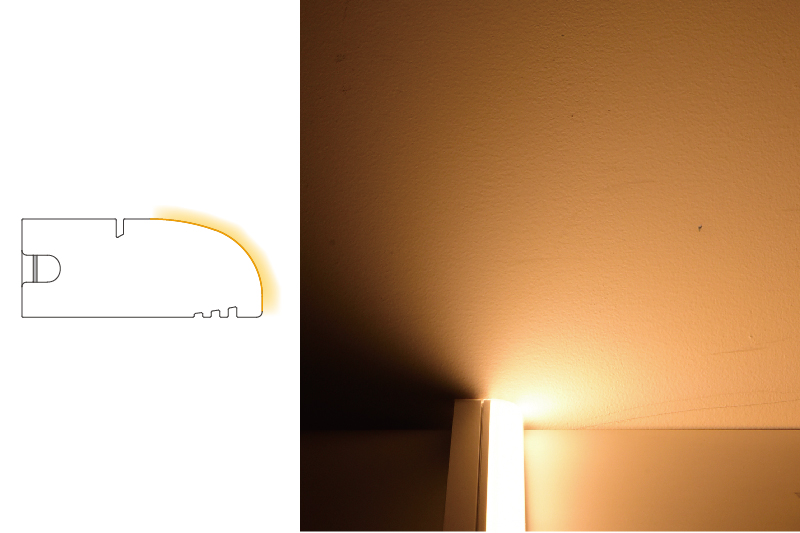

The crescent shape makes light go in diagonals
It refers to how the crescent-shaped design of the fixture affects its light distribution. This curved shape helps spread light more evenly, creating a soft, diffused glow rather than a harsh, concentrated beam.
By dispersing light smoothly, the crescent shape enhances ambient illumination, making it ideal for cove lighting, indirect lighting, and accent applications where a balanced and glare-free effect is needed.
SPECIFICATION OVERVIEW
Product length: up to 1.4 m at every 100 mm length
Cable feed: Both ends feed cable
Max. length per run: 5m
Power Consumption: 2 variations, 10.7 W/m, 15.8 W/m
Lumen: 959 to 1386 lm/m @2700K
Color Temperature : 6500K, 5000K, 4000K, 3500K, 3000K, 2700K, 2500K, 2200K, 1800K
IP Rating: Indoor
Materials: Aluminum, Polycarbonate
LED Type: High efficiency, long lifespan LEDs, >50,000h
