2018/12/25New

Release of " Luci ORILEGA 145W/75W/30W 24V "



With thorough quality control,
Luci continues to make products that
customers can use with confidence


Quality policy of Luci ORILEGA

 - In-house designed electric circuit and housing
 - Reliability test and safety test conducted by our company and third-party test laboratory
 - Ongoing operation test in high-temperature circumstance (60℃)
 - Production process under Luci own standards and one hundred percent inspection

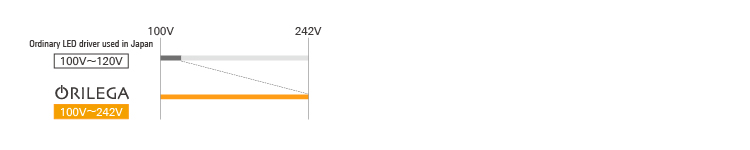

PSE certified range: AC100 - 242V

ORILEGA is PSE compliant at all voltages. Voltage range that can be used not only in Japan but also in many overseas countries.

Quiet structure conforming to JIS

Reduced sound generation due to coil vibration during PWM dimming, maintaining operating noise in 25 dB or less. Meets the requirements of JIS C 8115 sound level.


Complied with CISPR11

CISPR is an abbreviation of French of the International Special Committee on Radio Interference, and it is a standard that sets electromagnetic tolerance for equipment that may be affected by electromagnetic waves. Available to use in hospital and medical institution as ORILEGA is in conformity to CISPR11 and CISPR15.



CE mark compliance / RoHS  compliant with environmental directives

Available to import and use in EU as ORILEGA comply with CE mark which required to be labelled on the product complying with the laws and regulations and RoHS directive compliant with the environmental standard in EU. In addition, ORILEGA is designed according to the ENERGY STAR requirements.


PC isolated case,  safe and durable structuretructure

Robust structure conforming to Japan indoor wiring regulations aimed at securing the safety of electrical equipment Countermeasures against discoloration and overheating


Structure of low heat dissipation

Since the legs are attached, the bottom of the power supply is away from the installation surface, air convects and heat is easy to escape from the power supply.


Maximum distance  to the terminal of LED fixture: 35 m

The distance from power supply to the terminal of LED fixture can be extended up to 35 m when the output cable is 1.25 sq mm.


Low aoutput ripple voltage

Ripple voltage occurs in DC24V output device. It may slightly affect the output effect of the LED fixtures. The lower output ripple voltage, the lower flickering occurs. Output ripple voltage of ORILEGA is 50mV which is lower than other power supply.




 Products
 Luci ORILEGA 145W
 Luci ORILEGA 75W
 Luci ORILEGA 30W
